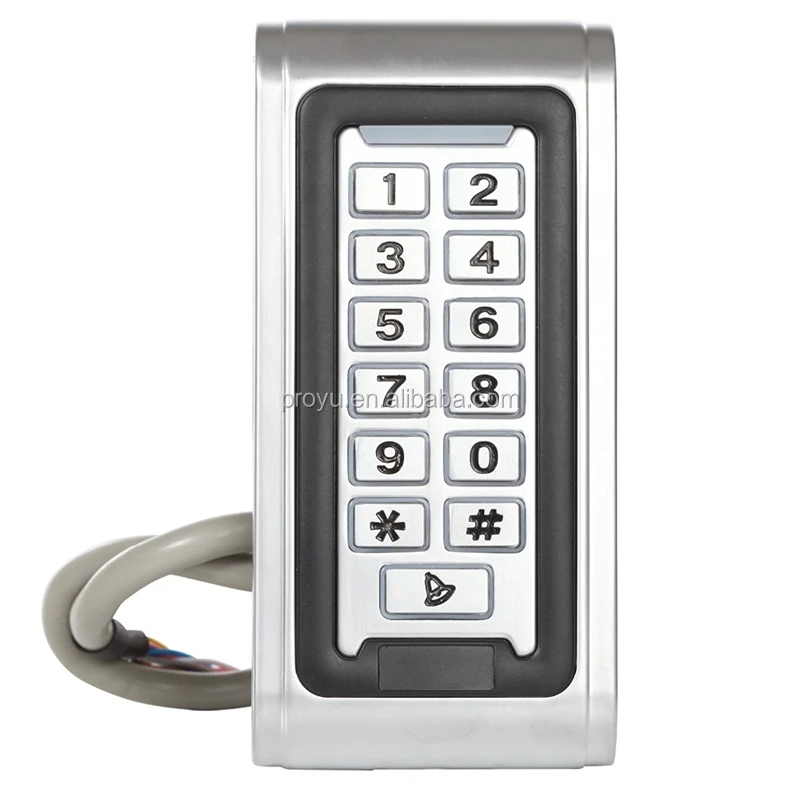

IP68 Waterproof Metal Keypad EM Card Standalone Electronic Access Control

Product Overview

Description

IP68 Waterproof Metal Keypad EM Card Standalone electronic access control





1. Perfect disign, with backlight and fashion silver finish.

2. Waterproof design for outdoor use.

3. strong standalone function device, can be used as WG26 reader alone.

4. Capacity:2000 user’s cards,2000 codes;

5. Access ways : cards ,code,card +code.

6, Low power :static current less than 30mA.

7, Support only keypad ,

8, users can reset private passwords.

9, Search fast less than 0.1s .

10, Wiegand output Wg26 for card and Wg34 for codes. Standard:wiegand 26

11, use keypad to delete lost cards for safety.

12, Short-circuit protect : when relay or alarm output short circuit, it will shut up output in 100μS.

 13. Card Type: ID card

Technical parameters:

Work Voltage: DC9-28V

Static Current: ≤30mA

Reading Range: 3~8cm

Capacity: 2000 users

Environment Temperature: -25°C~60°C

Environment Humidity: 10%~90%

Electric lock output: ≤3A

Alarm output: ≤20A

Output short-circuit protection time: ≤100μS

Open-door time: 0 ~ 99 seconds (adjustable)

Size: 120 *56*18mm
