Graphite Plate for Lightning Protecting Device

SPD Graphite Plate:

DJX specialized in carbon graphite materials and products for more than twenty years, we are confident to provide you high quality products with the most reasonable price, please join us to enjoy our quality and services.

DJX supplies graphite plate for SPD Surge Protection Device with various sizes, customerized products are available depending on your pictures and drawings, we will recommend the most suitable graphite material for you, please contact us for more details.

Based on the disadvantage of traditional gap surge protector (SPD), and combined with the material characteristics of graphite and Thompson gas discharge theory, a large scale of experiments on the new type of graphite gap SPD were completed by open circuit voltage wave generator and ICGS impact system. The results show that, after the high voltage trigger capacitance device was added to the new type of graphite gap SPD, every gap was triggered step by step so that the voltage protection level was reduced. At the same time, the graphite gap SPD is better than traditional gap SPD on time delay characteristics, and is able to achieve the arc extinction requirements before the power frequency voltage dropped to zero. In addition, graphite belongs to non-metal materials; it won't produce plasma under high temperature, which can improve the stability of device and delay aging.

SPD Graphite Plate Working Principle:

Based on arc discharge technology, when the voltage between the electrode reaches a certain degree, the electric circuits or in the communication line for outside disturbance suddenly produce peak current or voltage, surge protector can in a very short time conduction tap, breakdown of air on the electrode arc creepage, to avoid surge damage to other devices in the circuits.

SPD Graphite Plate Advatanges:

SPD graphite plate generally made of  isostatic pressing graphite, purity more than 99.9%, compression resistance more than 90 mpa and flexural  strength more than 45 mpa, the SPD uses graphite plate has features as follows:

1.Protection of large flow, low residual pressure, fast response

2.Using the latest arcing technology, completely avoid fire

3.Using temperature control protection circuit, built-in thermal protection

4.With the power status indicators, Indicates the working condition of the urge protector

5.Structure knit well, High-reliability and wide range application

6.Large discharge current, discharge current (up to 100 ka), small leakage current, without stream without arc to spill, good thermal stability

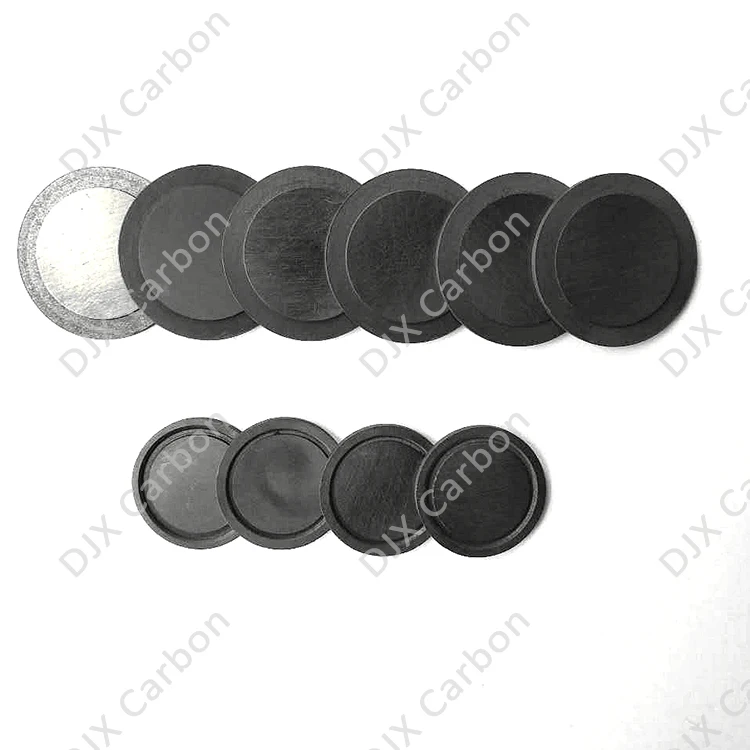

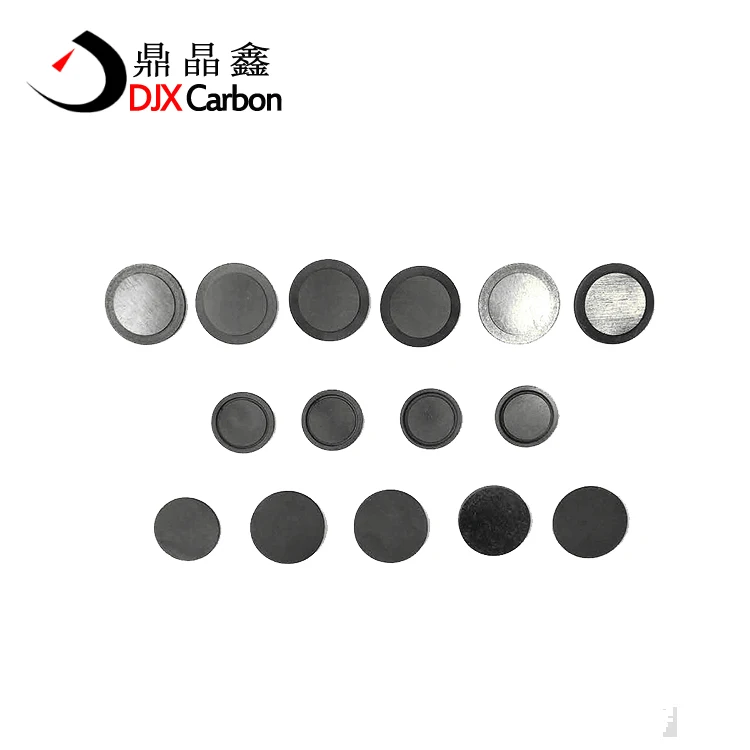

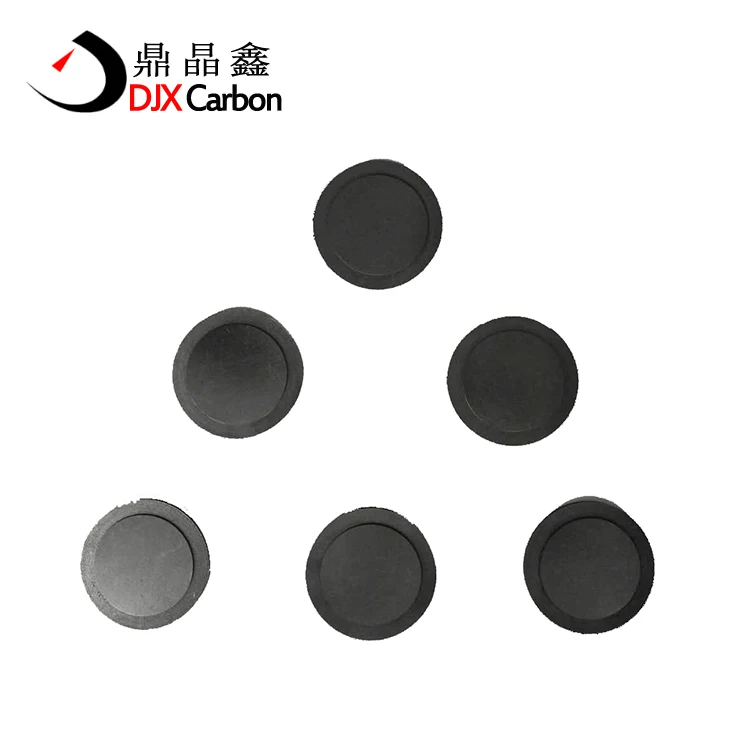

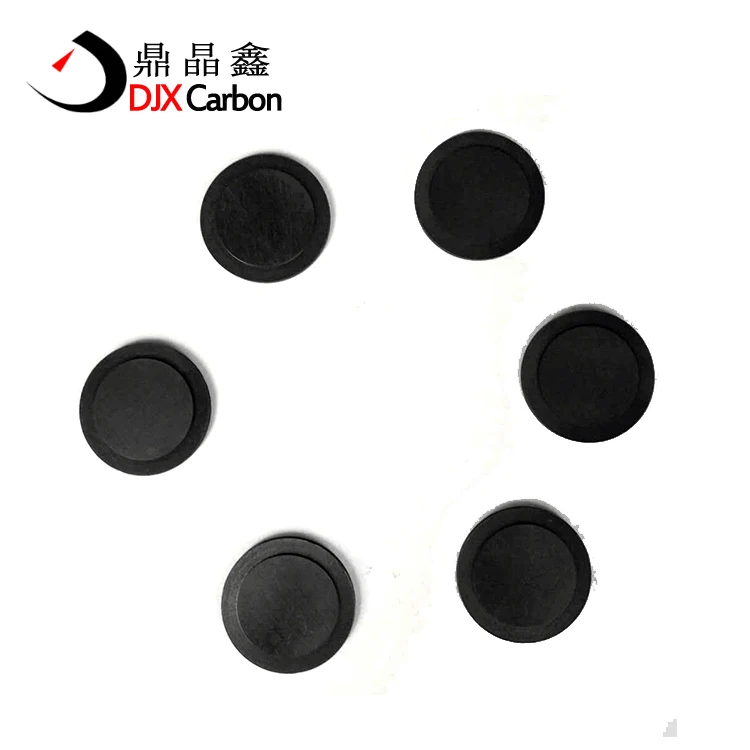

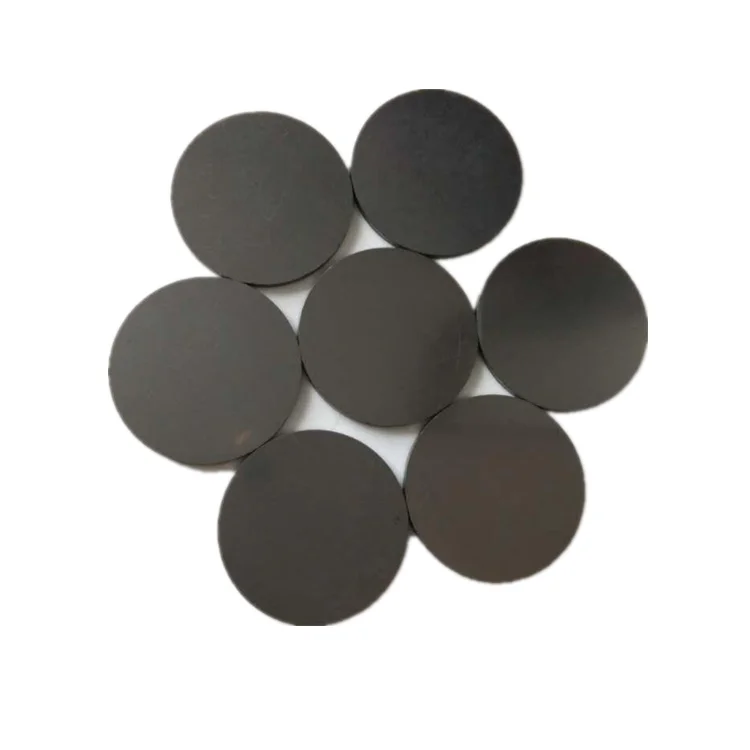

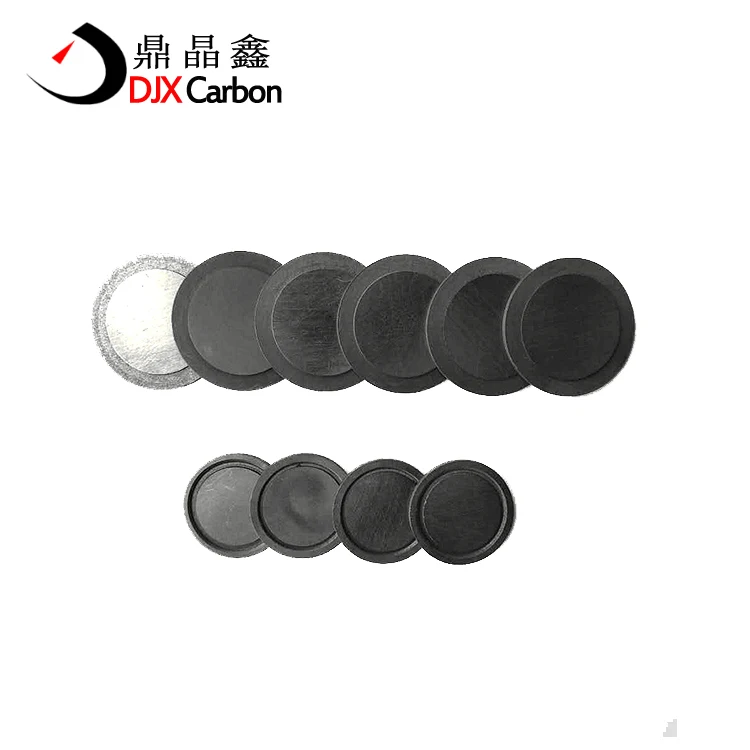

SPD Graphite Plate Detail Picture:

Delivery Time: According to customized products

About Express: According to customer requirements, for example FedEx,TNT,UPS,EMS,DHL,etc.

• Efficiency             : Your enquiry will be replied within 24hours for quotation and                                                specifications.


• Fast Delivery        : Our capability and material stocks will make sure fast delivery on your                                  demands.


• Customization      : We provide OEM services based on customer's design and drawings.


• Quality and Price : We will offer you high quality product with the most competitive                                           price.


• Quality Guarantee: Same quality for sample and product.


• After-sales Services: Tracking service for feedacks of our prodcts, we will be responsible                                       for any quality problem.

    Pingdingshan Dingjingxin Industry & Trade Co. Ltd is a professional manufacturer for carbon & graphite products, located in Pingdingshan city which is the most important industrial city for coal and carbon in middle of China, the graphite production of Pingdingshan takes nearly 90% of China.

    We have complete carbon & graphite production line with reasonable production process and advanced equipment, such as digital lathe, miller, driller, CNC numerically controlled machine tool, numerical-control engraving machine etc. Our company owns 6 senior engineers, 32 professional technicians and hundreds of skilled production workers. We have independent quality inspection department, each production process will be checked strictly to ensure all the products are of high quality.

    We are specialized in manufacturing all kinds of graphite materials and carbon & graphite products, they are widely used in lightning protection, heat treatment, super-hard material, bearing, Non-ferrous metal casting, electro-spark processing, electronic semi-conductor, mechanical sealing, photovoltaics, glass and ceramic, automobile, carbon brush etc.. Our main products include electrode plate for surge protective device, graphite boat, graphite crucible, graphite bar, graphite mould, graphite crystallizer, mechanical sealing ring, graphite bearing, carbon bar, carbon plate, carbon disc, graphite connectors, graphite seal, carbon brush for all kinds of motors, lug plate spring etc..

 Q1:Are you a Manufacture Factory?

Yes.We are the Direct Manufacture Factory, and our factory has specialized in industrial electronic products for ten years.

Q2: Do you have stock products to sell?

No,We produce these electronic products accorded to the customer’s requirement,

It also means material, density, shape, size,design,quantity will depend on what your need.OEM

orders always be welcomed.

Q3: Does the electronic product can  be printed  a LOGO?
Yes, we can print the logo as your requirement .

Q4:What  advantages do you have?

A: We are the direct Manufacturer in China and could offer you the most competitive price.

B: We are the Factory, and we have the ability to carry out production schedule for punctual

     delivery.

C: We could make products according to your requirments.

D: We can provide free samples for quality evaluation.

Q5:If I want to get a Quotation, what information need be provided to you?

Type, Quantity.

Hope to cooperate with you,Thanks !
