5kw rare earth pm generator price

Product Overview

Description

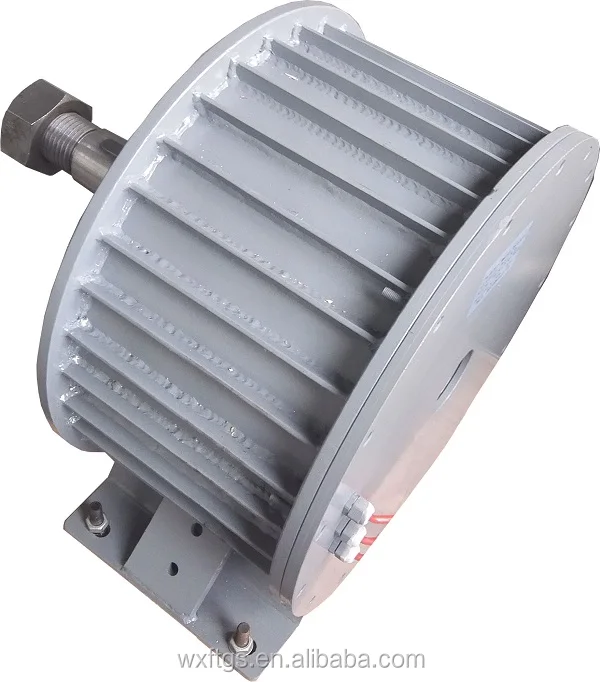

5kw rare earth pm generator price

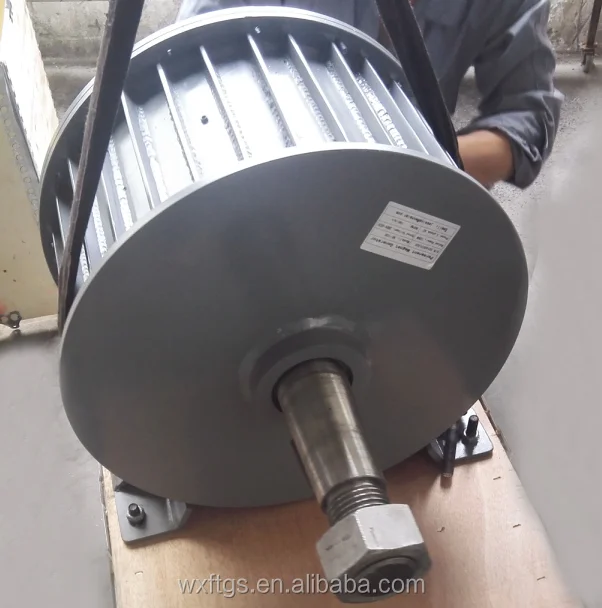

Deatil parts



Features

• Low start up speed
• Low cogging torque
• Suitable for both Horizontal and Vertical Turbines
• Gearless, direct drive, low RPM generator
• Alternator generator Type permanent magnet generator
• For use in all environments
• Excellent heat dissipation
• Designed for 20-year operation life.

Parameters

Model	FT-5000P
Rated Power(w)	5000w
Max Power(w)	7000w
Rated Voltage(v)	96/120/220v
Rated Rotated Speed(r/m)	300r/m
Top Net Weight(kg)	80kg
Output Current	AC
Start Torque(N*M)	1.1Nm
Rated Torque(N*M)	159.2Nm
Generator	3 phase permanent magnet synchronous generator
Insulation Class	F
Service Life	More Than 20 years
Bearing	HRB or for your order
Shaft Material	Iron
Shell Material	Carbon Steel
Permanent Magnet Material	Rare Earth NdFeB
Protection Grade	IP54
Lubrication	Lubrication Grease
Working Temperature	-40℃ - 80 ℃

System drawing

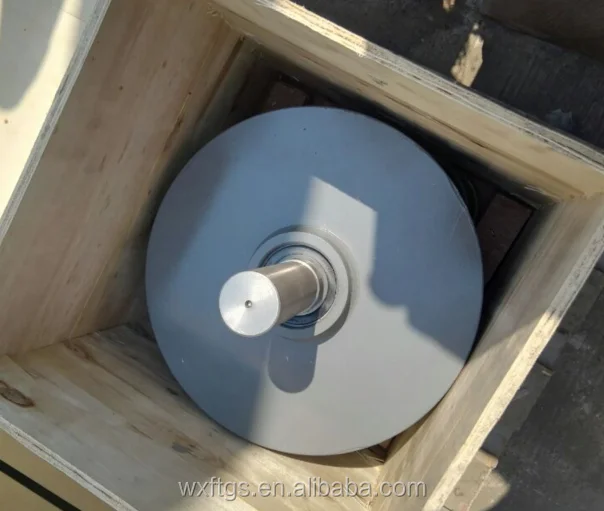

Standard packing
