Цена по прейскуранту завода-изготовителя бетонный насос/бетоно мешательных насосов/бетонный труба насоса с высоким качеством
- Category: Concrete Pumps >>>
- Supplier: Zhengzhou,City,Reno,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Factory price concrete pump/concrete mixer pump/concrete pump pipe with high quality
Product Description

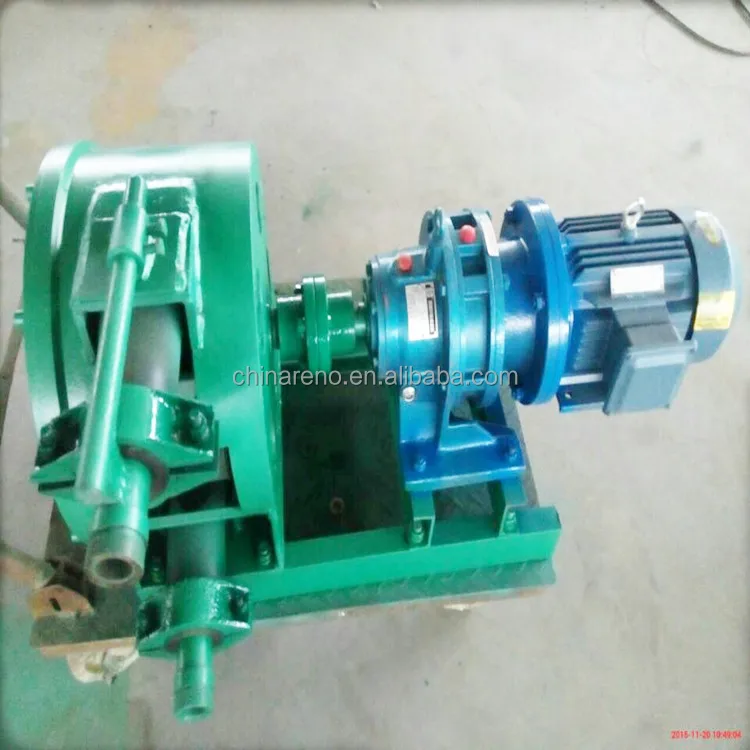

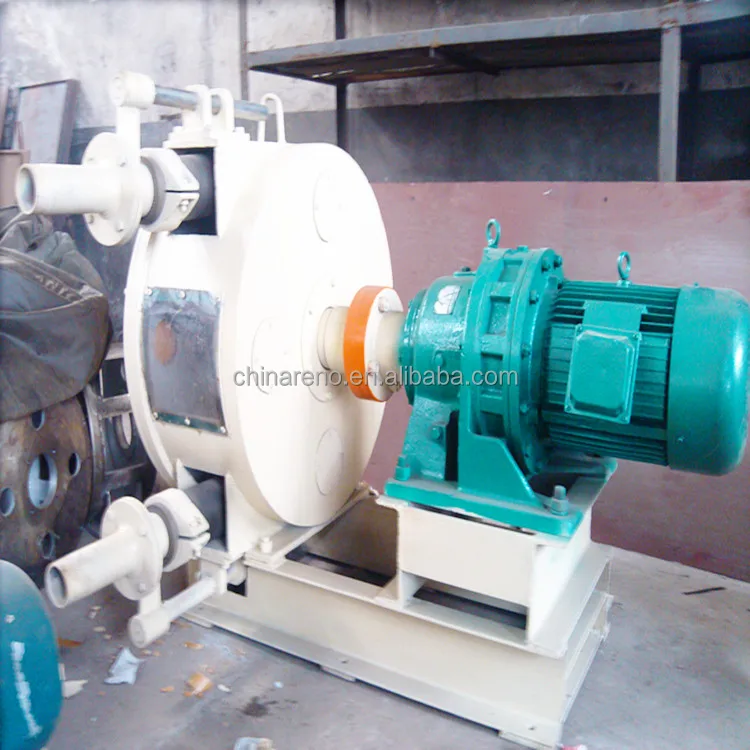

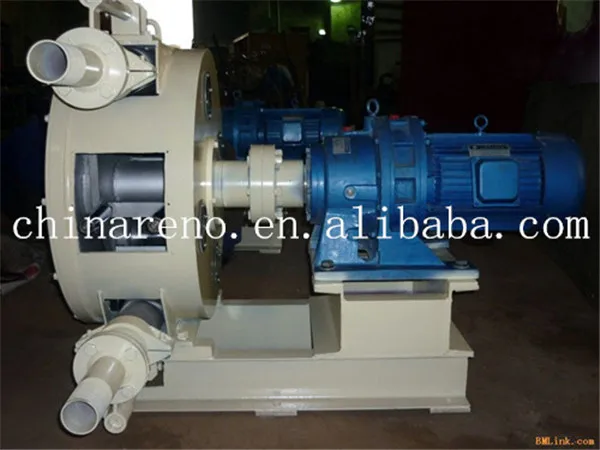

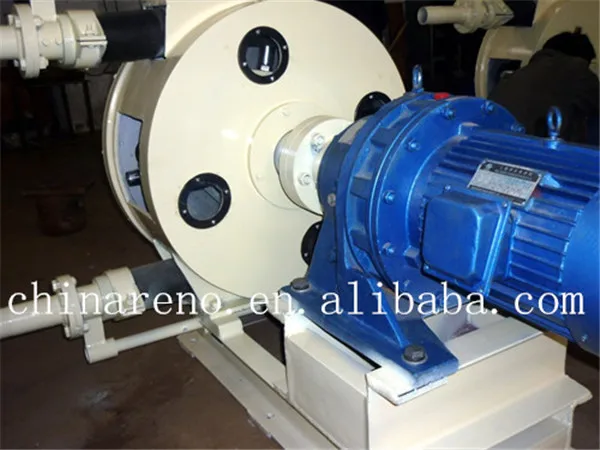

Product showing:
Hose pump contains housing, rotor body, retarder, base and hose.It is widely used
in petroleum, chemical, water treatment, gold smelting, paper, foam concrete
production line, autoclaved lightweight concrete brick equipment ,roof insulation
and floor heating material transportation and other industries.
Advantages:
1.Special non-leakage structure with non-pollution.
2.Advanced rolling technology,no lube with the roller.
3.Strong self-priming and self-cleaning ability,deliver material in and out.
4.Simple peristaltic material,easy to install and operate,low expense.
5.Non-blocking with liquid of great density.
6.High pressure and long lifespan.
Working principle:
When the hose pump is working, one pair of pressure rollers on the rotor body
rotates along a specially designed hose, pressure generated by the pump housing
squeeze hose in spacial size, with the help of its elasticity and side roller, hose
return to normal shape, vacuum is producted in the process and sucks material
because of the pressure differential, and material is pouring out with roller. With
this working process, material is sucked and discharged continuously.
Technical parameters:
Type | Capacity (m3/h) | Pressure (Mpa) | Rotating speed (r/min) | Hose diameter (mm) | Motor Pump (kw) |
RGB15 | 10-15 | 1.5
| 35 | 65 | 7.5 |
RGB20 | 15-20 | 1.5
| 40 | 65 | 7.5 |
RGB30 | 20-30 | 1.5
| 45 | 68 | 9.5 |
RGB40 | 30-40 | 1.5
| 50 | 68 | 11 |
RGB50 | 40-50 | 1.5
| 66 | 76 | 11 |
RGB60 | 50-60 | 1.5
| 66 | 76 | 12.5 |
Parameters above is for reference only, it can be customized as you require.
Application:

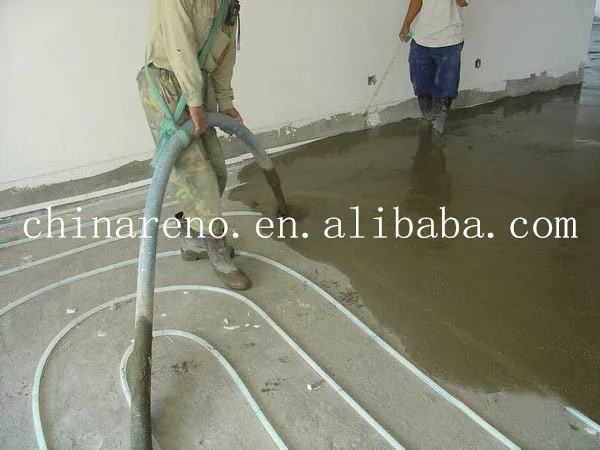

Floor heating:

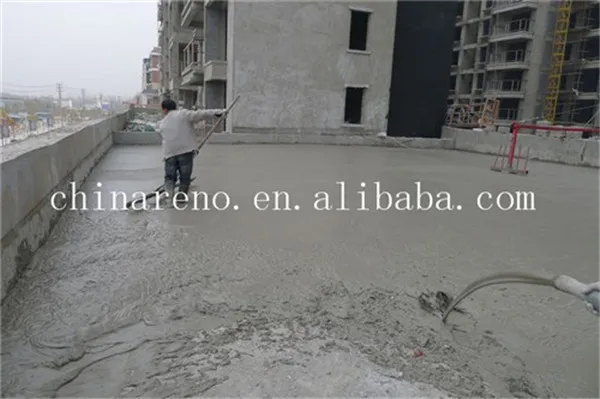

Roof insulation:

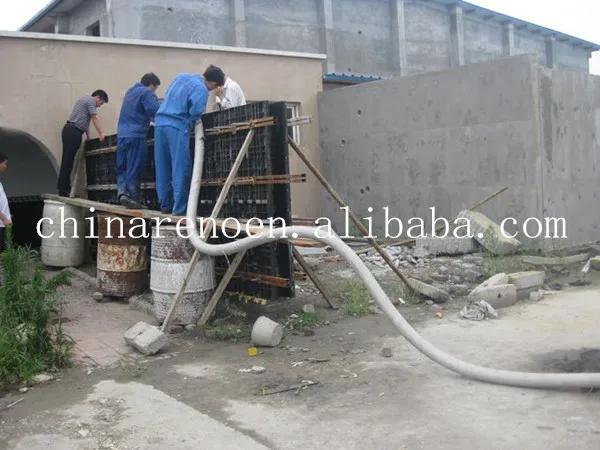

Filler wall:
About our pump
Packaging & Shipping
If you need, it can be packed with wooden box:
Our Services
Why Choose Us
1.We are leading profesional manufacturer of Concrete (Cement) mixer series and pump in Henan. Our products have been exported to more than 100 countries including Africa, Middle East, South America and Asia.
2. We are not only produce normal models, but also produce new models according to your design.
3. Professional service team and competitive price will give you a perfect purchasing experience.
FAQ
1.Can you change the machine voltage as our request?
Yes,we can change the machine voltage as customers'request.
2.How about the delivery time of the machine?
Generally about 5-7days,for big machines or producing line,it will be much longer but within our negotiated delivery time.
3.Do you have operation instruction manual?
Yes,we will send the operation instruction manual to you after you purchase the machine.
4. how to guarantee the machine work well before shipping ?
We have our professional testing department ,we will have twice testing when we finish our machine and before shipping.
5. Warranty period ?
The warranty will be one year from the date of shipment. Any detected parts during this period caused by the quality of products will be replaced by seller free of cost (exclude wear and tear parts), improper operation and other manmade reasons are excluded.and engineers available to service machinery oversea.
