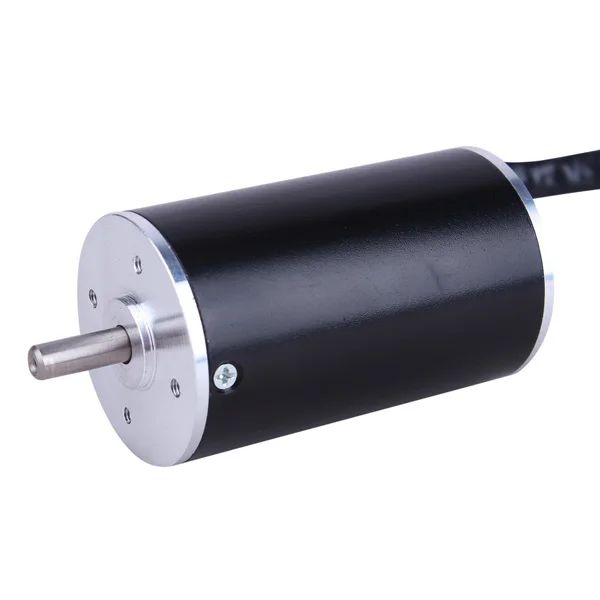

BLDC 12V 8W mini brushless dc motor 6000rpm bldc motor in China factory
- Category: >>>
- Supplier: Changzhou Dewo Motor Co. Ltd.
Share on (60560098235):
Product Overview
Description
Product Description
General specification:
| Item | Specification |
| Widing type | Star/Delta |
| Hall effect angle | 120 degree electrice angle |
| Shaft runout | 0.025mm |
| Radial play | 0.06mm/50g |
| End play | 0.08mm/50g |
| Max radial force | 28N/20mm from the flange |
| Max axial force | 10N |
| Insulation class | Class F |
| IP class | IP 40 |
| Dielectric strength | 500VDC for one minute |
| Insulation Resistance | 100MΩmin 500VDC |
Electrical Specification:
| Model | Phase No. | Rated Voltage (VDC) | Rated Speed (RPM) | Rated Torque (g.cm) | Rated Power (W) | Mass (Kg) | Body Length (mm) |
| DW36BLDC40-1205 | 3 | 12 | 4000 | 120 | 5 | 0.15 | 40 |
| DW36BLDC40-2410 | 3 | 24 | 5000 | 190 | 10 | 0.15 | 40 |
| DW36BLDC40-1208 | 3 | 12 | 6000 | 120 | 8 | 0.18 | 50 |
| DW36BLDC40-2415 | 3 | 24 | 6000 | 230 | 15 | 0.18 | 50 |
| DW36BLDC40-1220 | 3 | 12 | 8000 | 240 | 20 | 0.22 | 60 |
| DW36BLDC40-2425 | 3 | 24 | 8000 | 300 | 25 | 0.22 | 60 |
Dimensions:
(Unit=mm)
Electrical Connection:
| Lead No. | Lead Color | Lead Gauge | Function | Description |
| 1 | Red | UL3266/28AWG | VCC+5VDC | SUPPLY VOLTAGE FOR HALL SENSORS |
| 2 | Black | GND | GROUND FOR HALL SENSORS | |
| 3 | Yellow | HALL A | SIGNAL OF HALL A | |
| 4 | Green | HALL B | SIGNAL OF HALL B | |
| 5 | Blue | UL3266/26AWG | HALL C | SIGNAL OF HALL C |
| 1 | Yellow | PHASE U | MOTOR PHASE U | |
| 2 | Green | PHASE V | MOTOR PHASE V | |
| 3 | Blue | PHASE W | MOTOR PHASE W |
FAQ
1.Q:Can I get some samples first?
A:Sure, we are honored to offer you samples for your check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.

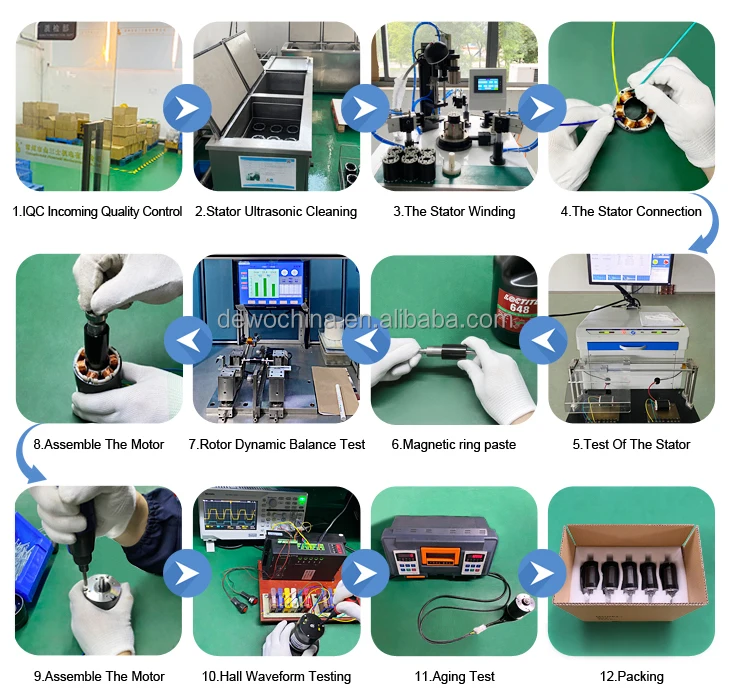

4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
5.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
