YOFC Fiber OTDR Launch Cable SM G652D G657A1 Bare Fiber Optional in Connector
- Category: >>>
- Supplier: Shanghai Govo Telecom Co. Ltd.
Share on (60560125500):
Product Overview
Description

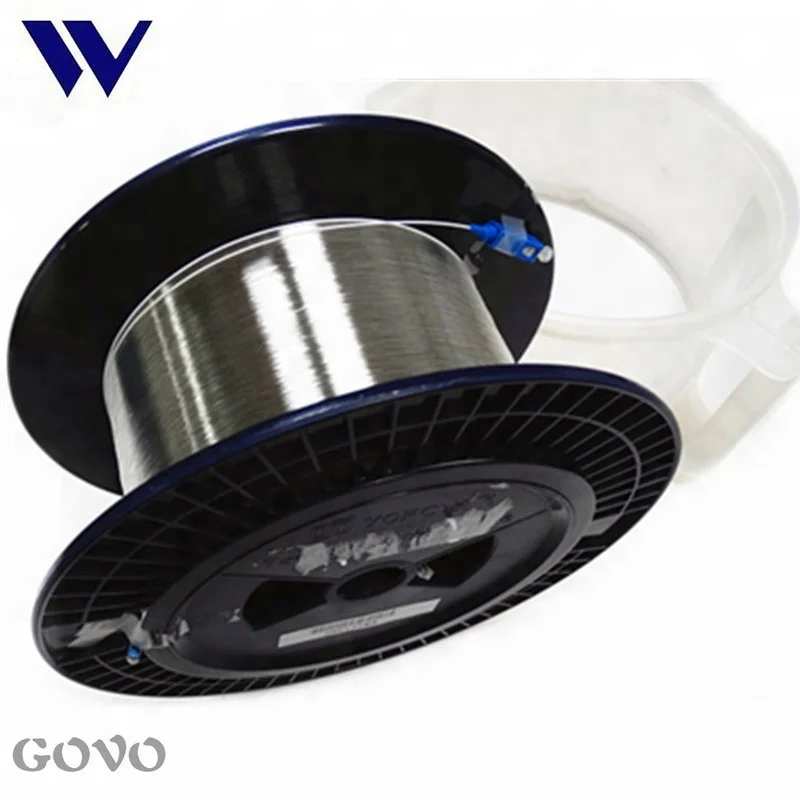

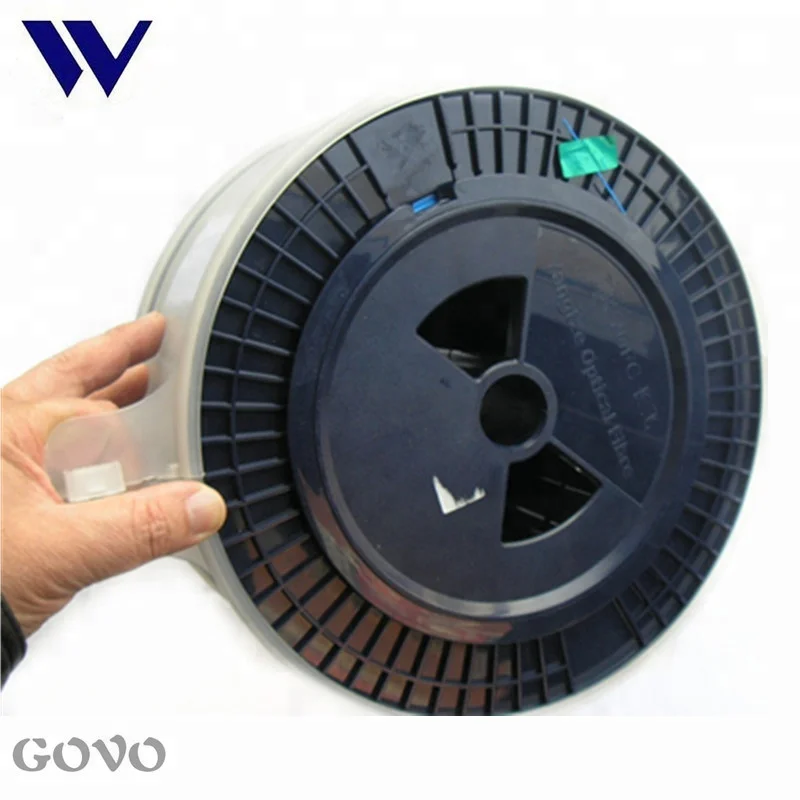

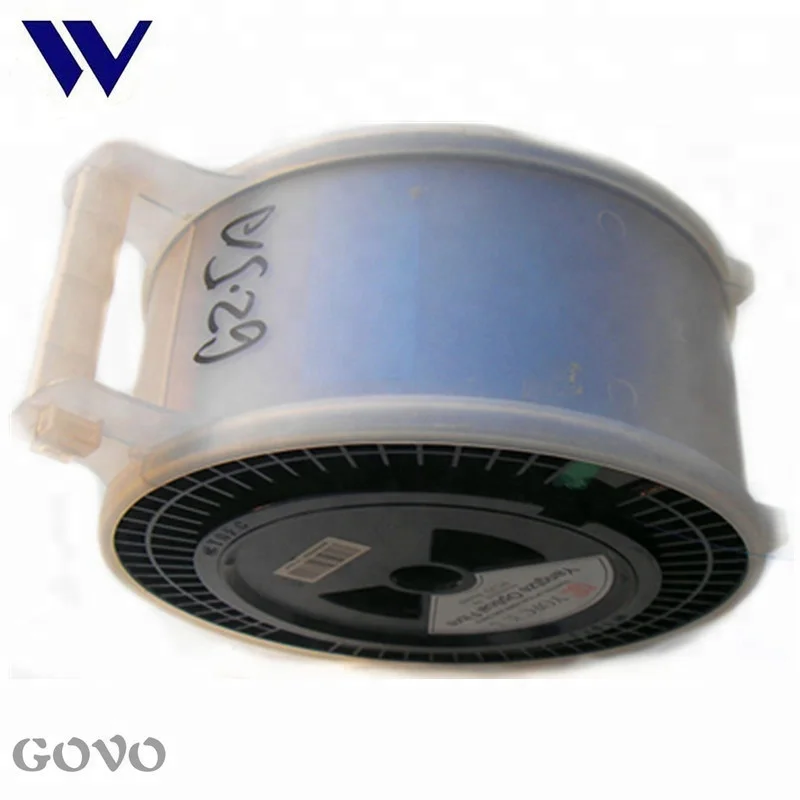

YOFC Fiber OTDR Launch Cable SM G652D G657A1 Bare Fiber
Product Description
OTDR Dummy fiber is designed to be used in conjunction with an OTDR to measure complete link loss of a fiber. They are also known as pulse suppressor cables, launch cords, launch leads, receive cables or fiber rings. An OTDR dummy fiber, which connects the OTDR to the link-under-test, discloses the insertion loss and reflectance of the near-end connection.
A fiber ring serves as both a launch cable and a receive cable.
| Optical Characteristics | G657A1 | G657A2 | ||
| Attenuation | @1310nm | ≤0.35dB/km | ≤0.35dB/km | |
| @1383nm | ≤0.35dB/km | ≤0.35dB/km | ||
| @1460nm | ≤0.25dB/km | |||
| @1490nm | ≤0.23dB/km | |||
| @1550nm | ≤0.21dB/km | ≤0.21dB/km | ||
| @1625nm | ≤0.23dB/km | ≤0.23dB/km | ||
| Attenuation vs. wavelength | @1310nm | 1285~1330nm | ≤0.03dB/km | ≤0.03dB/km |
| @1550nm | 1525~1340nm | ≤0.02dB/km | ≤0.02dB/km | |
| Dispersion coefficient | 1285~1340nm @1550nm | -3.0~3.0ps | ||
| @1625nm | ≤22ps | |||
| Zero dispersion wavelength | 1300~1324nm.km | 1300~1322nm.km | ||
| Zero dispersion slope | ≤0.090ps | ≤0.092ps | ||
| Zero dispersion slope (Typical) | ≤0.086ps | |||
| PMD | Maximum individual fiber | ≤0.2 ps | ≤0.2 ps | |
| Design link value | ≤0.1 ps | ≤0.1 ps | ||
| Cable cut-off wavelength | ≤1260nm | ≤1260nm | ||
| MFD | @1310nm | 9.0+-0.4um | 8.8+-0.4um | |
| @1550nm | 10.1+-0.5um | 9.8+-0.5um | ||
| Group index of refraction(typical) | @1310nm | 1.466 | 1.466 | |
| @1550nm | 1.467 | 1.467 | ||
Features
1. YOFC fiber Single mode; G.652 fiber.
2. Connectors can be added as per your request.
3. Standard length: 2km/roll
Ordering Information
Part No. | Description |
GW-Fiber-ROLL-SM10 | SM G652D, 1KM, Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional |
GW-Fiber-ROLL-SM20 | SM G652D, 2KM, Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional |
GW-Fiber-ROLL-MM10 | MM (62.5/125um or 50/125um), 1KM, Connector; FC/PC, SC/PC, ST/PC, LC/PC optional |
GW-Fiber-ROLL-MM20 | MM (62.5/125um or 50/125um), 2KM, Connector; FC/PC, SC/PC, ST/PC, LC/PC optional |
GW-Fiber-ROLL-SM710 | SM G657A, 1KM, Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional |
GW-Fiber-ROLL-SM720 | SM G657A, 2KM, Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional |
GW-Fiber-ROLL-OM310 | OM3, 1KM, Connector; FC/PC, SC/PC, ST/PC, LC/PC optional |
GW-Fiber-ROLL-OM320 | OM3, 2KM, Connector; FC/PC, SC/PC, ST/PC, LC/PC optional |

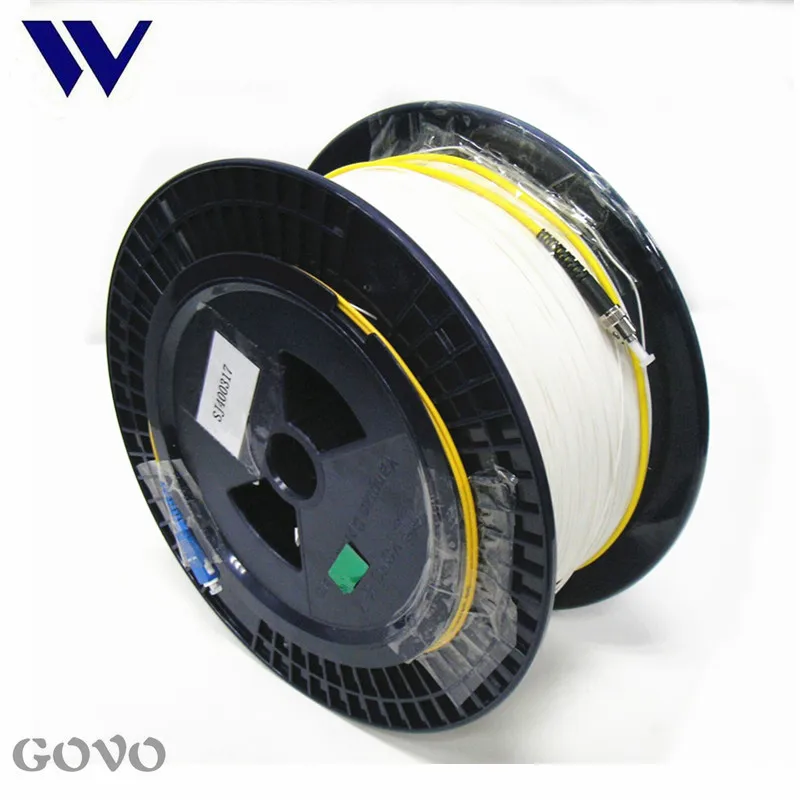

- 900um SM G657A2 Tight Fiber Spool
