multifunctional stainless steel extraction concentrator unit
- Category: >>>
- Supplier: Zhejiang Tanlet Machinery Co. Ltd.
Share on (60560173219):
Product Overview
Description
Product Description

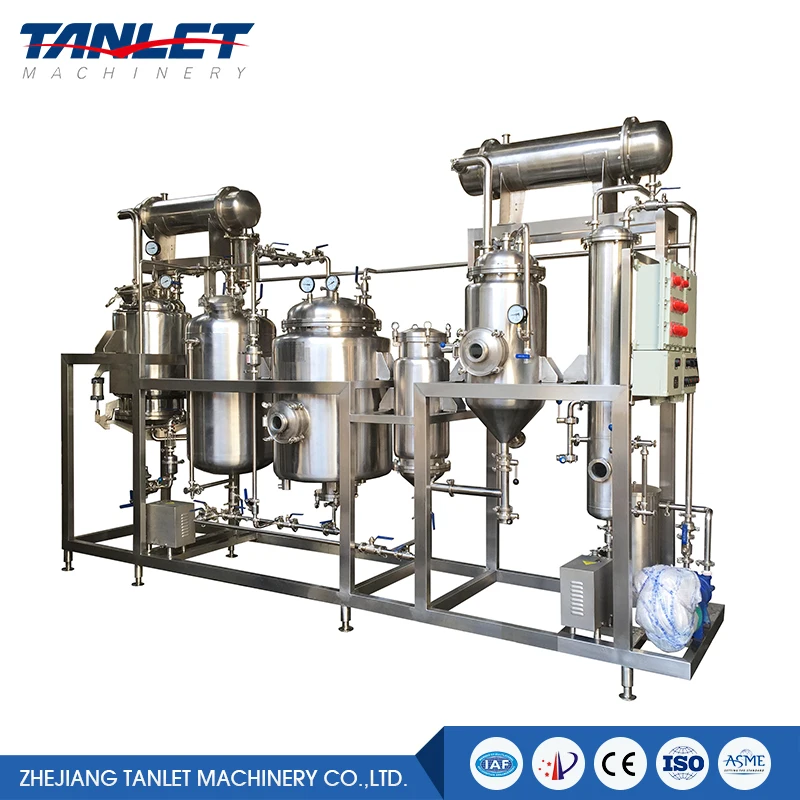

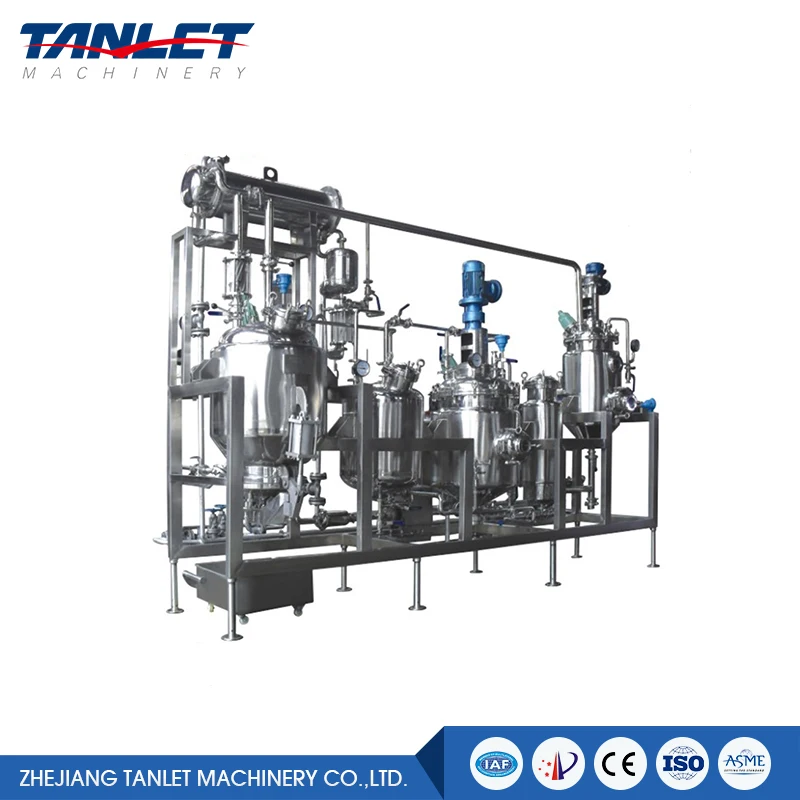

multifunctional stainless steel extraction concentrator unit
Equipment Characteristics
1. The group consists of extractor, tubular heater, evaporator, condenser, oil-liquid separator, oil collector, medicine liquid pump, weighing vent, liquid storage tank, filter, vacuum pump, and electric cabinet. Defoamers are fixed in the steam outlet of the extractor and evaporator. The units without steam heating can be fixed with oil heating system.
2. It can be operate to hot recyling distill and condense, normal extraction, concentration, precipitation and peercolation.
3. It can work in the condition of negative pressure, atm. and positive pressure. It can apply to distill water, ethanol and solvent, up to GMP standard.
4. The group has great advantages in multi-function, high efficiency, energy saving, and wide operation arrange. It pioneers in comprehensive capacity in nationwide; it is the pilot equipment in distilling natural herbal medicine, especially fit for research institution, universities and collages, and factory pilot experiment, or distilling valued medicine, or low temperature fresh herbal. It has been widely used in factories.
Advantages
It has successfully enter into the international market because of multi-function, good performance, compact structure, and superior manufacture. It is widely used for pilot experiment in scientific research institution, university, college, factory; or extracting concentration of costly medicine.
Technology Parameter
| Model and Specification | TNH-50 | TNH-100 | TNH-200 | TNH-300 | TNH-500 | |
| Extraction Tank | Volume (L) | 6.5 | 125 | 250 | 375 | 550 |
| Jacket Op. Pre. (MPa) | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | |
| Vessel Op. Pre. (MPa) | 0.09 | |||||
| Concentration Tank | Volume (L) | 65 | 125 | 250 | 375 | 550 |
| Vessel Vacuum Degree (MPa) | -0.08 | |||||
| Heating Pipe Op. Pre. (MPa) | 0.09 | |||||
| Heat Reflux (L/H) | 20 | 40 | 80 | 120 | 180 | |
| Vacuum Pump | Electric Voltage (V) | 380 | 380 | 380 | 380 | 380 |
| Motor (kw) | 1.5 | 1.5 | 2.2 | 3 | 3 | |
| Water Pump | Motor (kw) | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
Packaging & Shipping
Pcaking: Standard packing
Wooden case is avaliable for multifunctional stainless steel extraction concentrator unit
Delivery: 1-45 days after the deposit confirmed
Our Services
User demands analysis
Engineering design
Product manufacturing
Automatic control integration
Vertification service
Engineers are avaliable to go abroad to help installation.
