60 minutes mechanical Timer Switch DRJ 60 GF160
- Category: Time Switches >>>
- Supplier: Shenzhen,Maihe,Medical,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
| Model | DRJ-60 |
| Setting Time (min) | 30min |
| Rated V/A | AC250V/2.5A, AC125V/5A |
| Working Angle (°) | 270±15% |
| Operating Direction | CW |
| Working Direction | CCW |
| Operating Temperature(°C) | -10~+60 |
| Time Accuracy | ±15% |
| Insulation Resistance (MΩ) | 100 |
| Insulated Electricity Power (VAC/min) | 1500 |
| Operating Torque (Kg-cm) | 1.0-5.0 |
| Release Torque (Kg-cm) | 0.5-4.0 |

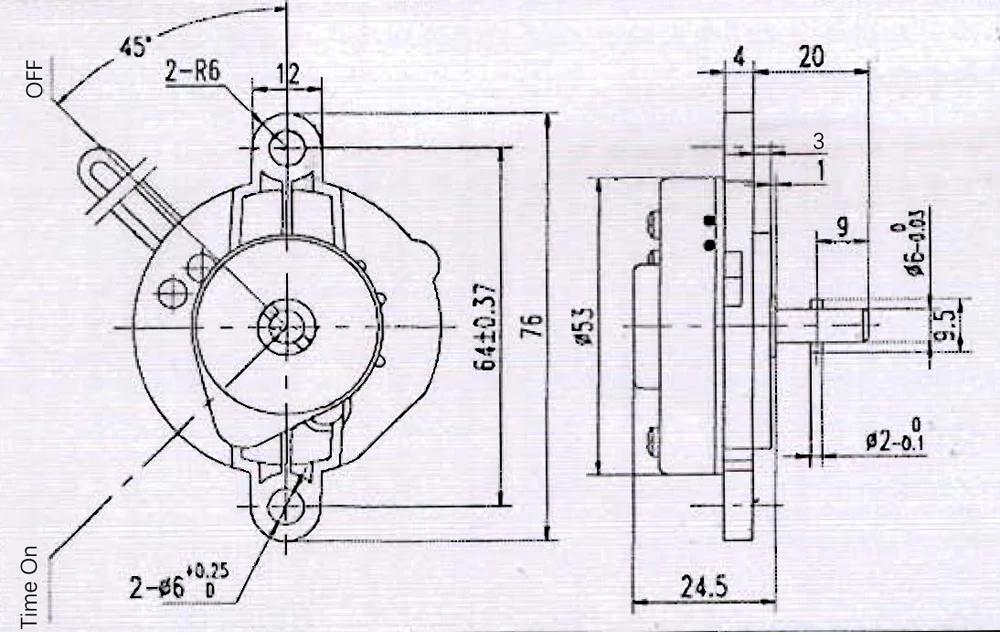

| Dimension (mm) | 64*51*44.8 |
| Certification | CQC |
| Life Span (times) | 10000 to UP |
Related Products
| Picture |  |  |  | |||
| Model | DFJ-X-02 | DFJ-X-02A | DFJ-X | DFJ-X-01 | DFJ-X-01A | MT-720-D1-110 |
| Setting Time (min) | 15min, 30min, 60min, 120min, 180min | 15min, 30min, 60min, 120min | 3H, 5H, 6H, 8H, 12H | |||
| Rated V/A | AC 250V/2.5A 125V/5A | AC250V/10A 125V/20A | AC250V 1.6A | AC250V/2.5A 125V/5A | AC250V/10A 125V/20A | AC250V/15A 125V/30A |
| Time Tolerance | ±15% MAX | |||||
| Insulation Resistance(MΩ) | 100 | |||||
| Insulated Electricity Power (VAC/min) | 1500 | |||||
| Operating Torque (Kg-cm) | 1.0-5.0 | |||||
| Release Torque (Kg-cm) | 0.5-4.0 | |||||
| Working Angle (°) | 270±5 | |||||
| Operating Direction | CW | |||||
| Working Direction | CWW | |||||
| Operating Temperature (°C) | -40-+60 | |||||
| Dimension (mm) | 64*51*44.8 | 76*25 *Height | 64*51*Height | |||
| Certification | UL, TUV, CB, RoHS, REACH | |||||
| Life Span (times) | 10,000 to UP | |||||
Our Services
1. We have own factory, so we could provide high quality and reasonable price for you.
2. Shape of shaft could be designed and manufactured as per your requirements.
3. certification: CQC / UL / TUV / ROHS / REACH
4. Lead time: sample within 7 days; order within 25 days
Company Information
1) MedHealth Medical Limited, (former name B & J Manufacturing Ltd.), specializes in manufacturing all kinds of magnet synchronous motor, mechanical timer and steeping motor for electrical appliances since 2005.
