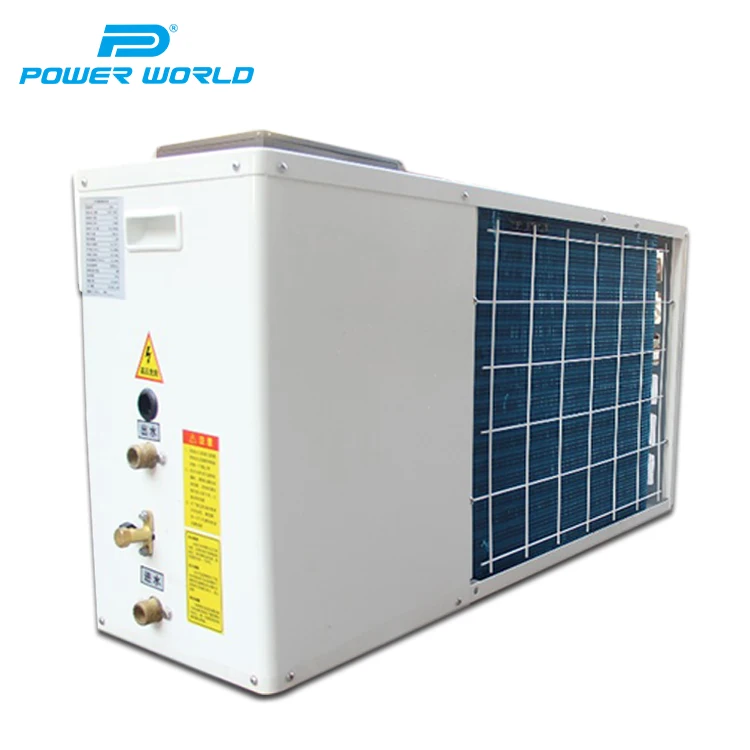

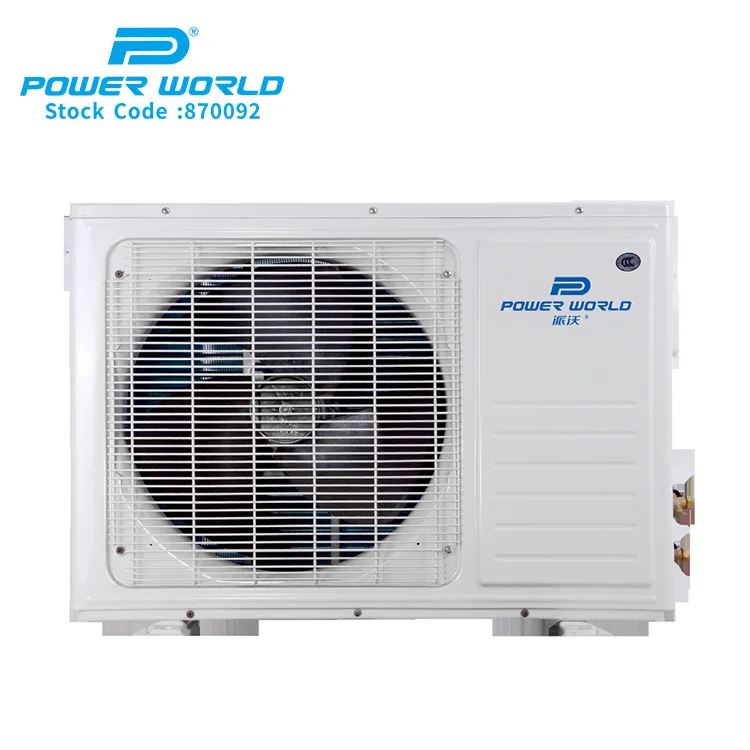

A Class energy Air to Water Heat Pump Water Heater for House sanitary Water Heating
- Category: >>>
- Supplier: Shenzhen Power World New Energy Technology Co. Ltd.
Share on (60560499992):
Product Overview
Description
Products Description

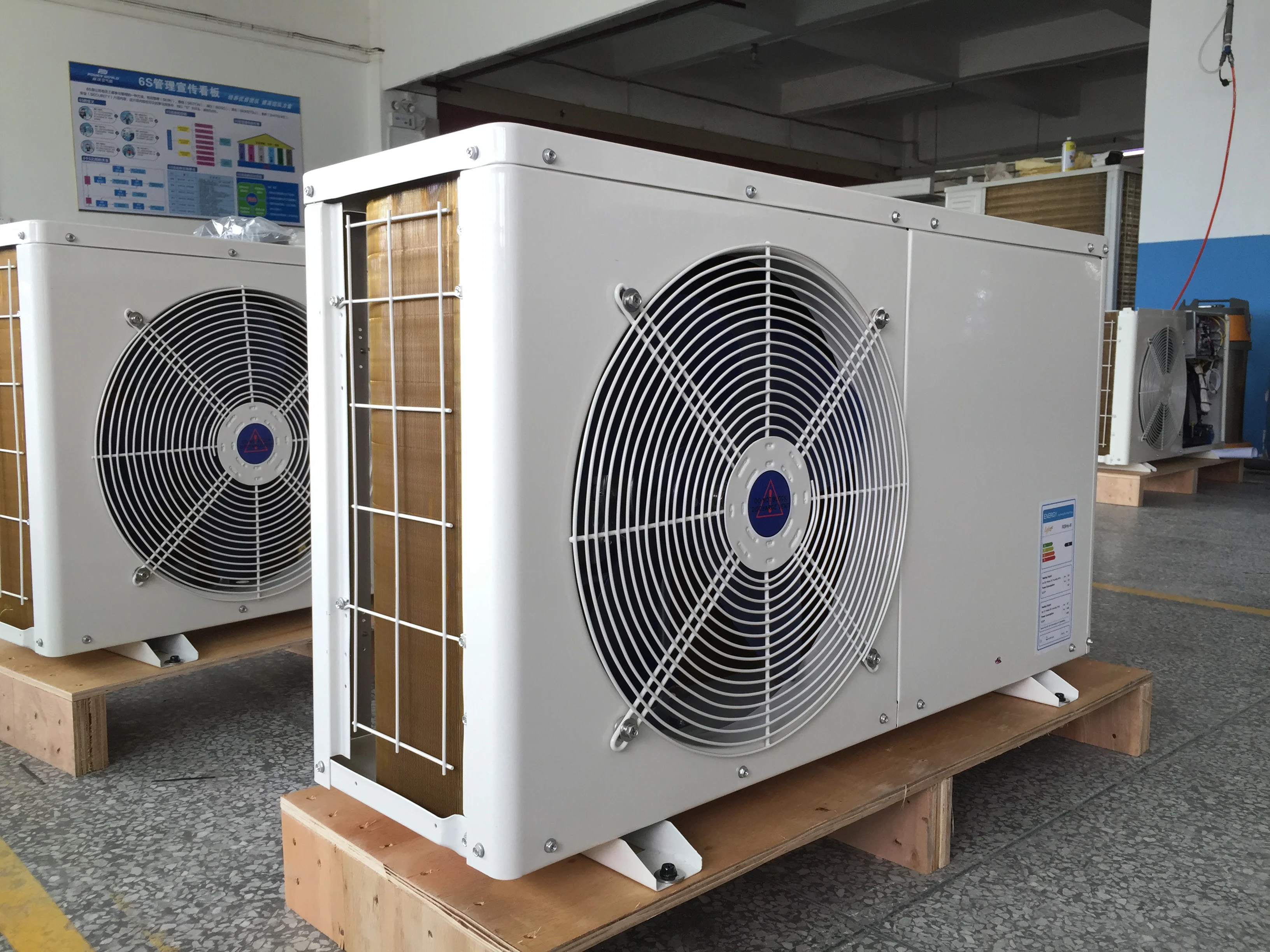

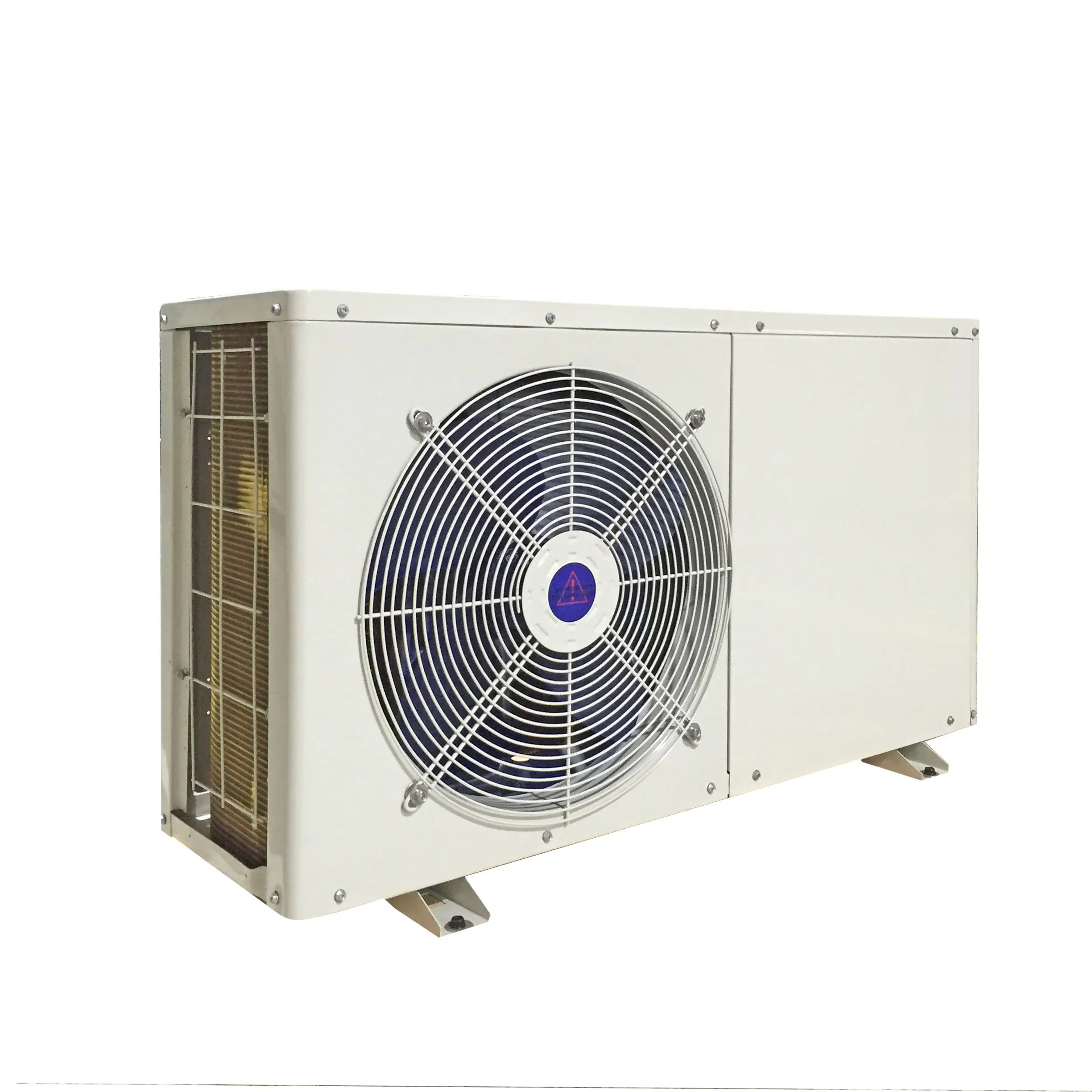

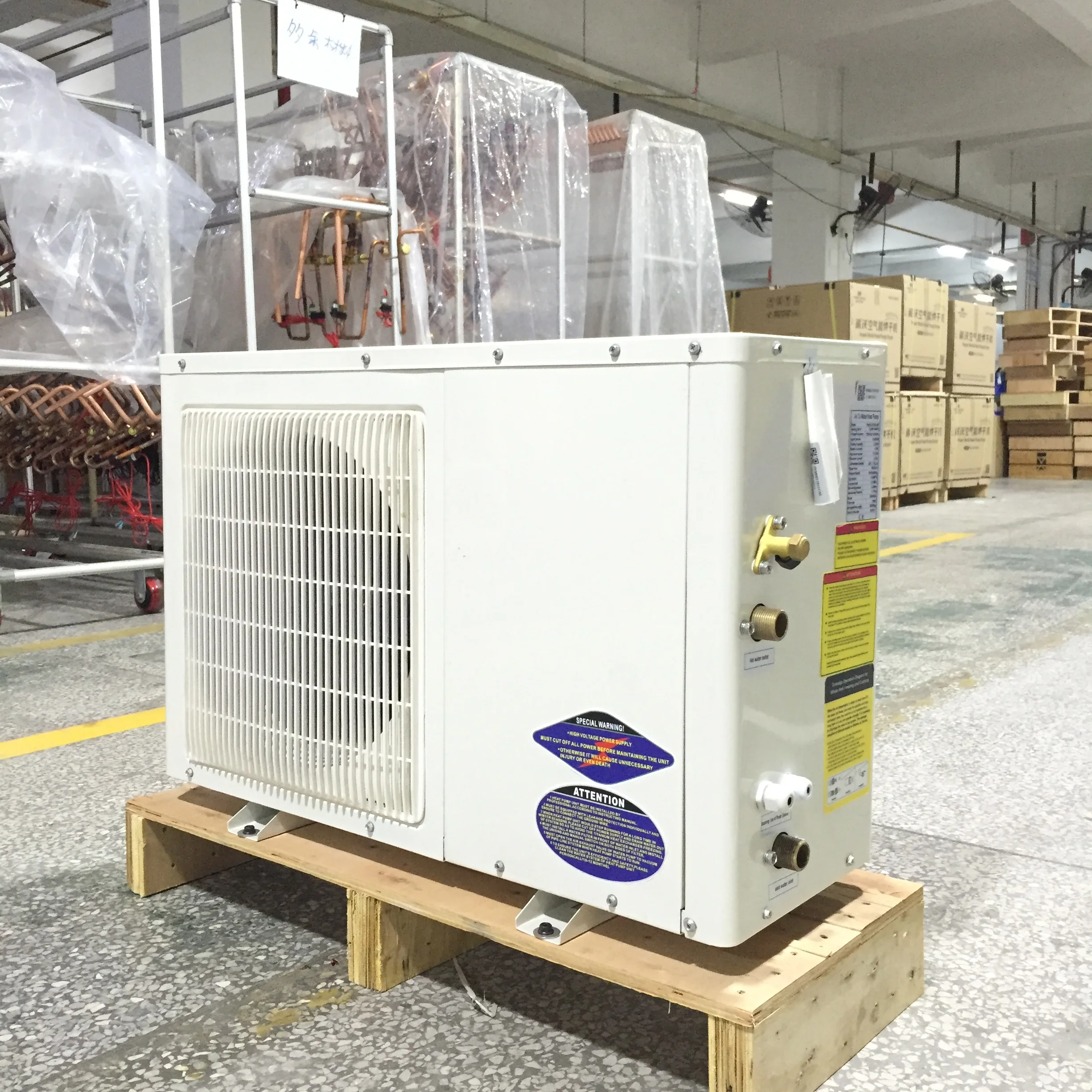

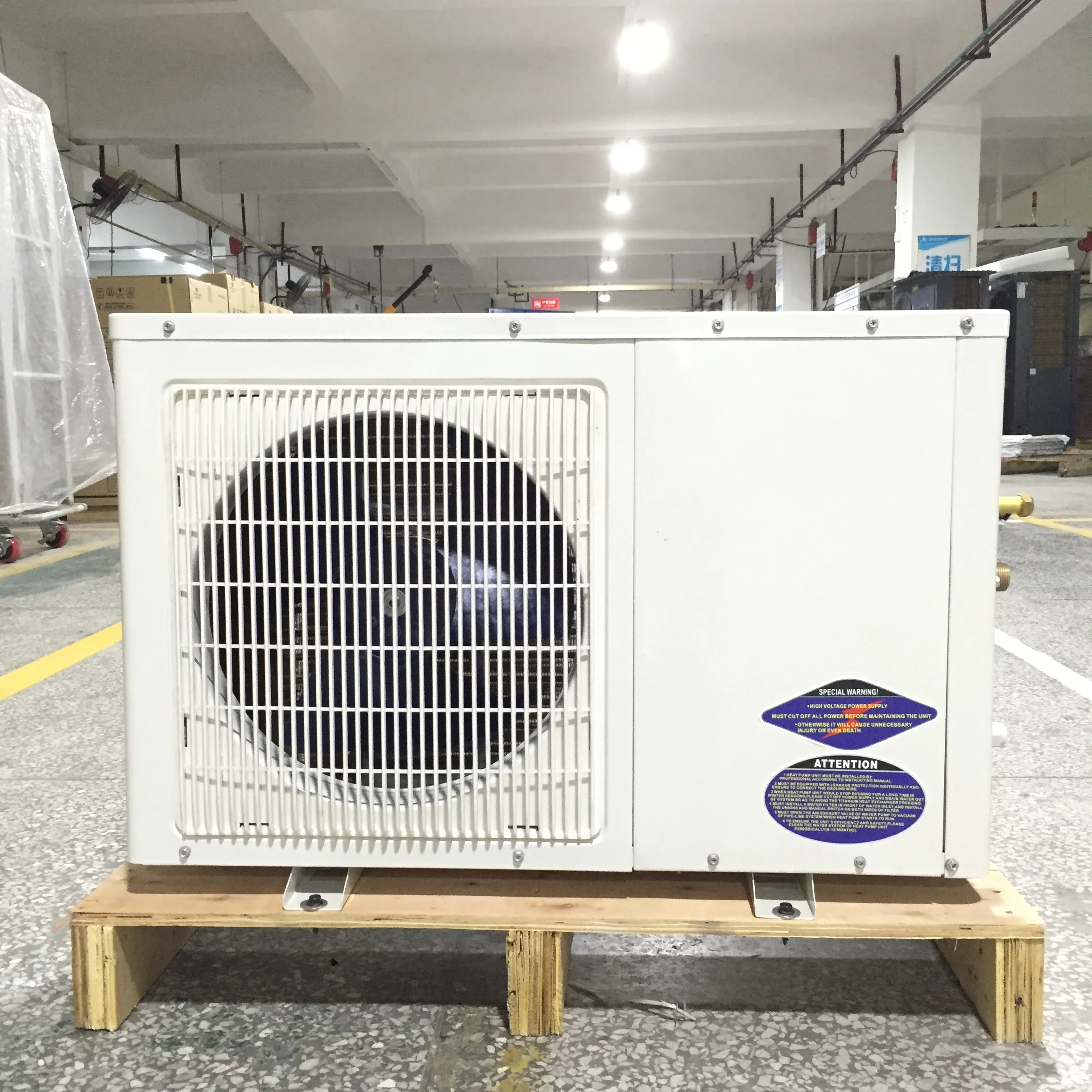

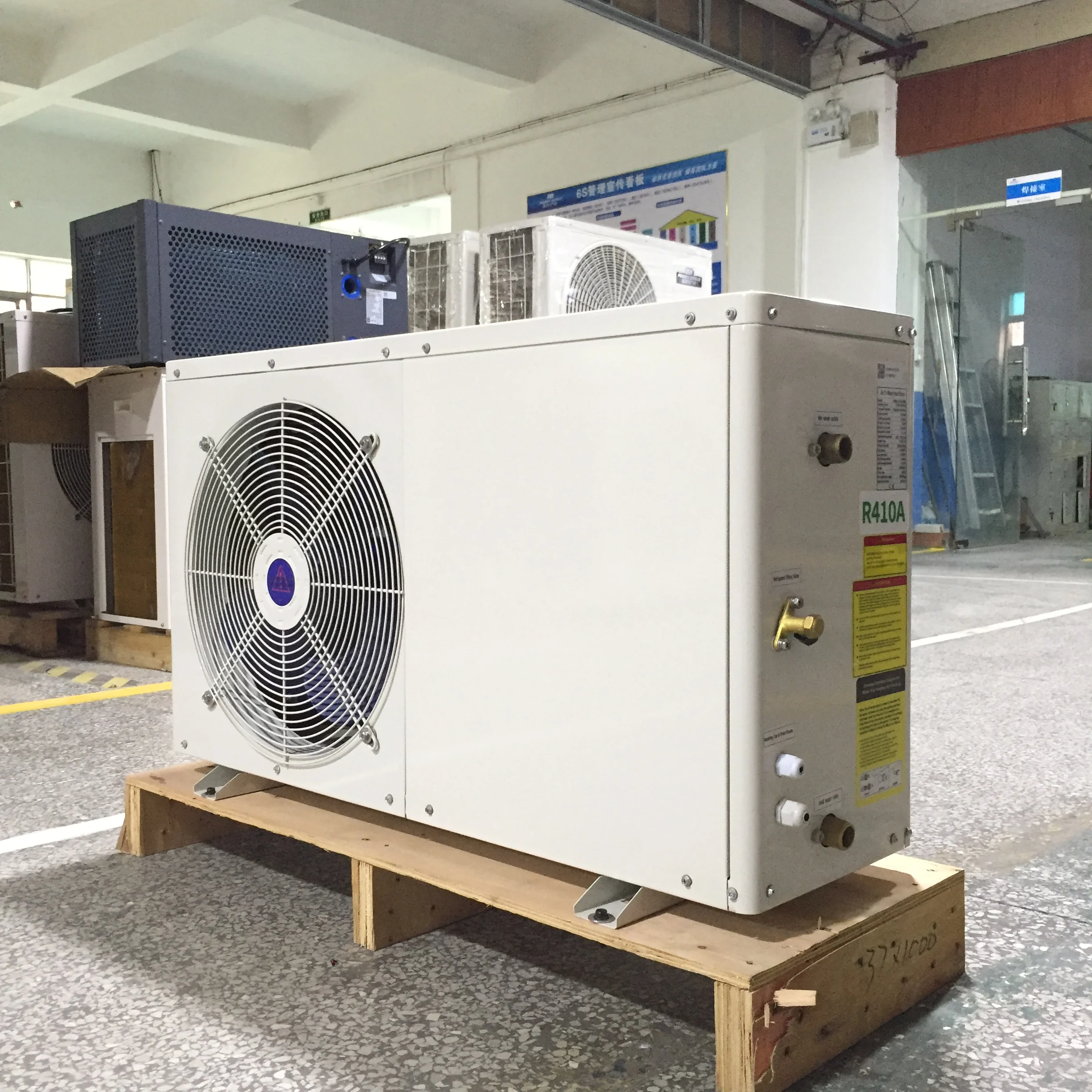

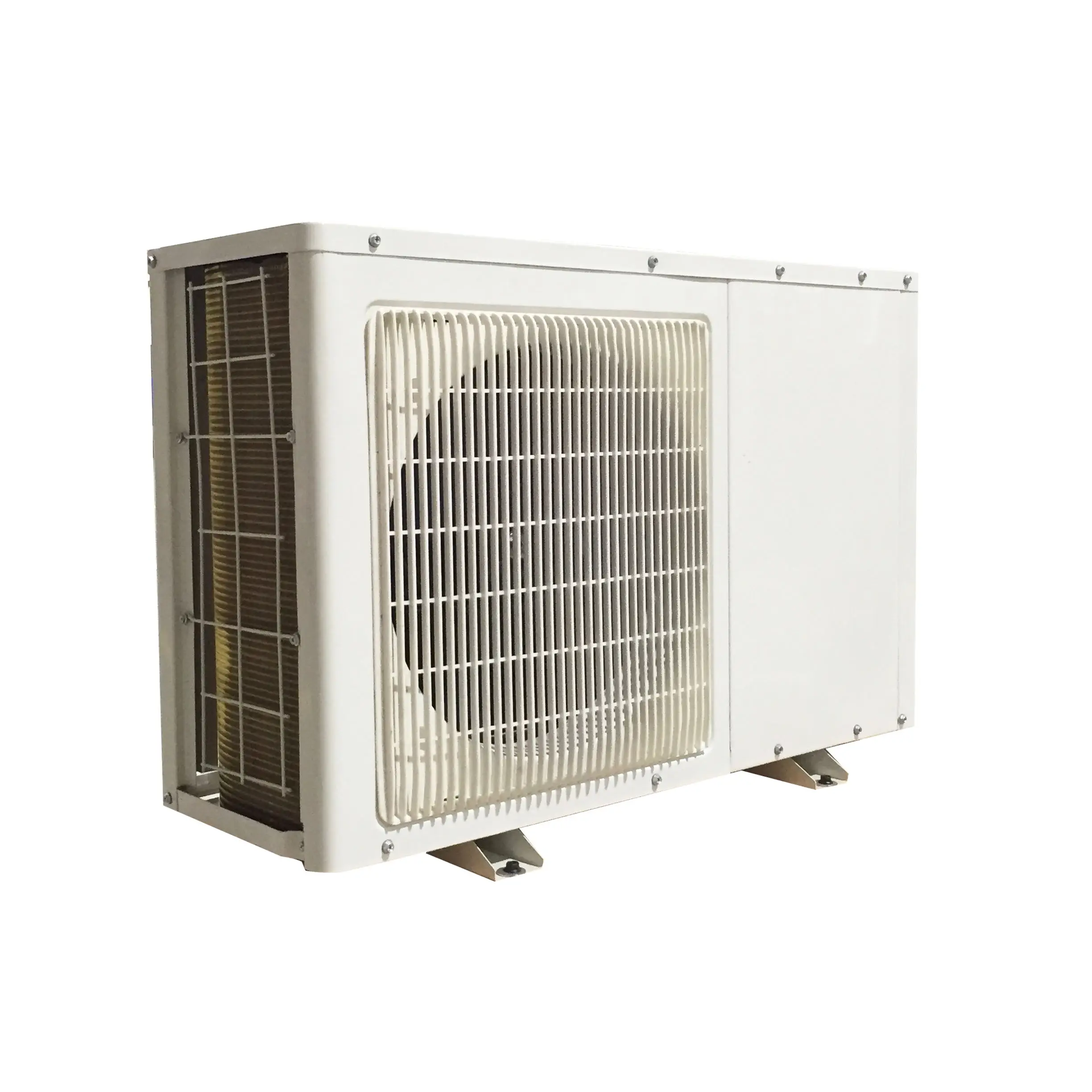

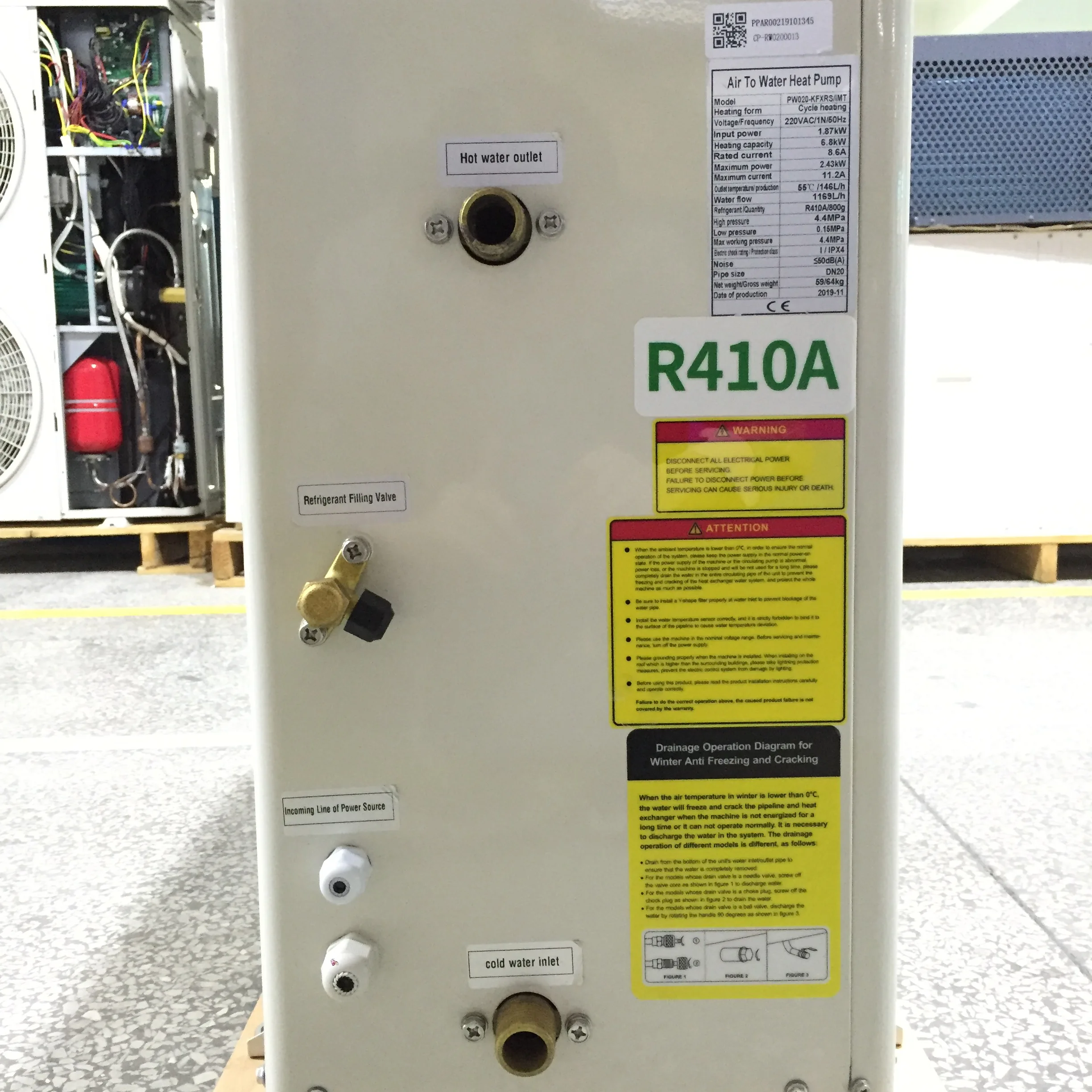

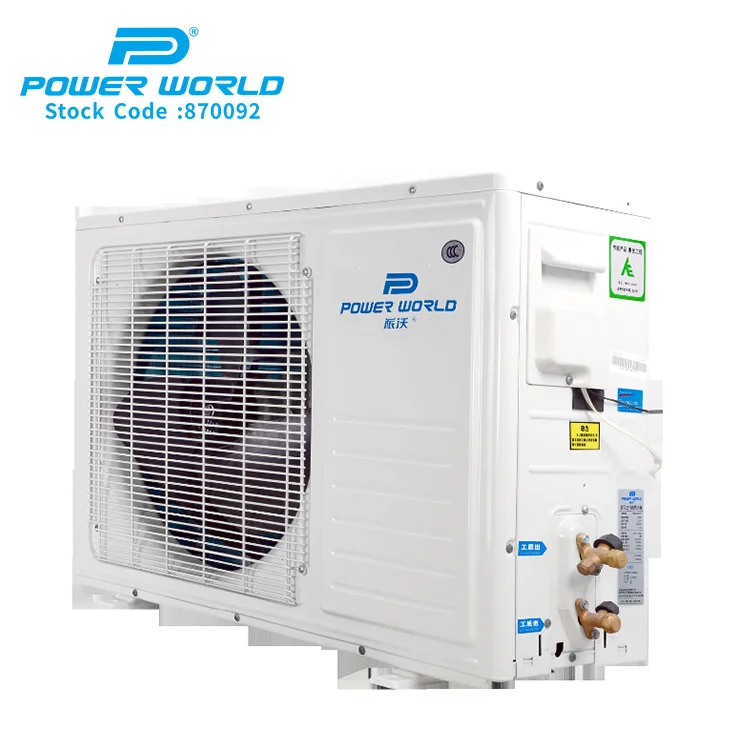

Water Cycle Heat Pump With Built-in Water Pump
This series adopts high efficient tank heat exchanger and built-in water pump inside the heat pump,which ensures high efficient performance of the system.It can supply domestic hot water for shower,washing etc.
* R410a gas,environmentally friendly
* Max output temperature 60 Celsius
* Four-way valve for automatic defrosting
* Double refrigerant circuit,easy for plumber installation
* Buit-in water heat pump
* CE,IEC approval
* Max output temperature 60 Celsius
* Four-way valve for automatic defrosting
* Double refrigerant circuit,easy for plumber installation
* Buit-in water heat pump
* CE,IEC approval
Product model | PW010-KFXRS/IMT 200L | PW015-KFXRS/IMT 200L/300L | PW020-KFXRS/IMT 300L/400L/ 500L | |||||
Parameters | Heating capacity (kW) | 3.5 | 4.9 | 6.8 | ||||
Input power (kW) | 0.98 | 1.34 | 1.87 | |||||
Rated current (A) | 4.5 | 6.2 | 8.6 | |||||
COP (Coefficient of Performance) | 3.57 | 3.66 | 3.64 | |||||
Rated outlet water temperature (℃) | 55 | 55 | 55 | |||||
Max outlet water temperature(℃) | 60 | 60 | 60 | |||||
Production capacity (L/H) | 75 | 105 | 146 | |||||
water circulation (L/H) | 602 | 843 | 1169 | |||||
Working area | -7~43℃ | |||||||
IP Grade (Level of protection) | IPX4 | IPX4 | IPX4 | |||||
Anti-electric shock Rate | I | I | I | |||||
Noise (dB(A)) | ≤50 | ≤50 | ≤50 | |||||
Net weight/Gross weight(kg) | 53/58 | 55/60 | 59/64 | |||||
Diameter of pipe (mm) | DN20 | DN20 | DN20 | |||||
Standard Configuration | Metel plate | Galvanized steel/Spray/white | ||||||
Body size(W*D*H) | 985*305*520 | 985*305*520 | 985*305*520 | |||||
Compressor | Rotary type | |||||||
Refrigerant | R410a | |||||||
Water pump inside | Greenpro / GPD | |||||||
Power supply | 220V/50Hz | 220V/50Hz | 220V/50Hz | |||||
Condenser | Efficient tank heat exchanger | |||||||
Evaporator | L-1/900*500/φ9.52 | L-2/900*500/φ9.52 | L-2/900*500/φ9.52 | |||||
Four-way valve | DSF-9 | DSF-9 | DSF-9 | |||||
Expansion valve | Capillary Tube | |||||||
AC contactor | Eaton (220V-18A) | Eaton (220V-18A) | Eaton (220V-18A) | |||||
Motor (with capacitance) | 60W*1(2μf) | 60W*1(2μf) | 60W*1(2μf) | |||||
Fan | φ400*1 | φ400*1 | φ400*1 | |||||
Controller | Single System(Motorola Chip) | Single System(Motorola Chip) | Single System(Motorola Chip) | |||||
Low-voltage switch | 0.05/0.15MPa | 0.05/0.15MPa | 0.05/0.15MPa | |||||
High-voltage switch | 2.4/3.0MPa | 2.4/3.0MPa | 2.4/3.0MPa | |||||
Power line connect with unit | 3*1.5mm2 | 3*1.5mm2 | 3*1.5mm2 | |||||
Package | Wooden Package | |||||||
Remark: working condition, Inlet water temperature 15℃, Outlet water temperature 55℃, Dry bulb temperature 20℃, Wet bulb temperature15℃. | ||||||||

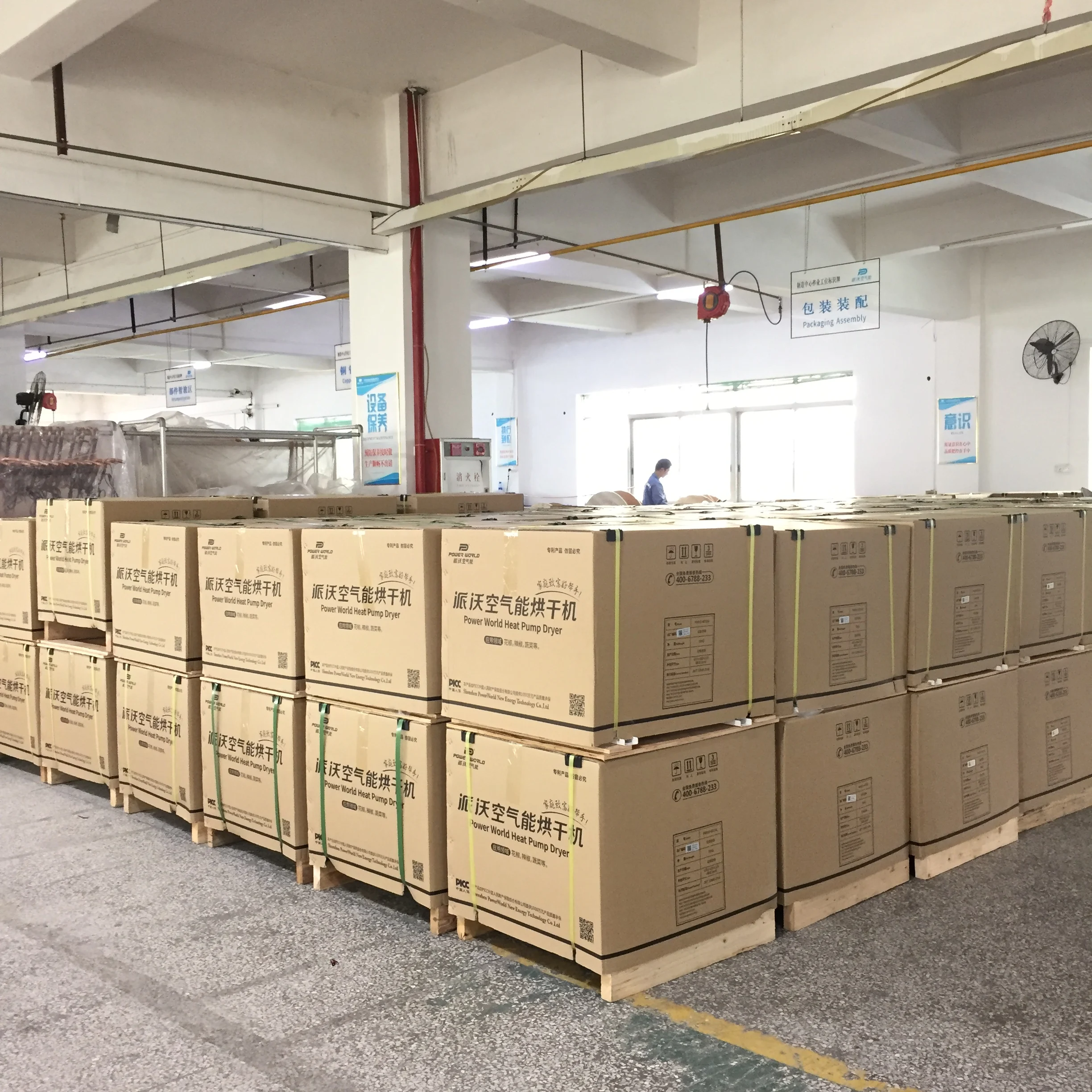

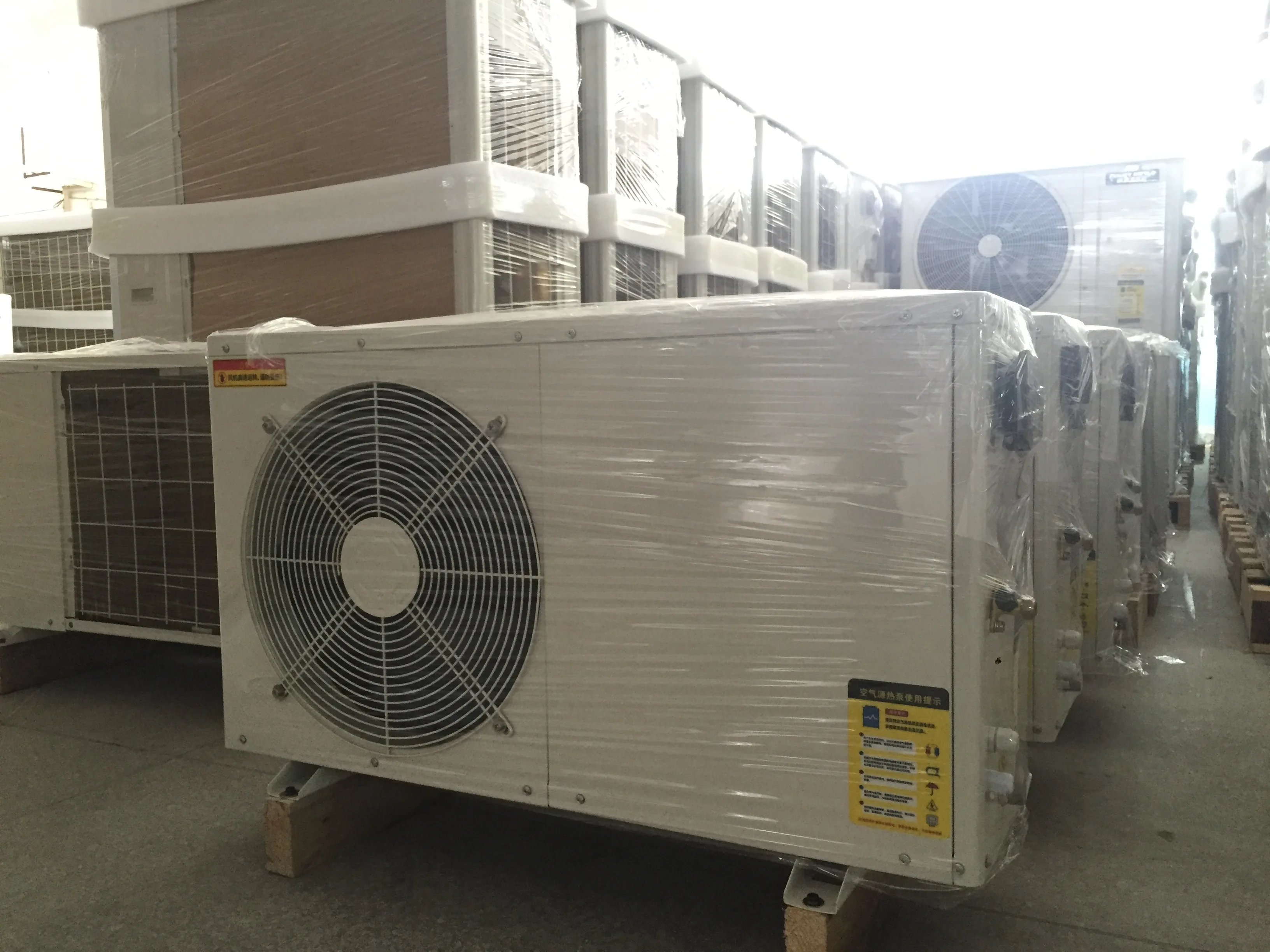

Product packaging
Packaging | Packed by Plywood case/ cardboard case |
Timing | Send out next day after payment if in stock 4-7 working days to deliver |
Logistics | DHL ,UPS,FedEx or as you request |

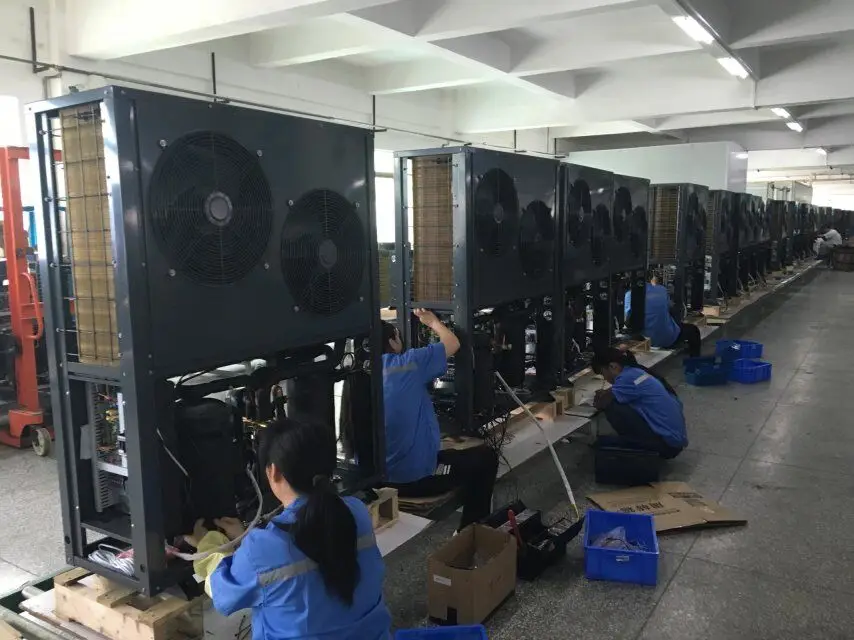

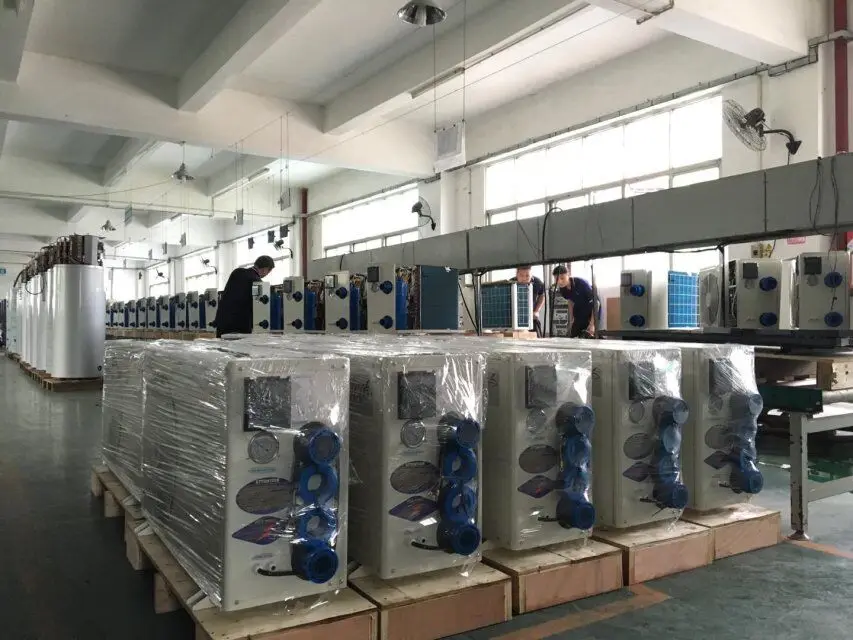

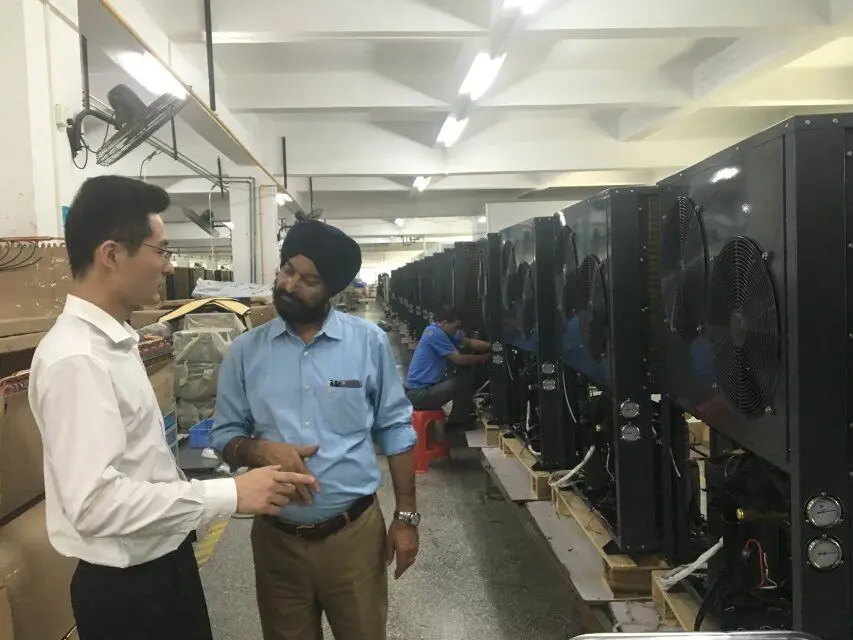

Company Profile

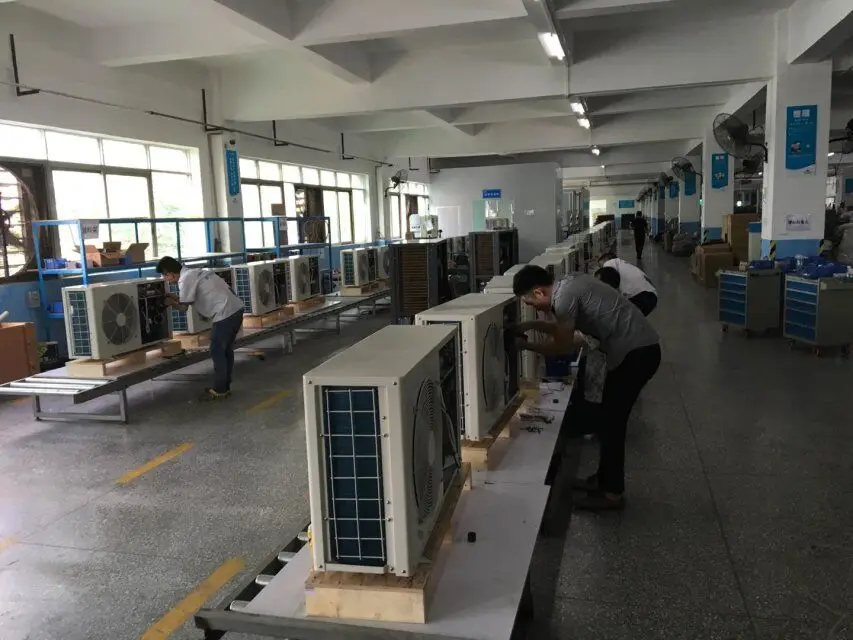

Power World is a professional heat pump manufacturer since 2004,successfully publicly listed on the NEEQ in 2016 with stock code 870092.It covers an area of 30000 m2 factory in Dongguan,China and has more than 500 emplyees.With 8 flexible production line, it's honored to be top 10 brand heat pump supplier in China with one billion USD output value per year.
Power World has a heat pump R&D center with a team of more than 20 engineers and 4 professional laboratories.Complying with ISO9001:2008 & ISO14001:2004,all products get CE,CB(IEC)certificate and ERP Energy Label based on EN14825,EN14511,strictly according to latest EHPA requirement.
