Niceuc Enterprise FXS Gateway MG930 supports IP PBX System
- Category: >>>
- Supplier: Shenzhen Niceuc Communication Tech Co. Ltd.
Share on (60560744019):
Product Overview
Description
Niceuc Enterprise FXS Gateway MG930 supports IP PBX System
Product Description
1. Capacity: 16, 24, 32, 48, 64, 96, 128, 192 ports FXS/FXO to SIP.
2. Used for IPCC, IP Dispatch, Unify Communication, VoIP network, operators, and so on.
3. Standard Rackmount.
4. Certification: ISO9001, CE, ROHS
Advantages of our products:
Modular Design, Easy Expansion.
All kinds of our products use modular design, it is very easy to expand capacity by inserting modules. At first, you can place an order with small capacity, after testing, if you want to expand, it is no need to change a device, just need to buy some modules, it is very convenient.
All kinds of signalings on E1 ports.
We have been producing E1 products from 2001 year. So we have excellent experience on E1 ports, they support all kinds signaling like ISDN PRI, SS7, R2/CAS, Q.SIG, V5.2, DPNSS, etc. Make connection between different signalings or between PSTN and Ethernet.
All-in one interface on one device.
With independent self-development ability, all kinds of interfaces can be supported by one device in our company: E1, FXO/FXS, GSM/CDMA/WCDMA, E&M, Magnet, Radio/VHF/PTT, X86/MIPs. You can install your own software into our gateway by X86 or MIPs card.
Function and Features:
Carrier-class reliability
·With a new generation of processor, a separate high-end DSP processing chip and powerful hardware processing, ensure that the equipment at full load conditions remained stable and reliable;
·99.99% availability, support continuous long talk at least 48 hours;
·Support over-current protection function on POTS interfaces ;
·Support the protection of lightning, surges, power lines and other protective lap;
·Full compatible;
Excellent voice communication quality
·Voice Activity Detection (VAD), to effectively save bandwidth resources;
·Comfort Noise Generation (CNG), to provide the same experience as PSTN in calls;
·Adaptive dynamic buffer technology, to meet the application under bad network;
·G.168 128ms echo cancellation technology. This indicator is far higher than the same kind of PBX, eliminating the echo interference caused by long distance call;
·DTMF detection / generation technology, to effectively support the business of the fax, callback, second dial.
Plentiful business functions
·Modification between calling number and called number;
·As a terminal, support the register trunk function to other GK(Gatekeeper) or SIP Server.
·As a gateway, support the control from superior GK or SIP Server to complete the trunking calls;
·Support any switch among SIP, FXO, FXS;
·Support automatic routing function;
·Support high capacity of black and white lists;
·Simultaneously support the register of 4 SIP Server;
·Support output of CDR;
·Fax support T.30, T38 and pass through;
·Support reelection function;
·Support detection of calling number and display of call ID;
·Support generation of dial tone, ring back tone, etc.;
·Port supports gain and comfort adjustment of noise;
·Multi-router and multi-bureau management, group, cluster and exchange management, intelligent routing distribution and equal traffic sharing;
·Support function of dividing groups, for the incoming calls, the subscriber line can be set to line up or take turns to choose;
·Flexibly control the incoming and outgoing of lines, the lock of long-distance calls can be controlled by the phone;
·Complete call functions,it can provide several kinds of call functions and special call way by customer's request;
·The voice processing capacity support voice play with built-in computer operator;
·High processing capacity in conference;
·Monitor and handle real-time telephone traffic;
Simple and convenient management/maintenance
·The way of management on software:
Local and remote WEB; Local and remote Telnet; Console port-Super terminal;
·On hardware, with rack design, they can be installed in the standard 19 inches rack, also can be separately installed in a small machinery room. (In a standard 19 inches rack, NC-MG160 is 1U height, NC-MG320 is 1U height also, NC-MG640 is 2U height, NC-MG930 is 3.5U height.)
Physical Features:
Item | Specification | ||
Input Voltage | 110-240V AC | ||
Full-load Power | 50 W | ||
Dimension | (W×D×H) | 482mm*300mm*160mm (3.5U) | |
Weight | 10 KGS | ||
Environment | Temperature | 0°C~50°C | |
Relative Humidity | Less than 80% | ||
| Item | NC-MG160 | NC-MG320 | NC-MG640 | NC-MG930 |
| Analog FXS Interface | 16 ports | 32 ports | 64 ports | 192 ports |
| FXO Trunk | 16 ports | 32 ports | 64 ports | 192 ports |
| E1(PCM) Trunk/ISDN Port | 0 | 0 to 4 E1 | 0 to 4 E1 | 0 to 4 E1 |
| VoIP IP Channels | 16 | 32 | 128 | 128 |
| IP Terminals/SIP users | 16 to 32 | 16 to 1024 | 16 to 1024 | 16 to 1024 |
| Ethernet Interface | 2(10/100/1000M Base-T) | |||
| Console Port | 1 RS232 port | |||
| Compatibility | Asterisk, Free switch, 3CX,CISCO, Siemens, AVAYA, Huawei, ZTE, etc. | |||
| Input Voltage | ||||
| Power | 25W | 40W | 80W | 150W |
| Telephone Line Transmission Distance (KM) | 3 | 5 | 5 | 5 |
| Device Dimension (MM) | 472*260*44 (1U) | 480*286*44 (1U) | 480*300*88 (2U) | 480*300*160 (3.5U) |
| Weight (KG) | 3.5 | 4.5 | 6.8 | 9.5 |
| Work Environment | 0℃~50℃, Less 80% | |||

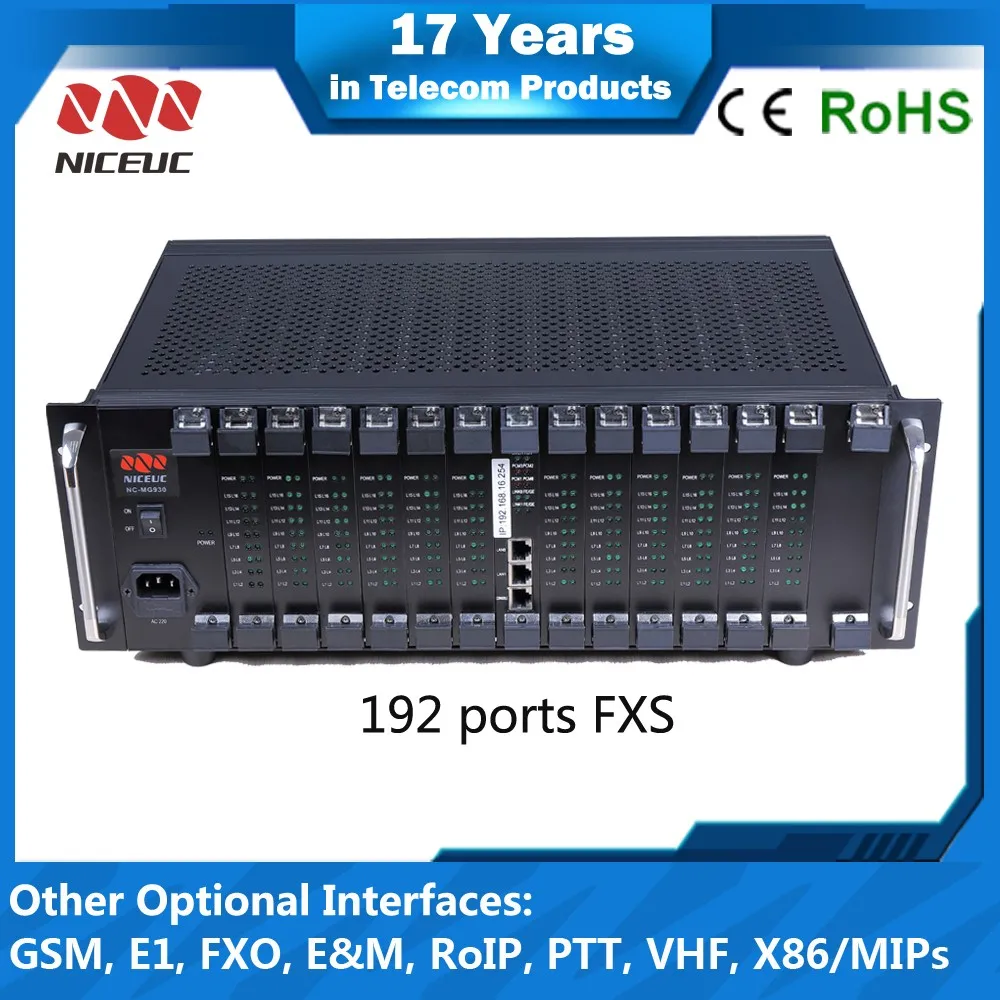

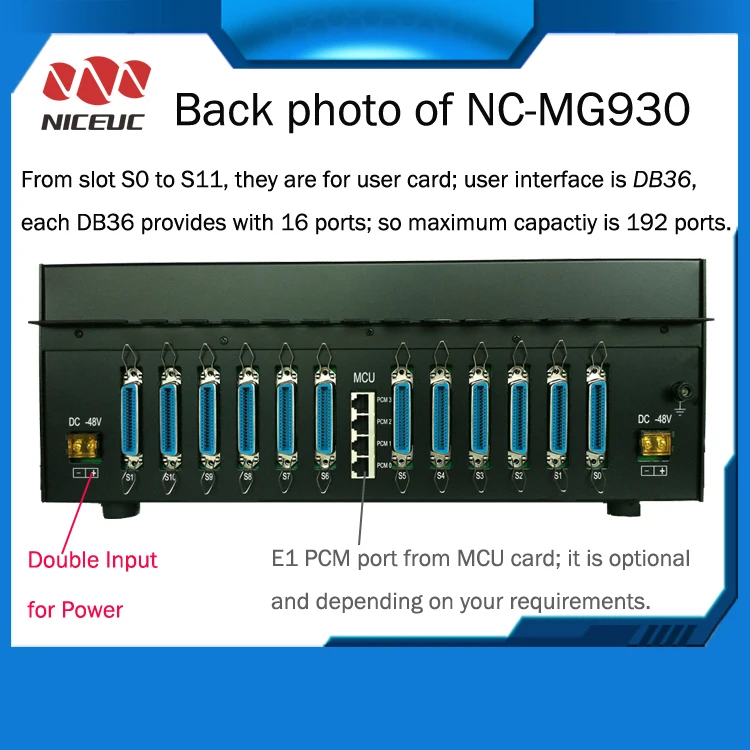

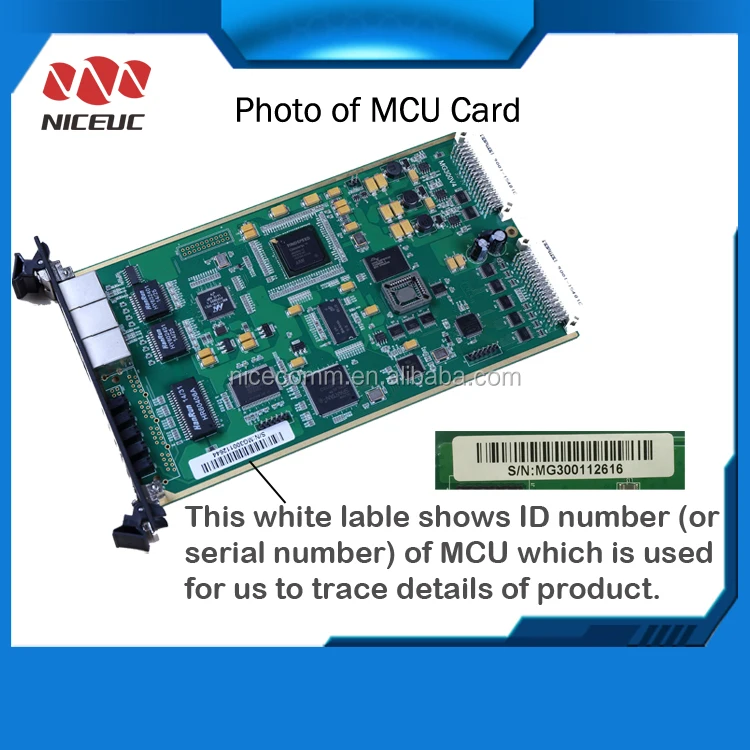

Products Shows
Product Application

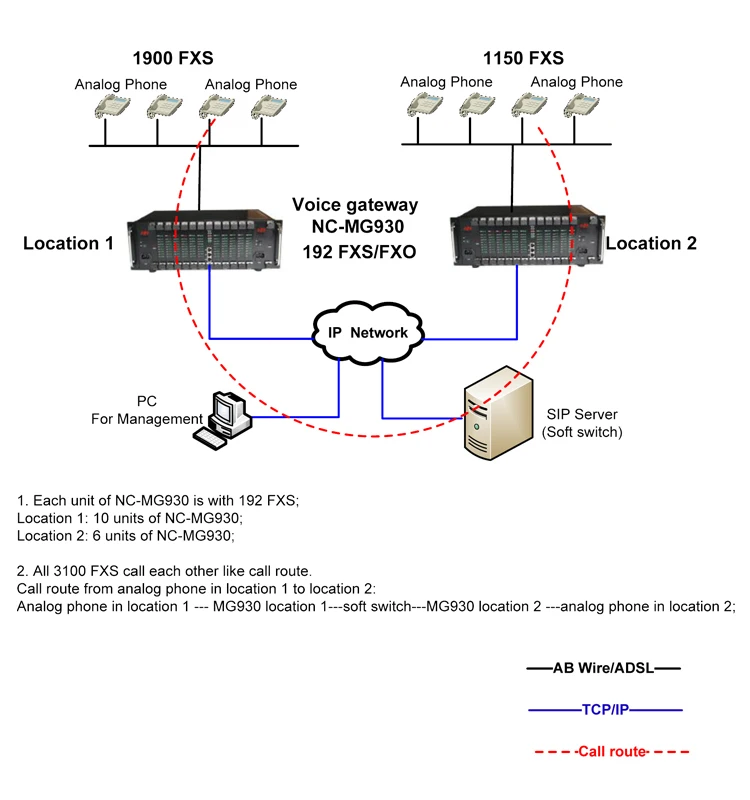

Application 1: FXS VoIP Gateway NC-MG930 which provide with FXS, FXO and SIP.
Application 2: FXS VoIP Gateway NC-MG930 which work as VoIP Access gateway in IP call center, or in Dispatching system, etc.
Application 3: FXS VoIP Gateway NC-MG930 which is used for intercom system for community.
Factory&Exhibition
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory in Telecom product from 2000 year.
Q: How long is your delivery time?
A: Generally it is 2 days only, or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: How long is warranty?
A: Usually warranty is one year. If you need, we can provide with 3-years warranty.
Q: How is the technical support?
A: 7*24 hours support for ever.
Q: How can I get a sample?
A: By place an order or pay a rent, then we will ship in 2 days by Express.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
