Modbus RS485 3H/2C, Gas / Electric / Heat Pump / Fossil Fuel /Conventional (White colour)

Product Overview

Description

MC6-U™

3H/2C Color Touchscreen Thermostat

The MC6 is an universal, colorful touchscreen

thermostat available from cloud Systems. The  MC6 can be hardwired which makes it ideally suited for use both in residential and light commercial applications.

• Low-cost, universal colorful touchscreen thermostat

• Hardwired ,24VAC

• WiFi embedded , 2.4G , 802.11bgn

• Modbus RS485/TCP

• 3.5” TFT screen , 480*320 resolution

• Capcitive touch

• Humidity sensor embedded (+/- 3%)

• Programmable mode, 5/2 , 7days , 24hours

• C/F selection

• Frost protection

• Manual or auto changeover

• Up to 3H/2C, Gas / Electric / Heat Pump / Fossil Fuel /Conventional

• Keypad lockout

• Adaptive recovery

• Short cycle protection

• Adjustable heating and cooling setpoint limits

Warranty: 5 years

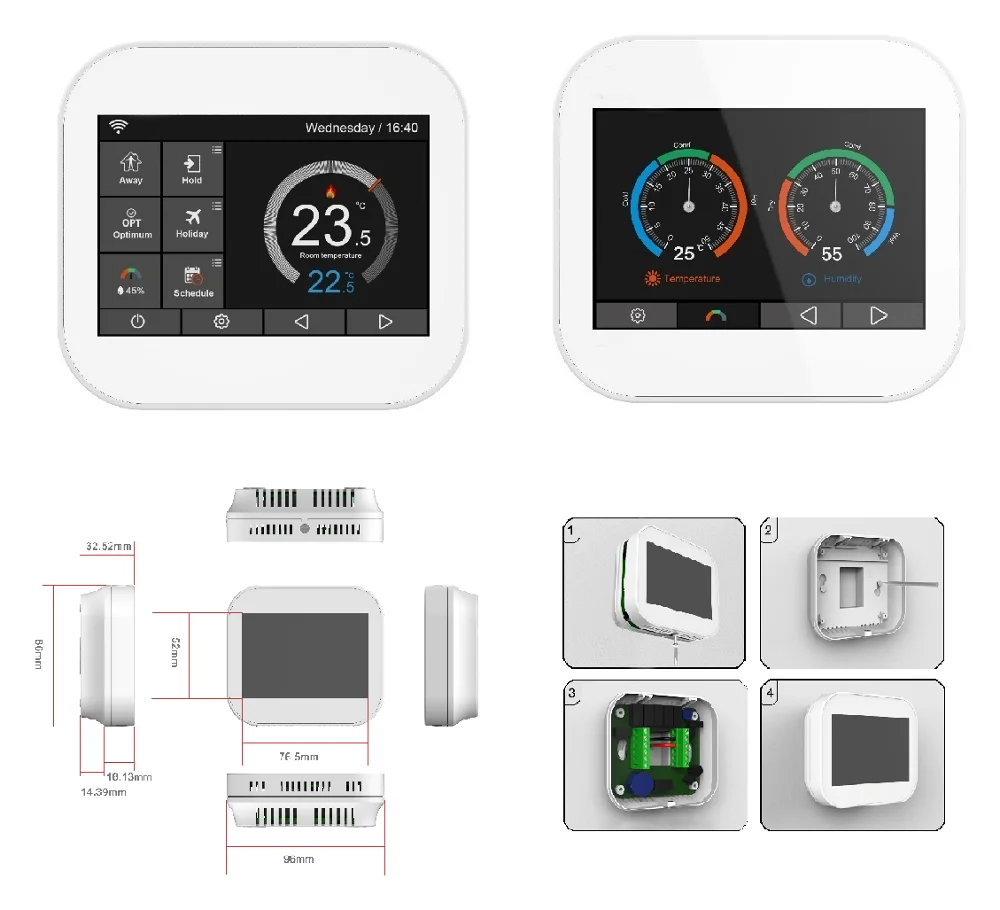

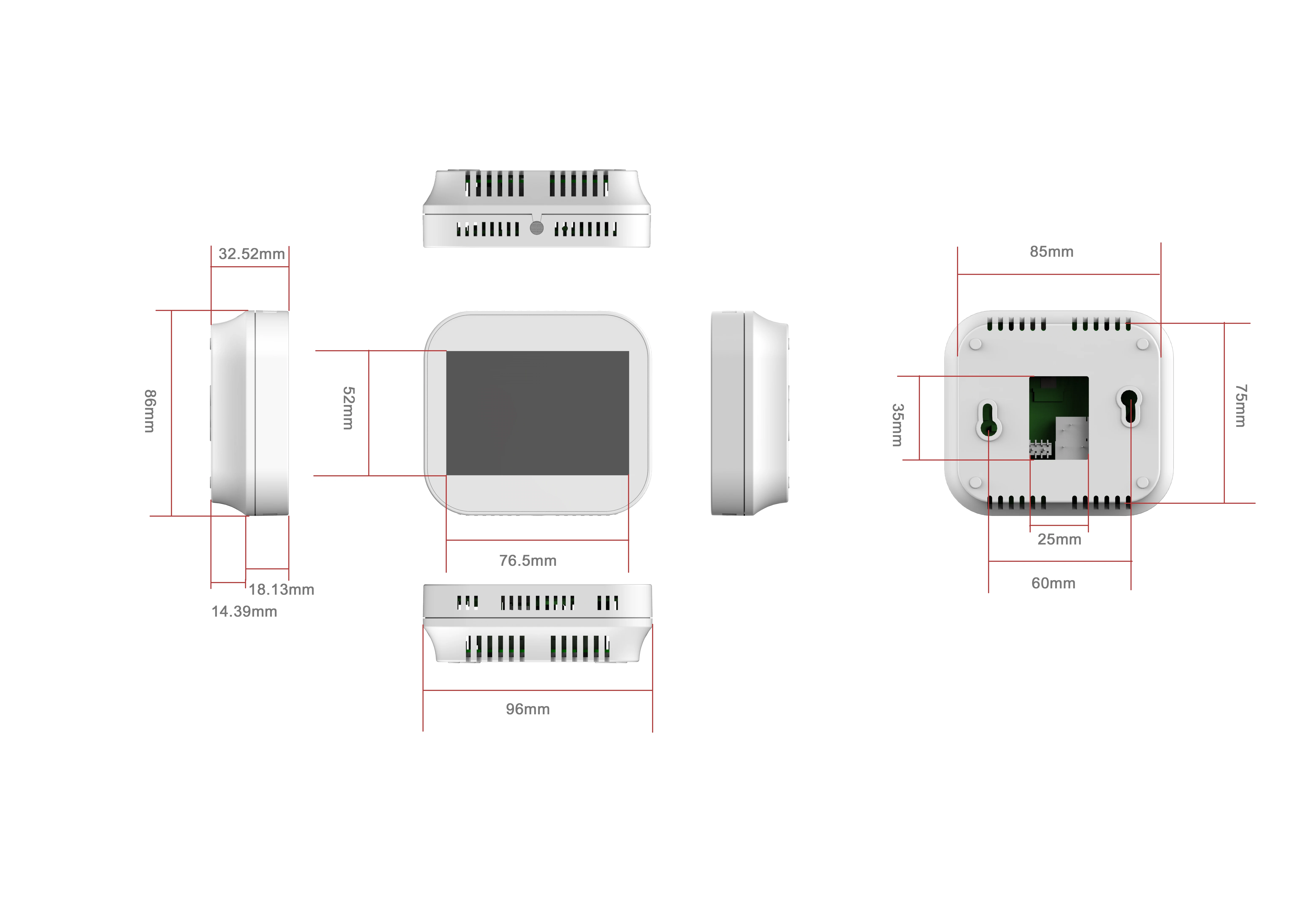

Dimensions	96mm Height * 86mm Width * 31.5mm  Depth
Display Resolution	480*320
Display Size	73.4 mm Height * 48.9 mm Width
WIFI	802.11 b/g/n (2.4G)
Modbus RTU/TCP	RS485 (19200 bps)
TOUCH	Capacitive
Input Voltage	24VAC, 50/60 Hz
Relay Rating	24VAC @ 1Amp maximum per relay
Operating Temperature	32° F to 150° F
Operating	RH 0% – 90% (non-condensing)
Storage Temperature	32° F to 150° F
Remote Sensors	10K NTC type 2
Short Cycle	Protection 4 minutes
Control Range	41° F to 122° F

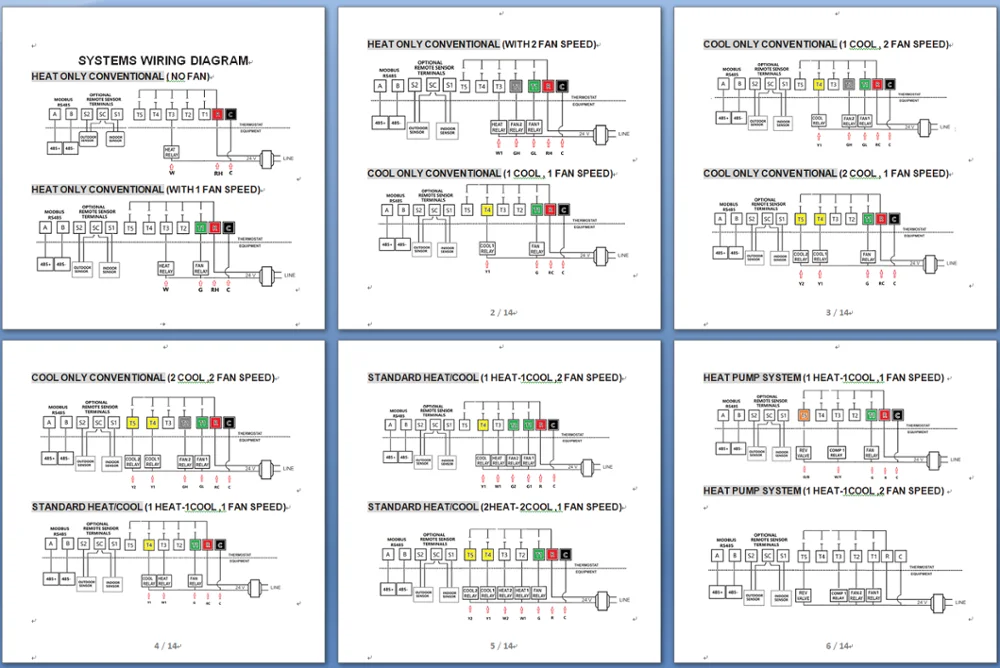

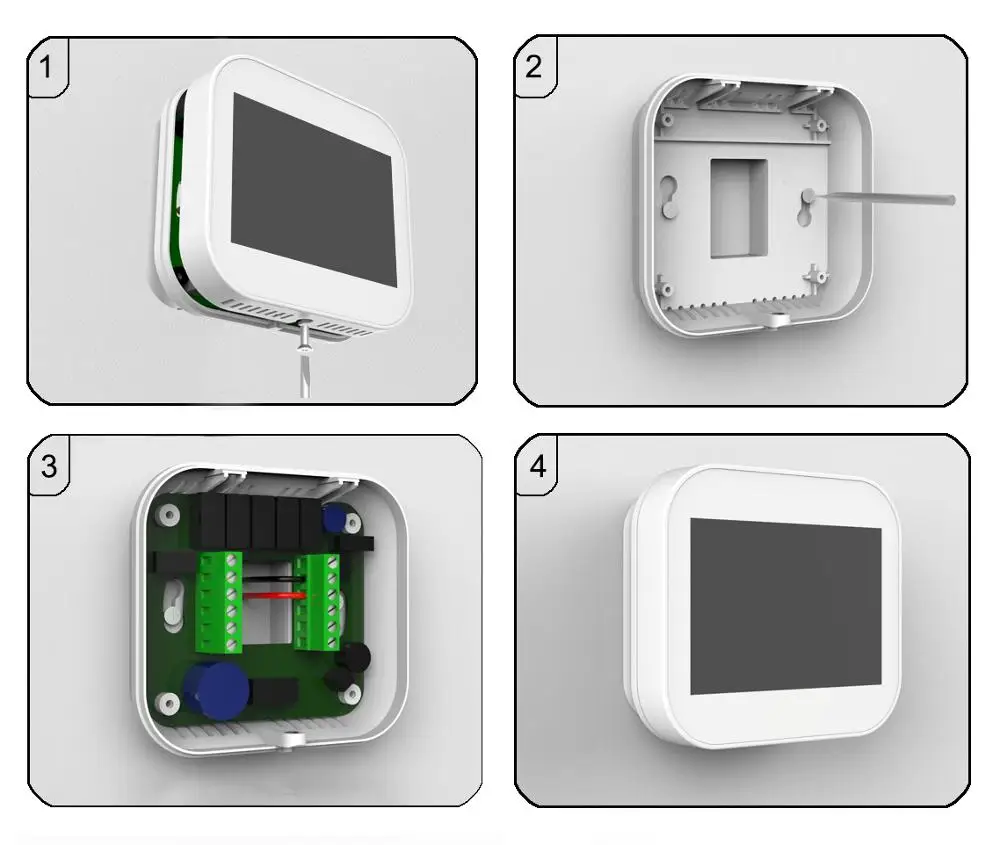

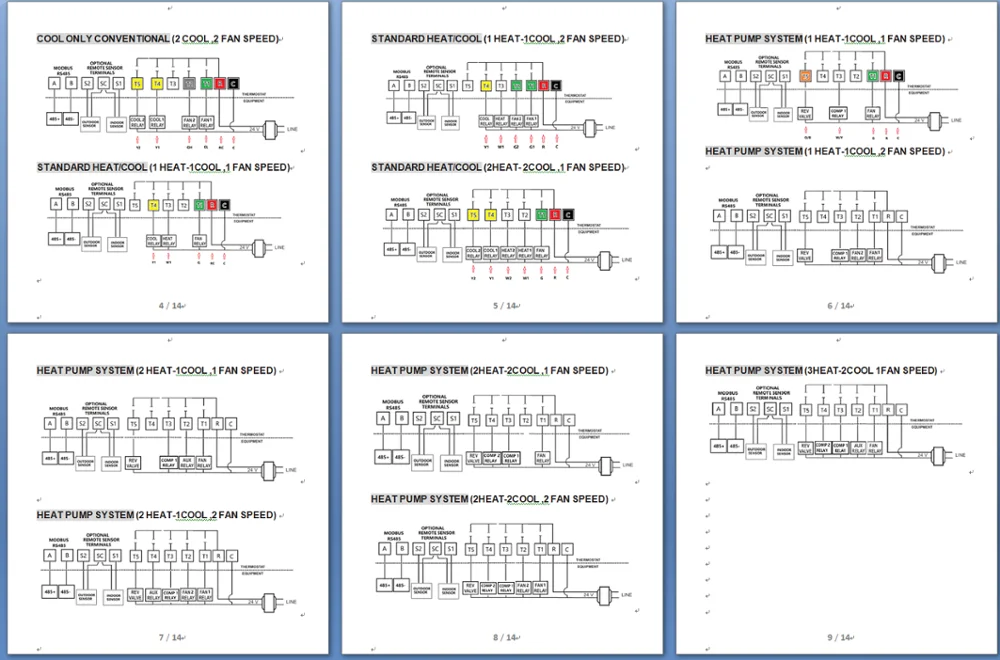

SYSTEMS WIRING DIAGRAM

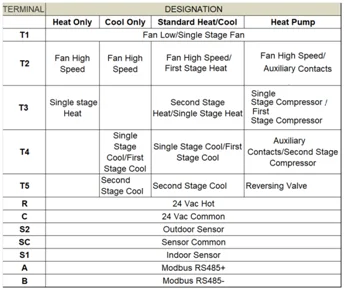

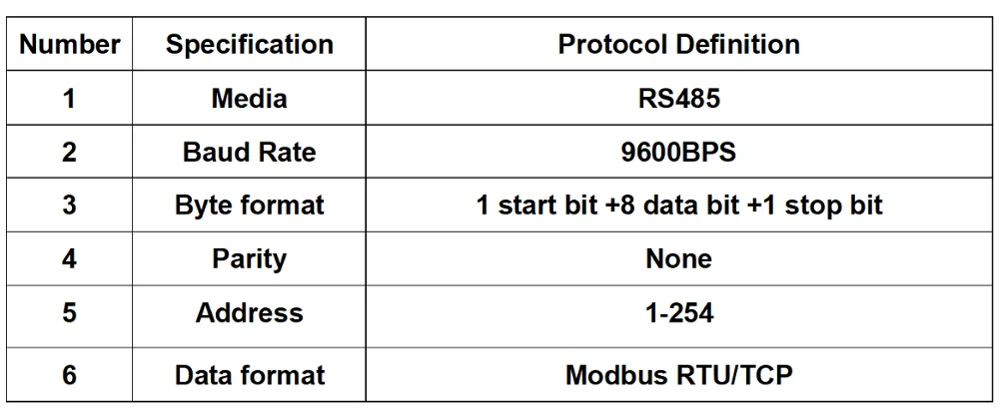

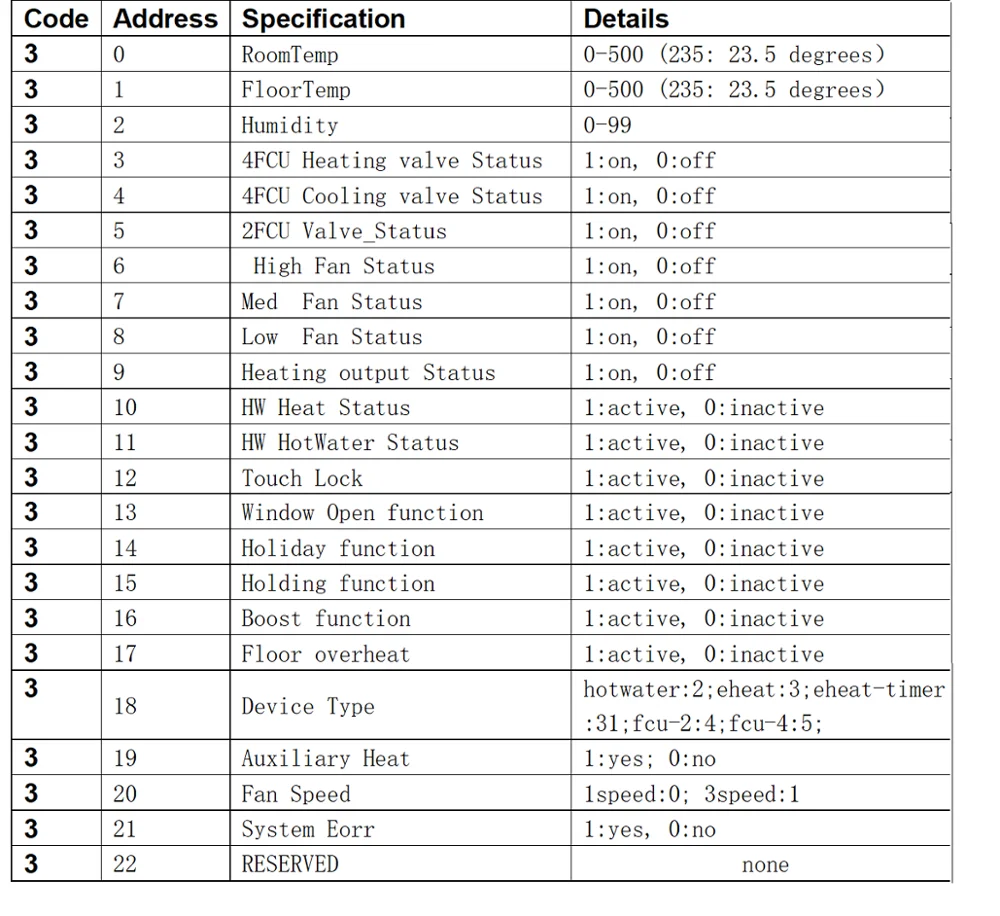

RS485  Communication Protocol Definitions:
