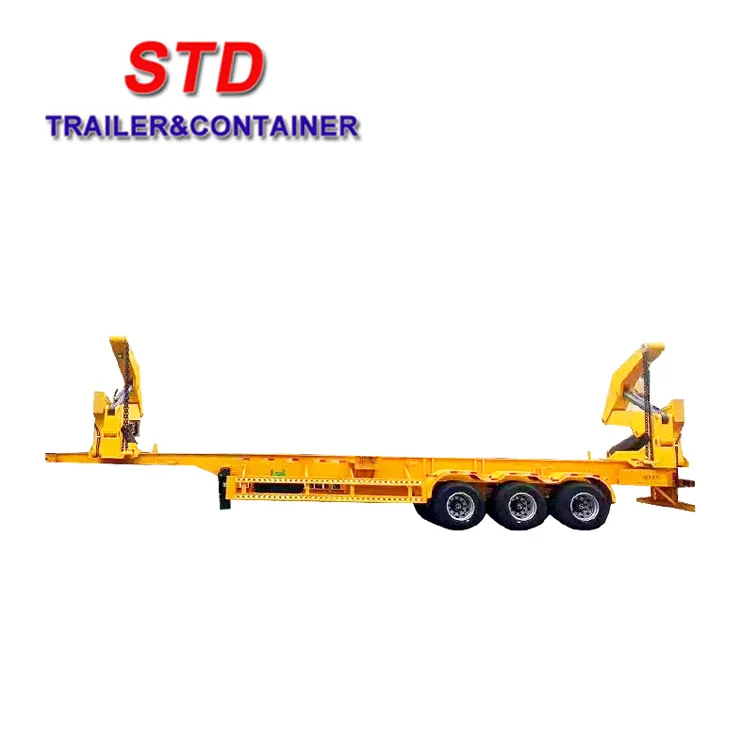

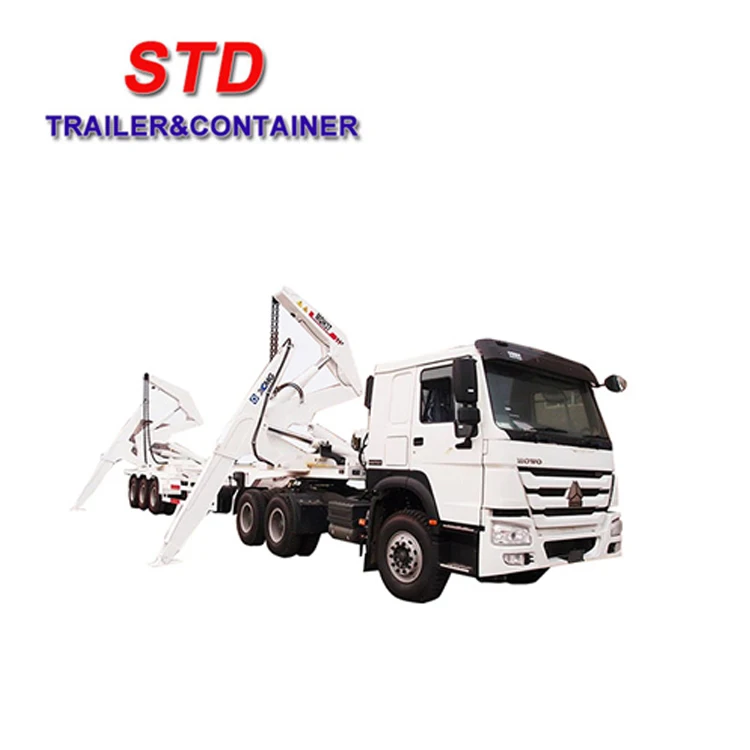

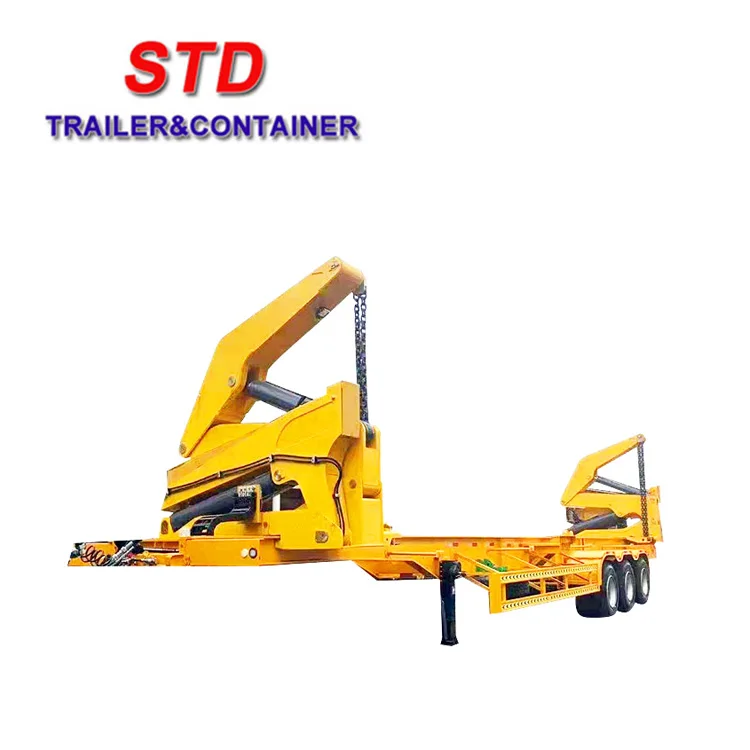

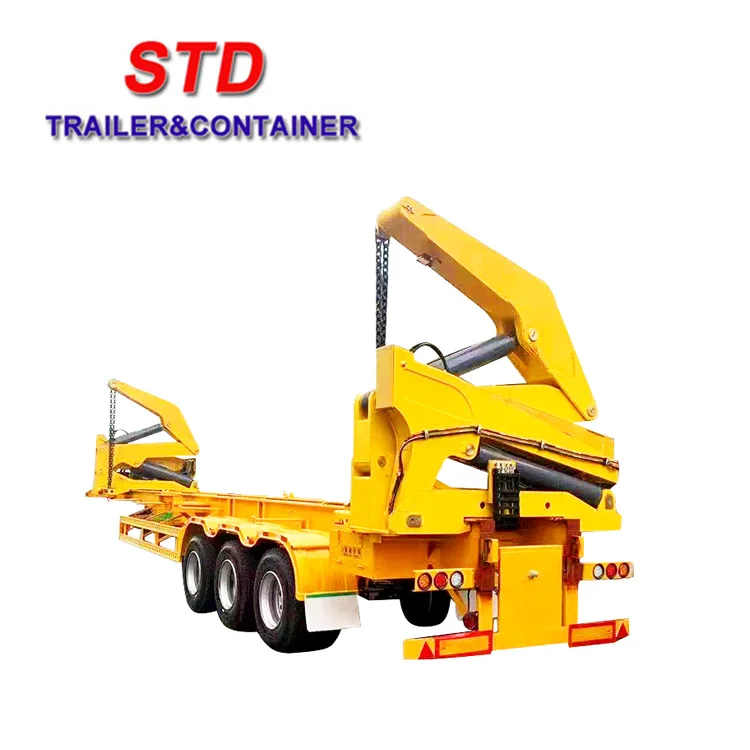

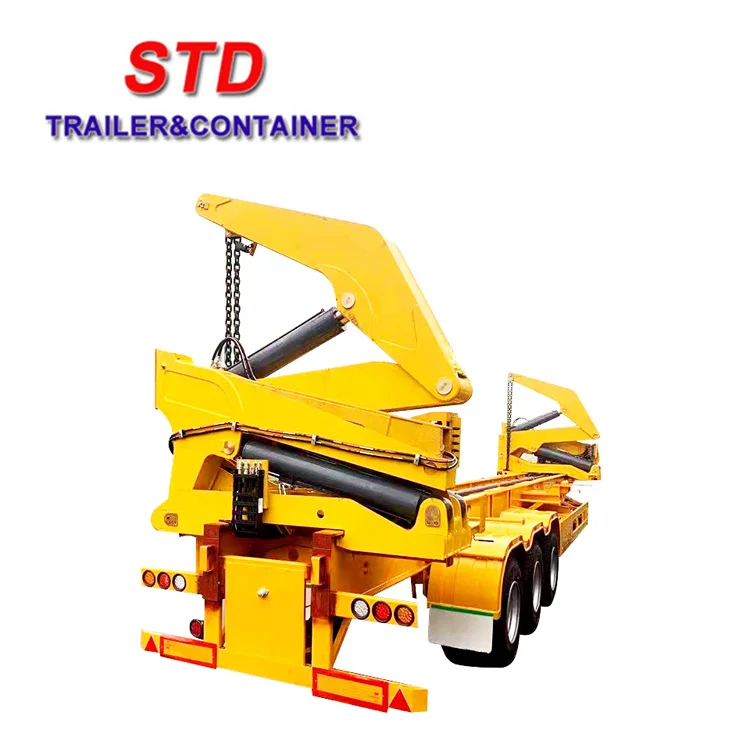

Special semi trailer with side loader unload shipping container
- Category: >>>
- Supplier: Shenzhen Standard Automobile Co. Ltd.
Share on (60561002591):
Product Overview
Description
SPECIFICATION
Specification | ||
1. Overall dimension | 14780 x 2490 x 3850 mm | |
2. Loading dimension | 20 feet or 40 feet ISO shipping container | |
3. Tare weight | 9500 kg | |
4. Gross weight | 40.5/45.5 tons | |
Standard Configuration | ||
1. Axle | 13 ton Fuwa brand, 150x150, 3 units | |
2. Suspension | Mechanical suspension | |
3. King pin | 2", bolt on type | |
4. Landing gear | 28 ton, two speeds | |
5. Tire | 11R22.5, 12 units | |
6. Rim | 8.25-22.5, 12 units | |
7. Braking system | Gladhand valve, Wabco relay valve, 30/30 double brake chambers on rear axle, 30 single chambers on other axles | |
8. Electrical system | Dual circuit, 7-way split pin receptacle plug, LED light | |
9. ABS | None | |
10. Model of side crane | MH360 | |
11. Max. lifting weight | 36000 kg | |
12. Crane working pressure | 25 Mpa | |
13. Control cabinet | CODO | |
14. Remote control | SANREMO | |
15. Hydraulic valve | HC | |
16. Hydraulic pump | PERMCO | |
Optional Configurations | ||
1. Air suspension | Firestone, Goodyear or Chinese brand | |
2. Lift axle system | Wabco or Chinese brand | |
3. ABS system | Wabco or Chinese brand | |
4. Axle | BPW 12 ton | |
