Made in Shanghai China hotsell bottle wrap stretch film packer
Description of bottle wrap stretch film packer:
| Stretch wrapper Name | FHOPE-R100 | FHOPE-R200 |
| Working mode | PLC | PLC&HMI |
| Max size of the pallet | 1400x1400 mm | 1400x1400 mm |
| Max Height of pallet | 2200mm | 2400mm |
| Rotating arm Speed | 15RMP | 18RMP |
| Packing speed | 30-50 pallets/hour | 40-80 pallets/hour |
| Film Carriage | Power pre-stretch carriage | Power pre-stretch carriage |
| Height level checking | Sensor | Sensor |
| Film Feeding | Manually | Automatic |
| Film Cutting | Manually | Automatic |
| Power supply | As per demand | As per demand |
| Air supply | 4-6 bar | 4-6 bar |
Technical Data
1. 2000 KG. weight capacity. (Optional heavier weight capacity).
2. Heavy-duty over-head A-Frame Style construction with 4-legs supporting the machine frame for solid machine support and trouble-free operation.
3. boom, all steel rotary arm construction with dual #40 chain carriage lift.
4. Speed Drives control all motors for maximum flexibility.
5. Electronic stretch film tension control with Analog electronic Sensor provides the ultimate in feedback control.
6. PLC controller with Touchscreen Operator Interface offers unlimited flexibility.
7. Automatic Load Height sensing photoeye is mounted in the stretch film carriage with adjustable track.
8. 30-50/40-80 Loads Per Hour Production Rate. Higher production rates are available.
9. 15/18 rpm (higher speeds are available).
10. System Top of Rollers for conveyors.
11. Pneumatic Controlled Cut & Wipe System.
12. Warranty period for this stretch wrapping system is 2 years.
13. Guaranteed For Life Prestretch rollers with 250% prestretch ratio as standard.

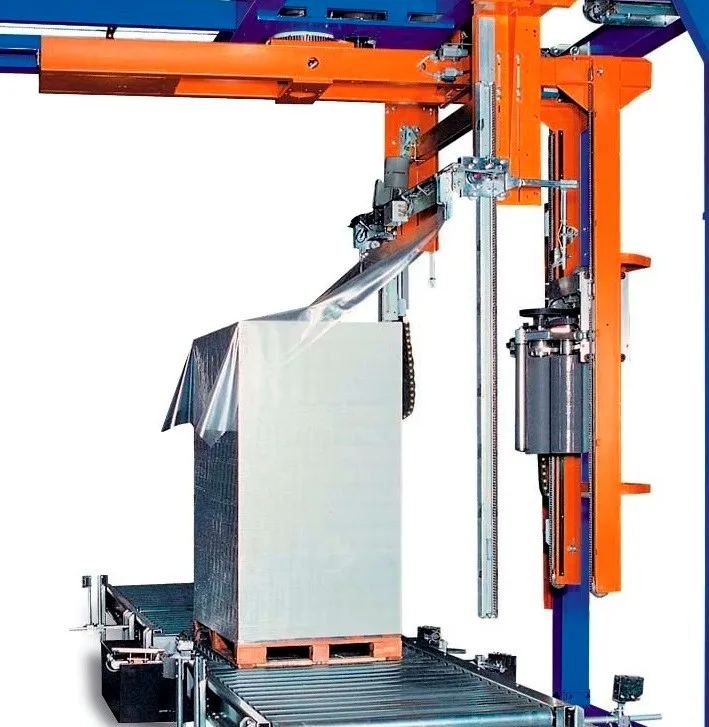

Press down device
Top sheet covering
80 Pallets High speed
Detailed Images
FILM SAVINGS - SEPARATE 1-9 TOP AND BOTTOM WRAP PROVIDES UP TO 15% FILM SAVINGS
Detailed Images of bottle wrap stretch film packer

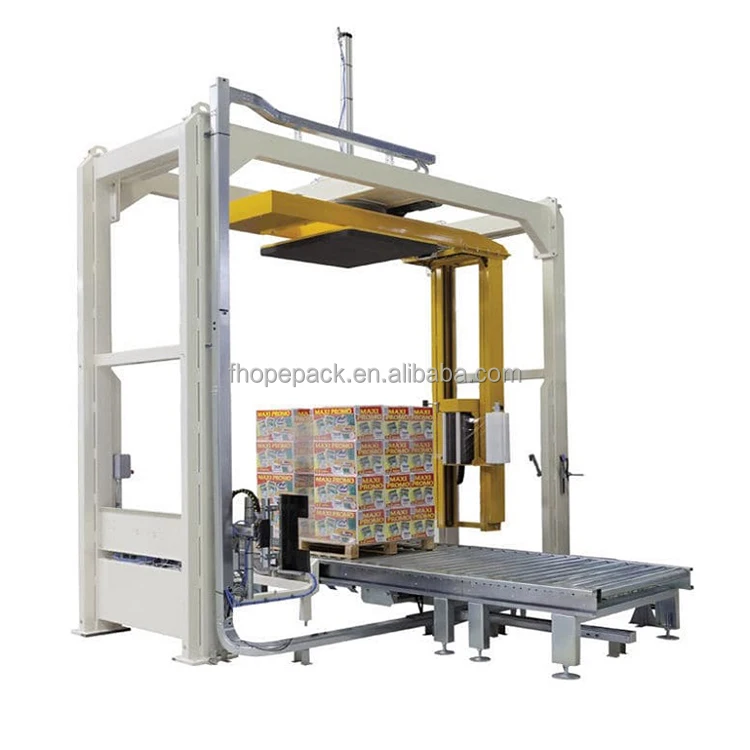

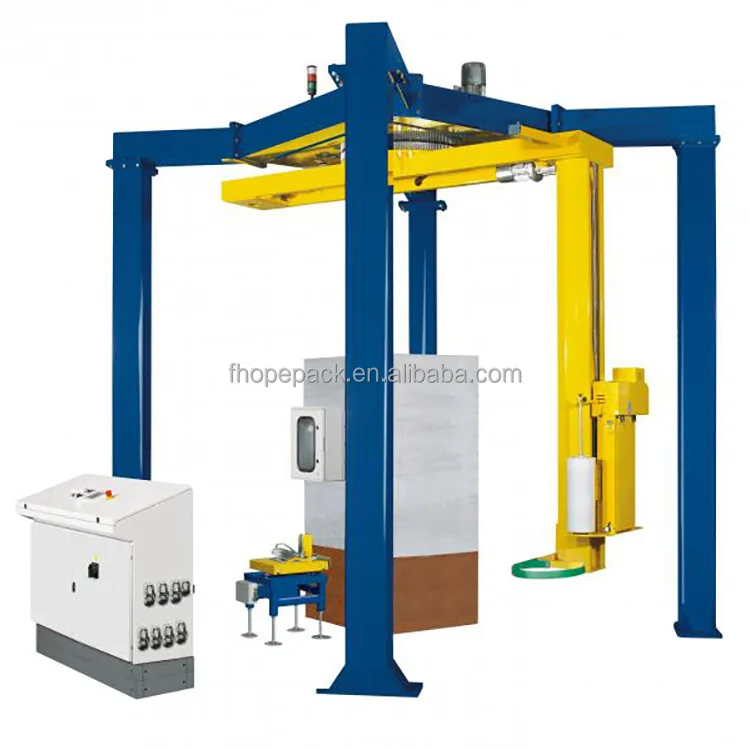

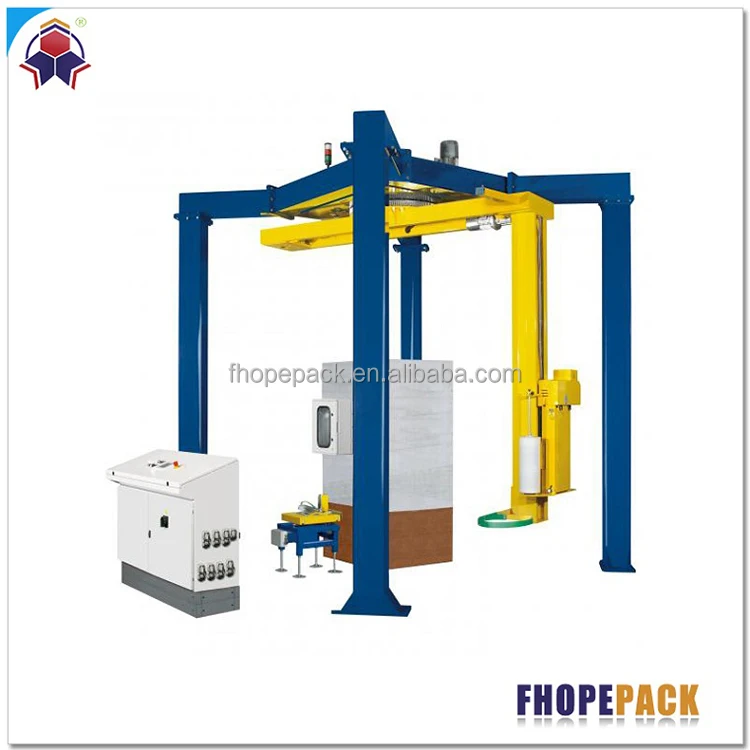

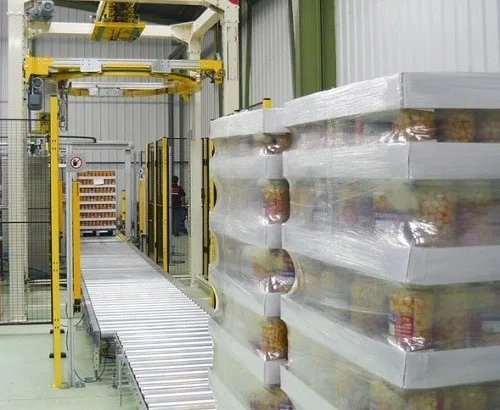

Our Most Popular Pallet Stretch Wrapper - Floor Mounted Frame

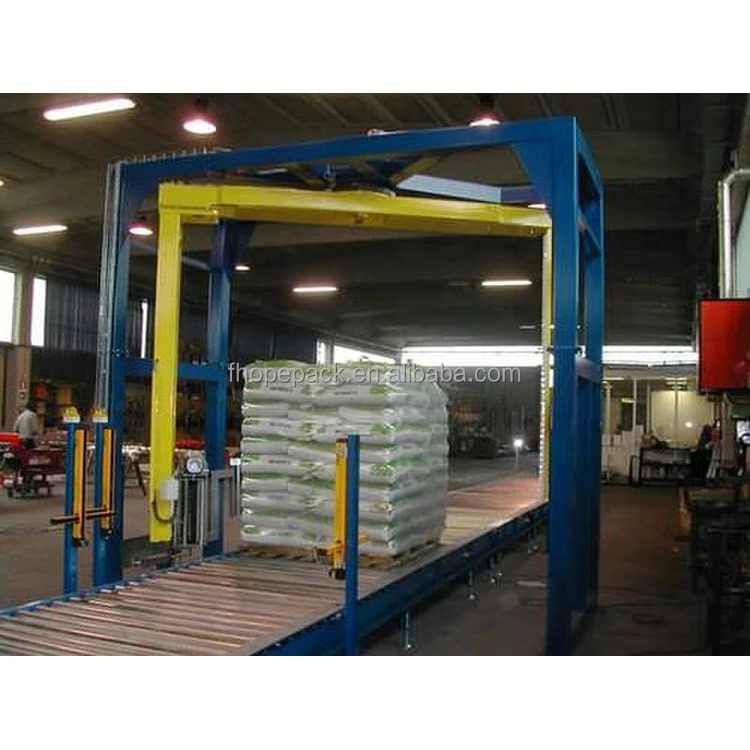

This Automatic palelt stretch wrapper concept keeps the load to be wrapped stationary while the stretch film carriage rotates around the load to apply the stretch film. The Pallet stretch wrapper is the perfect solution in situations where the load is very unstable (very tall, too heavy, too light) or in a washdown environment.

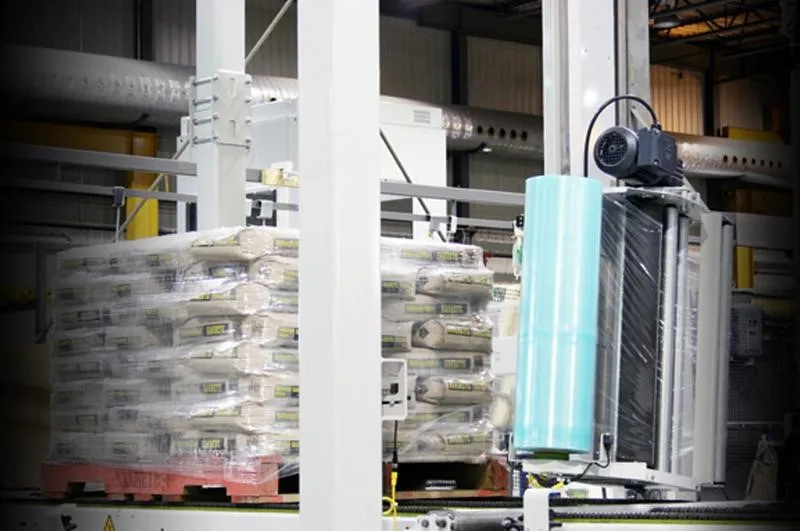

Easy operation 3 STEP "EASY THREAD" film Loading Ensures Safety
Re-loading the Film roll on any carriage is not an easy task with many automatic pallet stretch wrapper packing machines. With our “Easy Thread” access design, we make it simple and safer.Simply unlatch and open the access door, pull film tail past open access door and close the door. It's that simple!

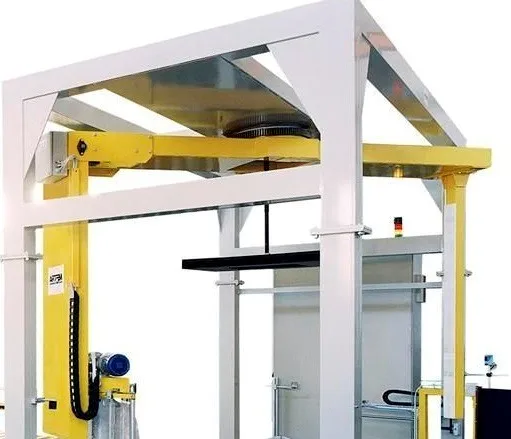

Strong Structurer with Tough Qaualiy for MAXIMUM STRENGHT
Strong-structual steel construction reflects the durability of this pallet wrapping machine. HSS tubing provides a strong and light-weight arm minimizing the driving forces required to rotate the arm.
Steel weldment of arm assembly is designed form maximum strenght while keeping the rotating weight to a minimum.
PLC&HMI Operator interface control offers options and flexibility
The Allen Bradley Micrologix PLC is designed to handle an extensive range of applications. Programming/Human Machine Interface (HMI) port in addition to the Channel 0 port — provides an inexpensive means of providing an extra port that can be used for programming using a personal computer with Rockwell RSLogix software.
With 15-18 rpm stretch wrapping speed, 35-80 Pallets per hour
The rotary arm pallet stretch wrapper is the fastest stretch wrapper in his class. Up to 35-40 pallets per hr. (based on load configuration and machine options), larger, variable speed drives control all motors for maximum flexibility, heavier, and faster wrapping than most competitive machines.
FILM SAVINGS - SEPARATE 1-9 TOP AND BOTTOM WRAP PROVIDES UP TO 15% FILM SAVINGS
Separate 1-9 top and bottom wrap count provides up to 15% film savings. apply only the stretch film required at the top separately from the bottom compared to competitive models that applies a common amount to top-bottom regardless of need.

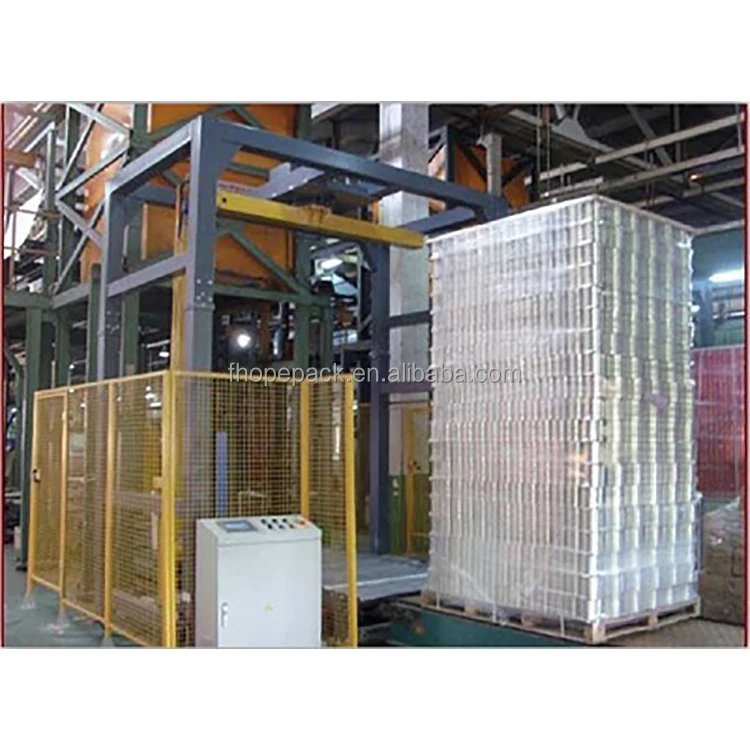

Application

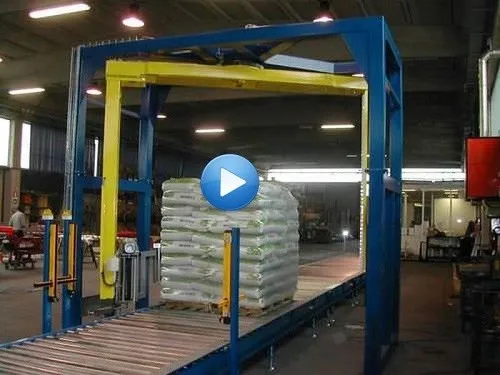

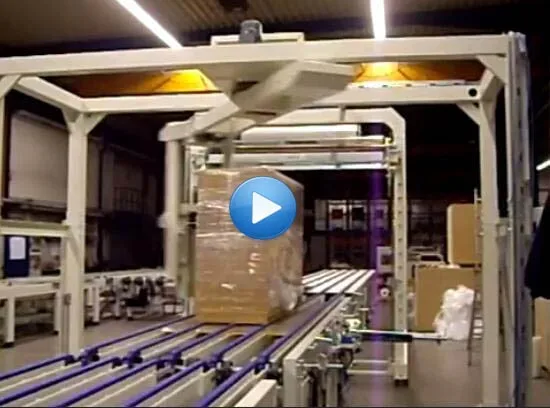

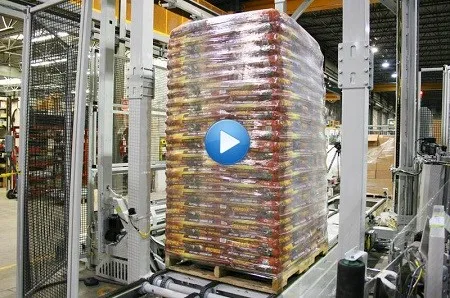

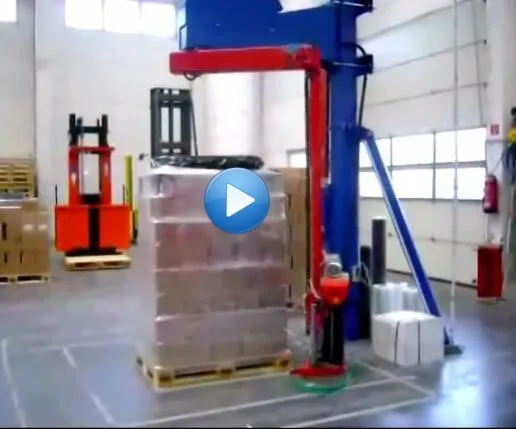

Vidoes
Click for more video to know Fhopepack stretch wrapping machine
Company information
FAQ
Q1:Are you factory or trading company?
A: We are factory and manufacturer. We provide great product in customize solution and service.
Q2: Where is your factory located? How can I visit your factory?
A: We are located in Shanghai, you can fly to Shanghai Hongqiao airport or Pudong airport. Wecan pick you up from the airport or your hotel. Welcome to visit us!
Q3:How to place an order to us ?
A: Just contact us via TraderManager, E-mail, Skype, WhatsApp or telephone to confirm the product, Wire the deposit by T/T, then we will start to design and manufacture...
Q4 : What is the payment term?
A: 40% T/T deposit and 60% T/T balance payment before shipping.
For big value, we also can accept L/C.
Q5:How long is the delivery time?
A: About 20- 40 working days. The customize solution may need 60days
Q6 : What is the guarantee and service of machine ?
A: One year free warranty, life-long maintenance. We can provide free high quality service on-line, email, Tel...we also can provide door to door service, this is paid service.
Q7 : How many staff of your factory?
A: There are 100 peoples, including 12 machnical engineers, 10 electrical engineers, 6 after service enginners.
