Водонепроницаемый микропереключатель 3P (вкл.) ВЫКЛ. 12 мм, сертификация CE
- Category: Toggle Switches >>>
- Supplier: Yueqing,Toowei,Electronic,Switch,Manufacturer
Share on:
Product Overview
Description
Product Description

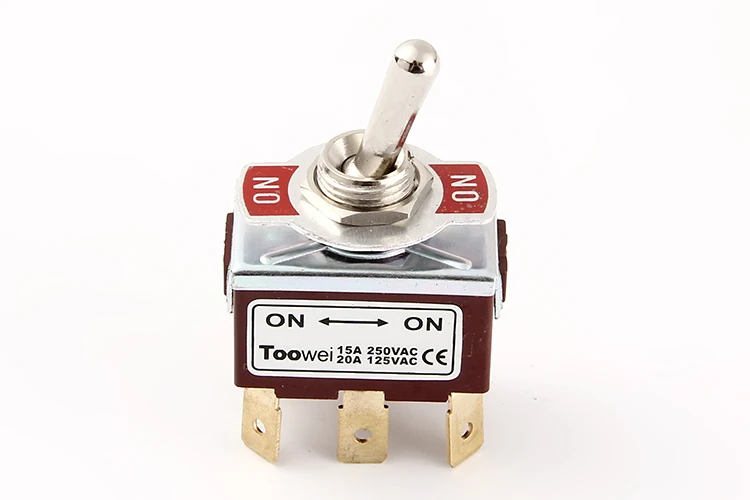

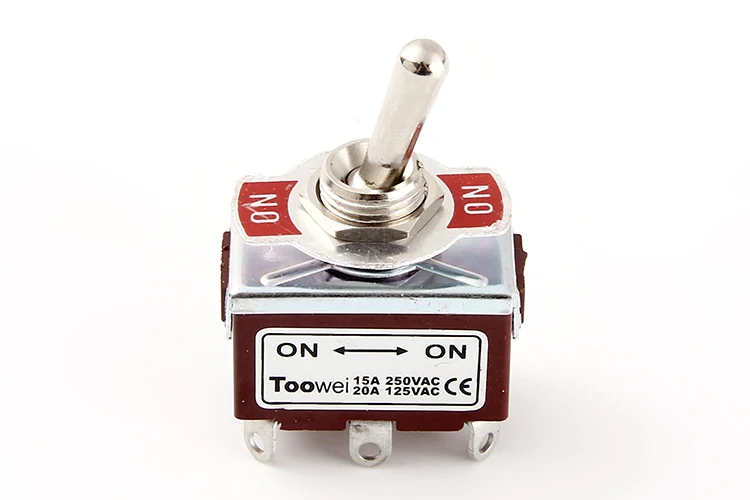

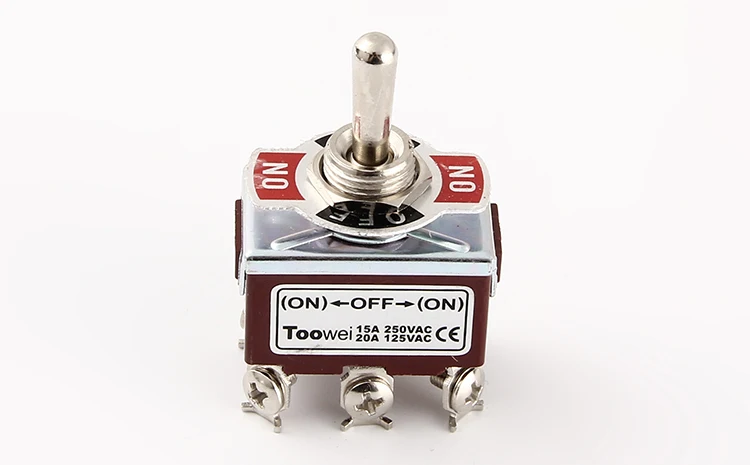

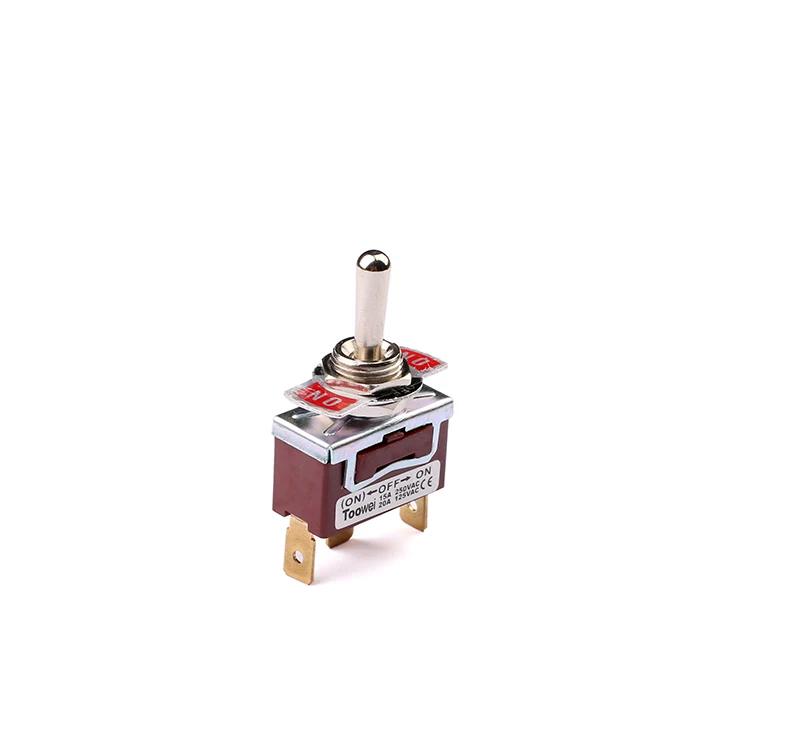

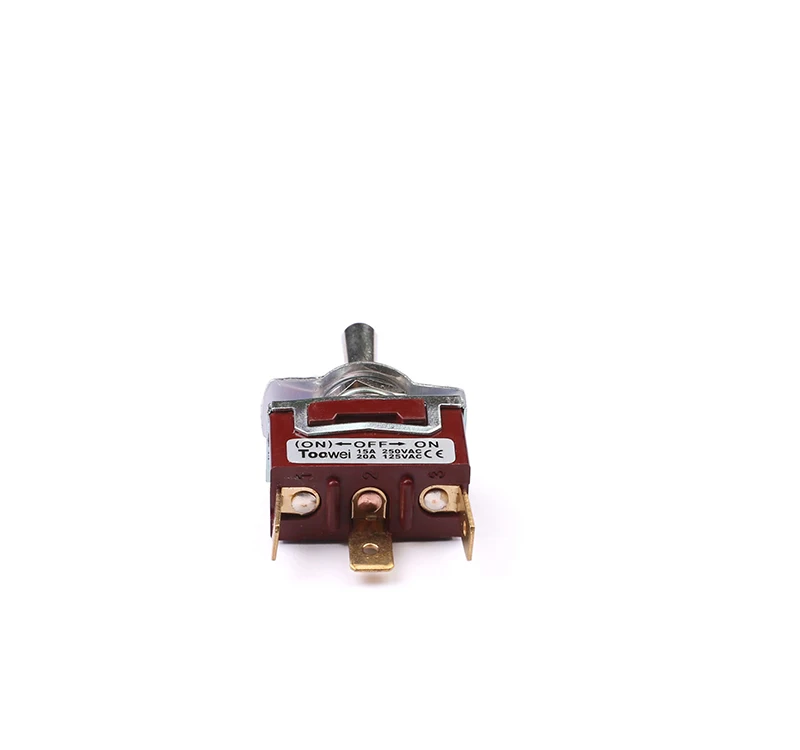

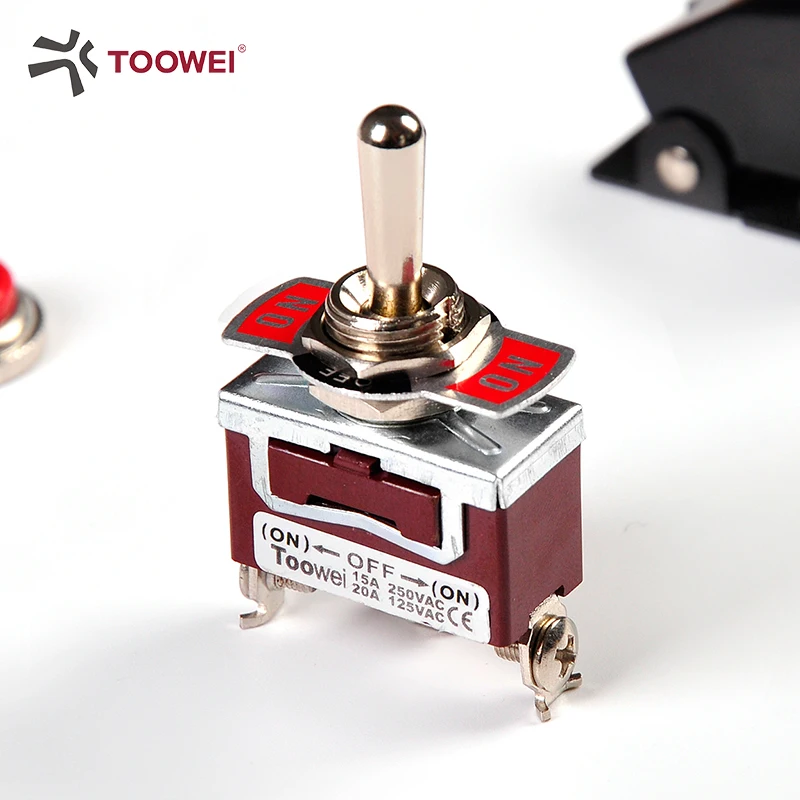

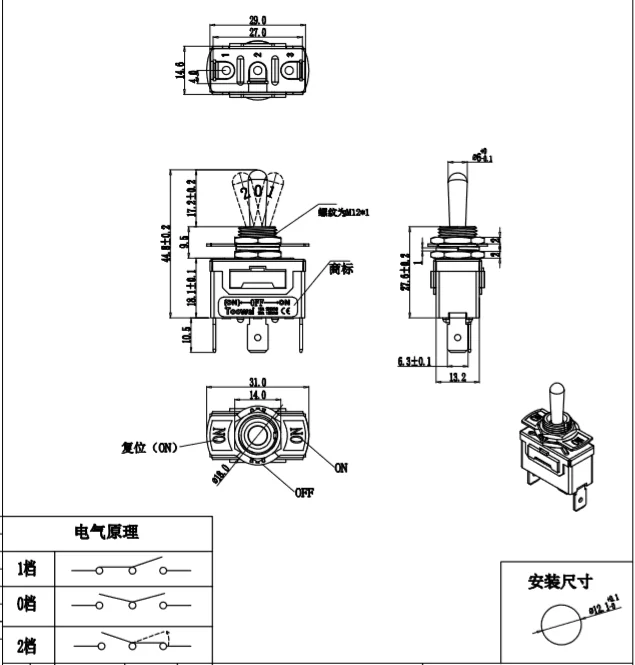

The T700 series toggle switch is rated at 10A 250V/15A 250v, suitable for AC 50Hz/60Hz. This switch is used as the switching mode and reset mode in the circuit. The terminal block has screws, quick-connect terminals and soldering terminals. Dust, waterproof and oil proof, suitable for the whole series.
Pole code | single group |
Function code | (on) off on |
Terminal form | Quick connect terminal |
color | Black/Brown |
Technical parameters
Technical parameters
1. Rating Value: 15A 250VAC/20A 125VAC
2. Operating Force: 8N-24N
3. Ambient temperature: -25℃~+85℃
4. Withstand voltage： 1500VAC 50/60hz
Leakage current：5mA
5. Insulation resistance ≥100mΩ
6. Electrical life： 20,000 times
Mechanical life: 50,000 times
7. Protection degree: IP67
8. Humidity： below 85% RH
9. Terminal form : Soldering terminal
Solderable soldering iron: 345±5° 1~2S
Solder resistance soldering iron：345±5° 3~5S
2. Operating Force: 8N-24N
3. Ambient temperature: -25℃~+85℃
4. Withstand voltage： 1500VAC 50/60hz
Leakage current：5mA
5. Insulation resistance ≥100mΩ
6. Electrical life： 20,000 times
Mechanical life: 50,000 times
7. Protection degree: IP67
8. Humidity： below 85% RH
9. Terminal form : Soldering terminal
Solderable soldering iron: 345±5° 1~2S
Solder resistance soldering iron：345±5° 3~5S
Related Products
Production Process
Exhibition
Company Information
Packing&shipping

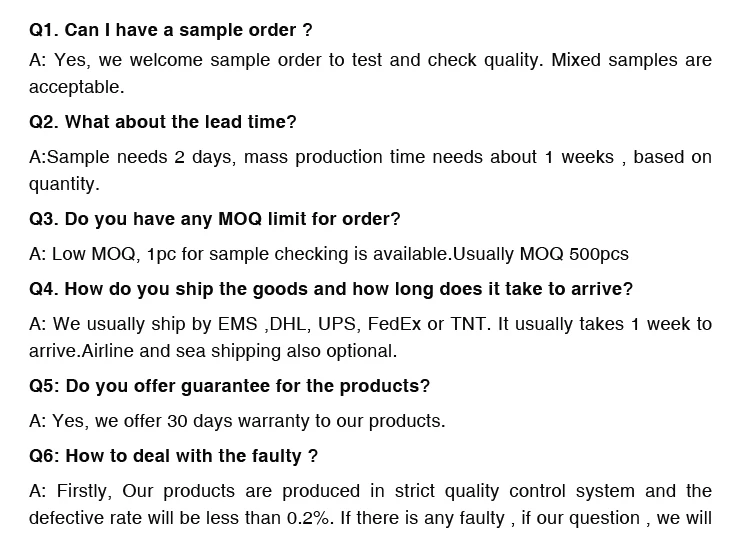

FAQ
