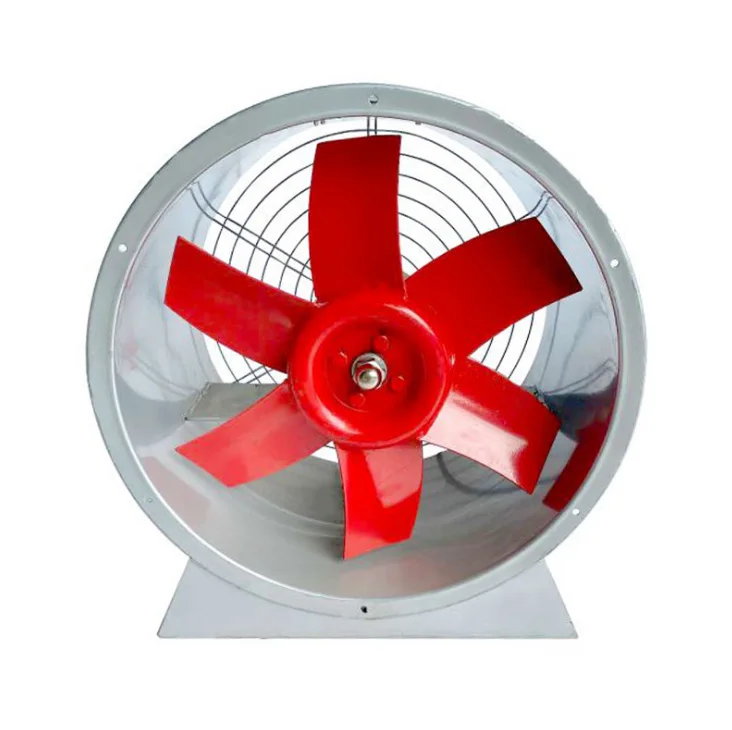

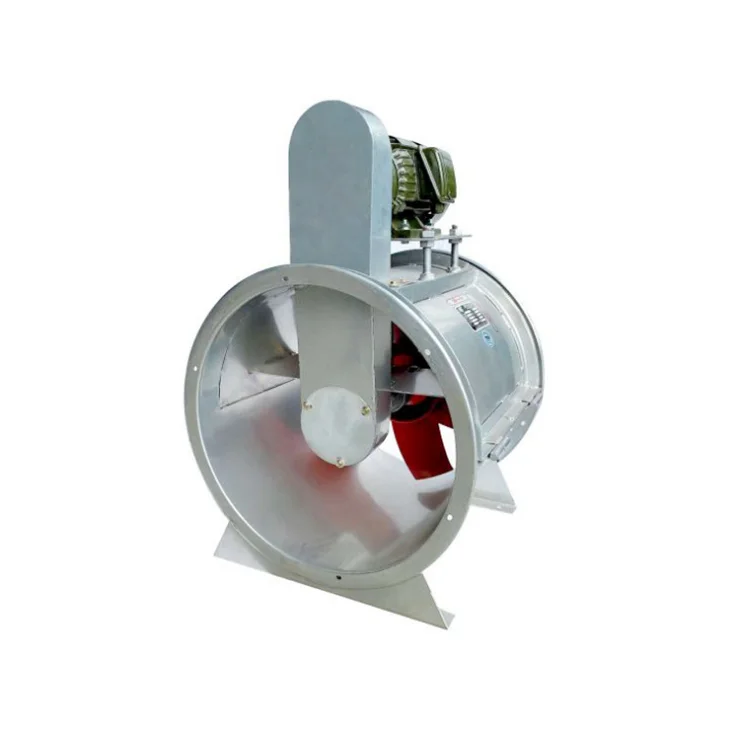

KT40 A/C Series High efficiency professional axial flow industrial axial flow fan exhaust fan YUTON Quality Axial Fans
- Category: >>>
- Supplier: Guangdong Gaoze Ventilation Equipment Co. Ltd.
Share on (60561241846):
Product Overview
Description
header
Product Description
YUTON Quality Axial Fans
1.Typical Feature and Application
Reasonable structure with high intensity blade |
Low noise, high efficiency |
Suitable for exhausting high temperature gas, oily gas and dusty |
Suitable to transmit the air with the temperature below 80 centigrade in the environment where has not flammable , explosive and caustic air, the dust containing index is below 150 mg/m3 |
2. Performance Range
Fan Type | Axial fan with adjustable aluminum blade (KT-A/C Series) |
Certificate | CE,CCC |
Electricity Current Type | AC(Alternating Current) |
Voltage | 220/380V |
Frequency | 50HZ |
Power | 0.37KW-5.5KW |
Speed | 1450-2800 RPM |
Air Volume | 8370m³/h up to 30650 m³/h |
Static Pressure | 100Pa up to 476 Pa |
Motor | Standard Motor |
3.Composition
Fan Housing | fan housing, fan casing, Double flanged casing manufactured with mild steel or galvanized sheet steel. Casing covers the overall length of motor and impeller. It is welded with mild steel plate with connecting flanges at both ends. Casing can also provided with foot mounting arrangement to install fan on the ground. |
Impeller | the punch forming blades are made of aluminum or galvanized steel. The impellers also has manually adjustable pitch blades. |
Inlet and Outlet Ducts | Connect with flanges |
Motor | Standard Motor, cast Iron with pure copper |
4.Fan Operation
Before set up the fan,check gap sizes of all parts of the fan to make sure the rotating parts will not hit the fixed parts. |
When the fan is rotating,check the temperature of the bearing after the impellers reach normal speed. If there is no special request for the temperature of the bearing,it can not higher than ambient temperature 40 °c |
If the fan has very severe shock,hitting ,and bearing temperature rise rapidly,please stop the fan right away. |
Fan Maintain
Periodically clean the inner dust, dirt and other impurities |
Periodlically check the fan to avoid rusting |
Change the lubricating oil after opening the fan .The lubricating oil shall be changed according to the actual situation. |
Technical Specification
Model | Voltage | Power | Revolution | Air Flow | Pressure |
KT4A-2 | 380 | 1.5 | 2800 | 8370 | 250 |
KT4A-4 | 220/380 | 0.75 | 1450 | 4000 | 53 |
KT5A-2 | 380 | 3 | 2800 | 10728 | 260 |
KT5A-4 | 220/380 | 1.5 | 1450 | 7000 | 128 |
KT6A-2 | 380 | 7.5 | 2800 | 19590 | 476 |
KT6A-4 | 220/380 | 3 | 1450 | 16000 | 260 |
KT6A-2 | 380 | 5.5 | 2800 | 17650 | 363 |
KT4C-2 | 380 | 1.5 | 2800 | 8370 | 250 |
KT4C-4 | 220/380 | 0.75 | 1450 | 4000 | 53 |
KT5C-2 | 380 | 3 | 2800 | 10728 | 260 |
KT5C-4 | 220/380 | 1.5 | 1450 | 7000 | 128 |
KT6C-2 | 380 | 7.5 | 2800 | 19590 | 476 |
KT6C-4 | 220/380 | 3 | 1450 | 16000 | 260 |
KT6C-2 | 380 | 5.5 | 2800 | 17650 | 363 |
