Full Automatic Cnc Metal Circular Cold Saw Machine Manufacturer
- Category: Cut Off Machine >>>
- Supplier: Shanghai Loginfly Sawing Technology Co. Ltd.
Share on (60561432254):
Product Overview
Description
Product Description
| Machine model | LJX-100 | LJX-120 | LJX-150 | |
| Cut-off capacity | Round bar(mm) | 20-100 | 300-120 | 40-150 |
| Square bar(mm) | 20-90 | 30-100 | 40-130 | |
| Round tube(mm) | 20-100 | 300-120 | 40-150 | |
| Square tube(mm) | 20-90 | 30-100 | 40-130 | |
| Saw head spindle | TCT carbide tipped sawblade type | 360*2.6t | 425*2.7t | 425*2.7t/ 460*2.7t |
| HSS high-speed sawblade type | 360*2.6t | |||
Sawblade rotation speed | 20-170rpm (stepless speed control) | 18-160rpm (stepless speed control) | 18-150rpm (stepless speed control) | |
| Chip cleaner | STEEL BRUSH DISC | |||
| Motor | Spindle driving motor | 11kw/4p | 11kw/6p | 15kw/6p |
AC Servo motor (saw head) | 2kw | 2.8kw | 3.5kw | |
| AC Servo motor(gfc) | 11kw | 2kw | 2kw | |
| Hydraulic pump motor | 2.25kw/4p | 3.75kw/4p | 3.75kw/4p | |
| coolant pump motor | 0.19kw/2p | 0.19kw/2p | 0.19kw/2p | |
| Hydraulic device | Work driving pressure | 70kg/CM2(7mpa) | 90kg/CM2(9mpa) | 90kg/CM2 (9mpa) |
| Tank capacity | 90L | 100L | 100L | |
Operating air pressure | 4-6kg/CM2(0.4-0.6mpa) | |||
Machine dimension-weight | Dimension(L*W*H) | 7200*2000*1800 mm | 7600*3000*1850 mm | 7600*3100* 1920mm |
Weight/Main body+Shelf | 3210kgs | 5950kgs | 6380kgs | |
| Standard Accessories | Automatic feeding device (Excluding CE protective cover) | |||
| Heat exchanger of electrical cabinet | ||||
| Halogen working lamp | ||||
| Protective blowing after cutting device | ||||
| Coolant pump device | ||||
| Optional Accessories | Bundling feeding device | |||
| Unloading device(For long length workpiece) | ||||
| Mist recycler | ||||

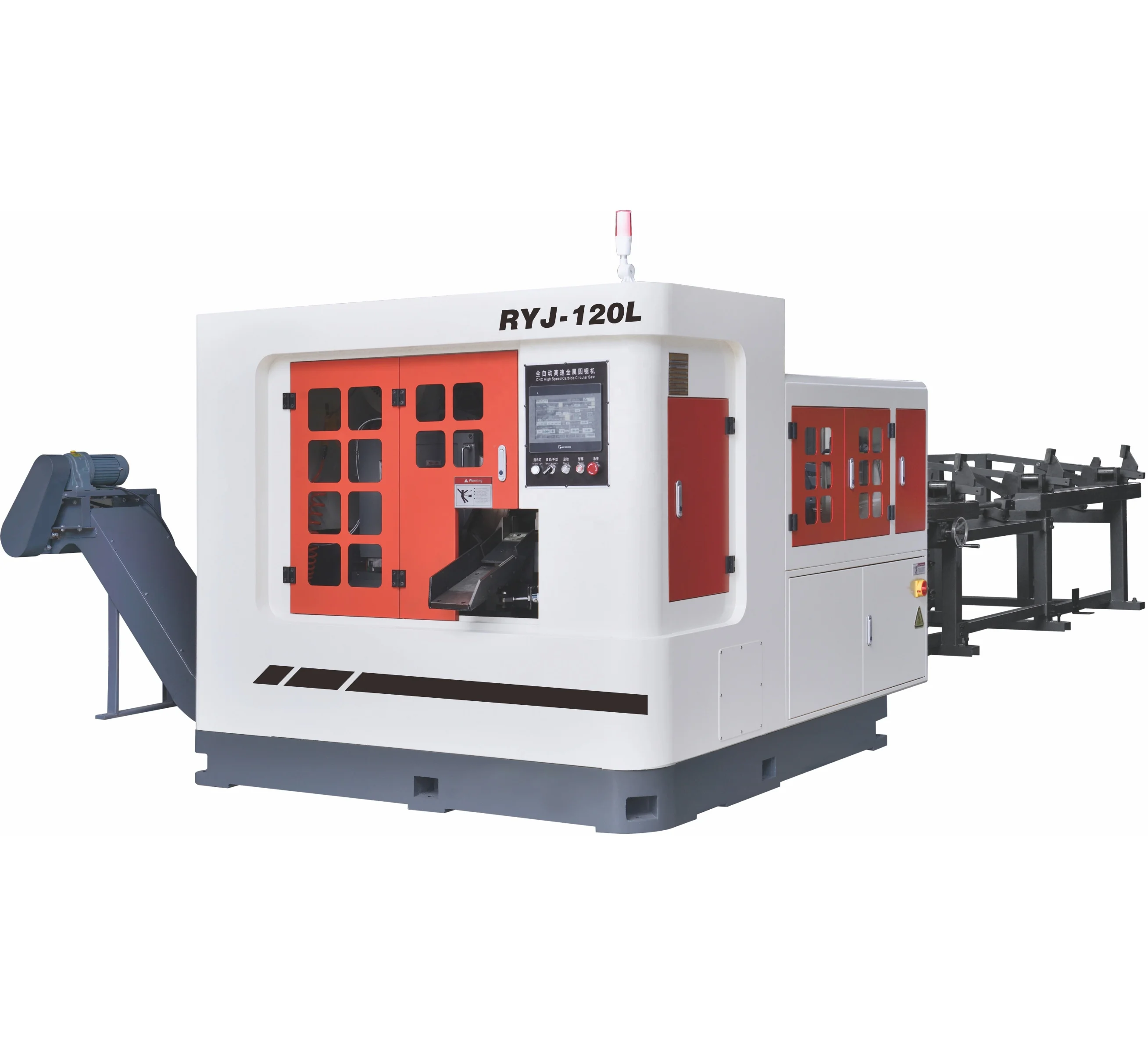

Automatic high-speed circular saw machine is a widely used high-speed metal circular saw machine, especially suitable for all kinds of non-ferrous metal bar cutting high-speed precision.
- The key control unit man-machine interface, servo motor, frequency changer, PLC all uses Japanese Mitsubishi brand.

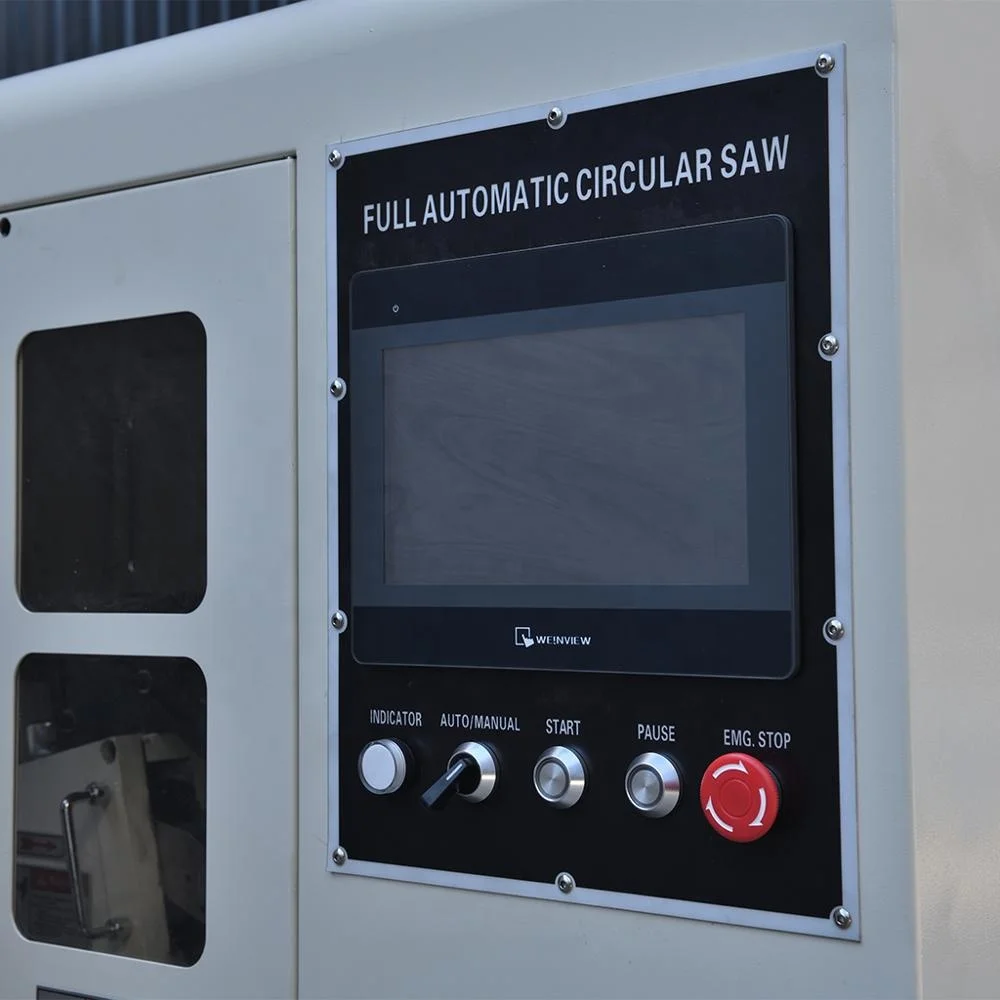

- Automatic circular saw cutting length and residual material length and other parameters are input through the man-machine interface.
- Circular saw machine to meet the maximum diameter of 150mm cut off a variety of non-ferrous metals.
- Automatic circular saw machine Uses a 285mm OD 2.0mm TCT toothed saw blade as a cutting tool.
- spindle speed stepless speed regulation, can be adapted to different materials.

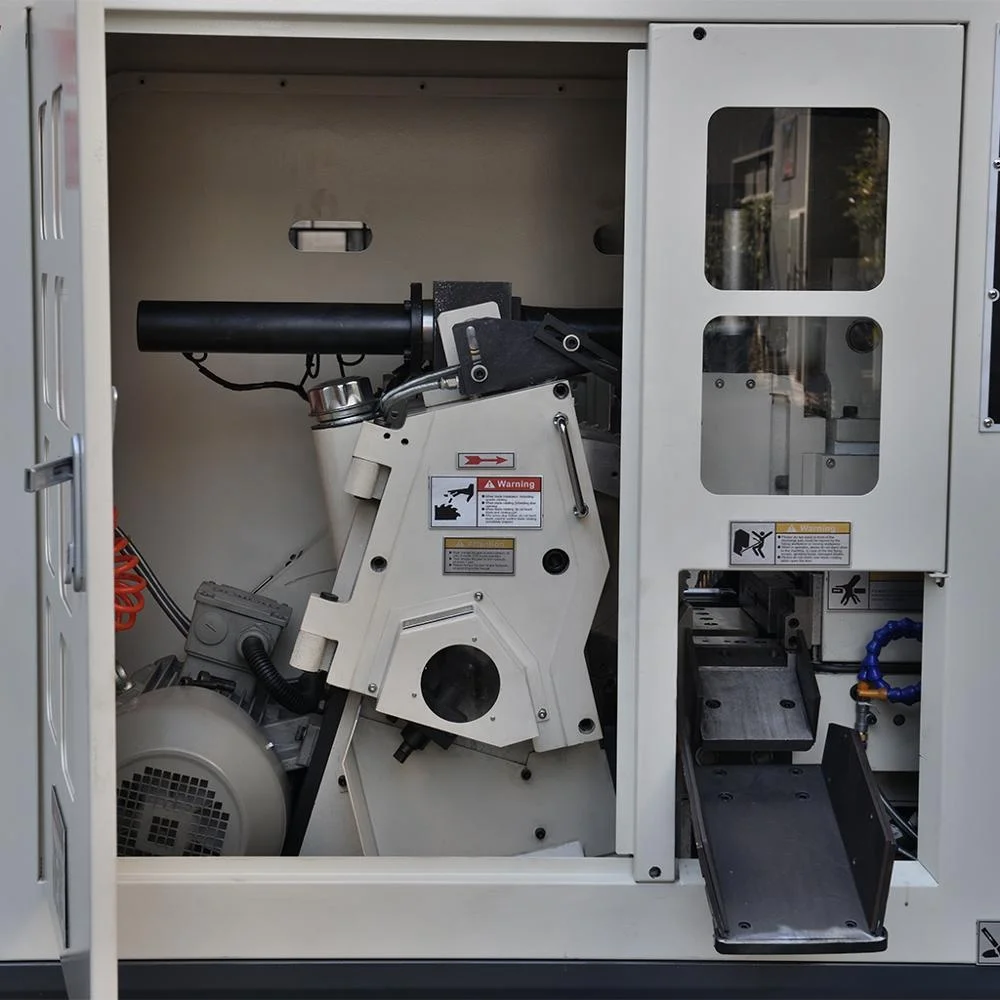

- Headstock cutting feed mode for the rocker arm, servo motor drive, you can adjust the feed rate.
- CNC circular saw machine Feeding system design slow positioning function.
- Cutting clamp with three-point universal clamping, different material shape without changing the clamping device.
- With no material downtime and automatic calculation of downtime, easy to manage.
- Equipped with a quasi-dry saw lubrication and cooling device to improve the life of the blade.

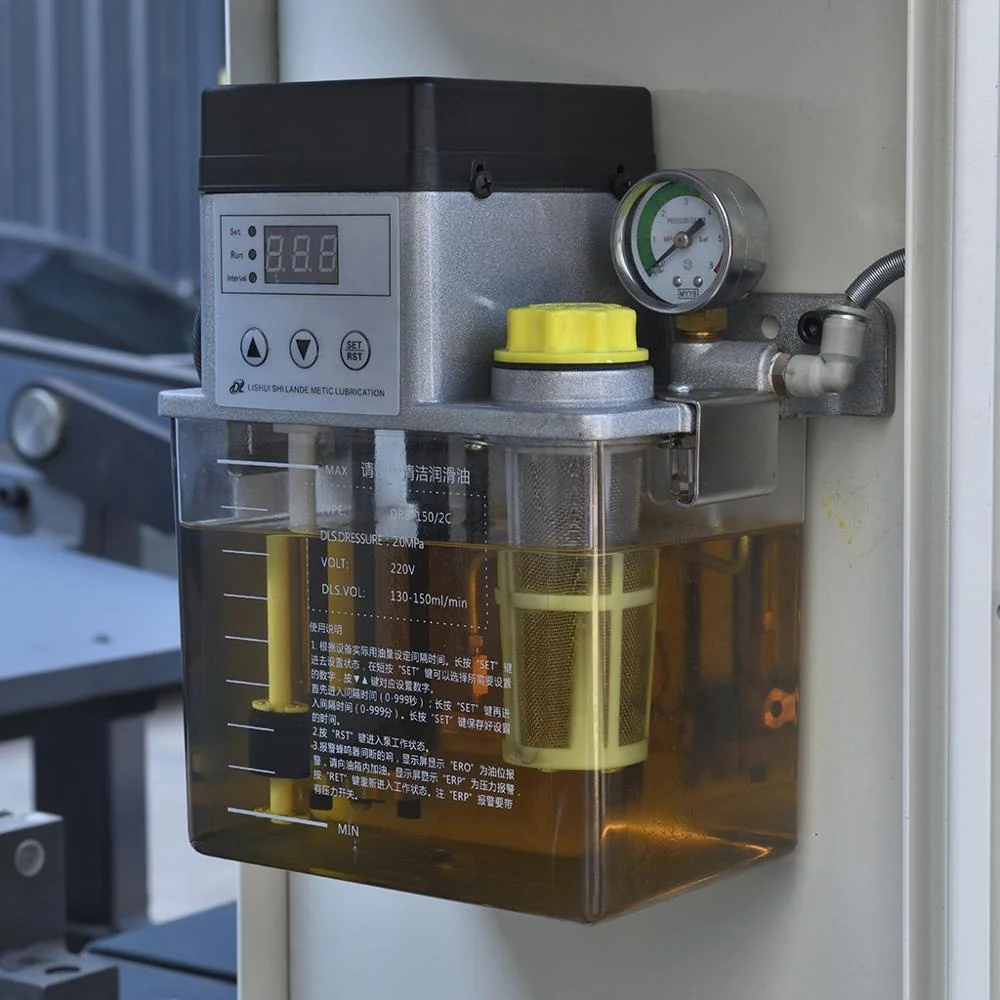

- The equipment is equipped with automatic lubricating device, which can regularly quantitatively grease the screw guide and other components.
- With manual, automatic function.
- The entire work cycle: feeding, clamping, cutting, feeding all CNC fully automatic, manual feeding and complete material collection.

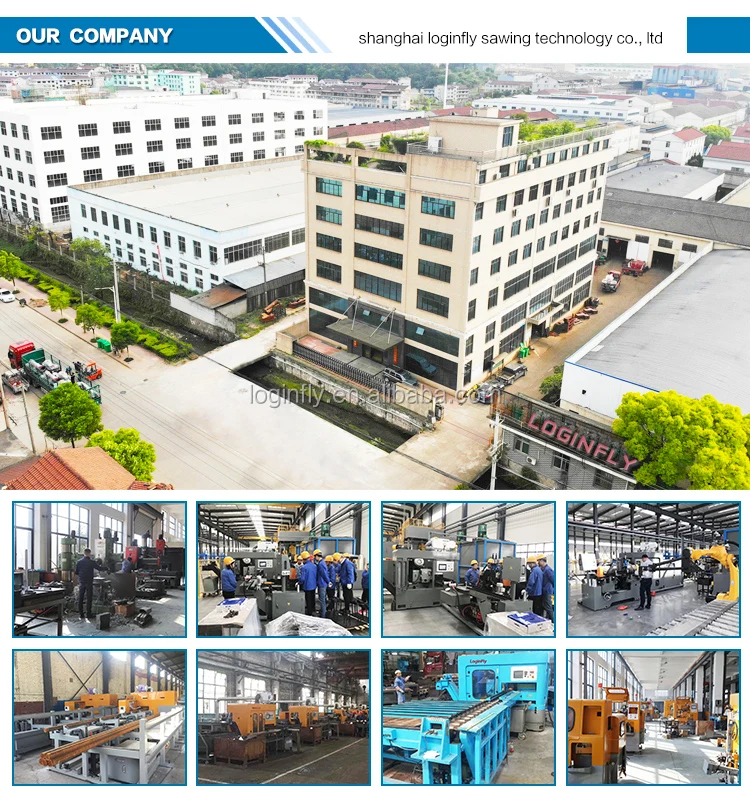

Company Information
Our team in China sawing industry especially band sawing machine and band saw blade industry has accumulated rich experience and established a set of technical training machine tool manufacturing, application for the integration of production and research and development base and sales service center.
In 1985, we beginning to manufacture band saw machine, until now we got rich experience in this scope, we also have OEM experience more than 15 years, there are more than 10000 sets Machine we do OEM as customer's requests.
In 1985, we beginning to manufacture band saw machine, until now we got rich experience in this scope, we also have OEM experience more than 15 years, there are more than 10000 sets Machine we do OEM as customer's requests.
Customer visit
FAQ
1) Q: Can i have your quotation?
A: First, please offer us the information of your material size,
without these parameter, we are not able to recommend you the suitable machine
2) Q: Do you have overseas service?
A: No,but we normally help our customers to solve the problems through phone,
Email, skype, internet video. high efficiency. We offer one year guaranteen, within
one year, if component of the machine broken, we freely offer the component, but
the delivery fee should be paide by client
3)Q: What is the voltage and Hertz in your country?
A: In China,the Voltage is 380V(3 Phase), the Hertz is 50HZ, we can change the
voltage and Hertz according to your requirment.
4) Q: How about the payment term
A: T/T 30% deposit, 70% of balance paid before shipment.
A: First, please offer us the information of your material size,
without these parameter, we are not able to recommend you the suitable machine
2) Q: Do you have overseas service?
A: No,but we normally help our customers to solve the problems through phone,
Email, skype, internet video. high efficiency. We offer one year guaranteen, within
one year, if component of the machine broken, we freely offer the component, but
the delivery fee should be paide by client
3)Q: What is the voltage and Hertz in your country?
A: In China,the Voltage is 380V(3 Phase), the Hertz is 50HZ, we can change the
voltage and Hertz according to your requirment.
4) Q: How about the payment term
A: T/T 30% deposit, 70% of balance paid before shipment.
