Lifepo4 rechargeable battery 14430 500mah 3.2V for flashlight
- Category: >>>
- Supplier: Shenzhen Magnate New Energy LimitedShenzhen Limited
Share on (60561469441):
Product Overview
Description
Product Description
Model: IFR14430
Description: 3.2V Lifepo4 battery
Capacity: 500mAh
Max. Dimension(mm) : 14x42.5mm
Operation Temperature Range:
0~45°c (Charge)
-10 ~60°c ( Discharge)
Weight (g): 14g
Application:
Power tools
Medical Devices
Protable high power devices
Stationary battery backup systems
Grid stabilization energy storage systems
Commercial truck and bus hybrid electric vehicles (HEVs)
Lifepo4 other types

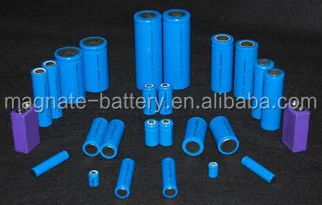

Shenzhen Magnate lifepo4 batteries / battery packs
| IEC type | Normal model | Nominal Capacity (mAh) | Nominal Voltage (V) | Dimension(mm) | |||
| Diameter | Height ±0.5 | Top Dia ±0.1 | |||||
| IFR | 18650 | IFR18650 | 2500mAh | 3.2V | 18 | 65 | 20 |
| IFR | 10440 | AAA | 200 | 3.2 | 10 | 43 | 4.2 |
| IFR | 10440 | AAA | 200 | 3.2 | 10 | 44 | 3.2 |
| IFR | 10440 | AAA | 240 | 3.2 | 10 | 43 | 4.2 |
| IFR | 10440 | AAA | 240 | 3.2 | 10 | 44 | 8.5 |
| IFR | 12500 | N | 350 | 3.2 | 11.5 | 49 | 4.8 |
| IFR | 14430 | 4/5AA | 500 | 3.2 | 13.9 | 42.5 | 6.5 |
| IFR | 14500 | AA | 600 | 3.2 | 13.9 | 48.5 | 6.5 |
| IFR | 14500 | AA | 600 | 3.2 | 13.9 | 50 | 4.8 |
| IFR | 14500 | AA | 600 | 3.2 | 13.9 | 48.5 | 6.5 |
| IFR | 14500 | AA | 600 | 3.2 | 13.9 | 48.5 | 6.5 |
| IFR | 14500 | AA | 650 | 3.2 | 13.9 | 48.5 | 6.5 |
| IFR | 14500 | AA | 650 | 3.2 | 13.9 | 50 | 4.8 |
| IFR | 14650 | 7/5AA | 800 | 3.2 | 13.9 | 65 | 6.5 |
| IFR | 14650 | 7/5AA | 950 | 3.2 | 13.9 | 65 | 6.5 |
| IFR | 18500 | 18500 | 1000 | 3.2 | 18 | 49.5 | 8 |
| IFR | 18500 | 18500 | 1100 | 3.2 | 18 | 49.5 | 8 |
| IFR | 18650 | 18650 | 1500 | 3.2 | 18 | 65 | 8 |
| IFR | 26550 | 4/3C | 3200 | 3.2 | 26 | 65 | 15.8 |
| IFR | 14500 | AA | 600 | 3.2 | 13.9 | 48.6 | 6.5 |
| IFR | 14650 | 7/5AA | 900 | 3.2 | 13.9 | 65 | 6.5 |
| IFR | 18650 | 18650 | 1500 | 3.2 | 18 | 65 | 8 |
| IFR | 26650 | 26650 | 3000 | 3.2 | 26 | 65 | 13 |
| IFR | 26650 | 4/3C | 3200 | 3.2 | 26 | 65 | 13 |
