China Continuous Horizontal Siphon Peeler Centrifuge With Model GKH 1250

Product Overview

Description

Product Description

GKH1250 Horizontal Siphon Peeler Centrifuge ( Siphon Peeler Centrifuge)

Solid Liquid Separation/Cleaning/Dewatering

Food Grade Centrifuge







Working Principle for GKH Separation Centrifuge

Introduction

GKH horizontal siphon peeler/scraper discharge centrifuges main apply to separate /clean/dewater kinds of  material , especially that are sticky poder material  like starch, soda ash, PVC, NaCl, fertilizer and so on , widely used in food, industry, chemistry .

GKH Series are centrifuges with scraper discharge and automatic batch operation at full speed.. they are capable of full automatic (PC controller) . Matching electric and hydraulic controller , it can control all the process of  the feeding ,separating ,washing and discharge at full speed



Principle For GKH Separation Centrifuge

The main motor drives the inside and outside bowl at full speed, the materials to be separated fed into the bowl, under the huge centrifugal force, the liquid phases go through the filtering bag and the inside bowl and gathering at the gap between the two bowl, the liquid phase continuously go across the room of siphon, and finally move out the machine (centrifuge). At the same time, the solid phase stay at the inside bowl and are becoming the filter cake. Stop feeding when reach the max. loading capacity, continuously separate and wash until being over, the scraper automatic rotate and discharge the solid phase out of the machine, after self-cleaning , begin the next cycling

Applications

It appliy to Chemical, food , pharmaceutical, plastic, pesticide and other industries

Topical products

Starch

Citric acid

Amino acid

PVC

Anthracene



Features

GKH Series are kinds of horizontal scraper discharge and siphon filtering Centrifuge with full automatic control and continuously cycling operation .It can automatic accomplish the continuous process of feeding, separating ,washing , dewatering ,unloading, discharge and cleaning the filter bag.

1. With new structure system

2. Shock-proof

3. High full automatic

4. Low labor

5. Huge load capacity

6. Clean washing

7. Moisture decreased notably



 Working Condition

1 The materials to be separated are suspend liquid ,solid-liquid and so on .

2 There are density contract of the suspended liquid

3 the concentration of the solid phase >20%, while that of the liquid phase < 10-2Pa.s . and the diameter of the solid phase > 0.015mm

4 Working temperature: no more than 100 c



Optional Parameter

1 Material contactedthe liquid to be separated : Carbon steel(G), Corrosion resisting steel (N), Titanium(I), Metal coat (J), Rubber ,and so on

2 Motor Type: General motor or explosion proof motor

3 Speed controller: AC frequency , electromagetric or mechanical belt

4 The range of speed difference: 10 r/m - 50 r/m

5 Discharge: Mother liquid and washing solution can be discharged mixed or separately

6 All the machine made match the GMP standard

7 Design and produce all customized

Techincal Parameter





Raw Tapioca Starch Crushed Root Dewatering



Potato Starch Dewatering





PVC Dewatering



Citric Acid Dewatering

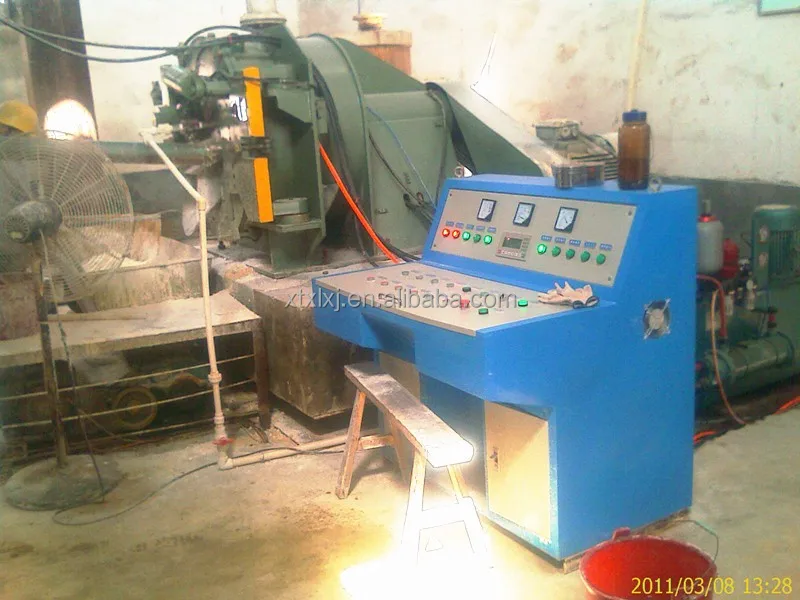

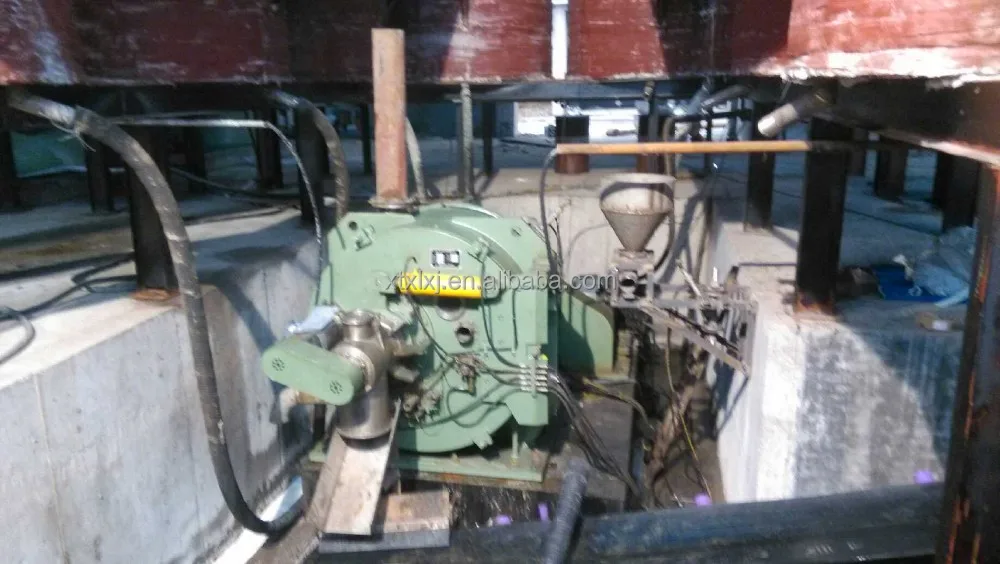

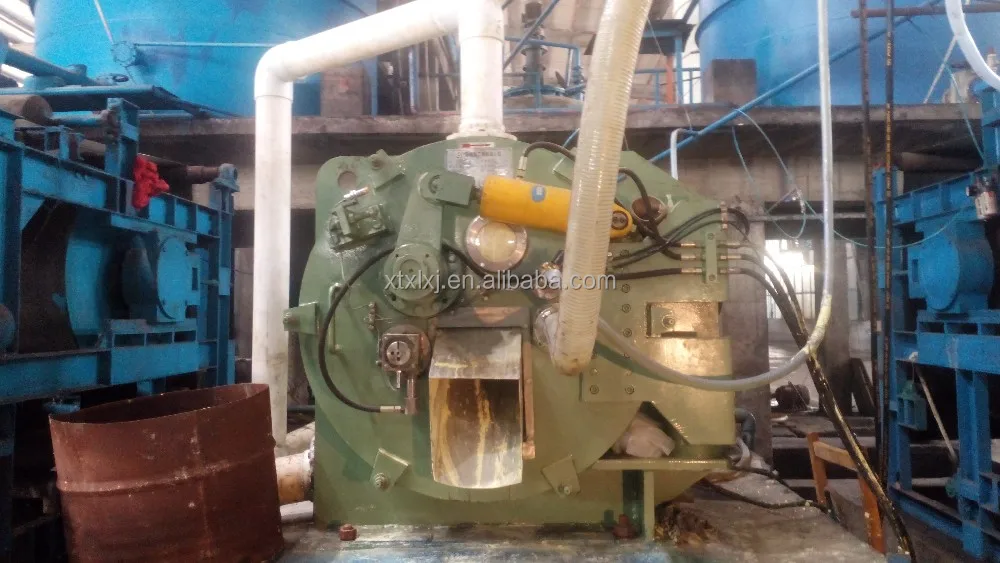

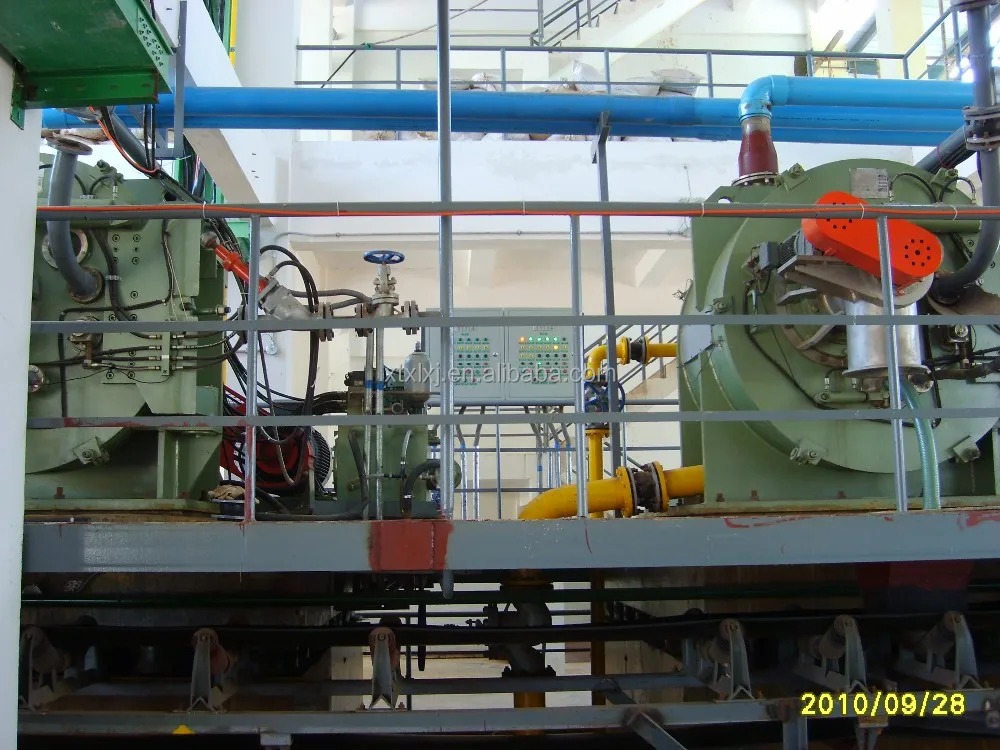

Installation
