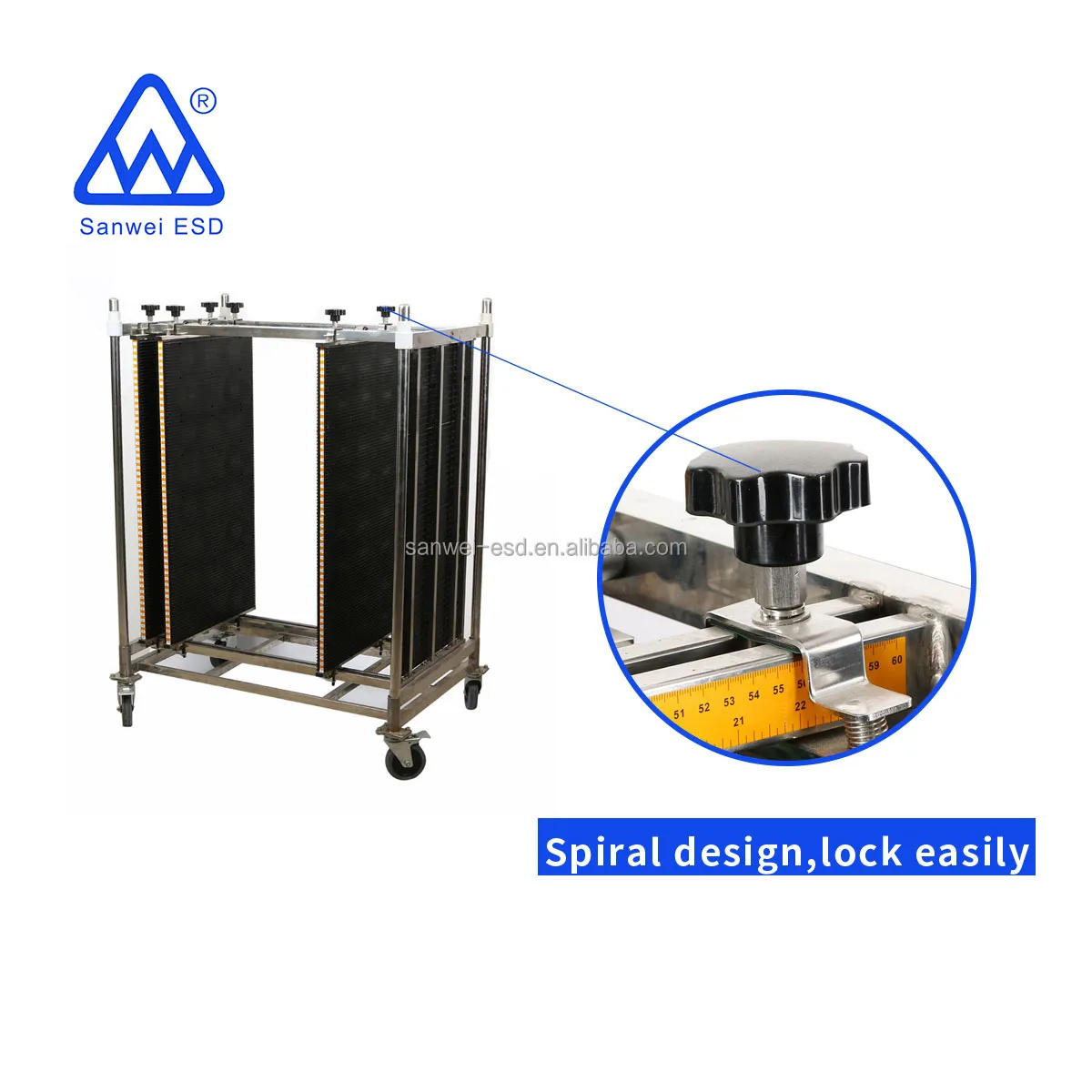

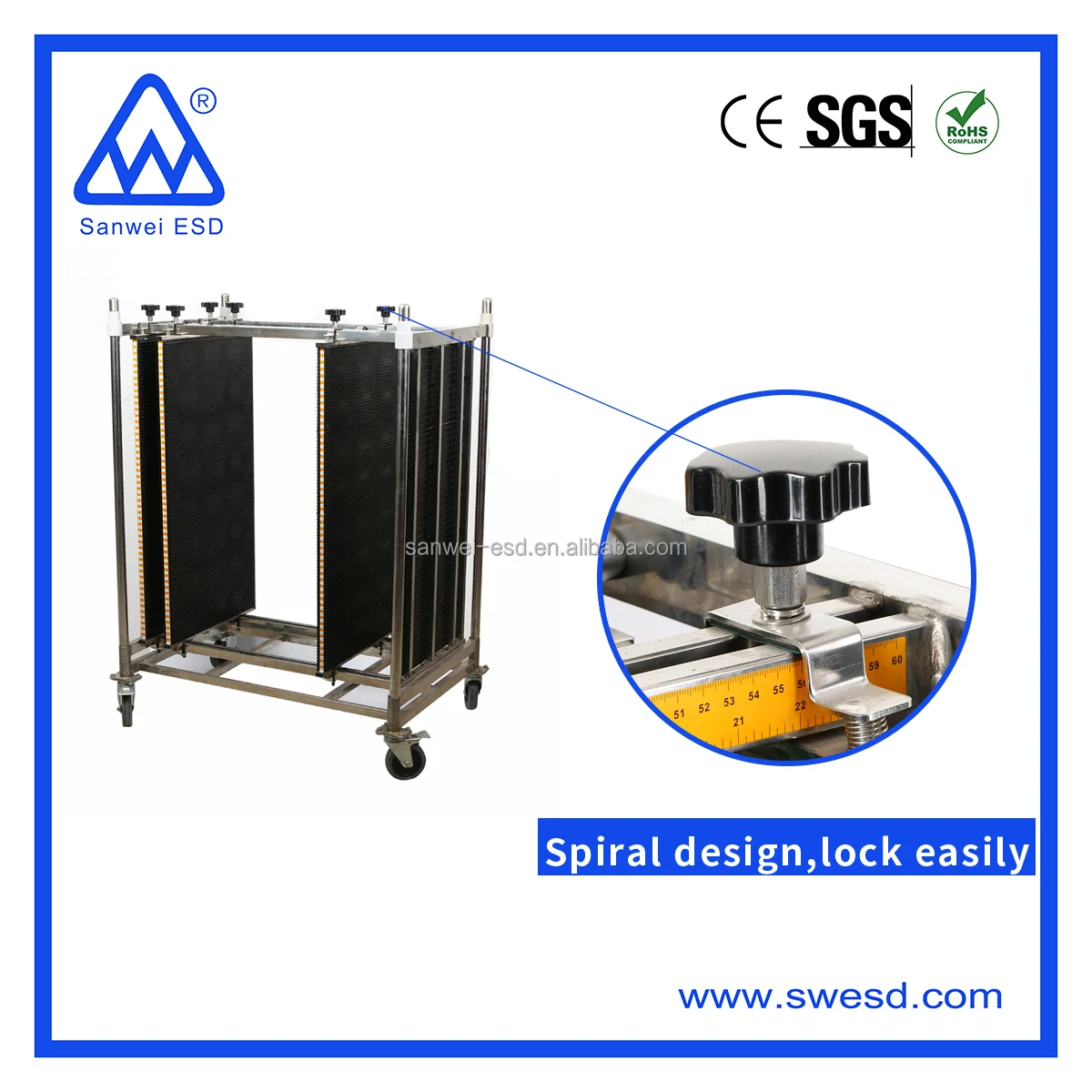

3W 9805208 2 Electronic Workshop PCB ESD antistatic storage trolley

Product Overview

Description

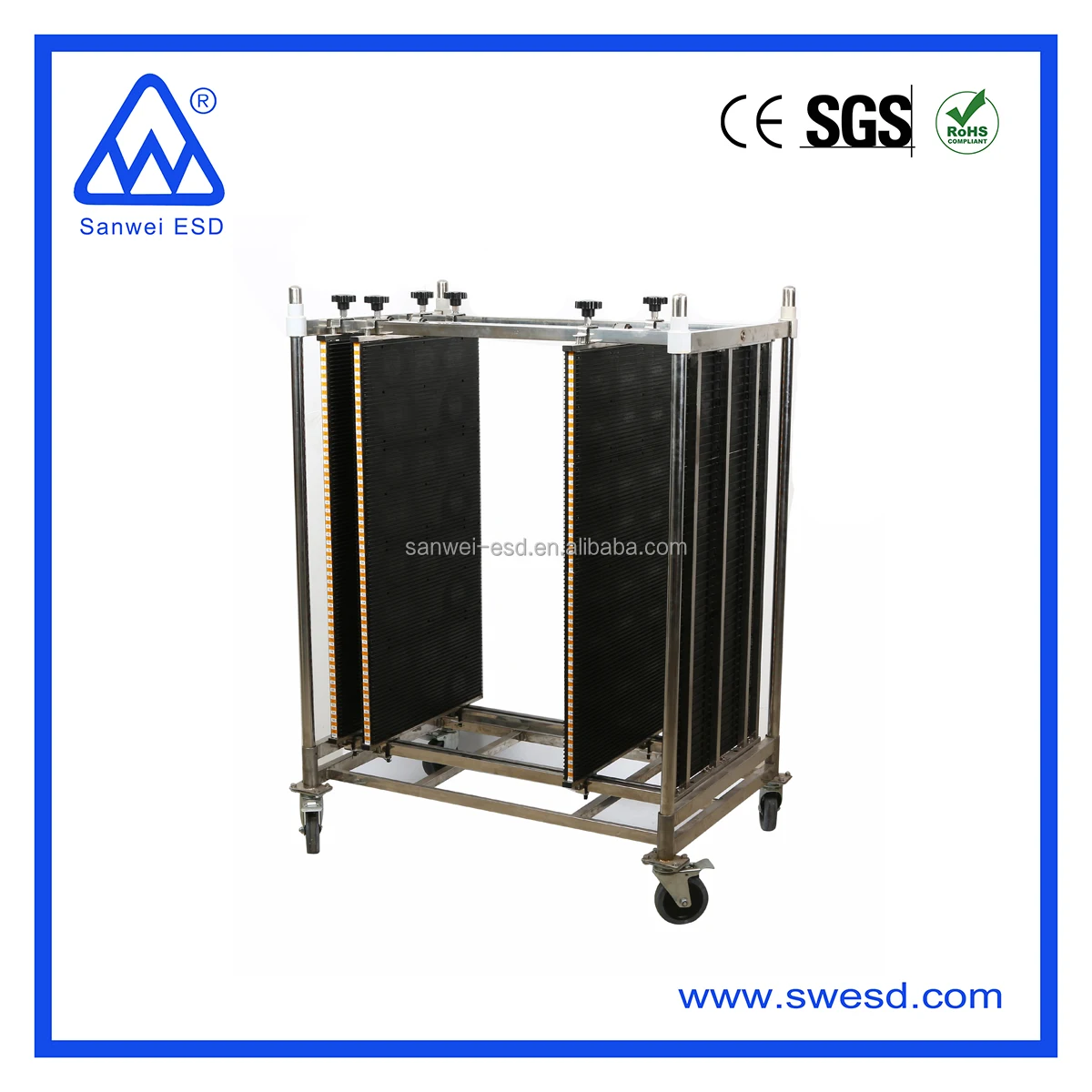

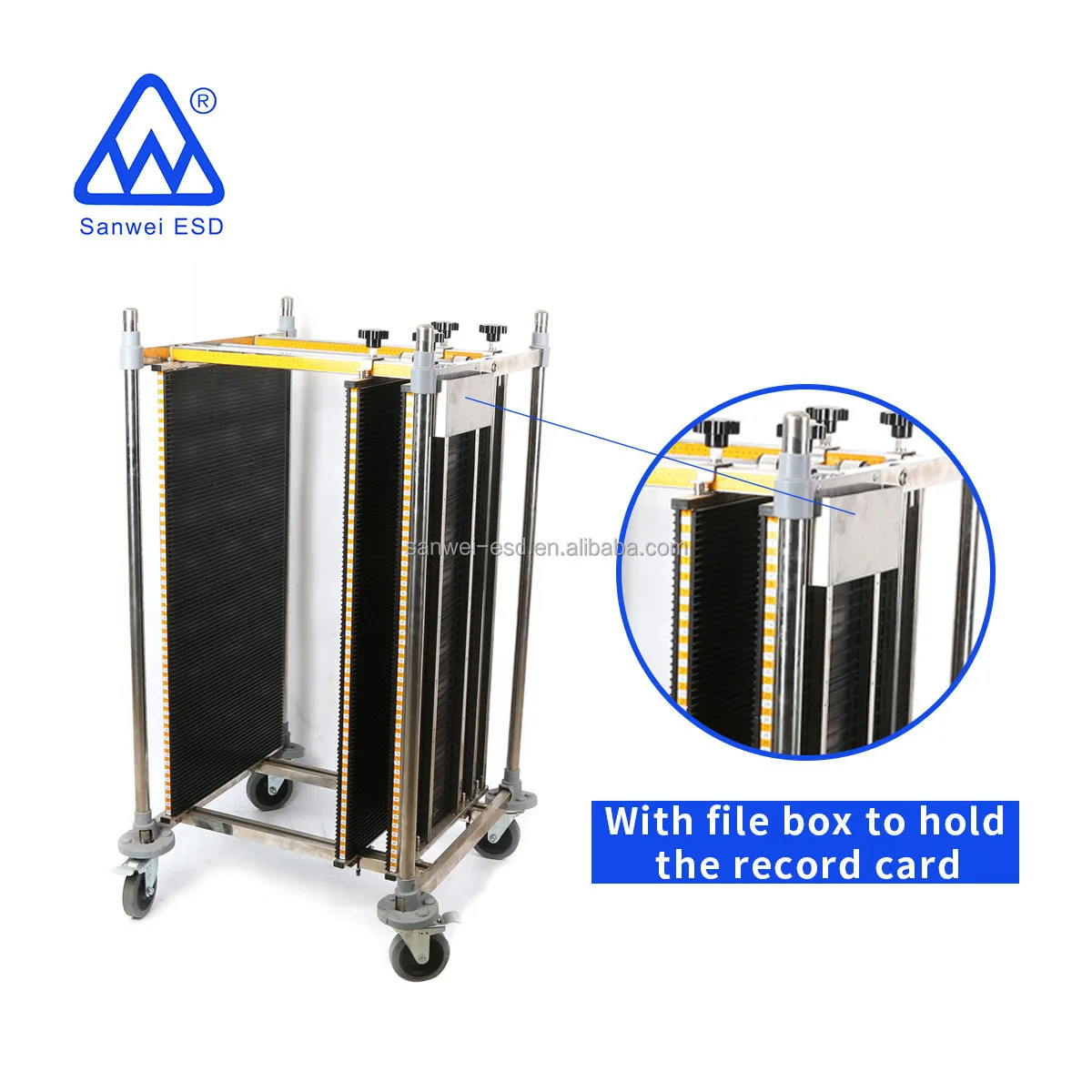

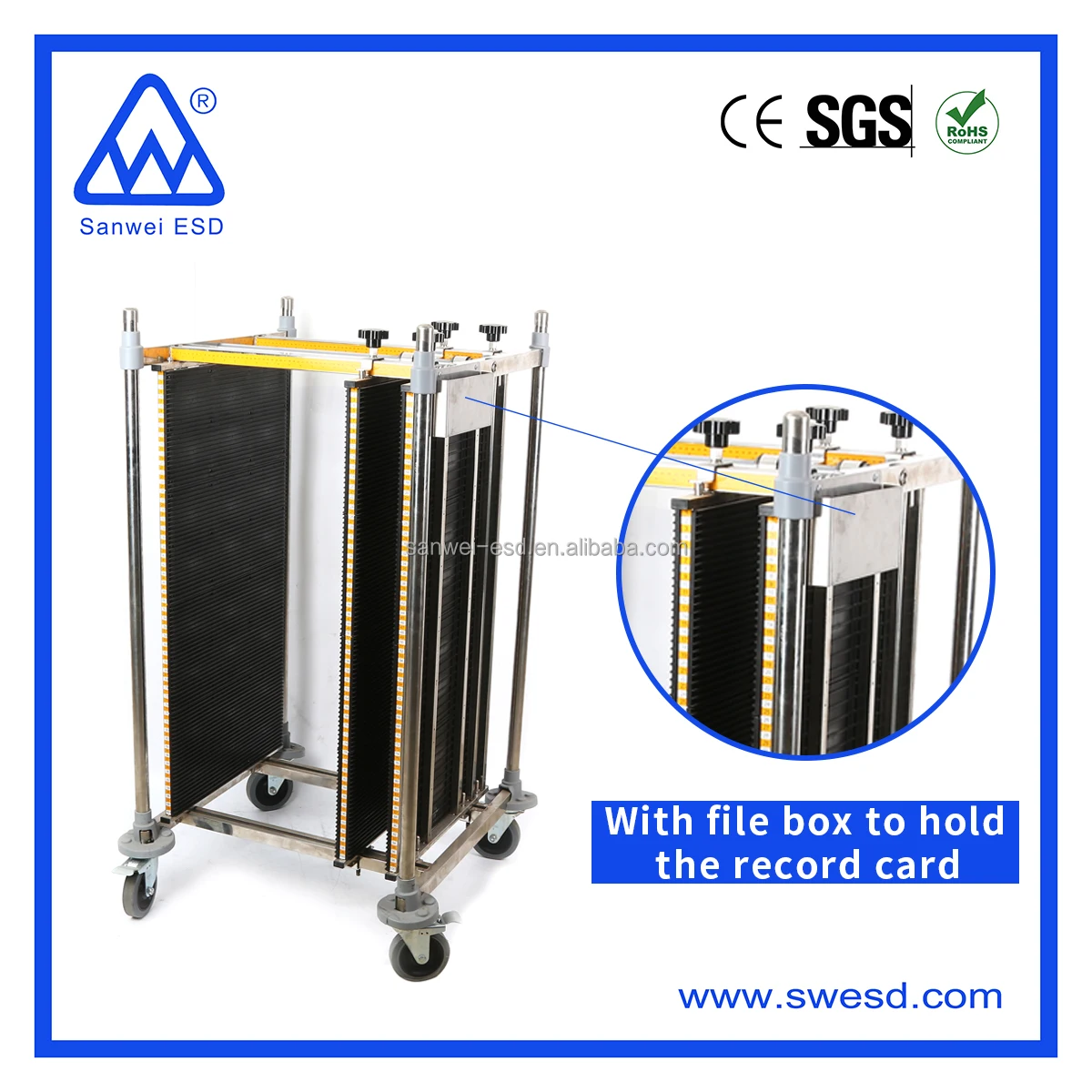

3W-9805208-2 Electronic Workshop PCB ESD antistatic storage trolley

External size (L × W × H) MM: 1100*715*1400
Maximum adjustment width (A.W) MM: 825
Weight: 58KG

Side panel parameters
Side panel size (L × H) MM: 1028 × 545 × 30
Flapper size (L × H) MM: 525 × 250
Width: 7MM
Depth: 4MM
Pitch: 10MM

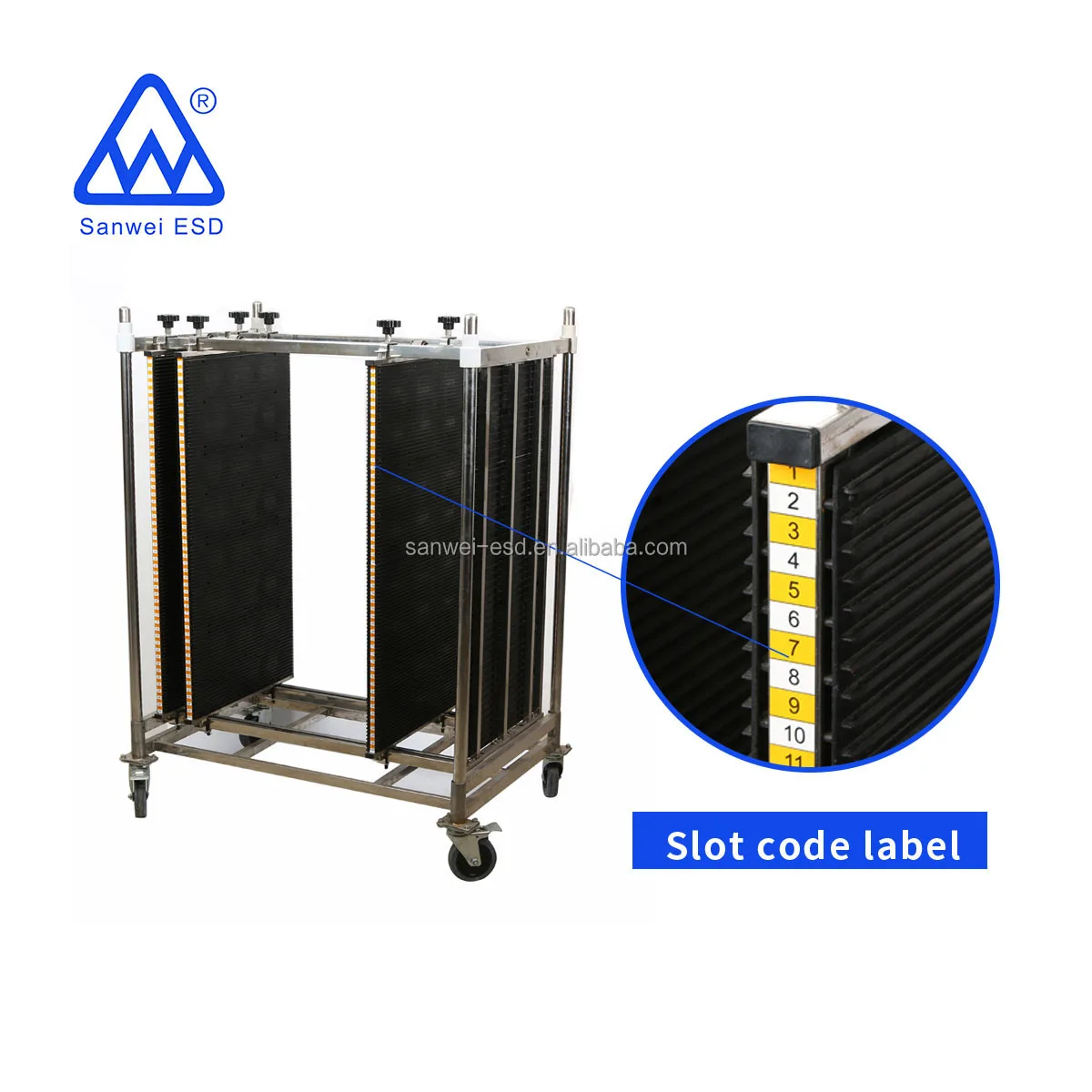

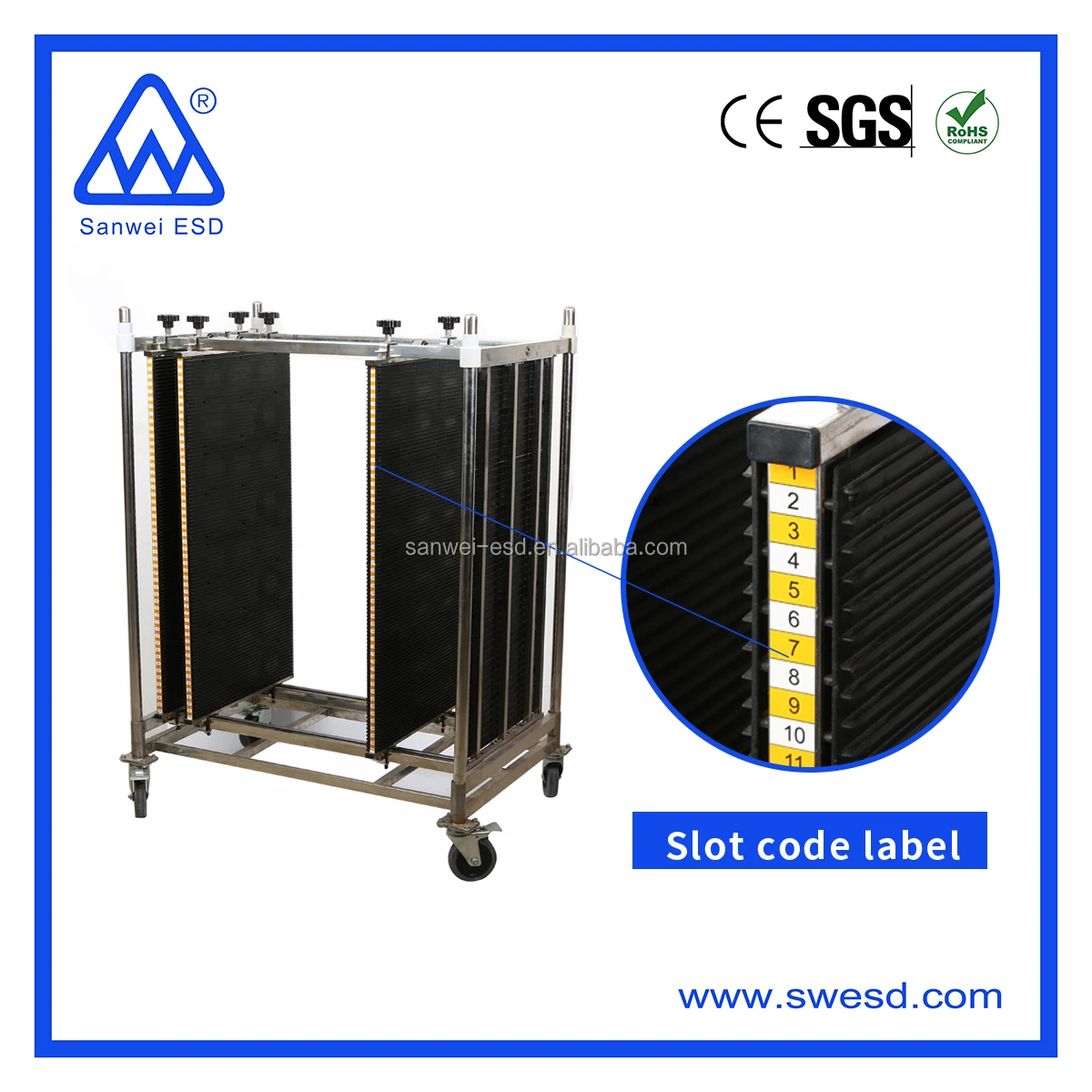

Number of slots: 100

Note:
1. A standard 3W-9805208-2 revolving car can store 300 PCB boards (consisting of 2 single-side board and 2 double-side board), and the side boards are fixed by rivets;
2. Side board structure: the side panel consists of 4 small inserts, and is fixed to the metal frame with rivets;
3. Store 100 pieces of PCB board in each column, and add double-sided side plates according to requirements;
4. The bicycle carries 150KG;
5, system resistance: E4Ω ~ E9Ω;
