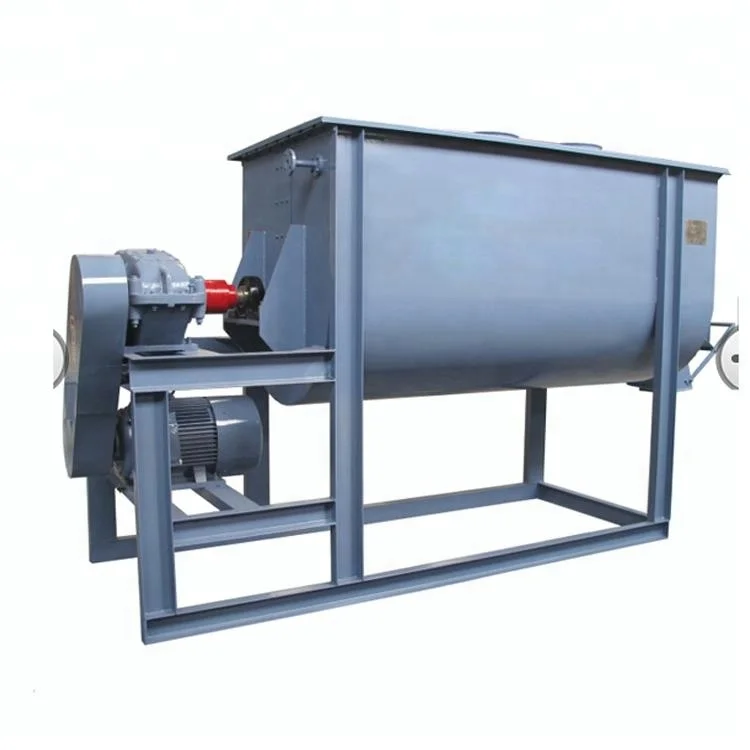

animal feed cattle feed mixer machine in factory price

Product Overview

Description

animal feed cattle feed mixer machine in factory price



1 Introduction of animal feed cattle feed mixer machine in factory price

The  feed mixer for sale is widely used for mixing of powder, granular, flake, block, irregular and sticky materials in the industries of feed, cereal, food, chemicals, medicines, pesticides, etc. It is very popular in the animal feed mixing



This is the type only for mixing.But we also produce the types which can crush and mixing. If you need,please contact us.

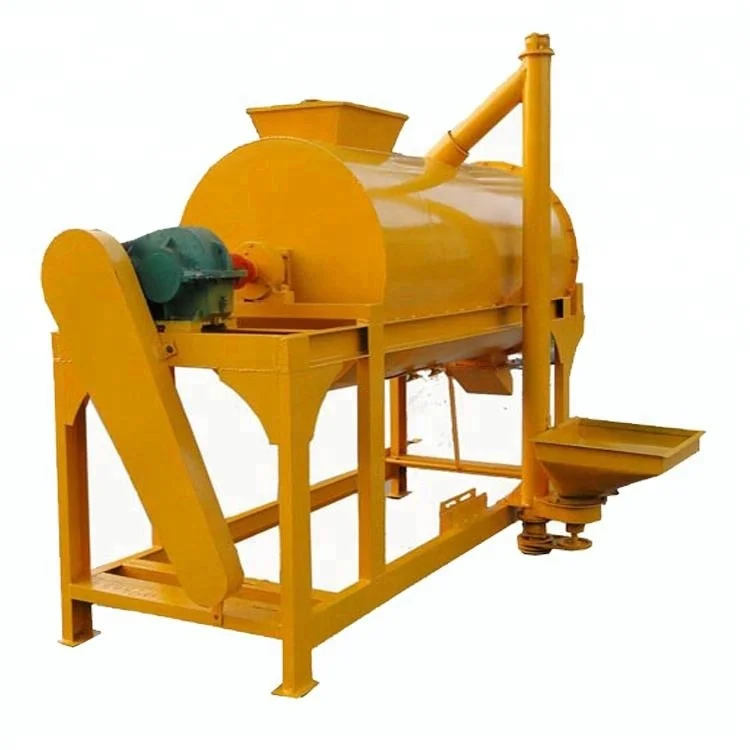

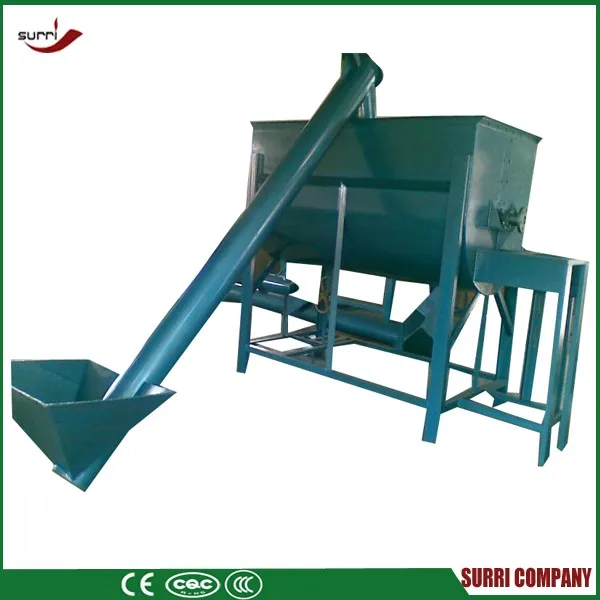

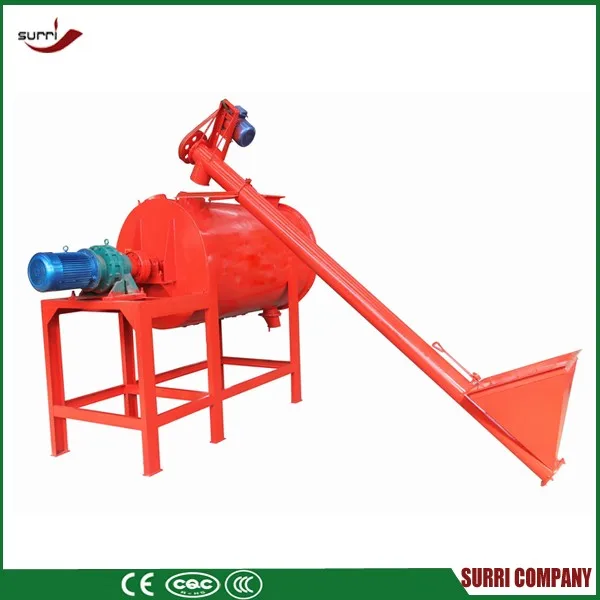

Below is for mill and mixing. Conveyor also can be equipped.



2.Features of animal feed cattle feed mixer machine in factory price

1)Easy maintenance. Large access door and optional air-clean device, ease of cleaning and maintenance.

2) This  feed mixer for sale is characterized with simple and reasonable structure, easy maintenance, low power, safe reliability, high mixing evenness, without residual, excellent tightness etc.

3)Specially designed discharger has big door-opening angle and quick discharging with less residue.



3.Technical parameters of animal feed cattle feed mixer machine in factory price

Horizontal  Mixer Model	Sr-0.1T	Sr-0.25T	Sr-0.5T	Sr-1T	Sr-2T
Motor Power(kw)	3	5.5	7.5	18.5	22
Mix Capacity(ton)	0.1T/Batch	0.25T/Batch	0.5T/Batch	1.0T/Batch	2.0T/Batch
Effective Volume(m³)	0.2	0.5	1	2	4
Dimension(m)	1.4*0.6*0.75	1.83*0.78*1.6m	2.45*0.82*1.85m	2.86*1.1*1.9m	4.5*1.45*2.7m
Carbon Steel(mm)	4-10mm
Mixing Time(minutes)	3-5 minutes/Batch
Mixing Evenness (cv%)	CV ≤ 5%
Structure	"U" shape horizontal double helical ribbon mixer,  Main shaft speed 25rpm

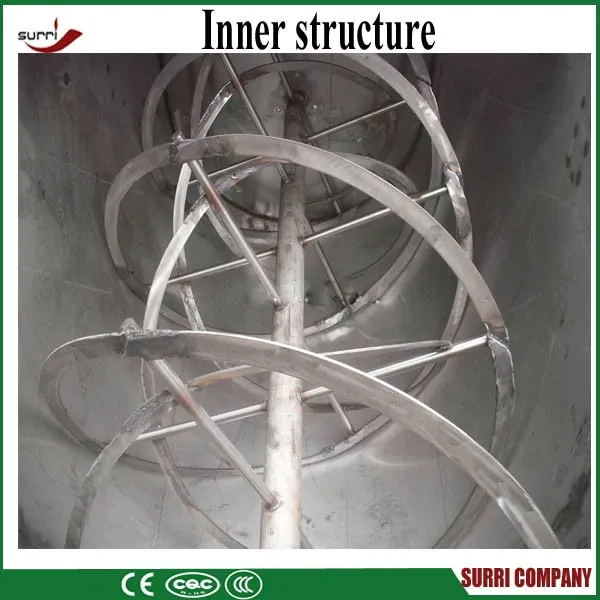

4.Animal feed mixer inner structure:

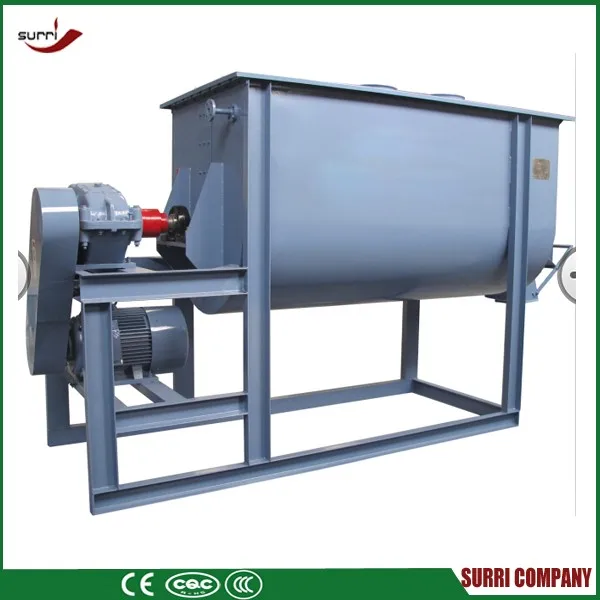

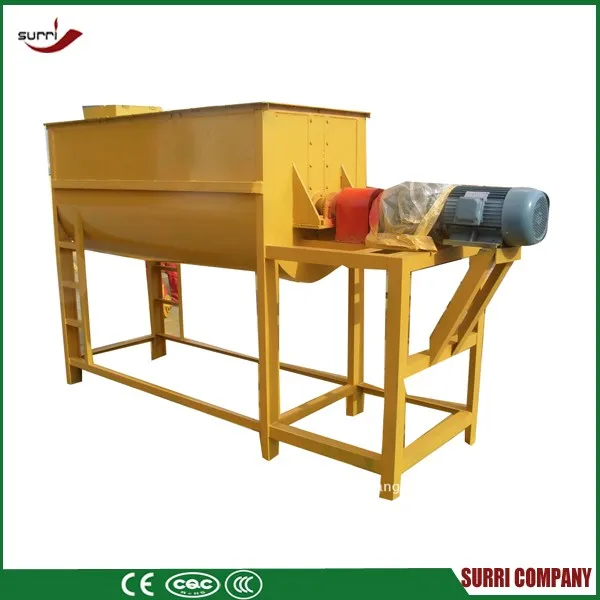

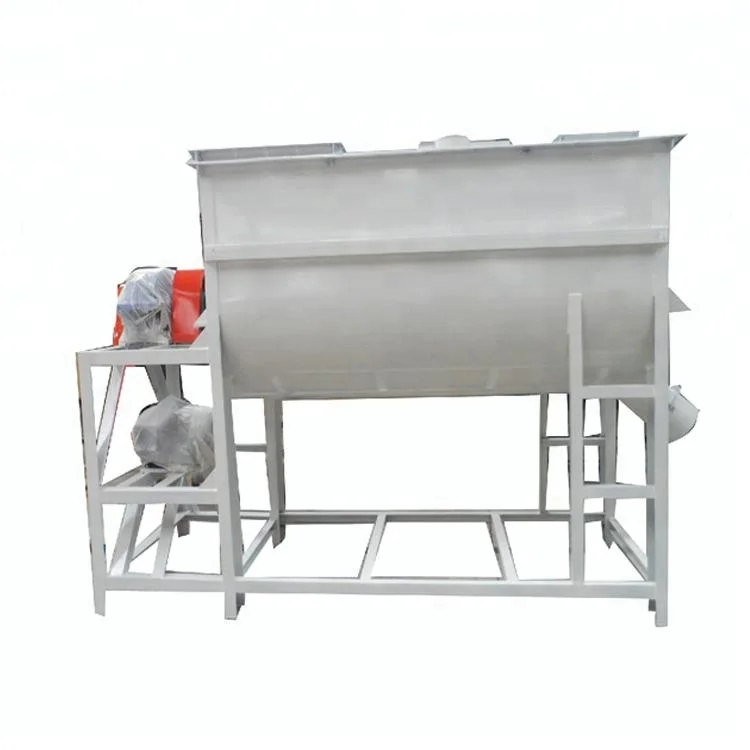

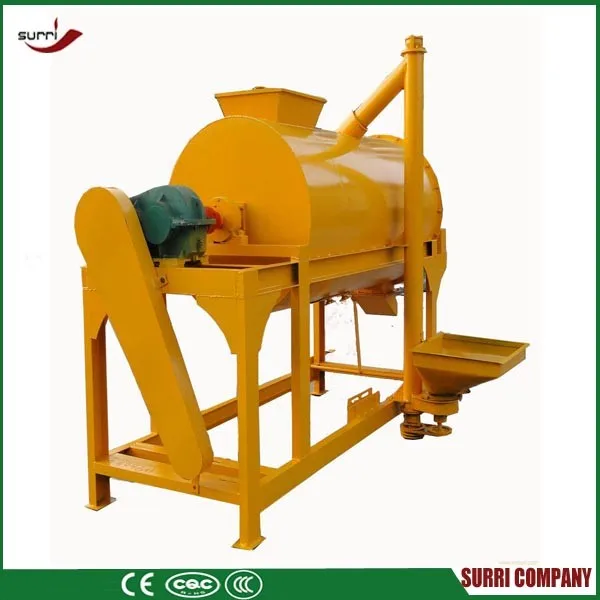

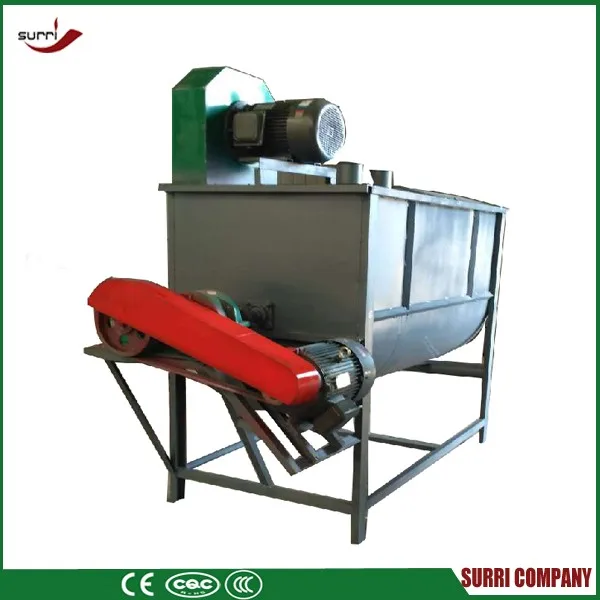

5.Machine pictures of animal feed cattle feed mixer machine in factory price
