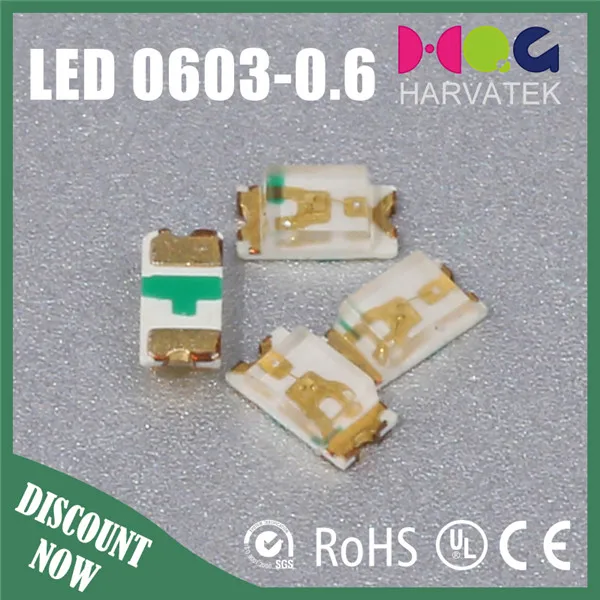

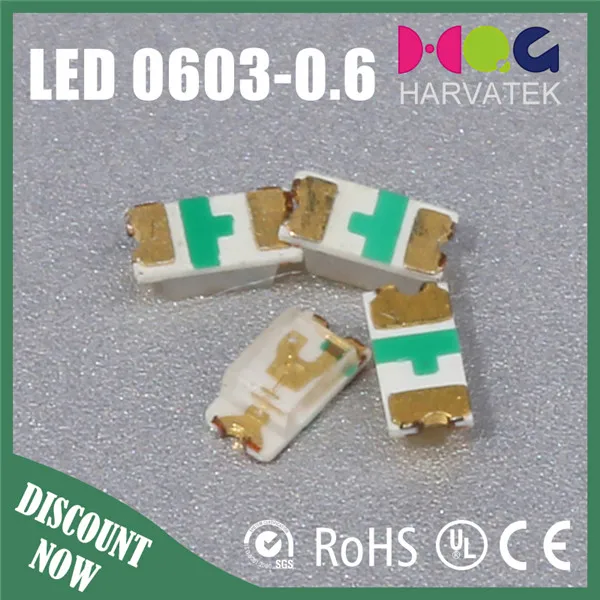

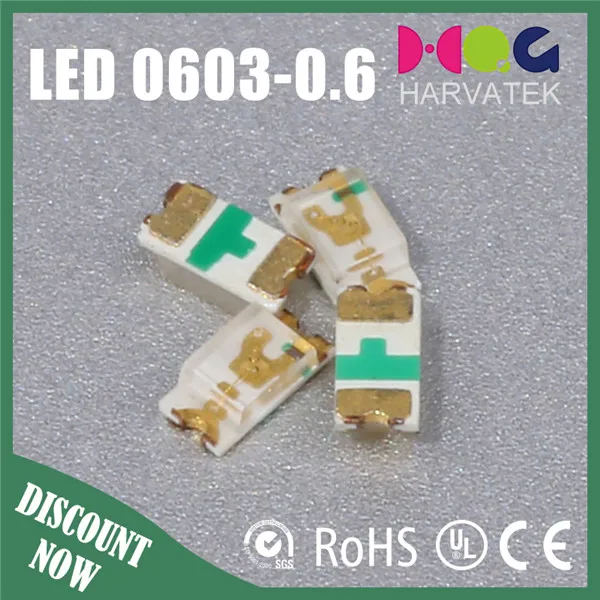

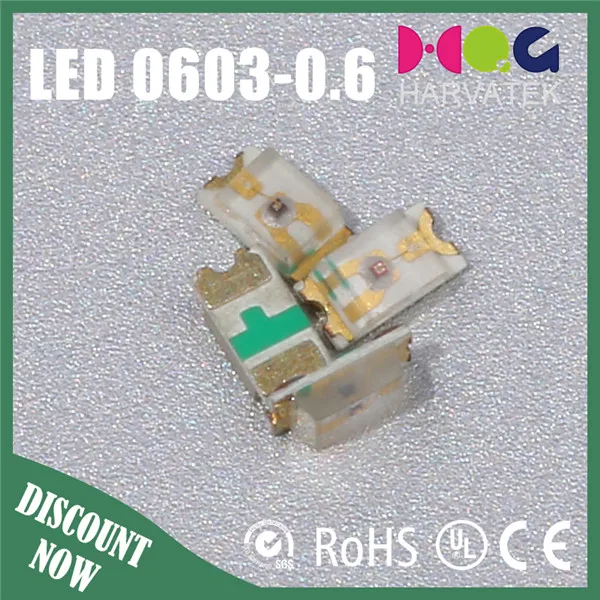

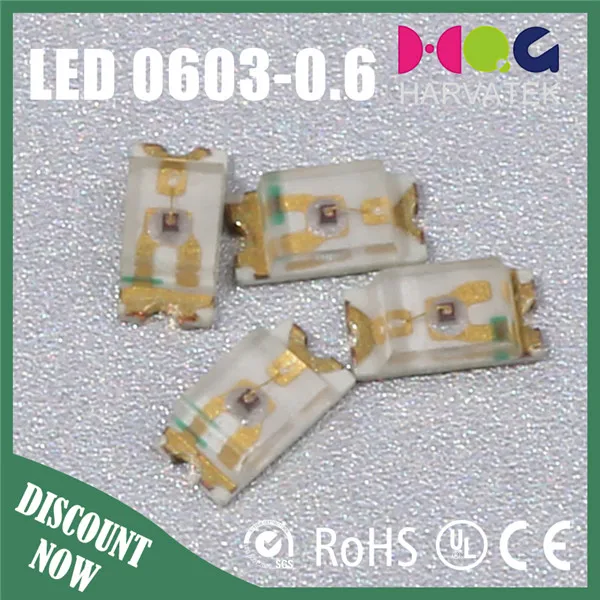

Harvatek HQ19-2132UBC 0603-0.55T High Bright Blue LED Diode
Product Description
Absolute Maximum Ratings At Ta=25℃
Parameter
Symbol
Rating
Unit
Power Dissipation
Pd
75
mW
Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)
IFP
70
mA
DC Forward Current
IF
25
mA
Reverse Voltage
VR
5
V
Operating Temperature Range
Topr
-30°C~+ 85°C
Storage Temperature Range
Tstg
-40°C ~+ 90°C
Electrical Optical Characteristics At Ta=25℃
Parameter
Symbol
Min.
Typ.
Max.
Unit
Test Condition
Luminous Intensity
IV
---
45
---
mcd
IF = 5mA
Viewing Angle
2θ1/2
---
120
---
deg
IF = 5mA
Dominant Wavelength
λd
---
470
---
nm
IF = 5mA
Peak Wavelength
λp
--461-
-470-
nm
IF = 5mA
Spectral Line Half-Width
Δλ
---
30
---
nm
IF = 5mA
Forward Voltage
VF
2.7
---
3.2
V
IF = 5mA
Reverse Current
IR
---
---
5
uA
VR=5V
Notes: 1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve. 2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity. 3. The dominant wavelength, λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
Packaging & Shipping
Packaging & Shipping
Reel And Tape Dimensions:
Packaging
4000 pcs/reel;
10reel/carton;
Carton size :24*20*11cm;
5carton/box;
Box size:23*24*65cm.
:
