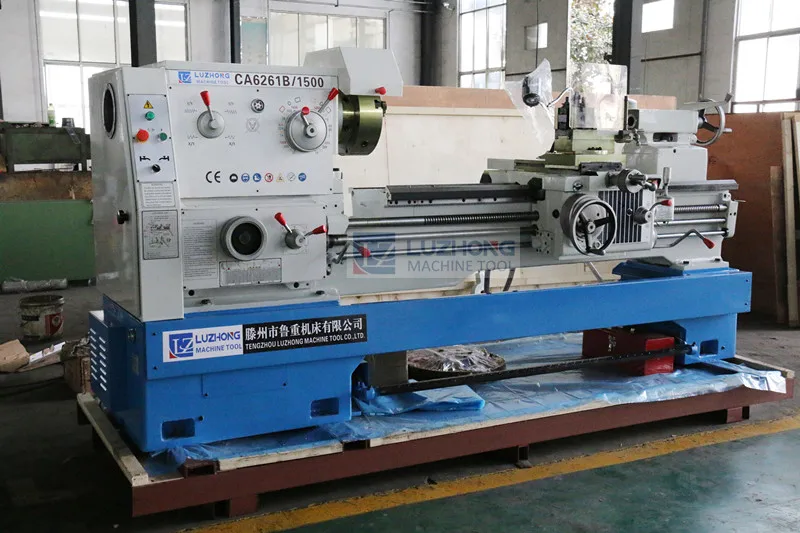

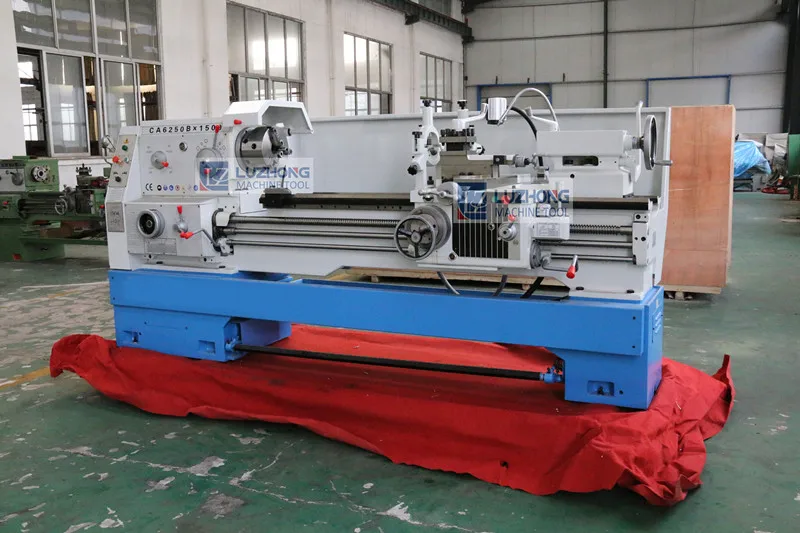

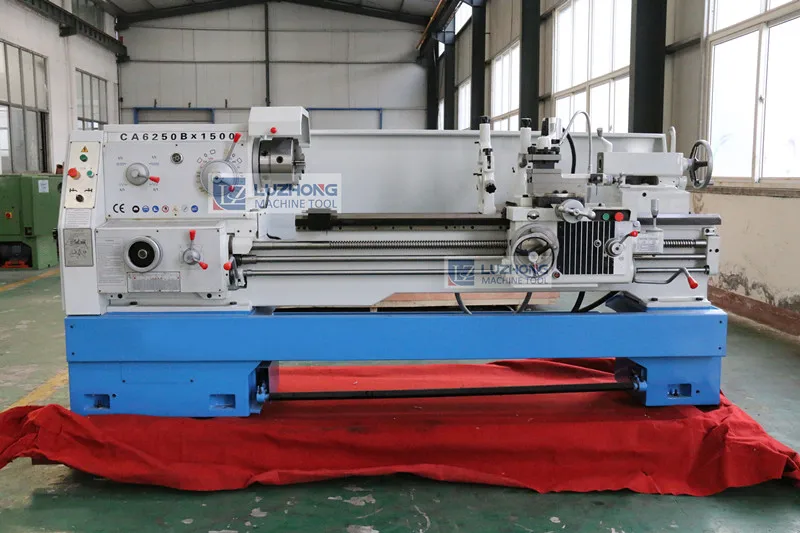

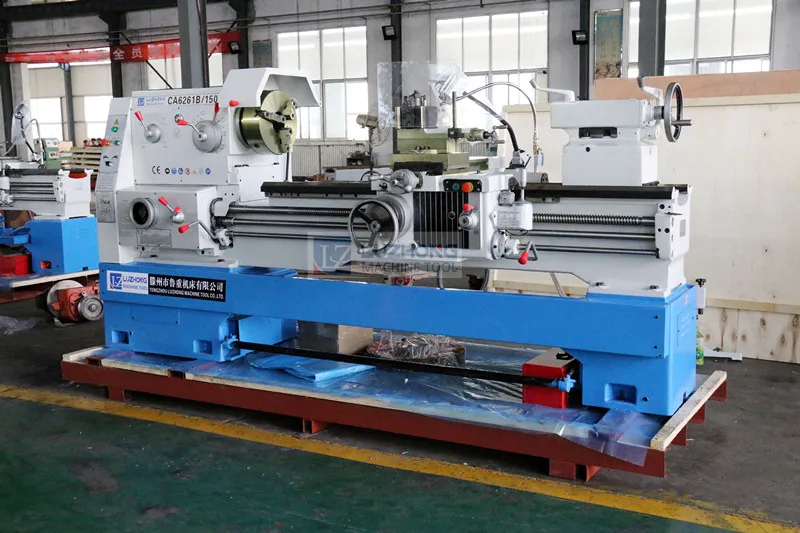

China Hight Quality Conventional Lathe Machine Price
US $3850-$4520
Горизонтальный Токарный станок CA6240/6250/6261/6266/6280, цена
- Category: Manual Lathe >>>
- Supplier: Shandong Luzhong Machine Tool Co. Ltd.
Share on (60561852801):
Product Overview
Description
Product Description
The main performance characteristics：
1 Machine tool head box and bed, tailstock, Supporting plate, etc. the combination of surface between manual scraping, machine to undergo a rigorous inspection, effectively ensure the machine tool accuracy and stability.
2 Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenching depth up to 4mm, effectively improves the abradability and stability of the machine.
3 The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, in view of the south hot weather, has guaranteed the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearing and gear's service life.
4 Wafangdian Bearing is used in machine tool spindle, the spindle through hole diameter 80mm, machine tool gear with precision grinding, can effectively improve the hardness of the gears, to reduce noise of the machine.
5 Machine tool uses the domestic brand lead screw, the silk mother uses the high quality bronze alloy to guarantee the wear-resisting property and the precision maintenance.
6 The machine adopts high strength four station turret shank size: 25x25mm.
Application：
1 CA series ordinary horizontal lathe is used to turning internal and external cylindrical surface, conical surface, and other rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the drilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and disc parts.
2 The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency quenching, wear-resistant durable.
3 Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle operation, humanization.
4 The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power
utilization rate is high, which is suitable for the strong cutting.
5 Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the machine tool is tested to ensure that the machine tool has good stability and reliability.
1 Machine tool head box and bed, tailstock, Supporting plate, etc. the combination of surface between manual scraping, machine to undergo a rigorous inspection, effectively ensure the machine tool accuracy and stability.
2 Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenching depth up to 4mm, effectively improves the abradability and stability of the machine.
3 The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, in view of the south hot weather, has guaranteed the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearing and gear's service life.
4 Wafangdian Bearing is used in machine tool spindle, the spindle through hole diameter 80mm, machine tool gear with precision grinding, can effectively improve the hardness of the gears, to reduce noise of the machine.
5 Machine tool uses the domestic brand lead screw, the silk mother uses the high quality bronze alloy to guarantee the wear-resisting property and the precision maintenance.
6 The machine adopts high strength four station turret shank size: 25x25mm.
Application：
1 CA series ordinary horizontal lathe is used to turning internal and external cylindrical surface, conical surface, and other rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the drilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and disc parts.
2 The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency quenching, wear-resistant durable.
3 Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle operation, humanization.
4 The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power
utilization rate is high, which is suitable for the strong cutting.
5 Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the machine tool is tested to ensure that the machine tool has good stability and reliability.
Specifications | CA6240 CA6240B | CA6250 CA6250B CA6250C | CA6261 CA6261B CA6261C | CA6266 CA6266B CA6266C | CA6280 CA6280B CA6280C | ||||||
Max. Swing over bed | 400mm | 500mm | 610mm | 660mm | 800 | ||||||
Max. Swing over carriage | 210mm | 300mm | 370mm | 400mm | 540 | ||||||
Max. swing in gap | 630mm | 720mm | 830mm | 880mm | 1020mm | ||||||
Effective gap length | 210mm | 210mm | 210mm | 210mm | 210mm | ||||||
Max. length of work piece | 750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm | ||||||||||
Width of bed | 400mm | ||||||||||
Section of turning tool | 25x25mm | ||||||||||
Spindle | Spindle speeds | 10-1400rpm/16-1400rpm（24steps） | |||||||||
Hole through spindle | 52mm. （80mm）. [105mm] | ||||||||||
Spindle taper | MT6（Φ90 1：20）[Φ113 1：20] | ||||||||||
Feed | Number of feeds | 64 kinds（for each） | |||||||||
Range of metric threads | 1-192mm (44kinds) | ||||||||||
Range of inch threads | 2-24tpi (21kinds) | ||||||||||
Range of module threads | 0.25-48(Module39kinds) | ||||||||||
Range of pitch threads | 1-96DP（37kinds） | ||||||||||
Tailstock | Max. tailstock spindle travel | 150mm | |||||||||
Tailstock spindle diameter | 75mm | ||||||||||
Taper of tailstock spindle center hole | MT5 | ||||||||||
Main motor | 7.5KW(10HP) | ||||||||||
Packing dimensions (L*W*Hmm) | Overall dimensions for750mm | 2550x1140x1750 | 2550x1140x1750 | 2550x1140x1750 | 2550x1140x1750 | 2550x1140x1750 | |||||
Overall dimensions for1000mm | 2700x1140x1750 | 2700x1140x1750 | 2700x1140x1750 | 2700x1140x1750 | 2700x1140x1750 | ||||||
Overall dimensions for1500mm | 3200x1140x1750 | 3200x1140x1750 | 3200x1140x1750 | 3200x1140x1750 | 3200x1140x1750 | ||||||
Overall dimensions for2000mm | 3700x1140x1750 | 3700x1140x1750 | 3700x1140x1750 | 3700x1140x1750 | 3700x1140x1750 | ||||||
Overall dimensions for2200mm | 4030x1140x1750 | 4030x1140x1750 | 4030x1140x1750 | 4030x1140x1750 | 4030x1140x1750 | ||||||
Overall dimensions for3000mm | 4850x1140x1750 | 4850x1140x1750 | 4850x1140x1750 | 4850x1140x1750 | 4850x1140x1750 | ||||||
Overall dimensions for4000mm | 5800x1140x1750 | 5800x1140x1750 | 5800x1140x1750 | 5800x1140x1750 | 5800x1140x1750 | ||||||
Weight (kg) | Length | G.W N.W. | G.W N.W. | G.W N.W. | G.W N.W. | G.W N.W. | |||||
Weight for 750mm | 2100 1990 | 2170 2061 | 2300 2180 | 2380 2260 | 2520 2400 | ||||||
Weight for 1000mm | 2190 2070 | 2260 2140 | 2380 2250 | 2570 2450 | 2720 2560 | ||||||
Weight for 1500mm | 2350 2220 | 2420 2290 | 2577 2437 | 2810 2640 | 2980 2800 | ||||||
Weight for 2000mm | 2720 2570 | 2790 2640 | 2940 2787 | 3050 2880 | 3260 3087 | ||||||
Weight for 2200mm | 2800 2600 | 2940 2790 | 3120 2970 | 3390 3180 | 3490 3287 | ||||||
Weight for 3000mm | 3300 3200 | 3450 3300 | 3600 3450 | 3930 3687 | 4200 3887 | ||||||
Weight for 4000mm | 3500 3400 | 3750 3600 | 3950 3800 | 4580 4200 | 4850 4500 | ||||||

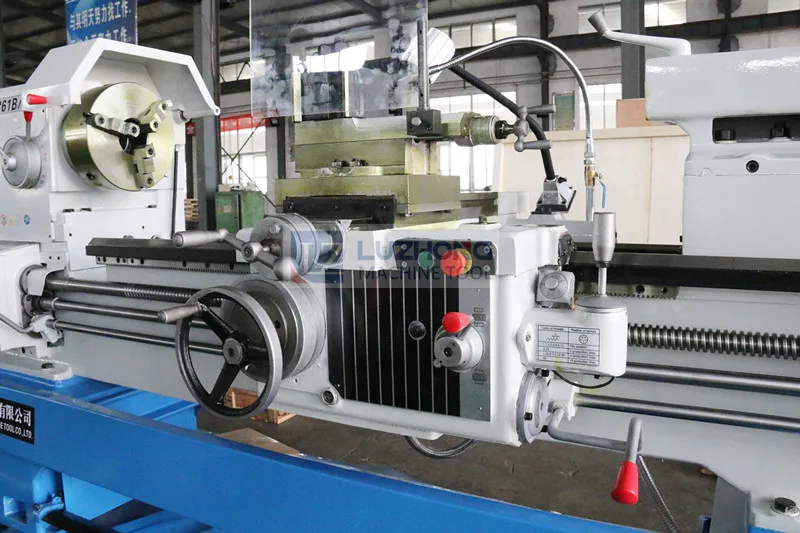

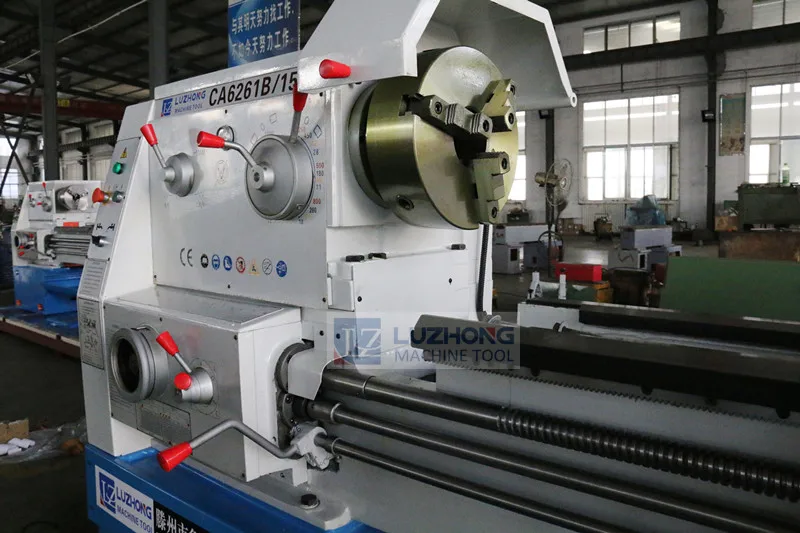

Details Display
