Aerosol Spray Can Making Machines Aerosol Spray Can Production Line

Product Overview

Description

Aerosol Spray Can Making Machines Aerosol Spray Can Production Line



 Aerosol Spray Can Making Machines Aerosol Spray Can Production Line

Parameter:

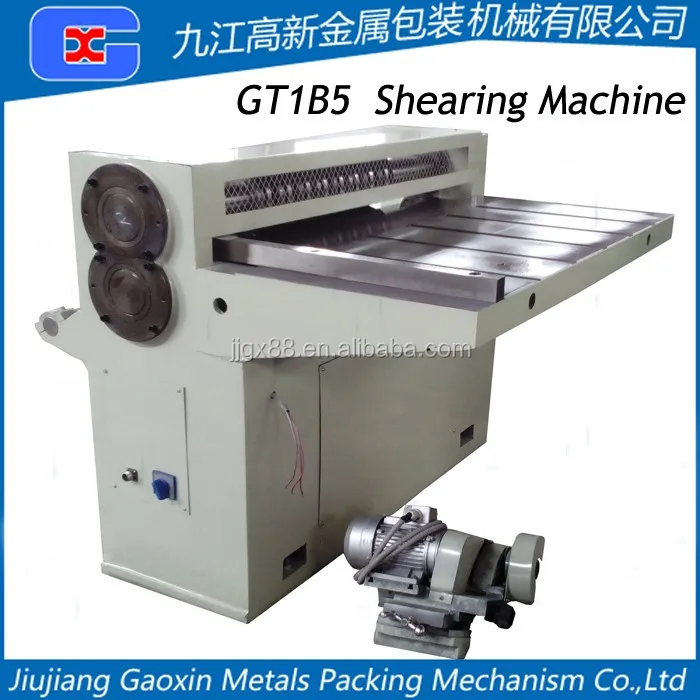

Model: GT1B5 Disc plate cutting machine Technical Parameter: The thickness of sheet: <0.5mm                        Can shear 0.8mm sheets after restructuring The largest width of sheet: <1050mm                        Can shear 1300mm width sheet after restructuring The minimum width of shearing sheet: >40mm                        Can be up to 28 mm width after restructuring Motor power: 1.1kw Size:1500×1200×800mm Weight: 1400kg General situation: This machine is used for batch cutting tinplate or other metal sheet for the following working procedure(such as lid-making or can-manufacturing).





2.   Model: QZD50 Automatic Tin Can Welding/Welder/Roller Coating+Drying Machine



Production capacity	40-60cans/min
Applied can's diameter	52-255mm
Motor power	36KW
Size	12880*1980*2050mm
Weight	main equipment 3800kg



Usage:This prodcution line is applied for can body rounding,welding,drying and coating.

It is manual feeding of well-cut tin or aluminum plates.

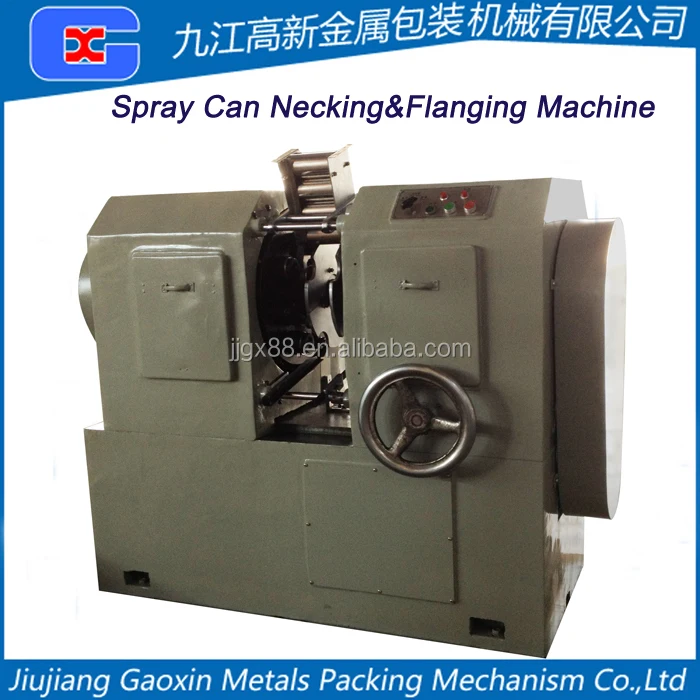

3.   Model: GT3B12 Automatic Necked-in&Flanging Machine



Productivity	40-100cans/min
Applied can's diameter	52-99mm
Applied can's height	65-280mm
Applicable thickness of metal sheets	≤0.5mm
Power consumption	2.2KW
Dimension	700*1700*1300mm
Weight	1500kg
