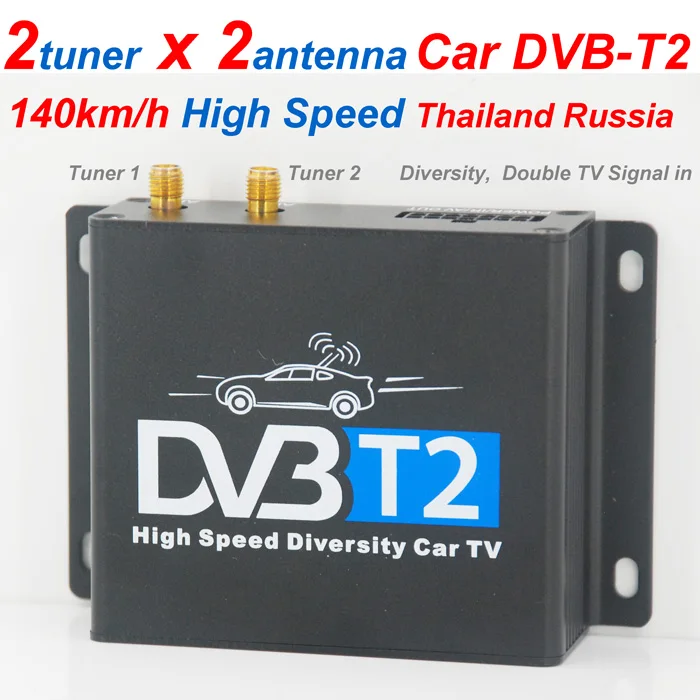

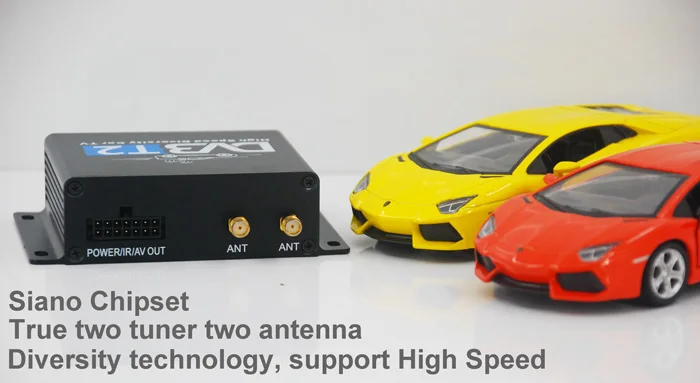

DVB T220 car DVB T2 transmitter full HD dvb t2 digital TV receiver Siano chipset high speed
- Category: >>>
- Supplier: Vcan Technology Co. Ltd.
Share on (60561985269):
Product Overview
Description
DVB-T220 Features:
1. Support H.264/AVC, MPEG2~MPEG4 Video Decode
2. Available to upgrade the firmware via USB slot
3. USB Recorder, PVR,
4. Standard for DVB-T and DVB-T2
6. Auto searching and updating bit rate information
7. Storage for 2000pcs channels
8. Memory function after power off
9. Support OSD TELETEXT
10. Multi Language Support: Thailand, English, Russian,French, Germany, Spainish, Italian, Portuguese,Danish,Czech, WeCan do what you need
11. EPG program guide and PIG(Picture in Graphics )Function
12. 6MHz, 7MHz, 8MHz Band-wide

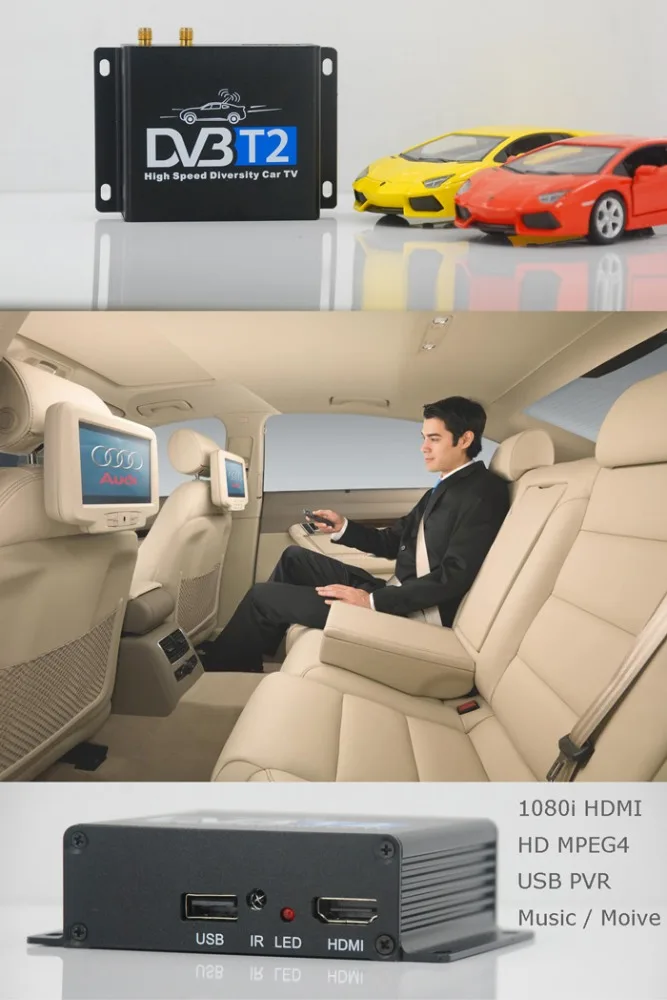

13. HDMI output (One route)
14. Video Output (Three Route)
15. Audio-R, Audio-L output
16. Support IR output and extended remote sensor receiver
17. Google DVB-T220 to get perfect technology support and update software.
Technical Parameters:
1. Input frequency: VHF 177.5MHz - 226.5MHz
UHF 474MHz - 858MHz
2. Modulate: QPSK/16 - QAM/256-QAM
3. Decode standard: MPEG4,MP@ML,MP@HL,H.264/AVC
4. Audio decode standard: MPEG-1, and-2,layer and 2, MPEG-4, HE-AAC
5. 4 Way Video Output (One way from power socket if need):
Output Resistance: 75 ohm
Output Voltage: 1.0`2.0mVp-p
Audio output: 2Vp-p
6. Power Supply: DC 12V~24V 6W

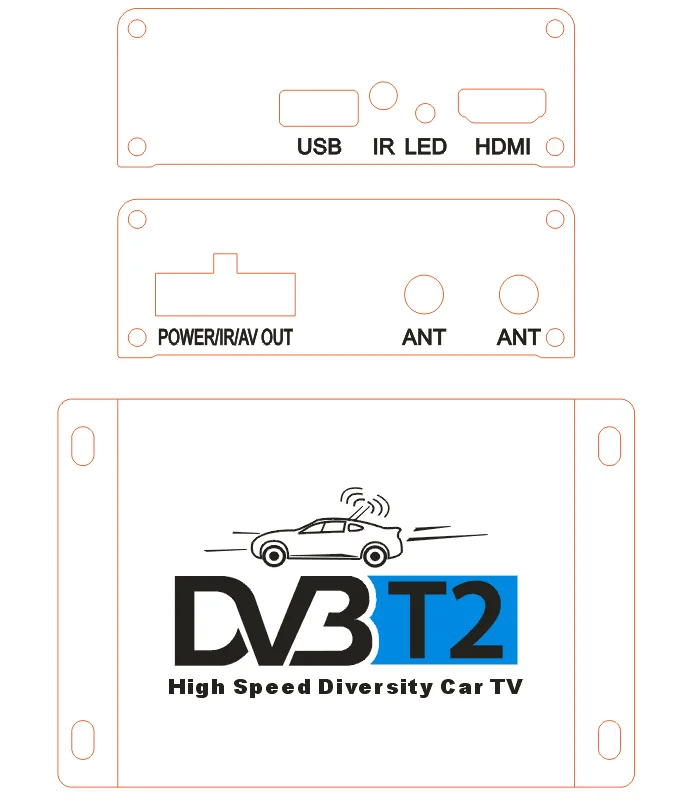

7. Connecting Terminal:

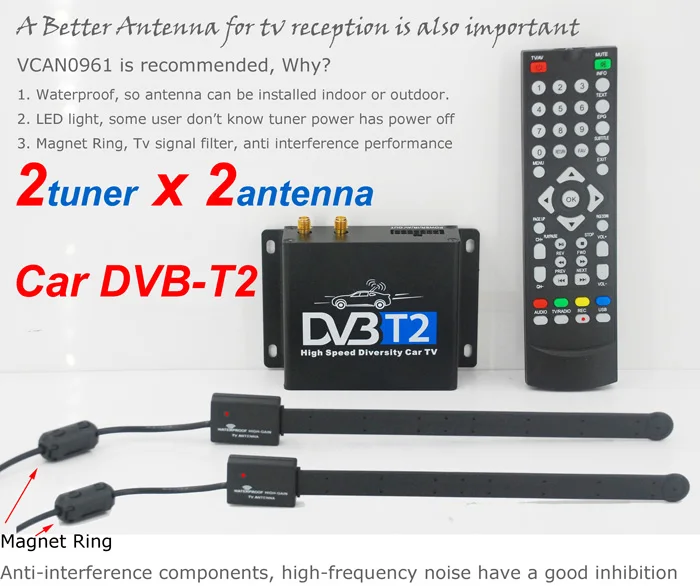

2 Active amplifier antenna input jack (5V supply), Power/ Extend IR input / AV output jack (Battery+, GND, ACC+) , USB upgrade socket, HDMI High-definition output jack.
8. Applicable Power Supply: Car storage battery (12V~ 24V)
9. Outer dimension: 80mm x 70mm x 28mm
10. Application Temperature: -5 ~40 degree
11. Storage Temperature: -20~60 degree
FAQ
1. Does this device has playback from USB video and Jpeg files?
VCAN: Yes, USB support software upgrade and multi-medial play function.
