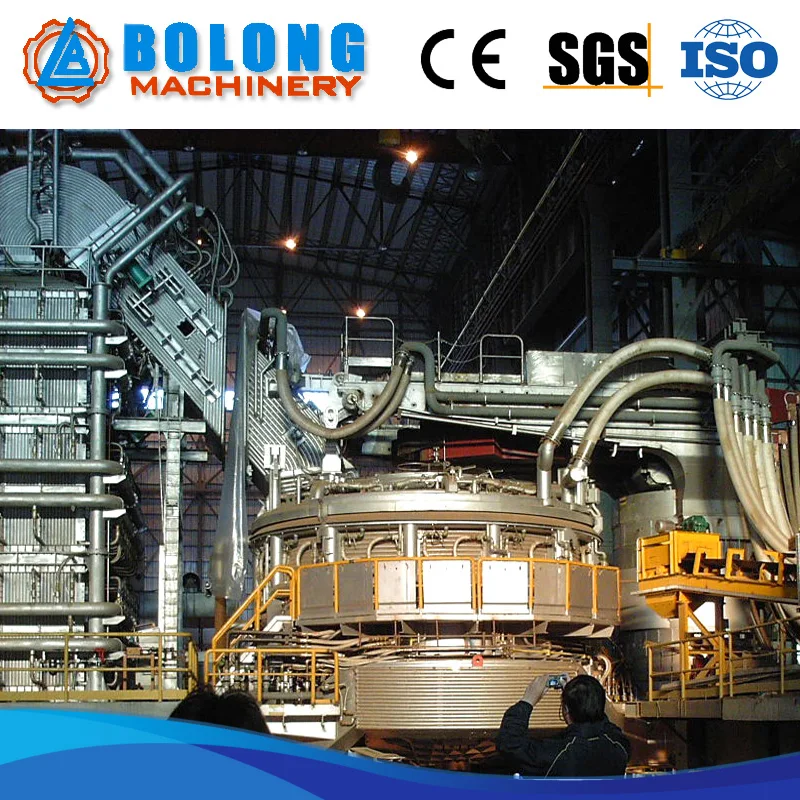

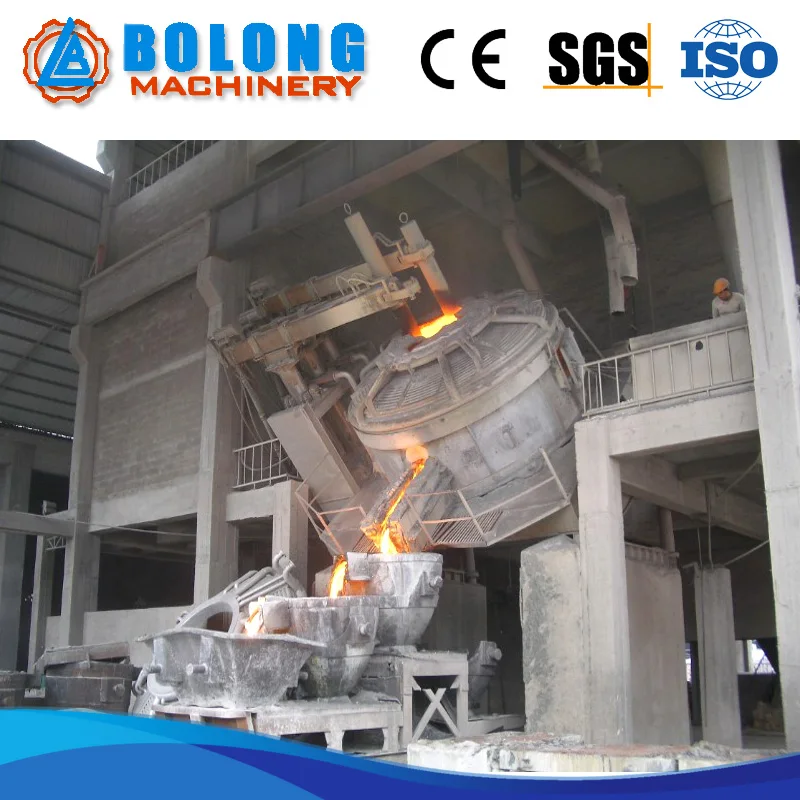

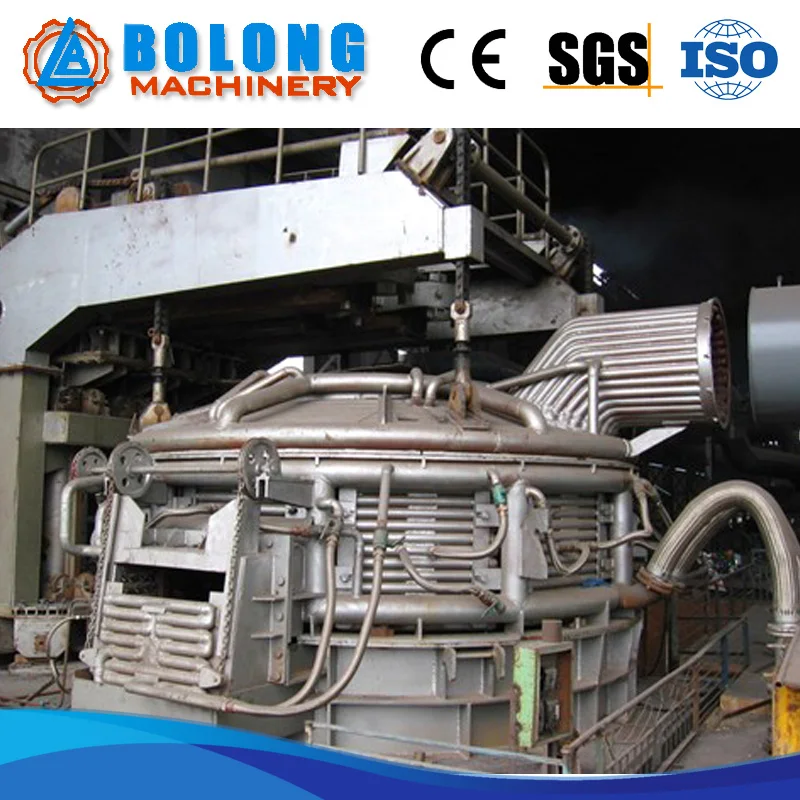

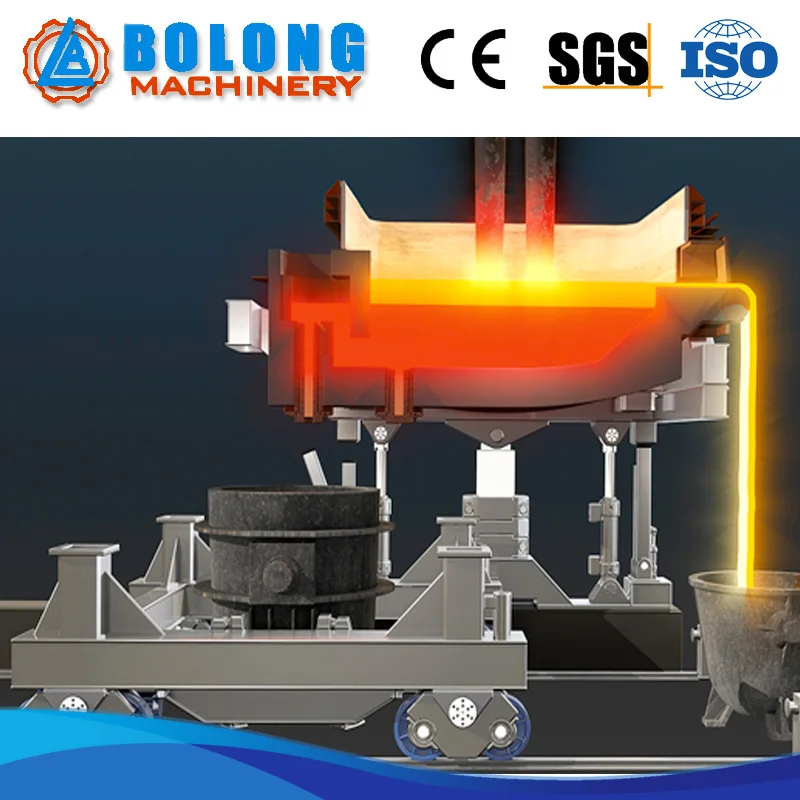

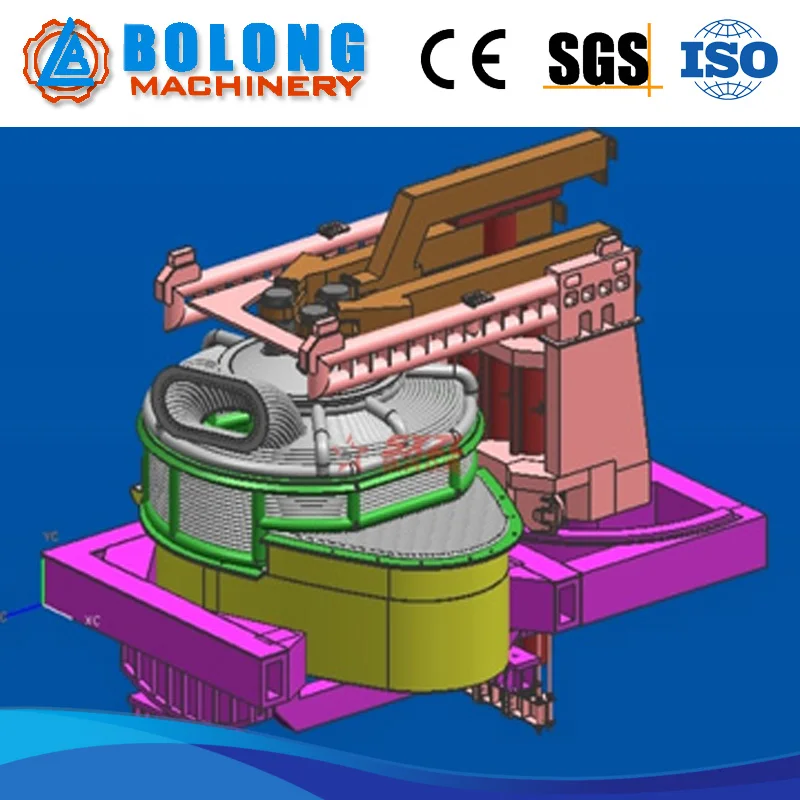

Factory Supply Electric Steel Furnace Electrode Arc Furnace

  Furnace Specifications

  GW5-2500-0.5

  GW5-3500-0.5

  Number

  YD28

  Ladle Capacity

  5-6.5T

  Melting Time

  6070(points)

  Configuration Power

  2500KW

  3500KW

  Average Power Consumption

  600 KWH/t

  Rectifying Mode

  12Pulse

  Input Voltage

  1000V

  Transmission Mode

  SCR

Model Specifications

Rated Capacity

Rated Power
KW

Rated Frequency
Khz

Rated Voltage
V

Steel Temperature

1600℃

Iron temperature 1450℃

Melting Rate
T/H

Melting Rate
T/H

GW0.1-160-1/2.5

0.1

160

1/2.5

750

0.18

0.20

GW0.15-160-

1/2.5

0.15

160

1/2.5

750

0.20

0.22

GW0.25-250-1

0.25

250

1

1500

0.37

0.41

GW0.5-500-0.5

0.5

500

0.5

1500

0.84

0.89

GW1-750-0.5/1

1.0

750

0.5/1

1500/2400

1.27

1.31

GW1.5-1000-0.5

1.5

1000

0.5

2400

1.58

1.65

GW2.0-1500-0.5

2.0

1500

0.5

2400

2.58

2.85

GW3.0-2500-0.5

3.0

2500

0.5

3200

4.35

GW5.0-3500-0.5

Scope of Supply:
1 set of MF power supply (with a capacitor unit)
2 sets of melting furnaces
1 crucible mold
1 set of tilting furnace system (gearbox or hydraulic station)
1 set of water-cooled cables
