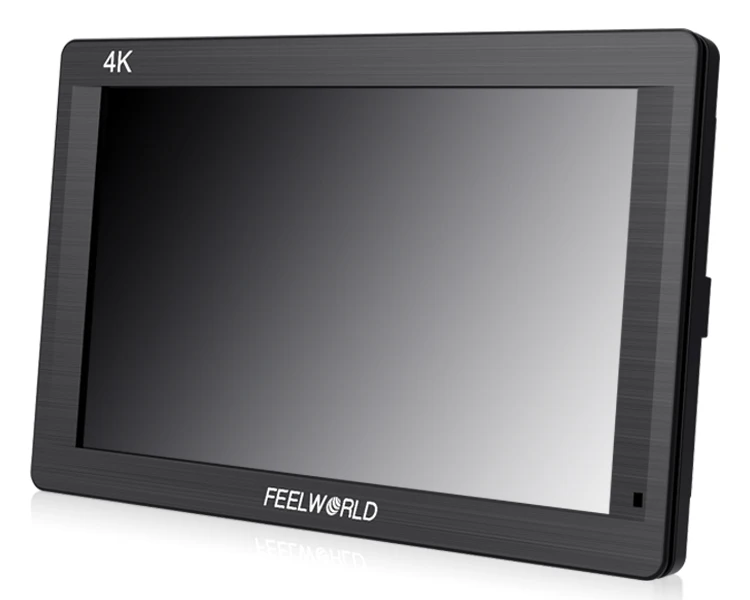

Wholesale steadicam steadycam 7 inch 3840*2160 4K resolution HDMI field monitor camera stabilizers for dslr
- Category: Stabilizers >>>
- Supplier: Shenzhen Feelworld Technology Co. Ltd.
Share on (60562219100):
Product Overview
Description
Wholesale steadicam steadycam 7 inch 3840*2160 4K resolution HDMI field monitor camera stabilizers for dslr
Specification
Display Spec.
| Model | FH7 |
| Screen Size | 7" IPS |
| Resolution | 1920x1200 pixels |
| Pixe Pitch | 0.07875 (H) x 0.07875 (W) (mm) |
| Aspect Ratio | 16:10 |
| Brightness | 450cd/m² |
| Contrast Ratio | 1200:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
Input
| 1 X HDMI | HDMI |
Output
| 1 X HDMI | HDMI |
Audio
| Audio Out | Stereo Headphone, Speaker |

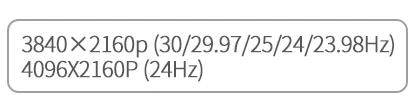

HDMI Input Support Format
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
4K UHD 3840×2160p (30/29.97/25/24/23.98) |
HDMI Output Support Format
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
4K UHD 3840×2160p (30/29.97/25/24/23.98) |
General
| Input Voltage | DC7~24V |
| Power Consumption | ≤8W |
| Working Temperature | -20°C~55°C |
| Storage Temperature | -30°C~65°C |

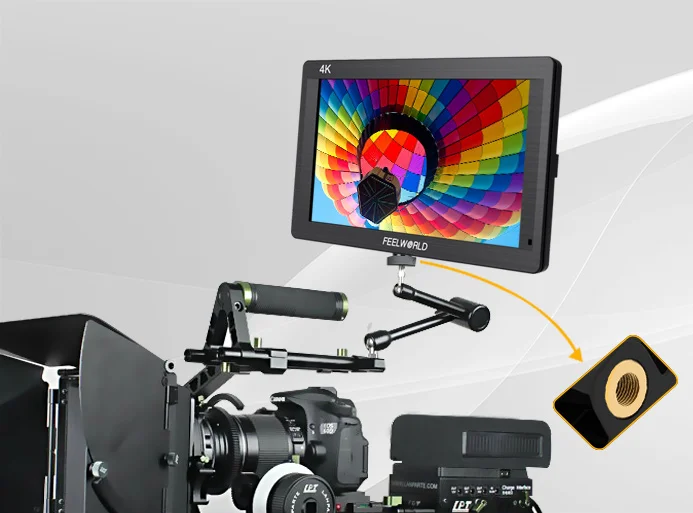

| Install Way | 1/4"-20 Thread Socket (top, bottom) |
| Battery Plate | F970 (Standard); D28S/D54, LP-E6, U60 (Optional) |
| Unit Size | 180Lx120Hx22.95D (mm) |
| Unit Weight | 280g/310g (With F970 Plate) |
Product Description
More Auxiliary Functions
More professional functions assist users to accurately monitor when shooting, making and playing movies/ videos.
With Full HD 1920x1200 high resolution Precise Color, an impressive 323 PPI (Pixels Per Inch), The pixel density of the FH7 packs an impressive 323 PPI (Pixels Per Inch) blending individual pixels to the point that the naked eye can't define individual pixels. Sharper images, brings you the perfect visual experience.
Precise Color to fuel your creative flow
Richer, Brighter, Most Colorful
Richer, Brighter, Most Colorful
IPS Wider View Angle 160°
Viewing Angle become very important, as the camera operators may shift his/her position relative to the monitor during the shot. FH7 IPS 160° wide viewing angle allows the operator to have a clear, easy-to-see image as their position shifts.
Viewing Angle become very important, as the camera operators may shift his/her position relative to the monitor during the shot. FH7 IPS 160° wide viewing angle allows the operator to have a clear, easy-to-see image as their position shifts.

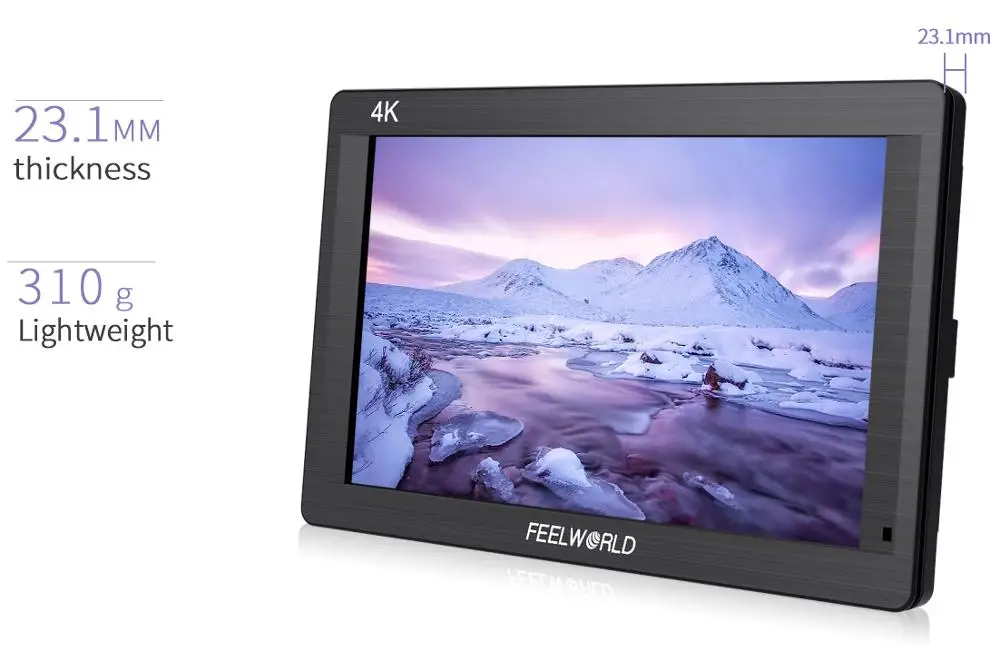

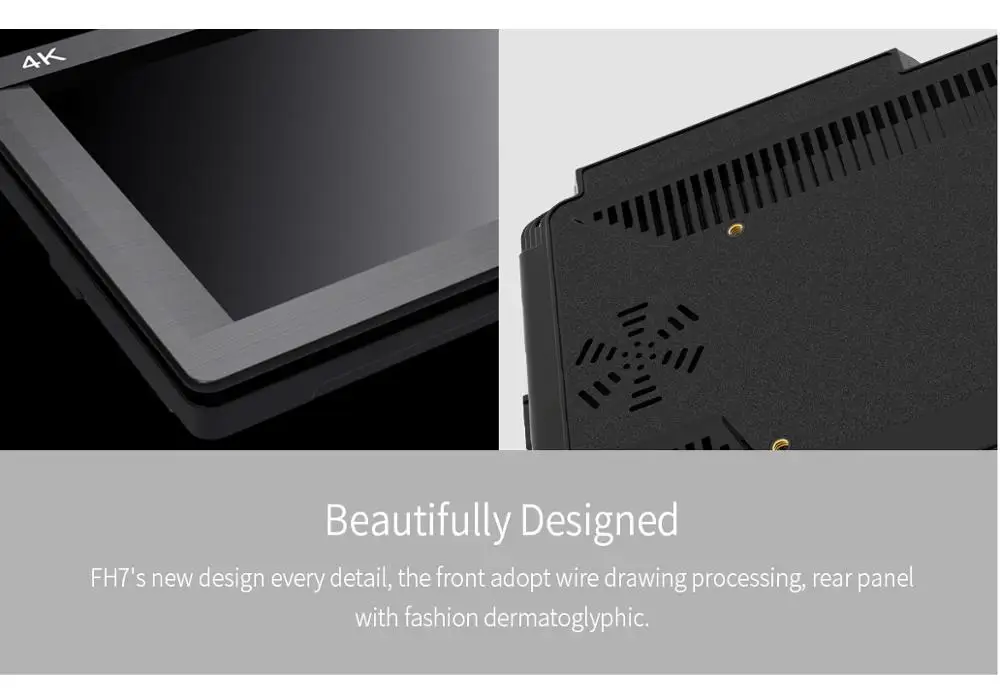

Ultra-thin Lightweight Design
Specially designed to merge portability, and functionality, 23.1mm thickness 310g the FH7 gives you freedom to shoot well anywhere. See your picture accurately, consistently and clearly, regardless of your position.
Specially designed to merge portability, and functionality, 23.1mm thickness 310g the FH7 gives you freedom to shoot well anywhere. See your picture accurately, consistently and clearly, regardless of your position.

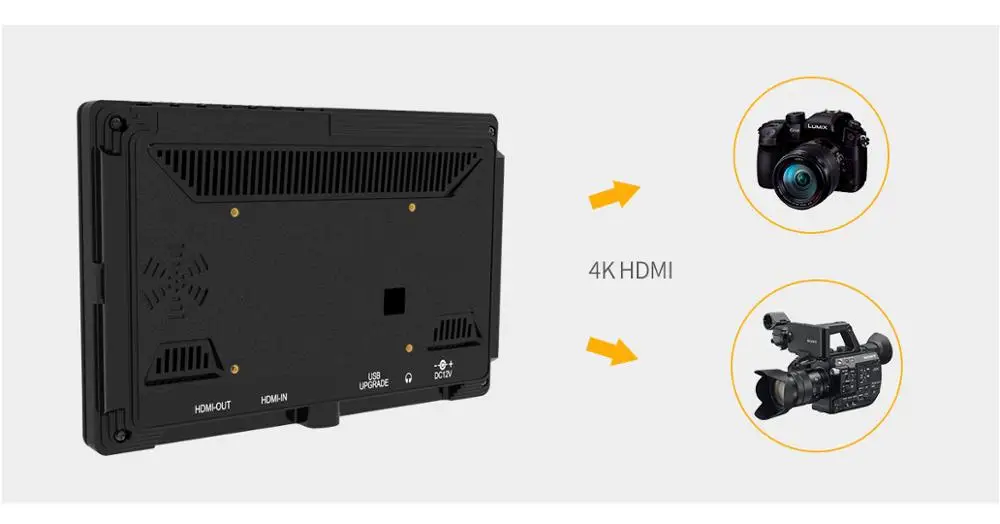

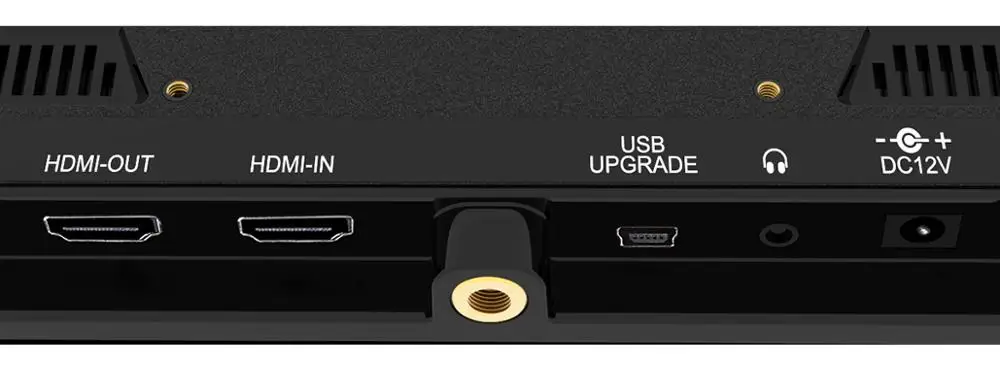

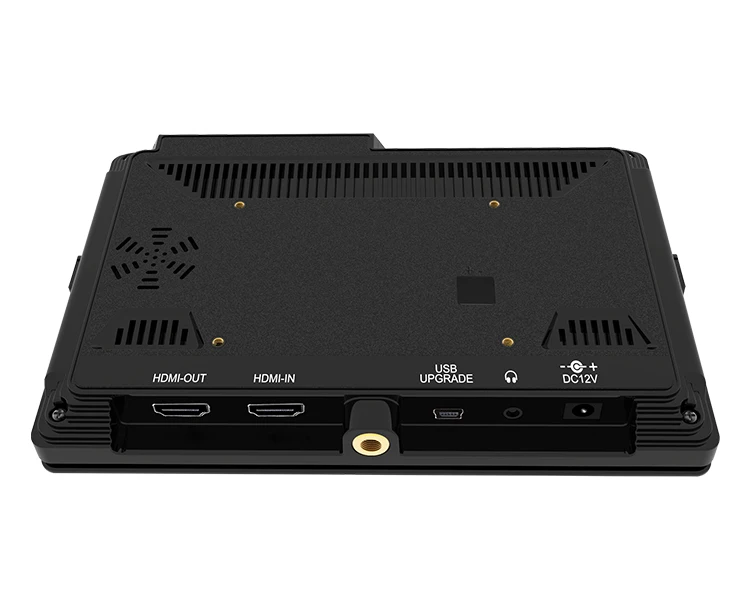

The compact design of the FH7 includes HDMI input/ output, USB Upgrade, 3.5mm Ear Phone Slot, Built-in Speaker.

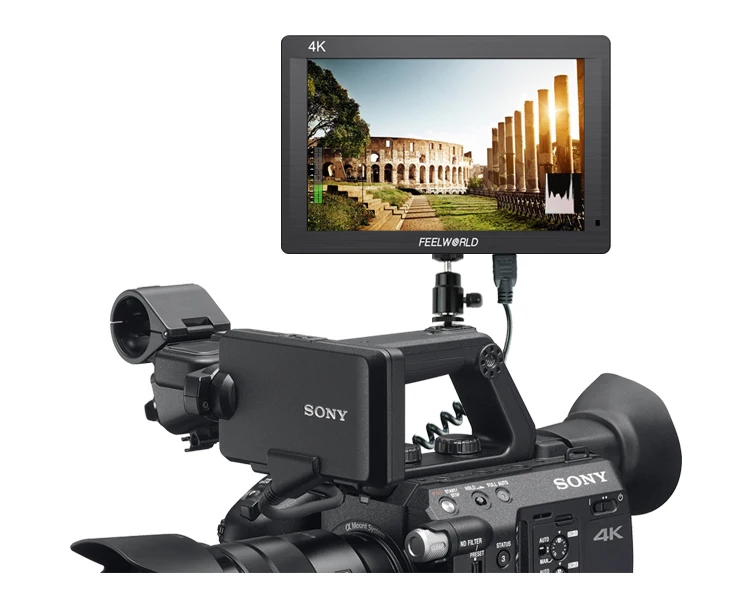

4K HDMI Input/ Output

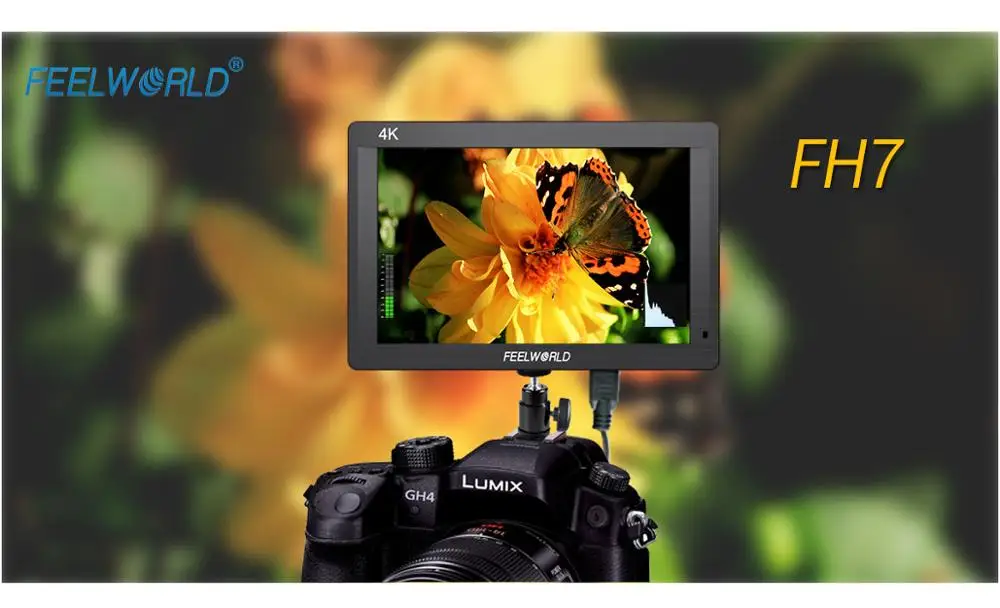

Support most DSLRs and camcorders.
Support most DSLRs and camcorders.
4K HDMI Loop-out
The FH7 has both HDMI in and loop-out , allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality.
The FH7 has both HDMI in and loop-out , allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality.
Standard Hot Shoe Mount 360° Rotation
Hot Shoe Mount can be connected with the DSLR, Slide and other shooting components to facilitate the shooting and monitoring of different scenes, can also be connect to tripod.
Hot Shoe Mount can be connected with the DSLR, Slide and other shooting components to facilitate the shooting and monitoring of different scenes, can also be connect to tripod.

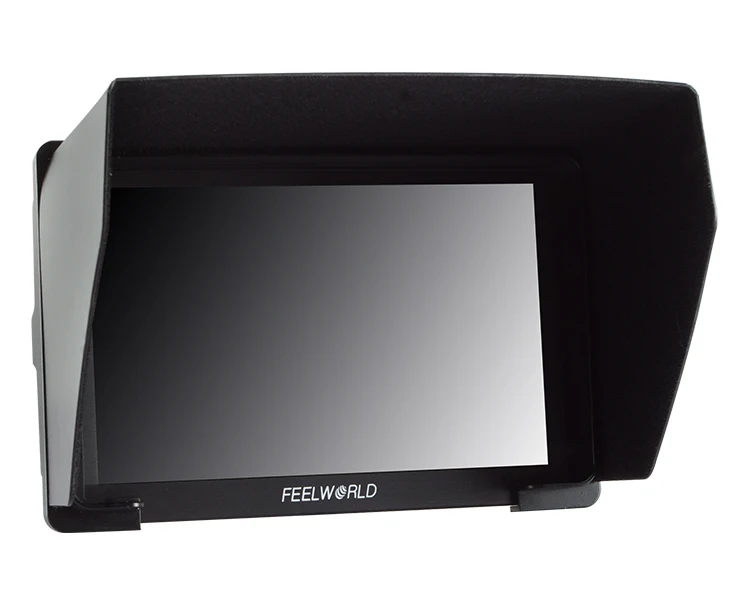

New Generation Collapsable Sunshade
For easier viewing in bright environments. FH7 offers an amazingly clear, bright image indoors or on-location with richer color saturation and contrast.
For easier viewing in bright environments. FH7 offers an amazingly clear, bright image indoors or on-location with richer color saturation and contrast.

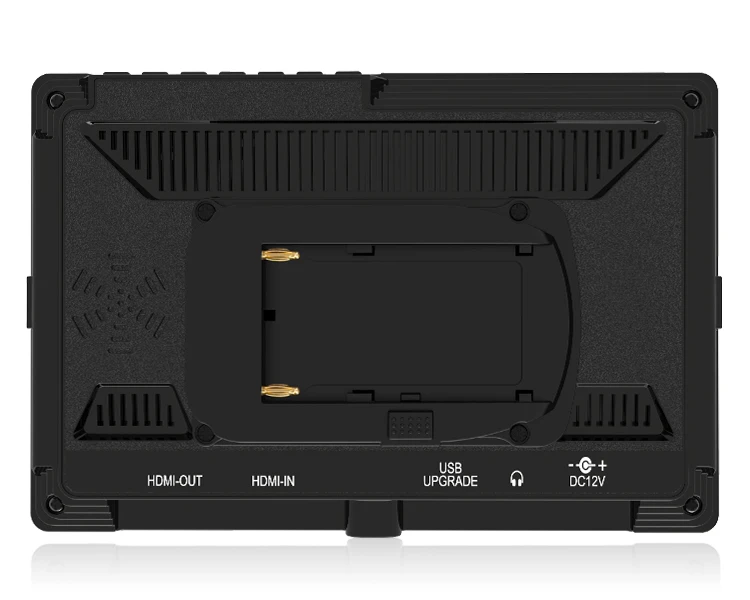

Flexible Battery System
The FH7 has a flexible battery system that supports F970 battery plate (standard), D28S/D54, LP-E6 and U60 battery plate (optional), and also can powered by power adapter (optional).
The FH7 has a flexible battery system that supports F970 battery plate (standard), D28S/D54, LP-E6 and U60 battery plate (optional), and also can powered by power adapter (optional).

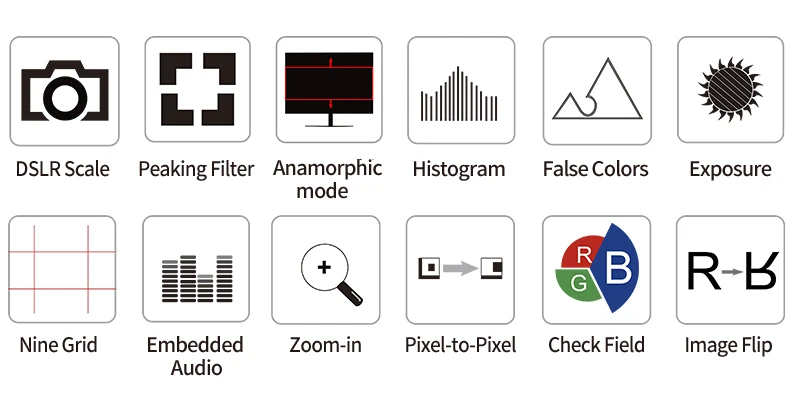

Features
1. High Resolution: Full HD 1920x120
2. High Contrast: 1200:1
3. Suport 4K HDMI UHD 3840×2160p (30/29.97/25/24/23.98) Input/ Output
4. High Brightness: 450cd/m²
5. 160°wide viewing angles IPS Panel
6. Ultra thin design 17mm thickness
7. Histogram
8. Peaking Focus Assist (Red,Yellow,Blue,White four color optional highlight over parts of the image in focus)
9. False Colors
10. Zebra Exposure
11. Squared Segmentation
12. Embedded Audio Meter
13. Camera Mode
14. Scan Mode (Over, Under)
15. Zoom (Auto,4x,9x,16x)
16. Anamorphic Mode (1.3x,2.0x,2.0x mag)
17. Pixel to Pixel
18. Center Marker
19. Safe Area (80%,85%,90%,93%,96%)
20. Marker Type (16:9,4:3,2.35:1,1.85:1)
21. Marker Color (Red,Green,Blue,White,Black,Cyan,Purple,Yellow)
22. Check Field (Gray/Red/Green/Blue)
23. Image Flip (H, V, H/V)
24. Image Freeze
25. Color Temperature Adjustment

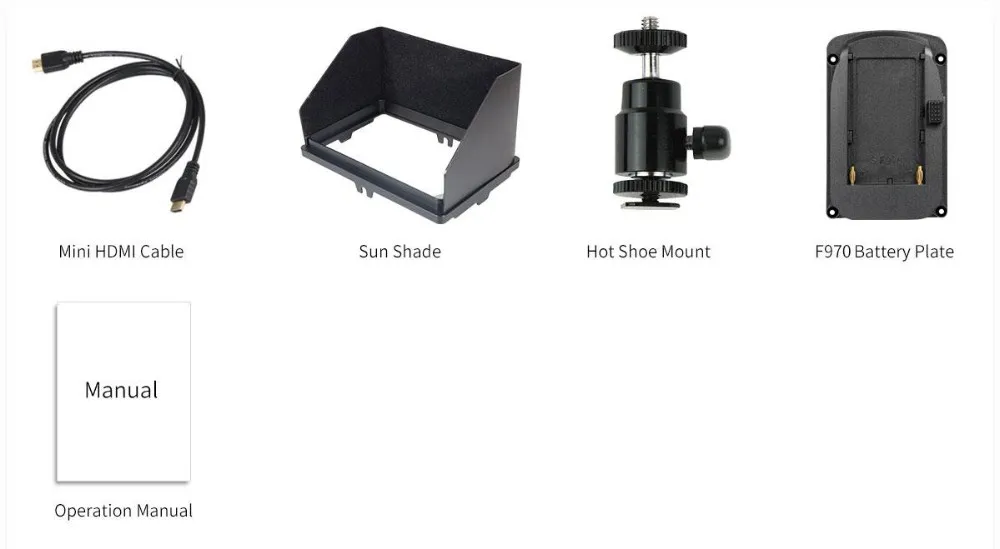

Accessories
Standard Accessories:
1× Mini HDMI Cable,1× Sunshade,1× Hot Shoe Mount,1× F970 Battey Plate
1× Operation Manual
