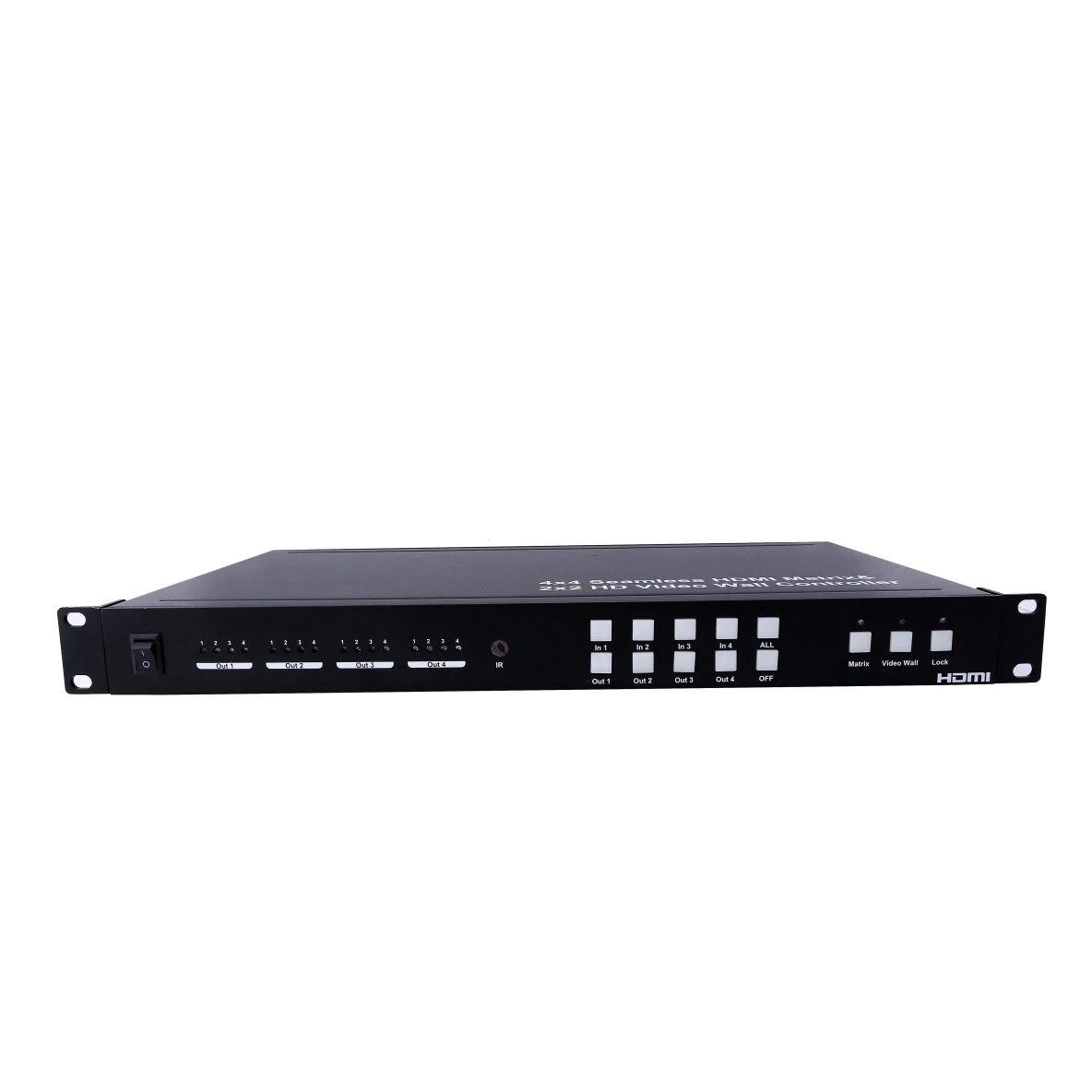

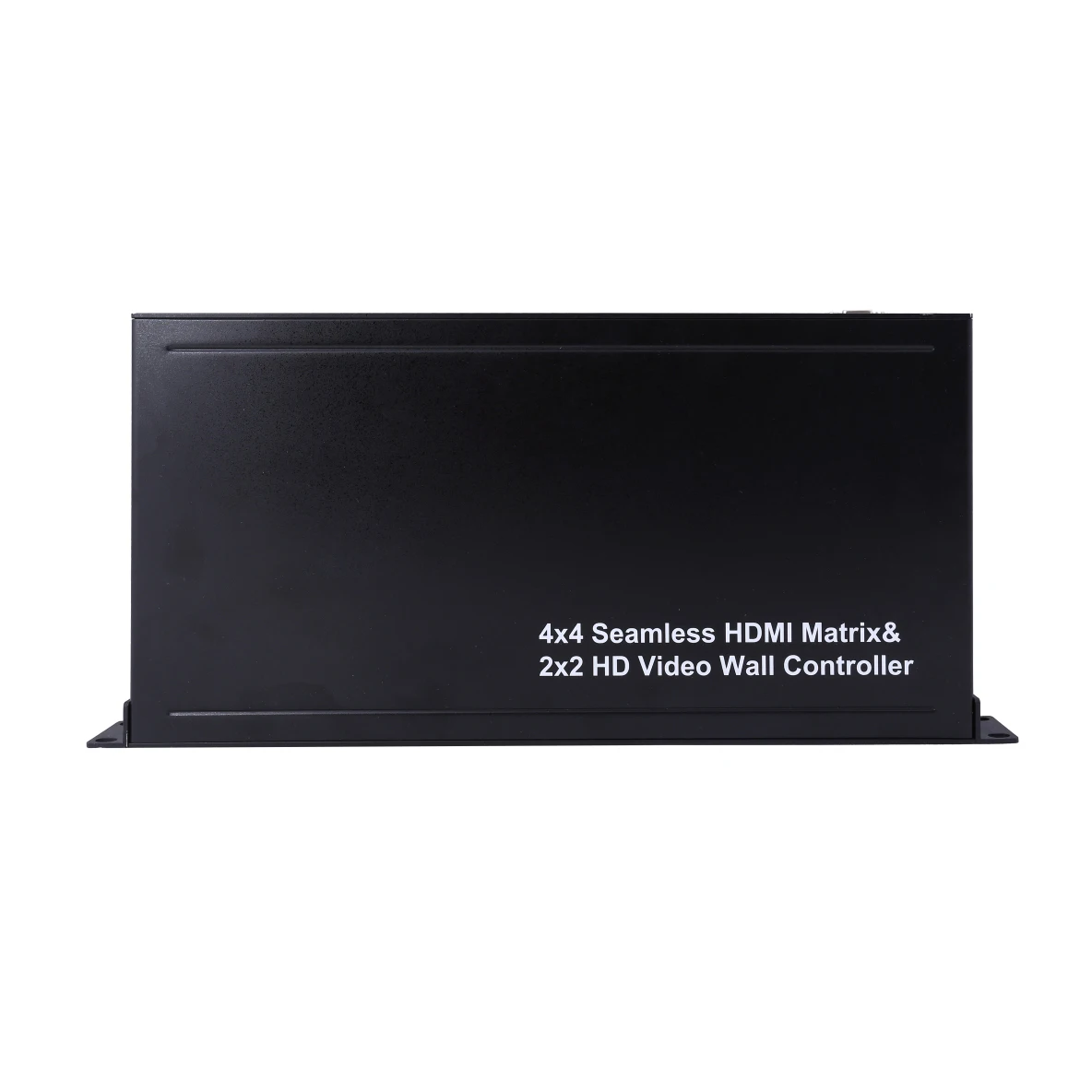

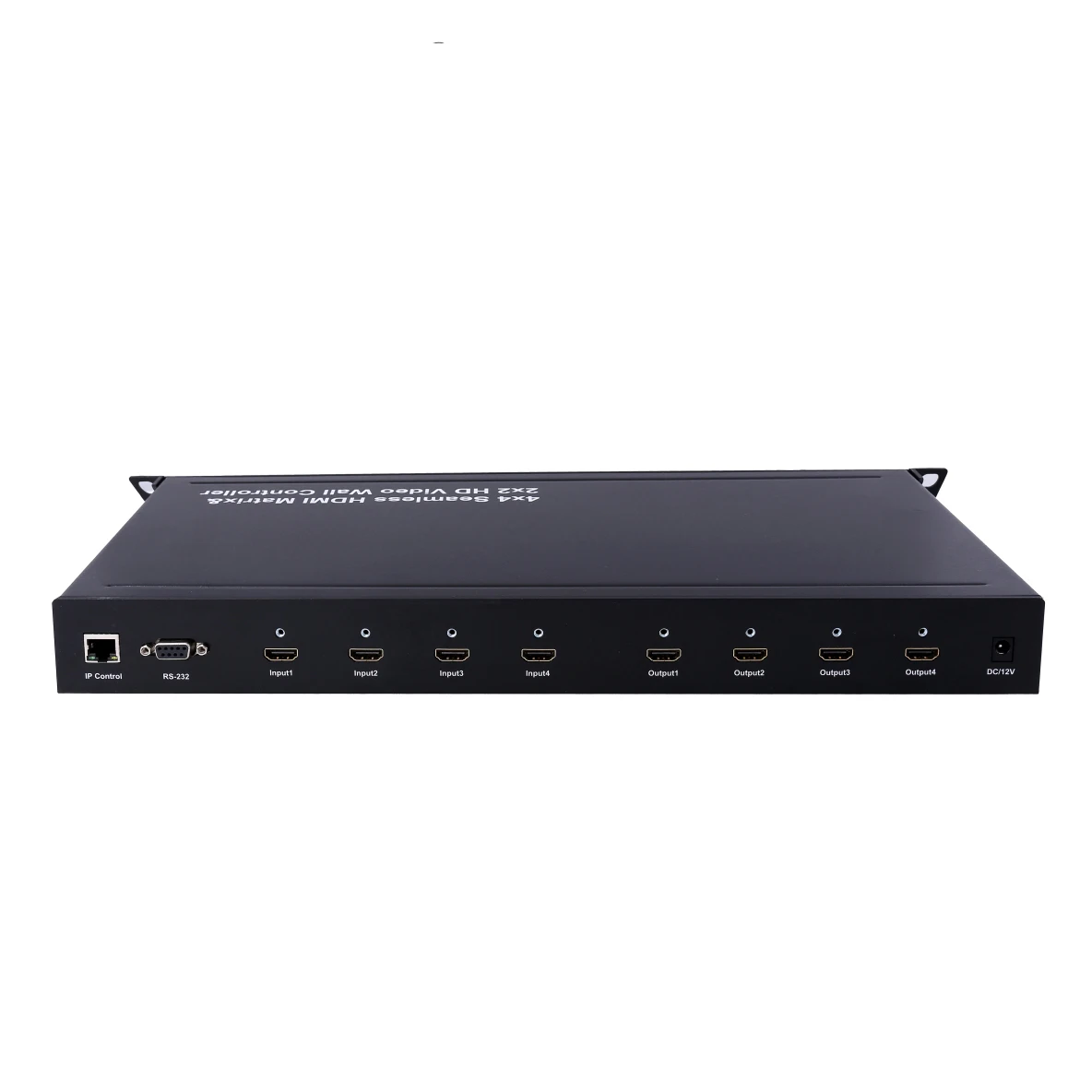

SX SMX44 Video Wall and 4x4 Seamless HDMI Matrix Switch Seamless Switching HDMI
- Category: >>>
- Supplier: Shenzhen Shunxun Electronics Co. Ltd.
Share on (60562407337):
Product Overview
Description
4x4 Seamless HDMI Matrix & 2x2 Video Wall Controller
Features
* Any one of the 4 sources to any one of the 4
* Seamless switching ensures no switching delay and pictures loss during transitions, the switching speed is less than 40
* Support 2x2 video wall
* Any one of the four outputs can be turned off
* Each port support both HDMI and DVI
* Support high definiton resolutions, including: 1080p@60Hz@36 b/pixels, 1080i, 720p and other standard video
* With panel button, Remote Control, RS232 Control, IP Control to select the
* 1U rack design ,easy
* DC 12V 3A power
* Unit size:L438XW220XH44
* Seamless switching ensures no switching delay and pictures loss during transitions, the switching speed is less than 40
* Support 2x2 video wall
* Any one of the four outputs can be turned off
* Each port support both HDMI and DVI
* Support high definiton resolutions, including: 1080p@60Hz@36 b/pixels, 1080i, 720p and other standard video
* With panel button, Remote Control, RS232 Control, IP Control to select the
* 1U rack design ,easy
* DC 12V 3A power
* Unit size:L438XW220XH44
Specification
Operating Temperature Range | 0 to +35°C (32 to +95°F) |
Operating Humidity Range | 5 to 90 % RH (no condensation) |
Input Video Signal | 0.5-1.0 volts p-p |
Input DDC Signal | 5 volts p-p (TTL) |
Video Format Supported | DTV/HDTV: 1080P/1080i/720P/ 576P/480P/576i/480i |
Audio Format Supported | LPCM |
Input ports | 4xHDMI(standard Type A connector) |
Output ports | 4xHDMI(standard Type A connector) |
Matrix mode | 4x4 Seamless switching |
Video wall mode | 2x2 video wall |
Power consumption | 24watts(Maximun) |
Dimension (mm) | L438XW220XH44 mm |
Weight | 2800g |

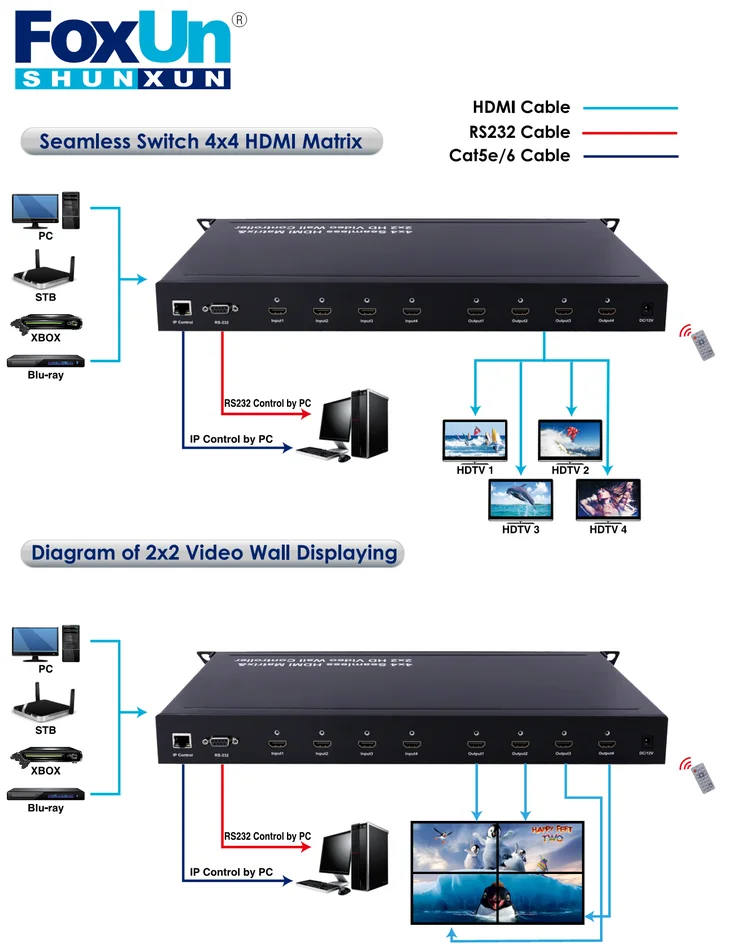

Wiring Diagram
Certifications
Packing & Delivery
PACKING CONTENTS
1). 4x4 Matrixx1pcs
1). 4x4 Matrixx1pcs
2). Remote Controllerx1pcs
3). CD ROM (user manual) x1pcs
3). CD ROM (user manual) x1pcs
4). Power Adapter 12V3A x1pcs
5). Mounting Earsx1pair
6). IR Cable x1pcs
6). IR Cable x1pcs
