35 Oz (1Kg) Electric Melting Gold Digital Furnace for Scrap Metals Refining

35 Oz (1Kg) Electric Melting Gold Digital Furnace for Scrap Metals Refining

Category: >>>
Supplier: Zibo JC Eco-Tech Co. Ltd.

Price:$317.00 - $329.00

Quantity:

Product Overview

Description

Product Description

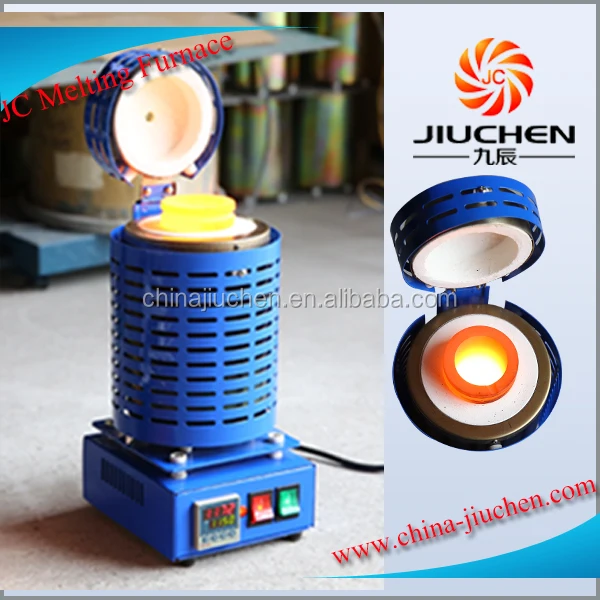

35 Oz (1Kg) Electric Melting Gold Digital Furnace for Scrap Metals Refining
Gold Digital Furnace are made for casting, reclaiming, alloying, and refining gold, silver and other metals with similar or lesser melting temperatures. Equipped with electronic temperature controls with digital displays, these melters can reach a maximum temperature of 2102F (1150 C). The digital temperature control will prevent overshoot and protect the heating element from overheating. Tongs are provided to easily remove crucible.

One Furnace Unit delivery with:
Model JC-K-110-2(110V 2000w) Red,Blue ,Gray color is optional
1-1kg graphite crucible1-crucible tongs.1-insulating heat glasses.1- gloves.

\t Product Name	\t Electric Melting Gold Digital Furnace
\t Material	\t stainless steel
\t Construction	\t consists of a cylindrical furnace, an insulated handle for easy pouring, and a temperature controller.
\t Heating	\t Heating elements surrounded working SIC chamber,which is no crack,no distoration.
\t Insulation	\t Multilayer insulation with double thickness of ceramic fiber
\t Working temp	\t 2192F (1200C) Temperature controlled with an accurate digital thermostat
\t Melten Material	\t Aluminum, Gold, Lead, Silver, Sterling Silver, Tin & Zinc
\t Standard Delivered with	\t 1 furnace set including 1x1kg crucible,1xcrucible tongs,1xinsluation glasses,1xgloves

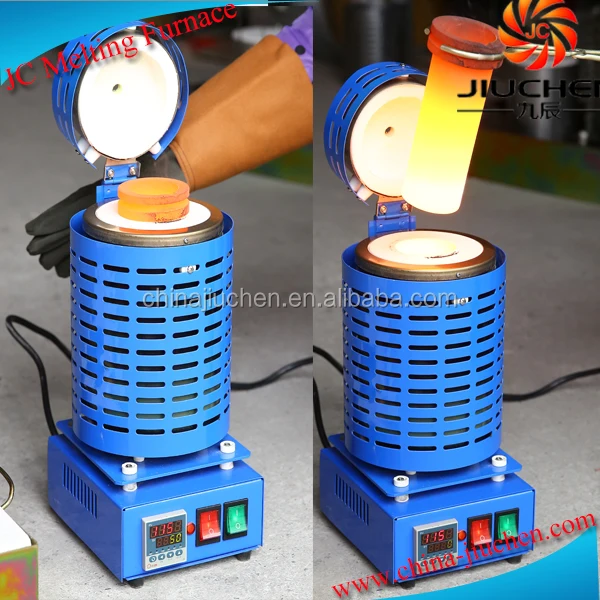

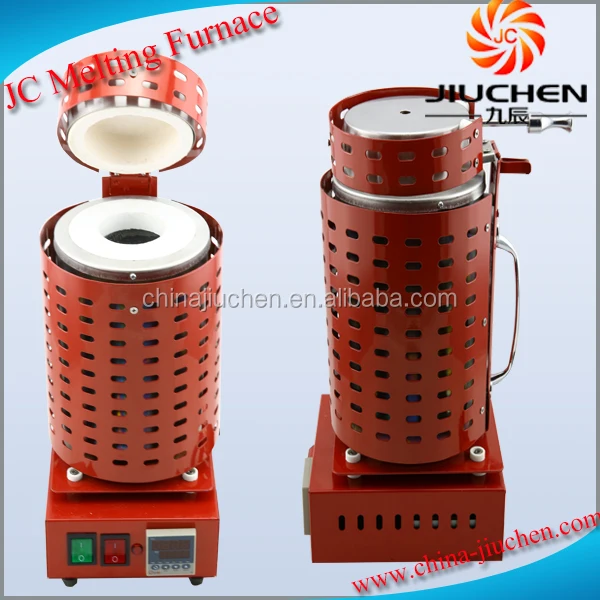

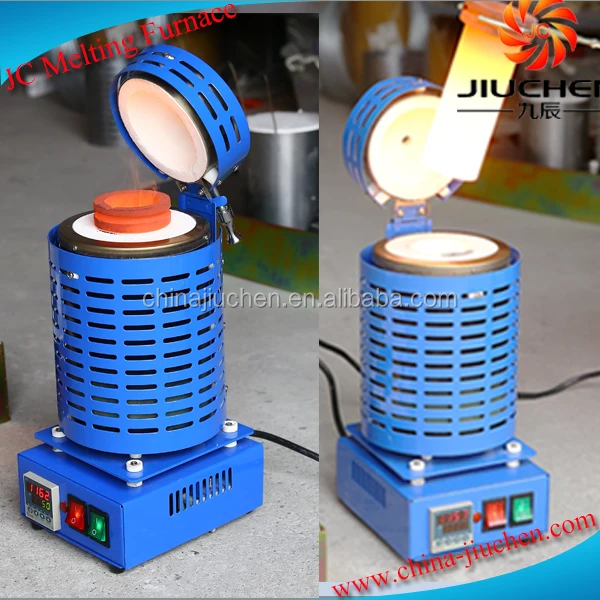

Products Show

The Point of the Products Detail

Jewelers have used them for decades to melt gold and silver for casting or scraping purposes. Now with automatic temperature control standard, the JIUCHEN Electromelt is easy to use and well proven in the workshop.
Inspect your crucible frequently for cracks, wear and deterioration. The crucible walls and base sloughs off with each use, causing the graphite crucible to become thinner. A leaking crucible can cause element and thermocouple failure.
When melting a full crucible it is best to load only 1/4 to 1/2 the metal; once that is melted,
add the remaining.

\t Compare from JC Furnace with other similar furnace
\t Items	\t JC Electric Furnace	\t Other Similar Furnace
\t Furnace chamber	\t Adopts new advanced SIC material with no crack no distortion under normal temp 1-1250℃,which prevents disadvantage of short work life with traditional ceramic fiber, quartz chambers.	\t Traditional chamber material:ceramic fiber, quartz with easy crack and distort after use 2-3 times,which easily lead to short circuit and reduce work life.
\t Heating Coil	\t Material: Fe-Cr-Ni alloys Limited test temp up to 1600℃,make sure long continues continuous work time under normal 1200℃,which effectively extend furnace work life	\t Easy to crack after use 2-3times and lead to be out of work,it is very complicated process if replace coil singly,also many end users unable to replace it successfully by themselves.
\t Warranty range	\t Free maintain with all heating elements including chamber,heating coil,displayer,relay.	\t Only aim at control temp spare parts.

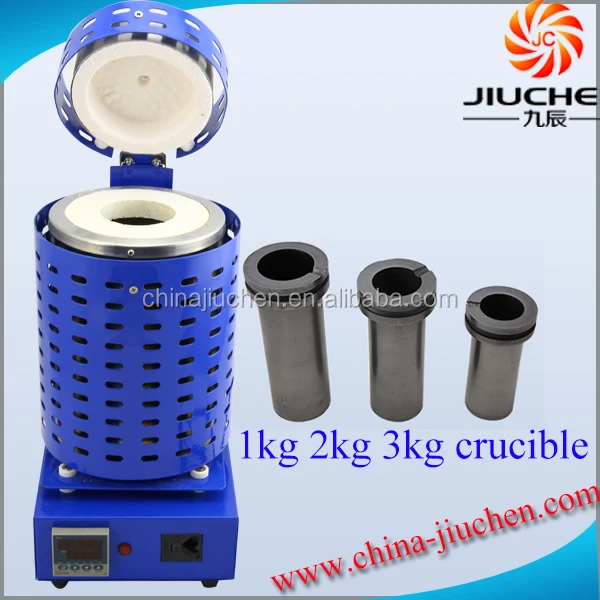

Graphite Crucible

Gold Digital Furnace Operation Instruction
1. Power Supply
1) There are 110V,220V and 380V three kinds of AC working voltage provided,
be sure your local working voltage should be matched before using the melt.
2) The power switch should be in OFF state
3) The indicator light of temp meter will turn on after power supplied and
turn the green switch into ON state.
2. Temperature Setting.
The temp meter will display the setting value 1150°C (SV) and the
mini-furnace inside actual temp (PV) after power supplied.
3. Working State
A. Put the material into the crucible and set into the melter, close the cover.
B. Turn the red switch into ON state, the melter begins to work,
the meter indicator light will turn on.
C.The temp control meter will automatically control the melter.
4.Power off.
Turn off the red switch into OFF state first, then turn off green switch.

Operation Instructio

Temperature Setting

The thermostat has two digital read-outs: the bottom readout (SV) displays the setting you enter into the furnace. The top read-out (PV) displays the actual temperature inside the crucible during operation.

Temperature Setting

To set the desired melting temperature, turn on green on/off switch. Wait a few seconds; the bottom (SV) readout should show the default temperature setting of 1950°F.
To change the temperature setting, simply press the left arrow key to move the cursor to the proper desired digit and press the up or down keys to adjust it up or down. Adjust each digit to the desired setting.

Production Line

Heating Elements

Product Feature

* PID Digital Temperature Controller
* SSR relay.
* Easy to operate & maintai
* Low Maintenance Heating Element.
* Heat On/Off Indicator
* Safe & Shock Hazard free
* Transformer based (low voltage)
* Nichrome, Lanthal (DST or A1) heating coils are used for
* quality uniform heating.

Our Certifications

CE ISO9001 Test Report Patent

Technical Data

Gold Melting Furnace is very useful for melting Gold, Silver, Copper, Brass and other metals with melting temperature less than 1150°C/2012F. However, it can be operated up to maximum 1200°C (Continuous operations at maximum temperature reduce the life of Heating Element). JIUCHEN Gold Melter has Digital Display to set and control temperatures. This Digital Electric Gold Smelting Furnace is an ideal supporting unit for Jewellery Casting, Gold & Silver Refining, Alloying

Customer Photo

Favorable Comment

JC-S-220-4 is faster gold melting; Stainless steel construction; Standard and custom designed; Low maintenance required; Digital Operating controls; Compact design.It is an deal model for melting bigger capacity with 5-15KG metal.

Business Seller Information
Contact Ms. Emily Peng
Whatsapp: 86-13953356036
We Chat: 86-13953356036
Skype:emilypeng2010

Welcome to contact me via TradeManager and WeChat

Shipping &Warranty

We can accept T/T,Paypal,Western Union,Secure Payment,the best and fast way is Paypal.
We choose DHL/Fedex/UPS usually takes about 3-5 working days to the destination,
We will send the goods within 3 working days after the full payment has been confirmed.

All the products have been tested before ship out.
All products electrical parts have 1 year warranty,including temperature controller,relay, thermocouple,heating elements have 6 months warranty,including chamber,heating coil etc.
If there is no man-made problems,we will replace or repair for you freely.
