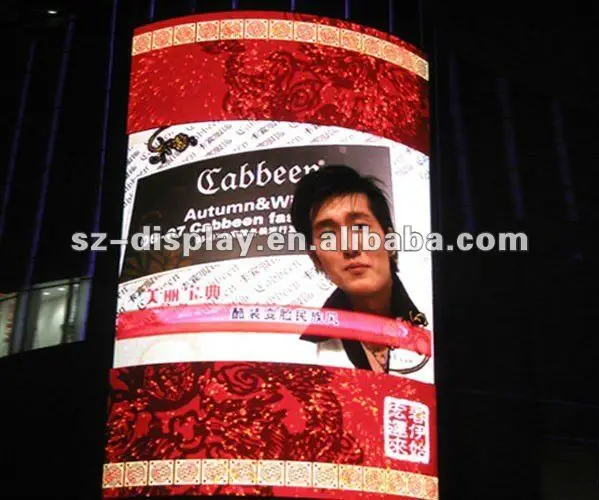

Shenzhen manufacture p10 video outdoor led display full color advertising display

Product Overview

Description

Shenzhen manufacture p10 video outdoor led display full color advertising  display

Detailed Product Description

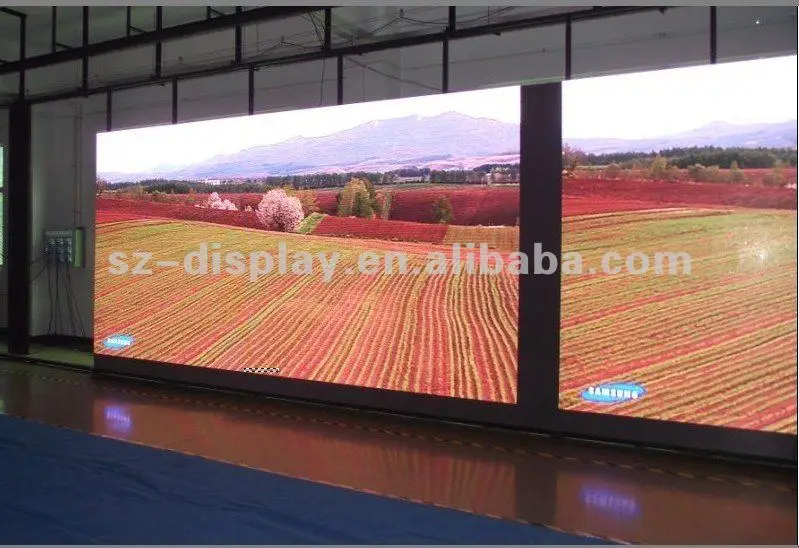

P10 LED display for advertising
1)Led display screen,led screen,video billboard manufacturer
2)CE,ROHS,CCC and ISO9001
3)High quality and reasonable price

Some exclusive features of our LED display screen,LED video billboard and LED screen:

1.Tailor make all kinds of led display screen ,led screen, led video billboard, digital signage for different application.

2. High brightness and definition, energy-saving, environment friendly.

3.No emissions, radiations, noise or chemical effluent.

3.Full complete technical support and long time after-sales service.

4. The most attractive and multi-use presentation format.

5.Easy operation and control, simple installation and maintainence



led dispaly screen technical data:



	DIP-P10
Description	Technical parameter

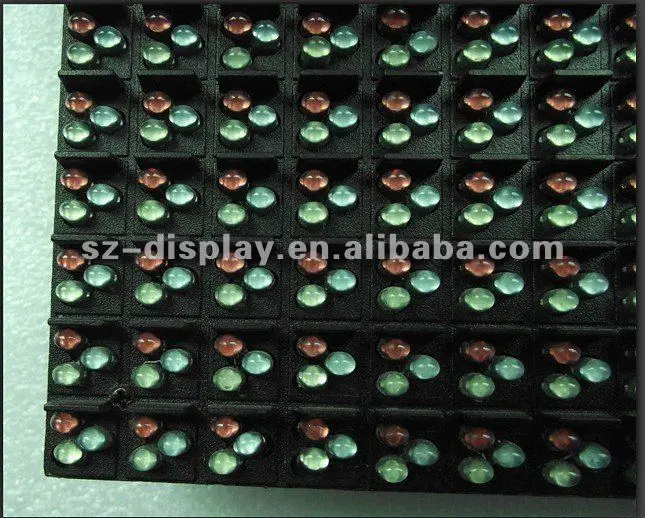

Unit module	Module size	160*160mm
	Pixel pitch	10mm
	Pixel density	10,000dots/m2
	Pixel configuration	1R1G1B
	Led specification	Φ3ellipse
	Pixel resolution	W:16dots*H:16dots

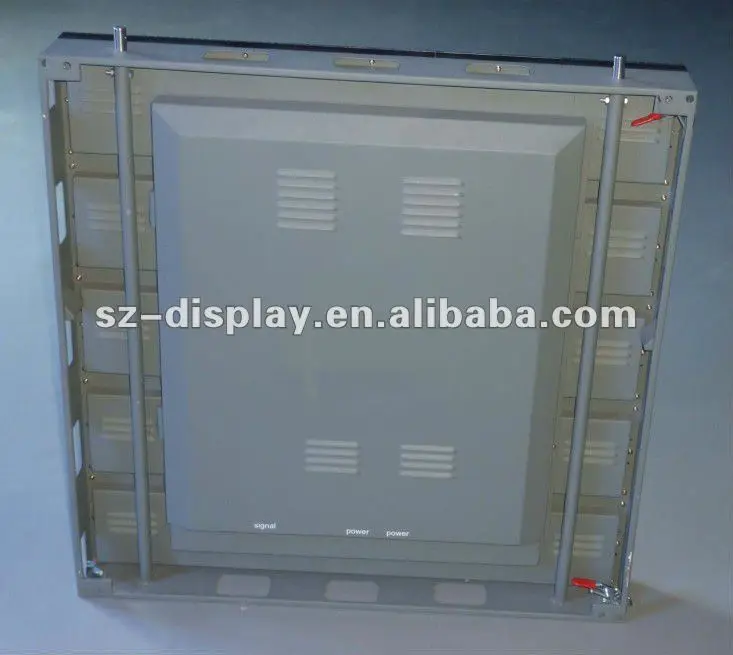

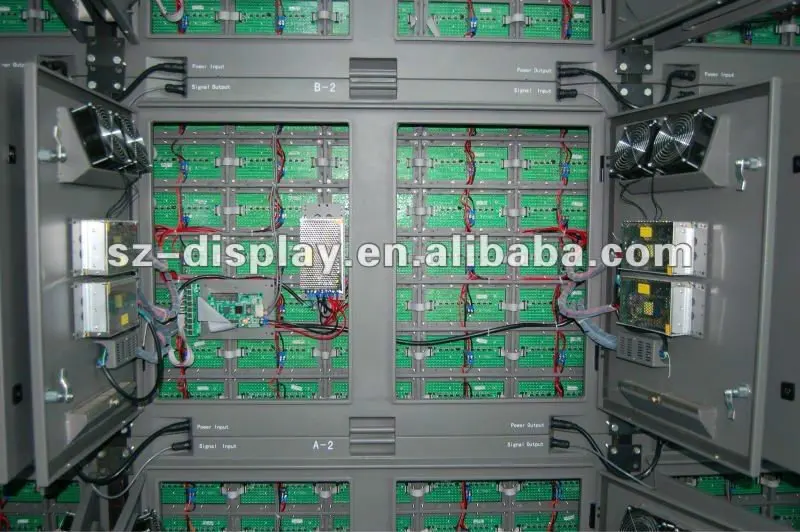

Cabinet	Dimension	960mm*960mm*150mm
	Quantities of module	36pcs
	Power supply	6pcs
	Thermal discharge	Fan*2pcs
	Total weight	50kg
	Best viewing angle	10-100m
	Temperature	Storage: -35°C~+85°C
		Working: -35°C~+85°C
	Thickness	15cm can adjustable
	Remarks: cabinet size can changed, upon project need.
Power	Working voltage	AC220V/110V±10%
	Average power consumption	300-400W
	Max. Power consumption	≤1000W/sqm
	Current	≤20mA(single LED)
Control system	CPU	Pentium4 or above
	Operating system	WIN98/2000/NT/XP
	Control method	Synchronization
Main technical parameter	Driving device	1/4scanning
	Drive type	Constant Current driver IC
	Refresh frequency	≥400Hz
	Grey scale/colors	256 levels of each color(R/G/B)/16.7M color
	Brightness of white balance	More than 8000cd/sqm
	Brightness adjustment	256 levels of each color(R/G/B)by software
	Operating ambient humidity	10%--95%
	Video signal	PAL/NTSC
	Control system	DVI display card+full color controller card
	MTBF	≥10,000hours
	Life span	≥100,000hours
	Flatness	Tolerance of interpixel ≤0.3mm
		Tolerance of modules clearance≤0.6mm
	Power switch	Automatic switch
	Display mode	1024*768
Software	LED media player

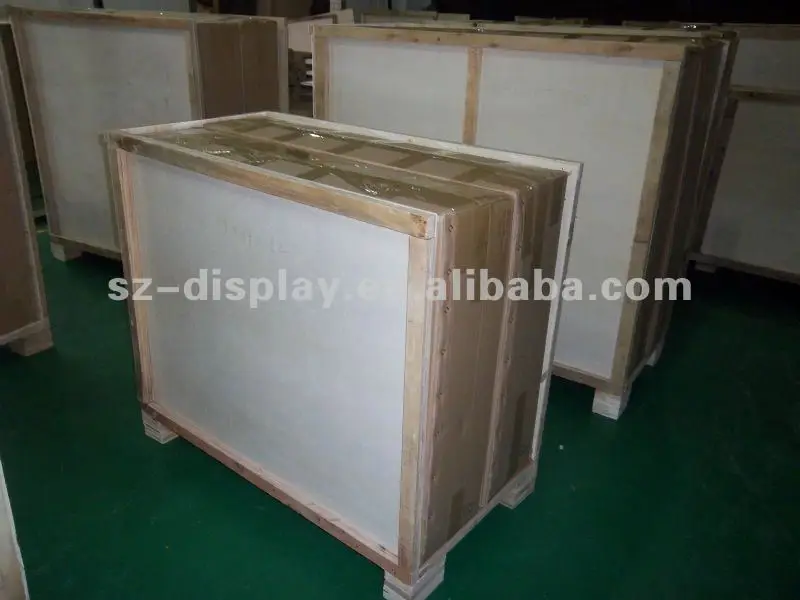

Package: Carton box/Wooden case/Flight case optional









Our service
1.Your inquiry related to our products or price will be replied in 24hrs
2.OEM&ODM,any your customized lightings we can help you to design and put into product
3.Distributoership are offered for your unique design and some our current models
4.Protection of your sales area,ideas of design and all your private information
5.Top Quality+Reasonable Price+Responsible After Service=Successful & Win



6. our engineer will be on your service.We can give you technology support at any time.



7. We will be tracking your orders, from the pre-sale to the after-sale and also serve you in this process.



8.We can send our engineer to install the screen freely if you requested.







Trade Terms
1.Payment:L/C,western union,Paypal.T/T,30% deposits before production,70% balance to be paid before deliverying.ETC.
2.Shipping freight are quoted under your requests
3.Shipping port: Shenzhen, Mainland China
4.MOQ:1sqm
