15' LED Color ultrasound scanner Portable Digital Ultrasonic Color Diagnostic Imaging System
- Category: >>>
- Supplier: Wuxi Biomedical Technology Co. Ltd. [Jiangsu China]Wuxi
Share on (60562789897):
Product Overview
Description
15'' LED Color ultrasound scanner Portable Digital Ultrasonic Color Diagnostic Imaging System
P
Product Description
Feature
1. 15' LED display with multi-languages function
2. CF+B model simultaneously, PDI, DPDI, TDI, TSI, support Trapezoidal imaging, Virtual convex array and Convex array expansion.
3. Anatomy M, Color M mode
4. Pressure index
5. Complex model Image

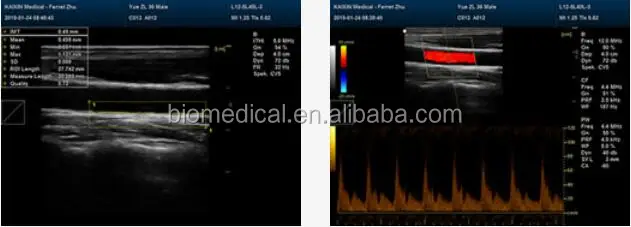

6. IMT auto measuremet, automatic endometrial measurement, automatic quality evaluation
7. PW duplex and triplex can be switched freely
8. PW auto trace measurements
9. Multiple birth measurements
10. Built-in DICIM 3.0 protocol, can print and send through DICOM 3.0
11. Built-in workstations, databases, reports can be inserted into images, fetal development curves, scoring standards, etc.
12. On line attention function, instruct the user how to operate in the next step.
13. Printed area are adjustable, which can be pictures, reports or picture+report, ect.
14. User rights control, the password can be set.
Digital Specification
| Size (Diagonal) | 15"LED display |
| Contrast Ratio | 800:01:00 |
| Resolution | 1024*768 pixels |
| Brightness | 230 cd/m2 |
| Color Depth | 24bit |
| Rotate Angle | ± 18° |
| Grey Levels | 256 |
| Scanning depth | 2-30cm |
| Transducer Ports | 2 |
| USB Ports | 2 |
| 3D/4D module | 3D/4D probe optional |
| Hard Disc | 64GB (SSD), 120G/200GB SSD (Optional) |
| Printing Area | Image, report, Image+report |
| Ethernet Port | 2(100Mb/1000Mb) |
| External Display | VGA, HDMI,etc.. |
| Printer(Optional) | USB Printer, Digital Laser Printer, Digital B/W Thermal Printer |
| Pan/Zoom | Real-Time Image Zoom, Zoom Range: 100%~400%, Up/Down/Left/Right Inversion |
| Scanning Method | electronic linear, electronic convex, electronic micro-convex, electronic phased array, 4D probe |
| Digital Broadband | 12288 channels |
| Beam-former | Re-programmable |
| Transmit Voltage | Adjustable (15 steps) |
| Beam-former Frequency Range | 1~40 MHz |
| Color Doppler | |
| PRF variable | 0.6-20kHz |
| Wall filter settings | ≥ 5 steps |
| Angle steering for linear transducers | ±5°, ±10°, ±15° |
| Real-time spatial filter | ≥ 4 values |
| CFM palette | ≥10 maps |
| PDI palette | ≥10 maps |
| Doppler frequency selection | ≥ 4 values |
| B/Color priority control / Color threshold control / CFM baseline control | |
| color frame averaging / Transparent Color Mapping (TCM) | |
| Pulsed Wave Doppler | |
| PRF variable | 0.6-20 kHz |
| Wall filter settings | ≥ 10 steps |
| Angle steering for linear transducers | ±5°, ±10°, ±15° |
| Stereo sound | volume control |
| PWD palette | ≥10 maps |
| Doppler frequency selection | ≥ 4 values |
| Real-time trace line with automatic calculation of spectrum parameters | |
| Physical Specifications | |
| Equipment size | 37.5*36*75cm |
| Equipment weight | 3.5kg |
| Packing size | 49×27×49cm |
| Packing weight | 10kg |
P

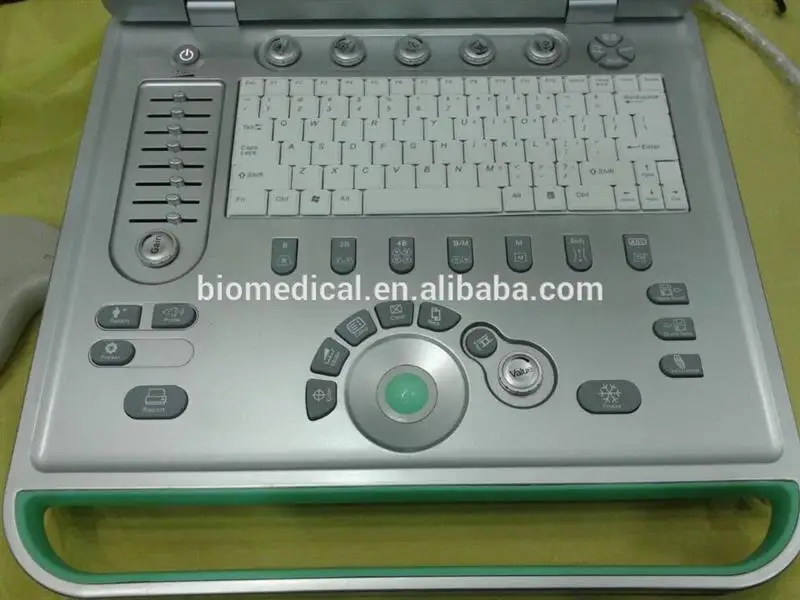

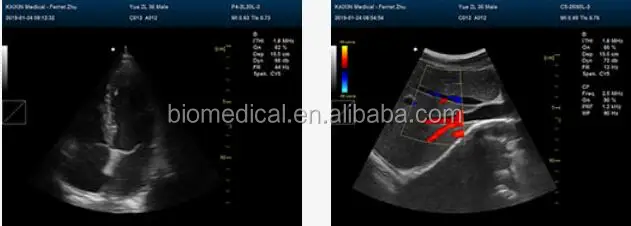

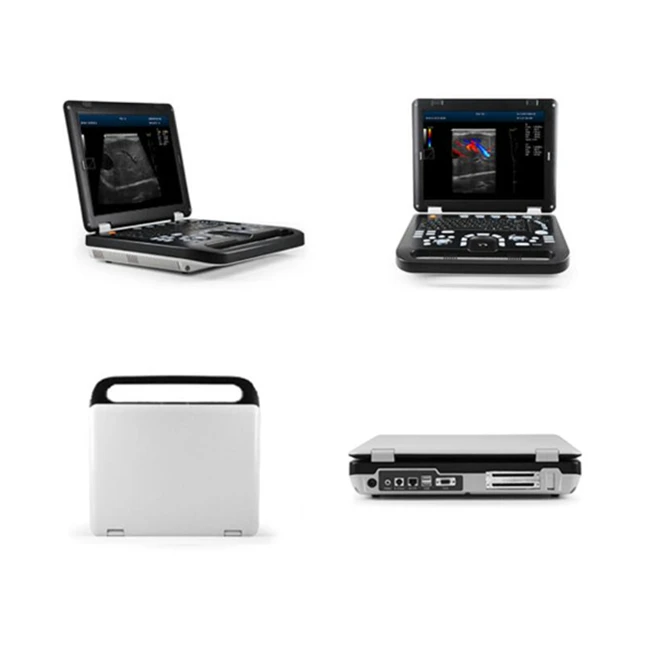

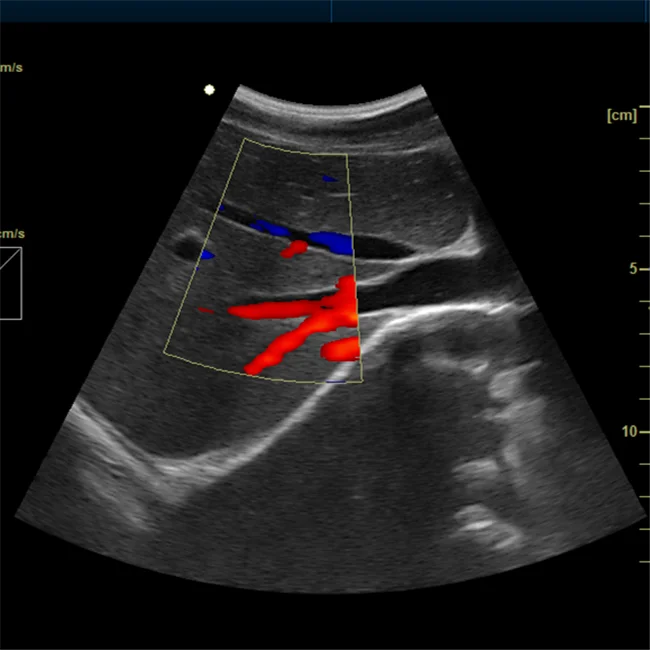

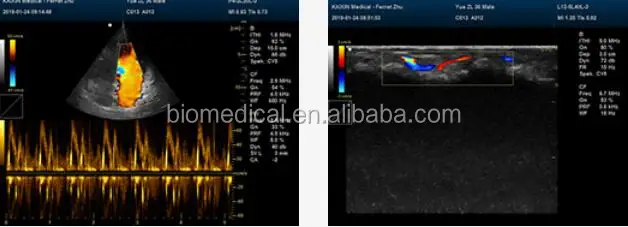

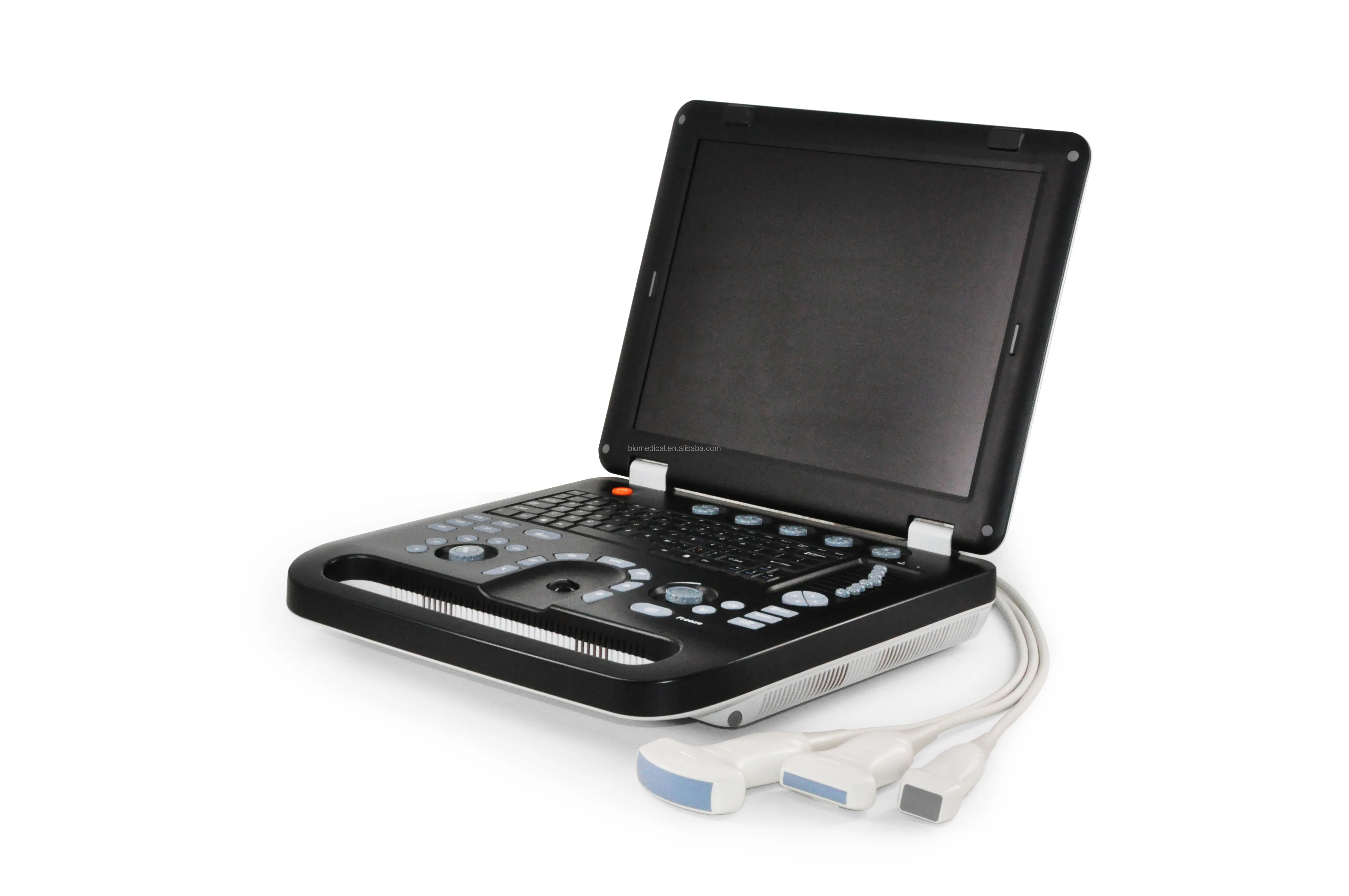

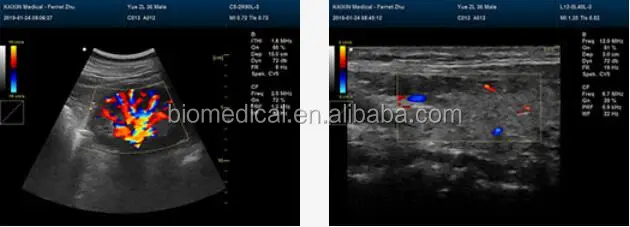

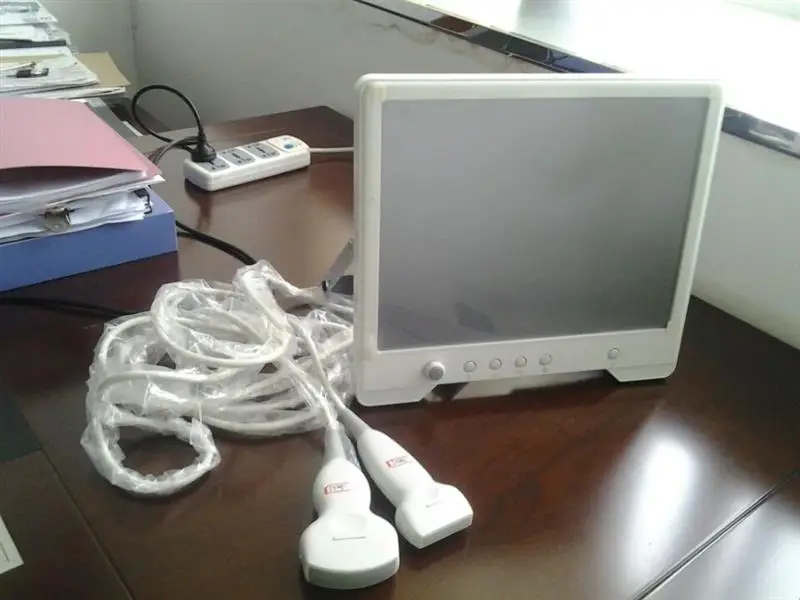

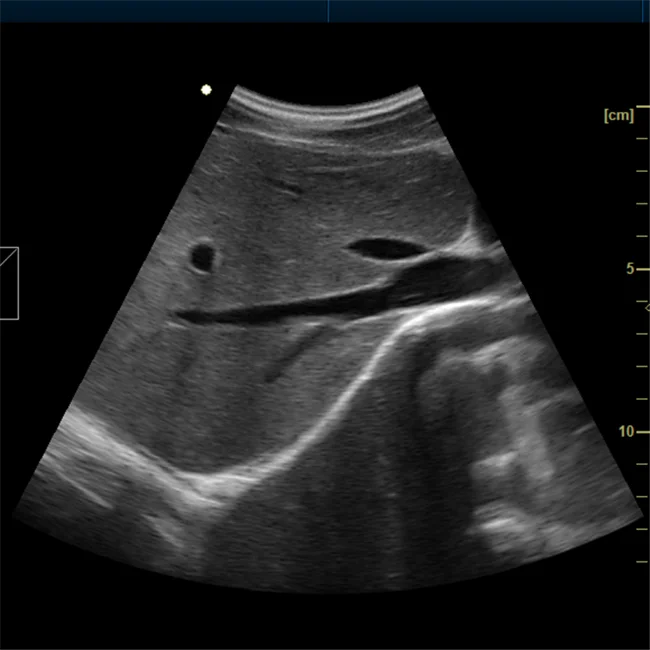

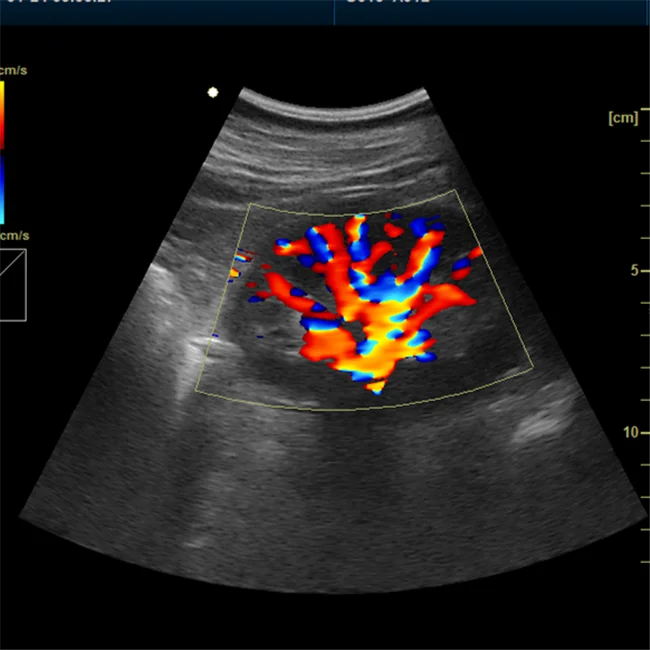

Product Pictures
