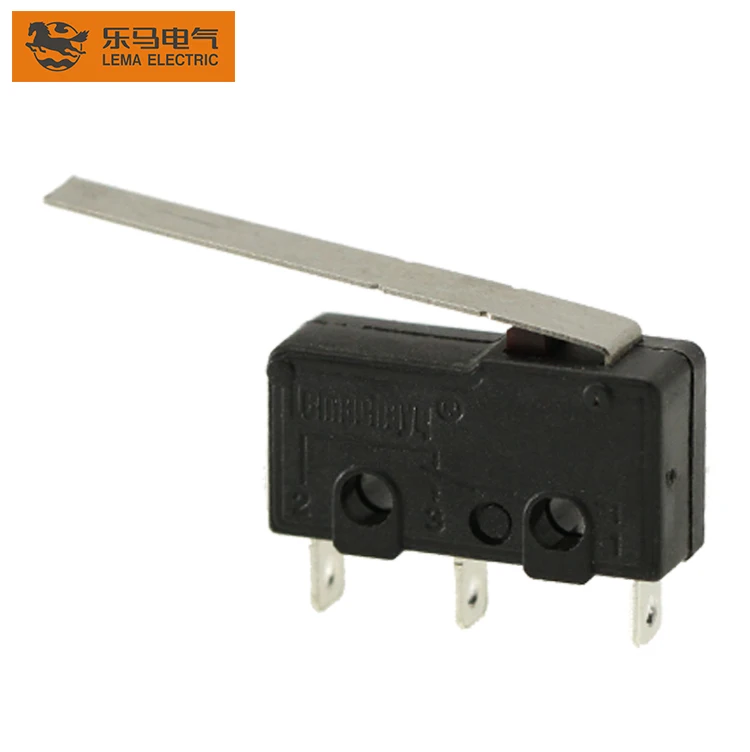

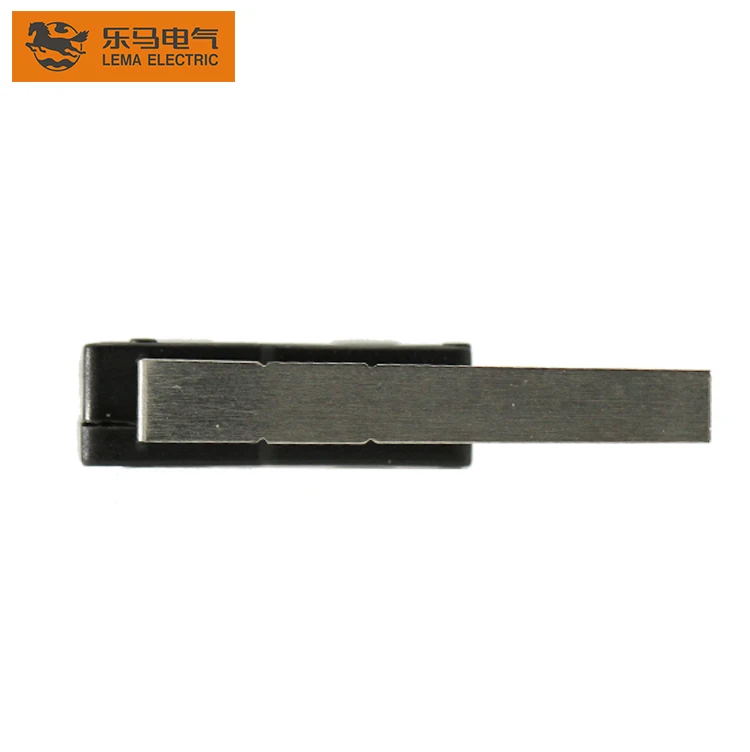

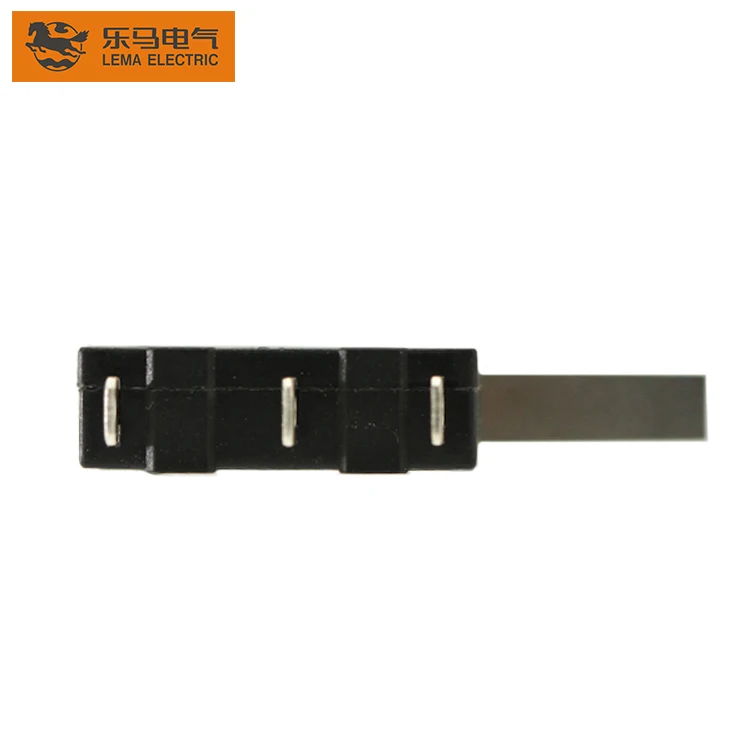

Lema KW12 8 Длинный рычаг электрического субминиатюрного микропереключателя типа v микропереключатели
- Category: Micro Switches >>>
- Supplier: Zhejiang Lema Electrics Co. Ltd.
Share on (60562821510):
Product Overview
Description
Product Description
 | ||
 | ||
| Brands | LEMA | |
| Model | KW12-8 | |
| Voltage: | 250VAC | |
| Electric current: | 5A | |
| Protection level: | Ip40 | |
| Contact form: | SPDT | |
| Package: | CARTON | |
| Size: | 19.8mm*6.35mm*9.5mm | |
| Certified: | CCC CE UL VDE | |
| Operating frequency | Mechanical:60 times/min | |
| Electrical:25 times/min | ||
| Initial insulation resistance | 100MΩmin.(at 500VDC) | |
| Initial contact resistance | 25MΩmax. | |
| Dielectric | Between non-consecutive | 1,000Vrms, 50/60Hz for 1 min |
| strength | terminals | |
| Between non-current carrying | 1,500Vrms, 50/60Hz for 1 min | |
| metal parts and each terminal | ||
| Between ground and each | 1,500Vrms, 50/60Hz for 1 min | |
| terminal | ||
| Vibration resistance | 10-55Hz,1.5mm double amplitude | |
| Shock resistance | Destruction | O.F.>0.5N:1000m/s2(Approx.100G)max. |
| O.F.≤0.5N:400m/s2(Approx.40G)max. | ||
| Malfunction | O.F.>0.5N:200m/s2(Approx.20G)max. | |
| O.F.≤0.5N:100m/s2(Approx.10G)max. | ||
| Weight | Approx.1.6g (no lever) | |
About Us
Certifications
Transport
FAQ
 | |
| 1. How do you control the products’ quality? 100% Auto inspection machine and manual testing together before packing. |
2. What's your payment term? Samples cost can be paid by PayPal, Western Union. | |
| 3. Would you accept to use our logo? If you have good quantity, we can make OEM and ODM, customized specification. | |
| 4. Can I get a sample for reference? We are glad to send samples for your testing. Samples are free, but you may need to pay the express cost. | |
| 5. What is your delivery time? Usually it takes 15-20 working days for productions. | |
