Automatic aerosol equipment factory for Tin Can Making Machine production line
- Category: >>>
- Supplier: Jiujiang Yongxin Can Equipment Co. Ltd.
Share on (60562966100):
Product Overview
Description
CE Certification semi automatic aerosol equipment factory for Tin Can Making Machine production line
Specification

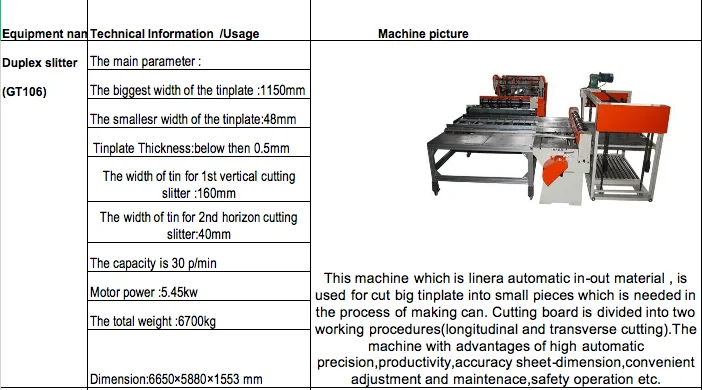

| Cutting machine | |
Adaptability:Max.Sheet Thickness | 0.4mm |
Max.Sheet Width | 1050mm |
Min.Sheet Width | 44mm |
Using Motor | 1.1kw |
Net Weight | 1400kg |
Dimension | 1500*1600*1105mm |

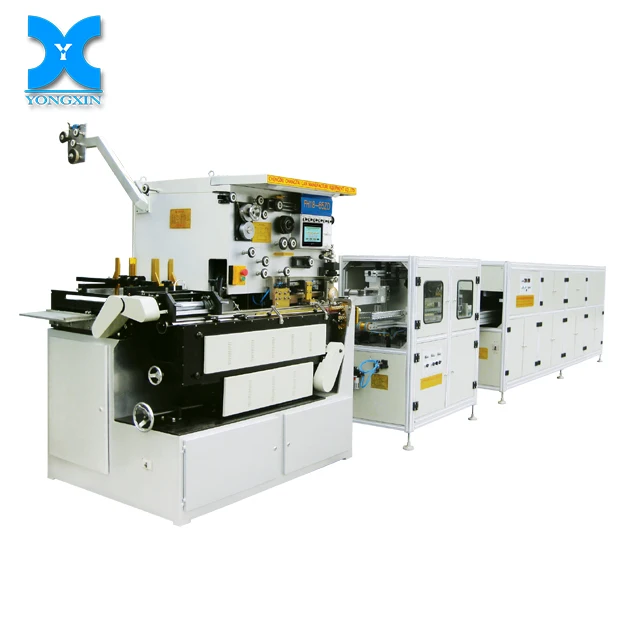

| Welding machine | |
Linear rate of welding | 6-26m/min |
Production capability | 40~100Cans/min |
Applicable can diameter | Φ65~Φ180mm |
Applicable can height | 60~280mm |
Applicable material | Tinplate steel-based |
Applicable material thickness | 0.2~0.35mm |
Seam welding landing | 0.4mm 0.6mm |
Seam point distance | 0.5-0.8mm |
Applicable copper wire diameter | Φ 1.38mm Φ 1.5mm |
Cooling water | Temperature:15-20°CPressure:0.4~0.5Mpa Discharge:10L/min |
Compressed air consumption | 600 L/min |
Pressure of compressed air | 0.5Mpa-0.7Mpa |
Power | 380V±5% 50HZ |
Total power | 40KVA |
Dimension | 1750×1100×1800mm |
Weight | 1800Kg |
| Cooling machine | |||||||
| Mode | YMWC-5HP | YMWC-8HP | YMWC-10HP | YMWC-15HP | YMWC-20HP | YMWC-30HP | YMWC-35HP |
| refrigerating capacity | 13000 | 15500 | 31500 | 46200 | 60200 | 92800 | 110000 |
| refrigerant | 22 | 22 | 22 | 12//22 | 12//22 | 12//22 | 12//22 |
| compressor power | 3.48 | 5.5 | 7.5 | 11 | 15 | 22 | 26 |
| Motor power | 1HP | 2HP | 2HP | 3HP | 3HP | 5HP | 5HP |
| maximum discharge | 120L/min | 250L/min | 250L/min | 350L/min | 350L/min | 500L/min | 500L/min |
| water pressure | 25 | 28 | 28 | 30 | 30 | 35 | 35 |
| Over diameter | 1 | 1 | 1 | 2 | 2 | 3 | 3 |
| Dimension | 92*46*91 | 150*70*130 | 150*70*130 | 170*75*140 | 92*46*144 | 190*80*144 | 200*90*150 |
| Weight. | 160 | 340 | 410 | 480 | 540 | 680 | |
| Necking and flanging machine | ||||
| Model: | 3B12 | |||
| Productivity: | 60~80 cans/ min
| |||
| Diameter: | 40~100mm | |||
| Power: | 2.2kw | |||
| Weight: | 1500kg | |||
| Dimension: | 700x1700x1300mm | |||
| sealing machine | ||||
| Model: | GT4B2B | |||
| Capacity: | 42cans/min | |||
| Diameter: | 52-105mm | |||
| Maximum Height: | 52-280mm | |||
| Power: | 1.5kw | |||
| Net weight: | 1200kgs | |||
| Dimension: | 1210×1460×1900mm | |||

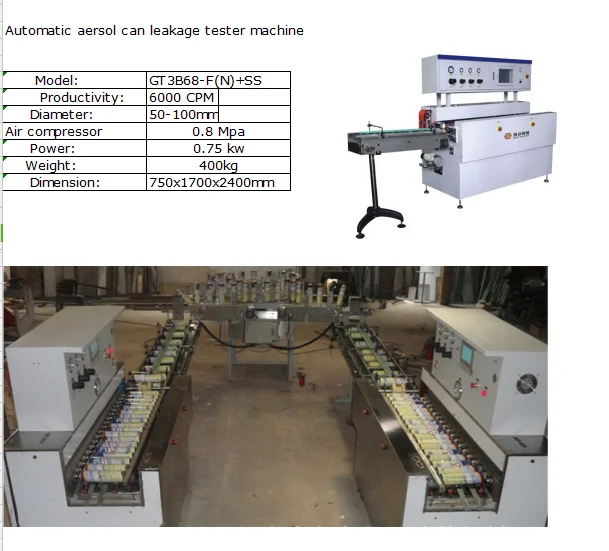

| Leaker Tester | |
| model | JL-8 |
| Diameter | 52-66mm |
| Maximum Height | 100-320mm |
| Capacity | 2-20cans/min |
| Consumption of compressed air | 1-3m3/min |
| preesure | 1Mpa |

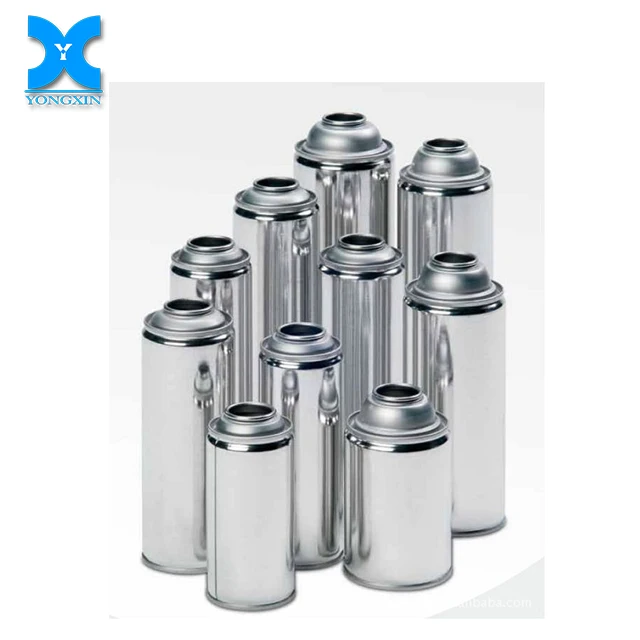

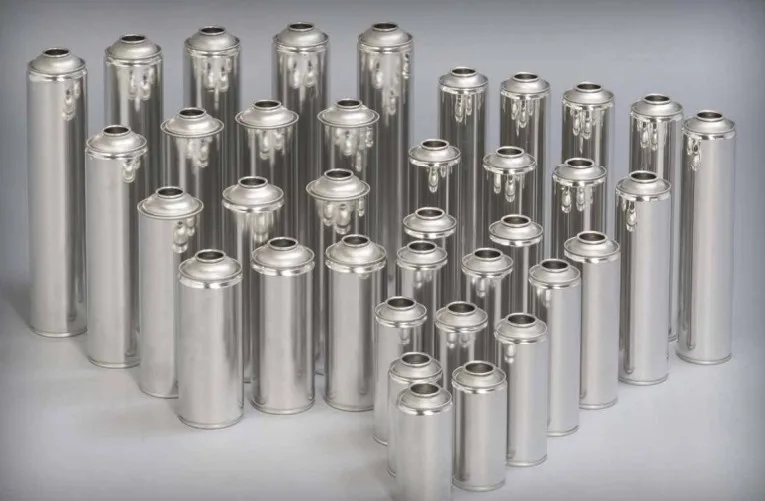

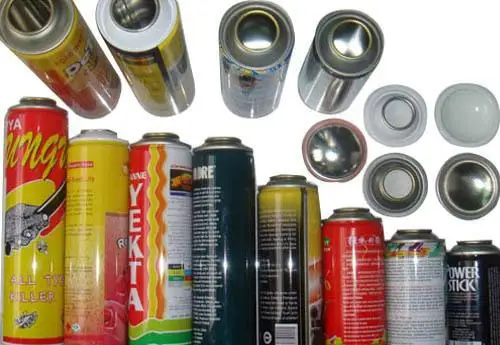

Sample can
