Product Overview
Description
Aerosol Can Cone Dome Body Making Machine,Spray Can Production Line
Aerosol Can Cone Dome Body Making Machine,Spray Can Production Line
Product Description

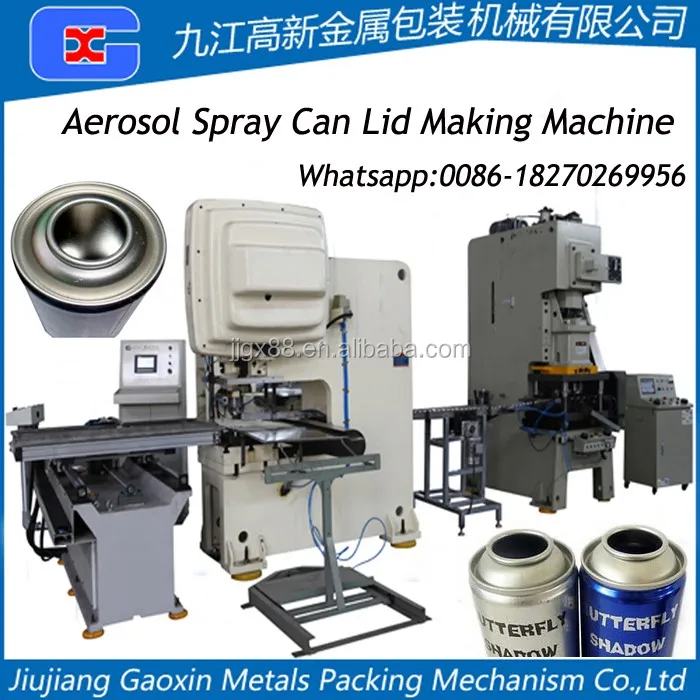

Related equipments for Aerosol Spray Can Cone&Dome as following:

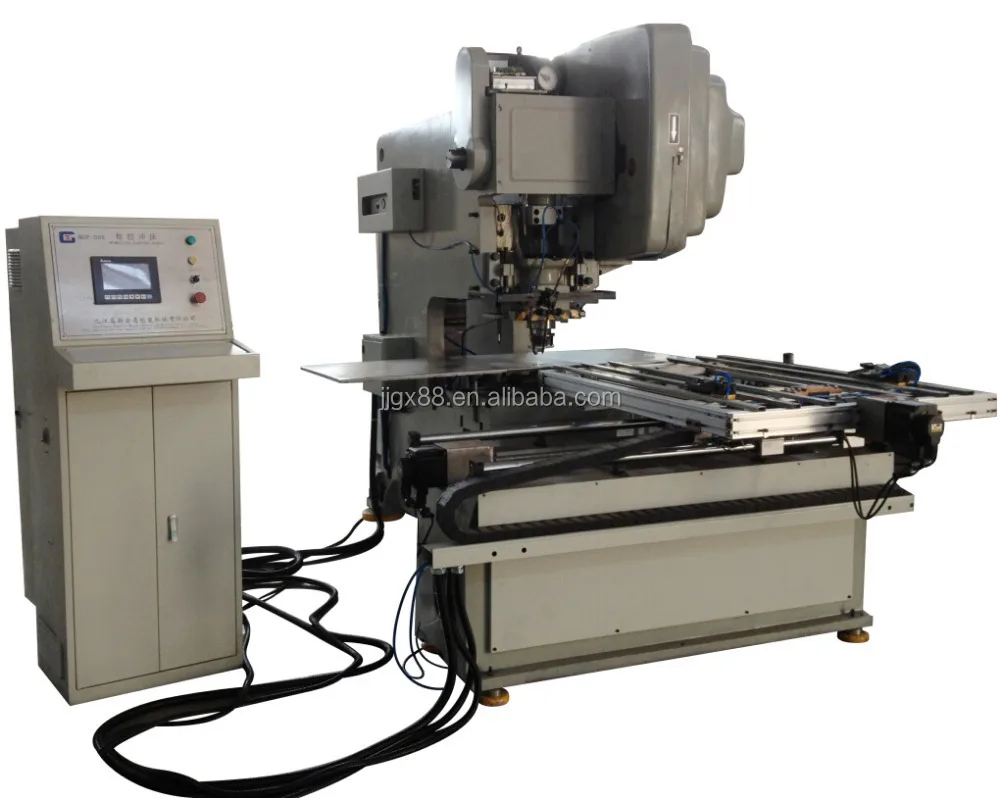

1. Model: NCP-008 NC Punching Machine(35T)
| Production Capacity | 50-120pcs/min |
| Applicable sheet specs | ≤900*900mm |
| Motor Power | 8KW(equiped with 35T punch) |
| Dimension | 2700*2500*2200mm |
| Weight | 6600kg |
Usage:This punch is manual feeding,NC feeding punch controlled by PLC.

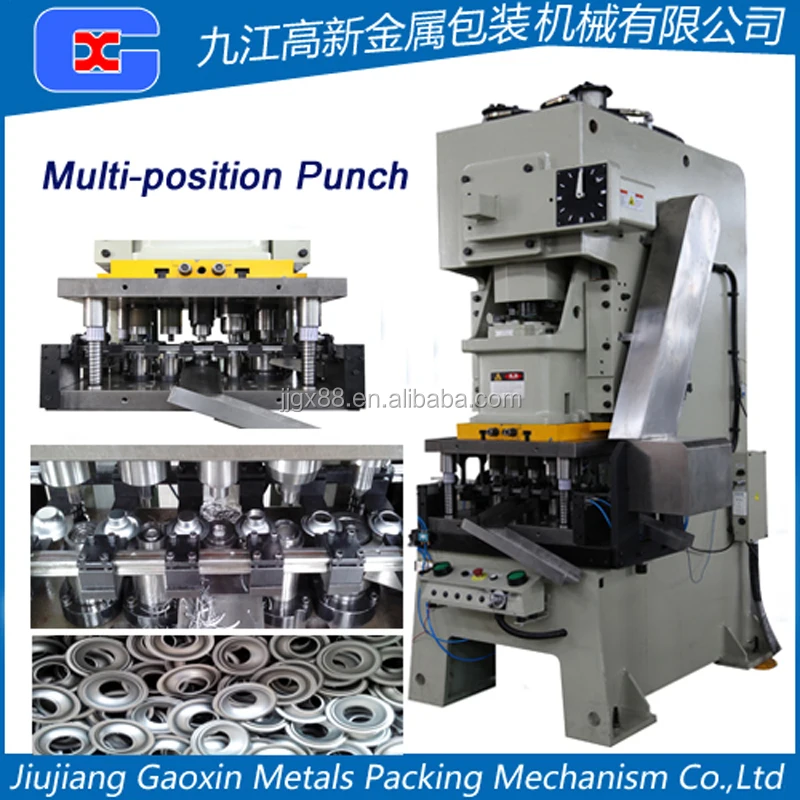

2. Model:GT2A8 Multi-position Punching Machine(60T)
| Slide Stroke | 11.5-110mm |
| Frequency of Slide Stroke | 90-110times/min |
| Power | 5.5kw |
| Weight | 8000kg |
| Worktable specs | 850*850mm |
Usage:This ,achine is connected with 35T punch by conveyor line for making the top conver/cone of the aerosol spray cans.
Related equipments for Aerosol Spray Can Body as following:

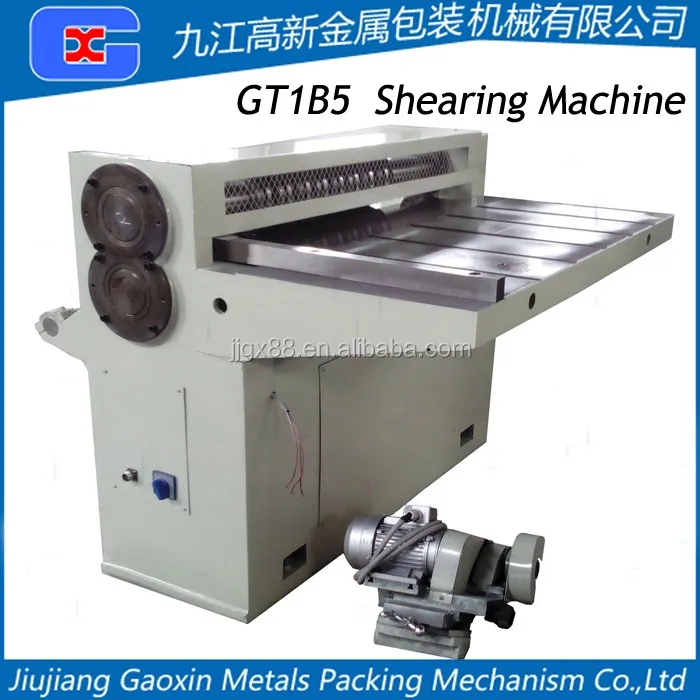

1. Model: GT1B5 Disc Cutting Machine/Shearing Machinery
Parameter:
| |||||||

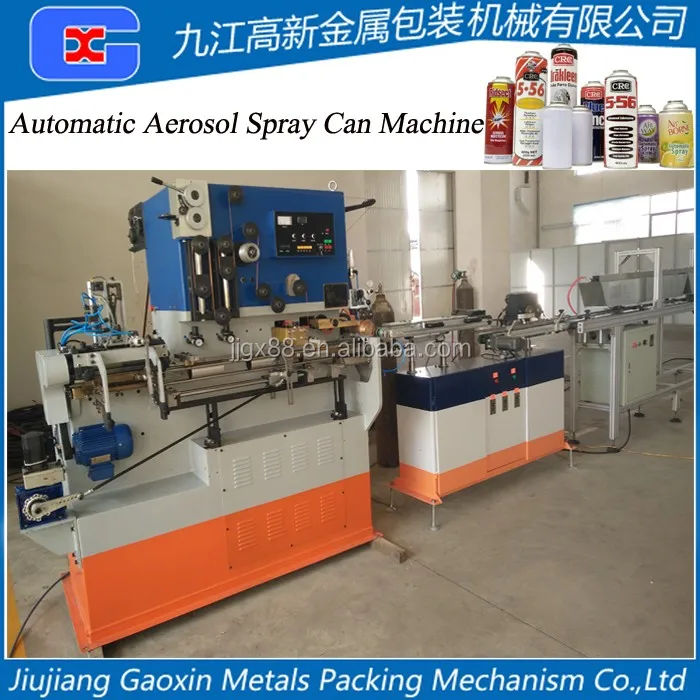

2. Model: QZD50 Automatic Tin Can Welding/Welder/Roller Coating+Drying Machine
| Production capacity | 40-60cans/min |
| Applied can's diameter | 52-255mm |
| Motor power | 36KW |
| Size | 12880*1980*2050mm |
| Weight | main equipment 3800kg |
Usage:This prodcution line is applied for can body rounding,welding,drying and coating.
It is manual feeding of well-cut tin or aluminum plates.

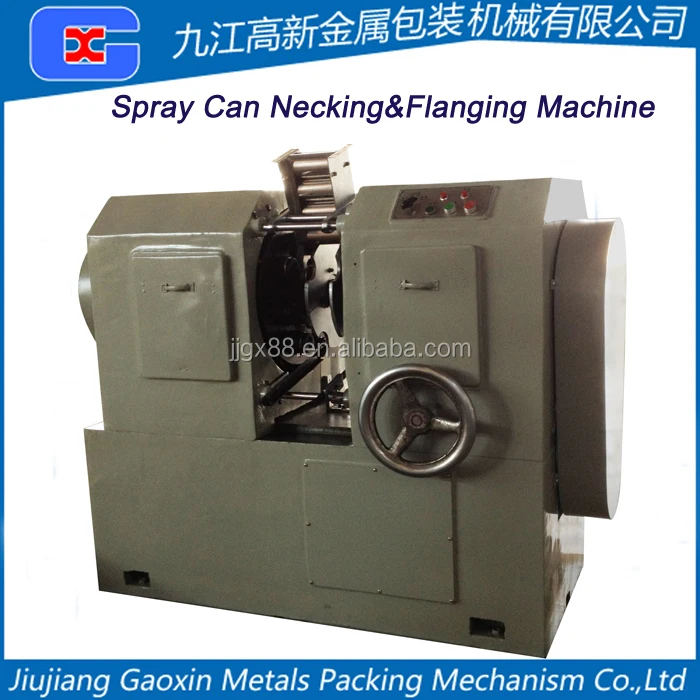

3. Model: GT3B2 Automatic Flanging Machine
| Productivity | 40-100cans/min |
| Applied can's diameter | 52-99mm |
| Applied can's height | 65-280mm |
| Applicable thickness of metal sheets | ≤0.5mm |
| Power consumption | 2.2KW |
| Dimension | 700*1700*1300mm |
| Weight | 1500kg |
Usage:This machine is applied for automatic neck-in and flanging of aerosol/spray cans.
4. Model: 4B2B Automatic Sealing Machine/Can Seamer Machinery
| Production capatity | 20-40cans/min |
| Applicable can's diameter | 52-105mm |
| Applicable can's height | 50-280mm |
| Motor power | 1.5KW |
| Dimension | 785*650*2000mm |
| Net weight | 2000kg |
The machine is applied for automatic sealing of aerosol/spray cans.
5. Model: GX-8 Leak Hunting Machine for Aerosol/Spray Can
| Productivity | 900-1400cans/h |
| Applicable can's diameter | 38-66mm |
| Applicable can's height | 110-320mm |
| Detecting positions | 8 |
| Method of detecting | by water |
| Detecting air pressure | 0.4-1.2MPa |
| Consumption of compressed air | 2000L/h |
| Dimension | 1250*850*1200mm |
| Weight | 350kg |
This machine is mainly used for leak detecting for aerosol cans.
