Product Overview

Description

Product Description

Coating thickness gauge GTS810F measure on ferrous metal

The device uses magnetic thickness measurement method, which non-destructively measures thickness of non-magnetic coating (such as: aluminum, chromium, copper, enamel, rubber, paint, etc.) on magnetic metal substrates (such as steel, iron, alloy and hard magnetic steel, etc.).

a.Magnetic Method (F-type probe)
When the probe contacts the cover layer, the probe and magnetic substrate forms a closed magnetic circuit; Due to the presence of non-magnetic coating, magnetic resistance changes. The thickness of the cover layer can be derived by measuring the change.


b.Features:
1. Portable design, palm-sized
2. High-speed DSP chip with fast measurement capability
3. In the dual probe automatic identification of iron-based and non-ferrous materials, without manual conversion
4. Two calibration methods, and the two point zero calibration standards
5. Wide angle LCD display
6. Converting metric and imperial units
7. Has the power under voltage tips
8. During operation beep alerts
9. With automatic shutdown

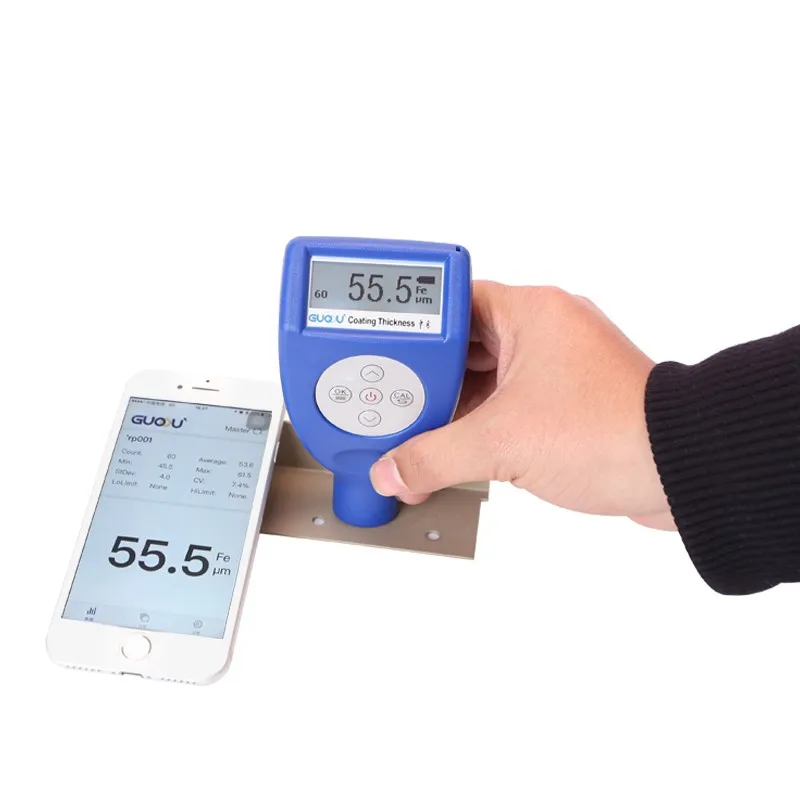

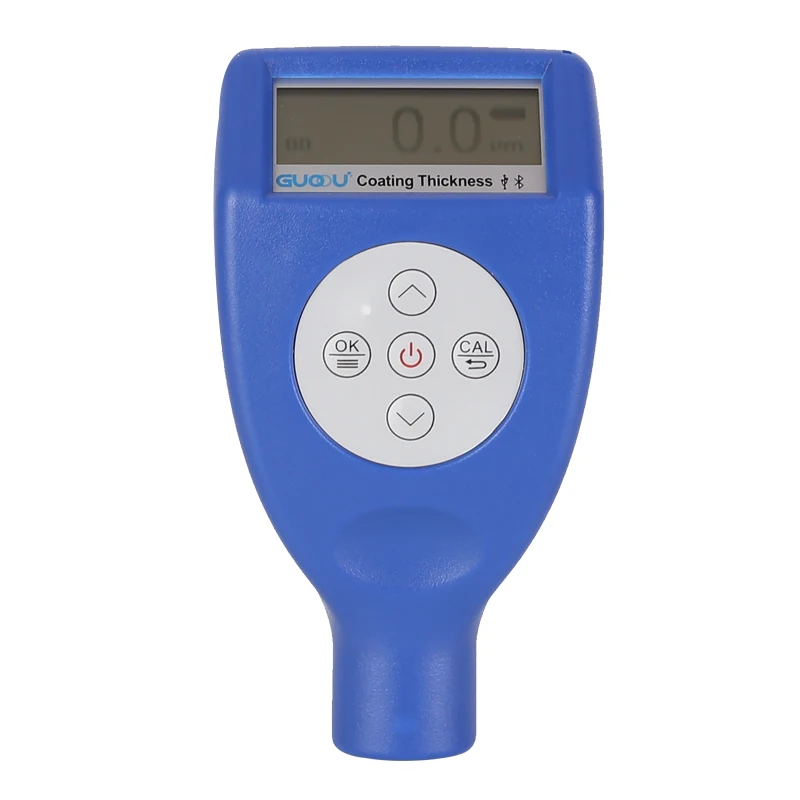

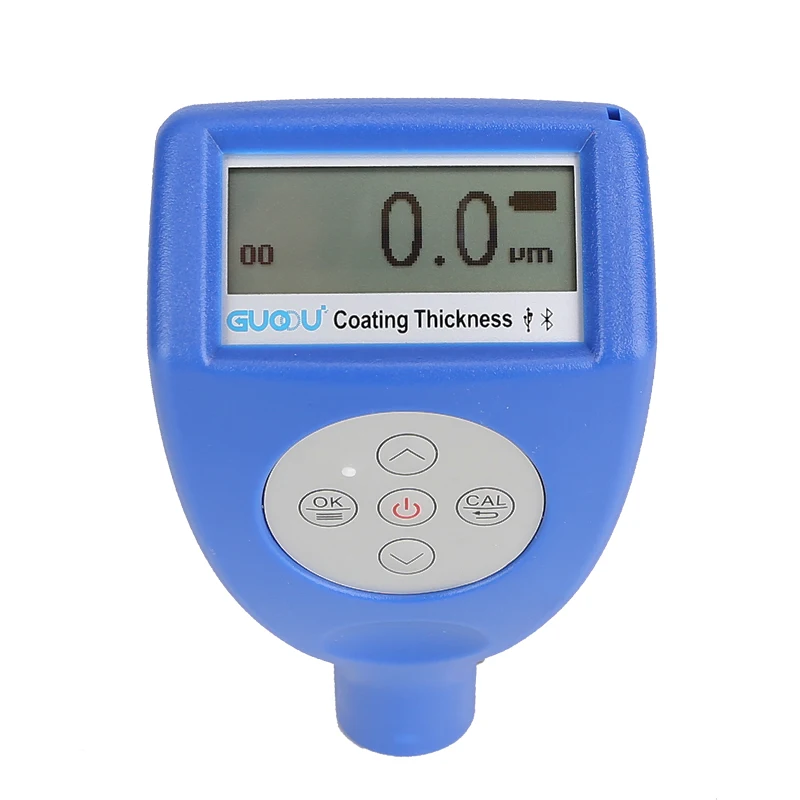

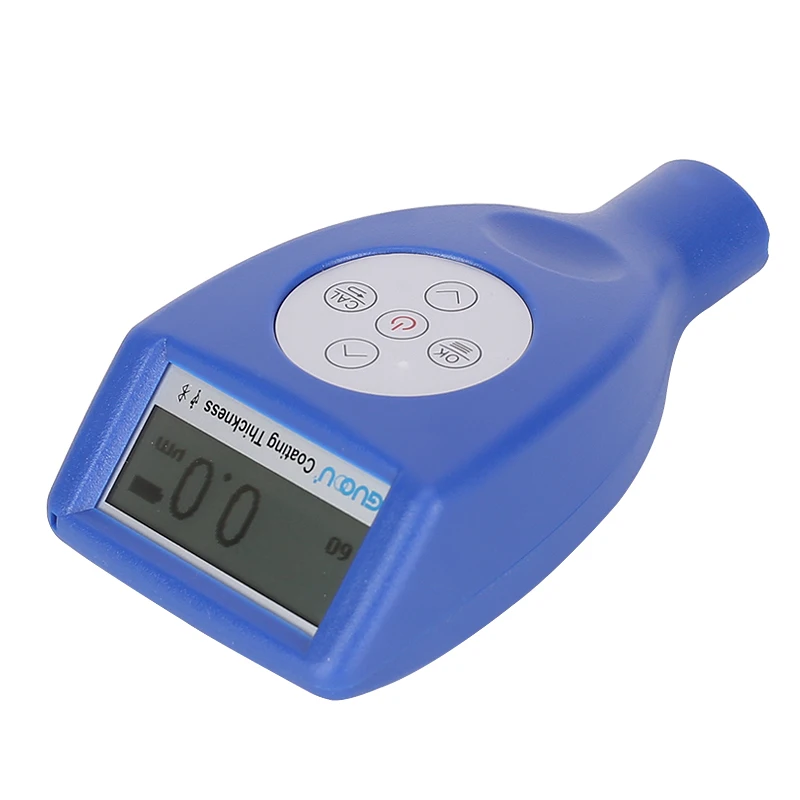

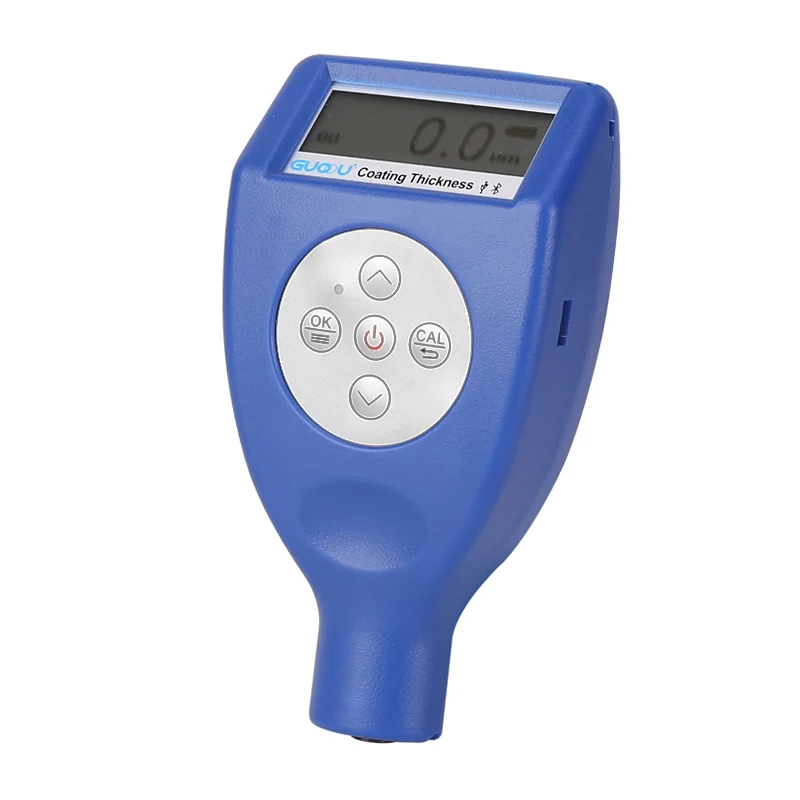

Detailed Images
Specification
Measuring range
0-1250 μm
Power supply
2 * AA batteries
Measurement deviation
zero calibration ± (1 + 3% H); two-point calibration ± [(1% ~ 3% H)] H + 1.5
Ambient temperature
0-40 ℃
Relative humidity
≤85%
Minimum substrate
10 * 10mm
Minimum curvature
5mm convex; 5mm concave
Thinnest substrate
0.4mm
Weight
99g (with battery)
Size
102mm * 66mm * 24mm

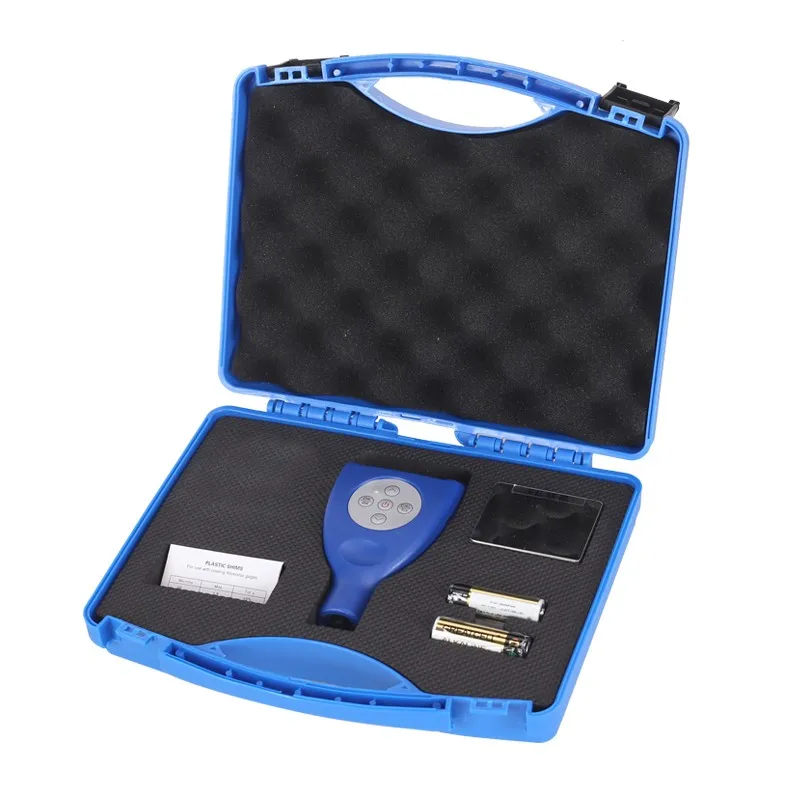

Packing List
Name
Quantity
Meter device
1pcs
Standard films
5pcs
Base substrate
1pcs

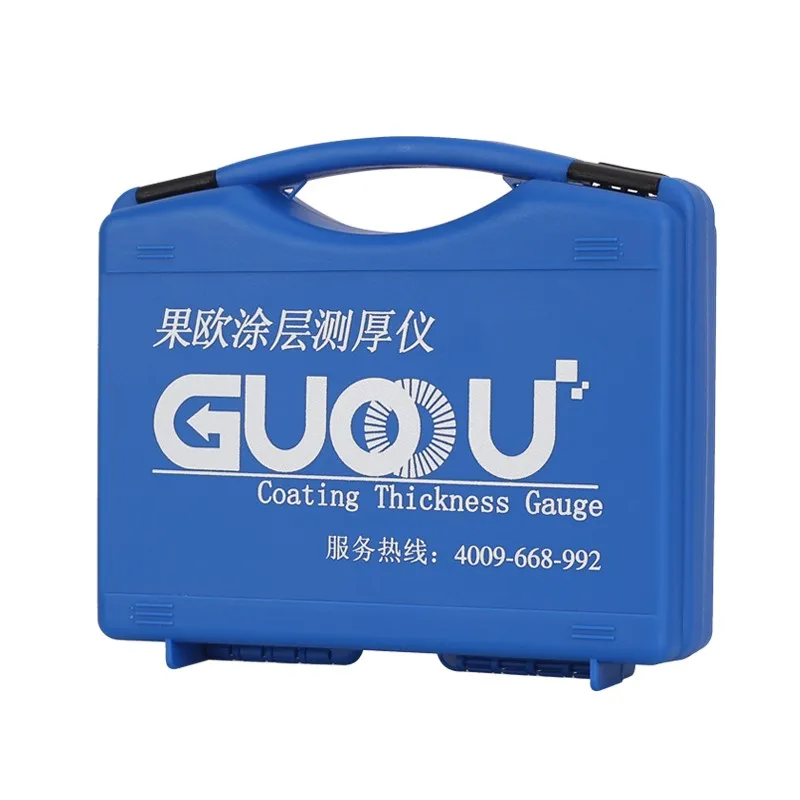

Packing box
1pcs
User Manual
1pcs
Calibration

Calibration methods:

1. Zero calibration
a) Measure on a substrate, screen shows <*.* μm>.
b) Press ZERO key, screen shows <0.0>.
c) Calibration was already finished, and further measurement can be proceed; however, repeating a & b can get a more precise zero point. Note that this device has negative number display for user to choose zero point easily.

2.Two-point calibration

This calibration method is suitable for high-precision and small pieces, hardened steel, alloy steel measurement.
a) Zero calib first (as described above).
b) Measure on a standard film with coating approximately equal to pieces to be measured, and screen shows <*.* μm>
c) Use and key to correct reading to reach the standard value. Calibration is now complete, and you can start measuring.
 Note: Press the or key once will increase/decrease the reading step by step; press & hold a key will change the value continuously.

3.Factory Reset

On power off state, press and hold the μm/mil key, then press the ON button once, and release the μm/mil key. Screen should show "8888", press the ON button again, reset is done and power off.

FAQ

a.Customer:What about the transportation?

Answer:It depends on your requirement .we can deliver by air to your airport,or y sea to your seaport .and normally we deliver to your office address by express courier .and we also accept to co-operate with your ship agent or forwarder .


b.Customer:What about the after-sale service?

Answer:Guarantee period is 12 months ,after the warranty ,we also provide life-long paid repair or service.


c.Customer:What about the delivery date ?

Answer:Usually we offer two days after order confirmed and payment received
