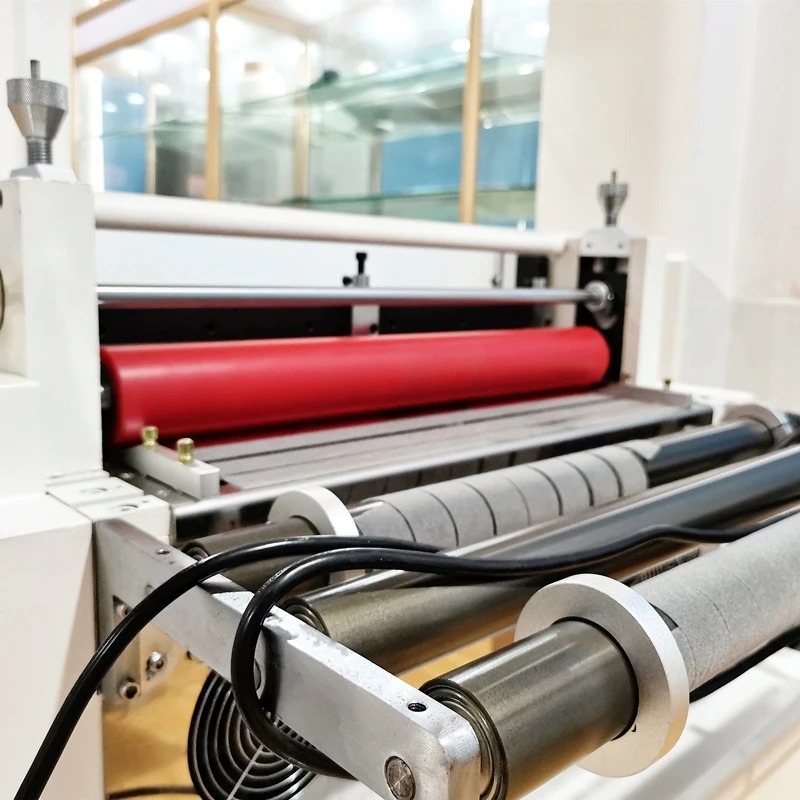

automatic paper roll to sheet cutting machine
- Category: >>>
- Supplier: Kunshan Hexin Precise Machinery Co. Ltd.
Share on (60563224846):
Product Overview
Description

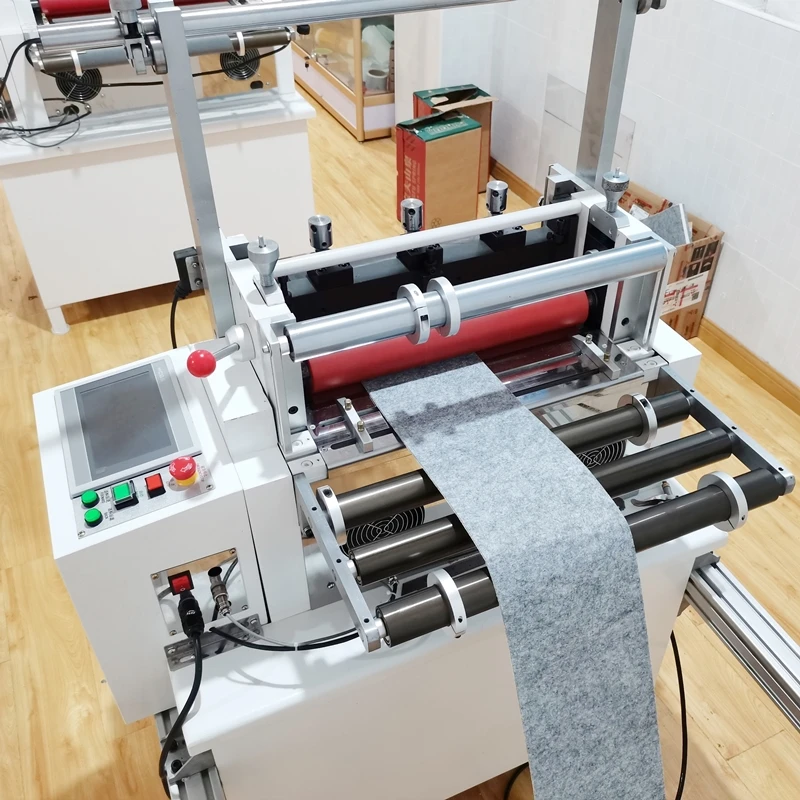

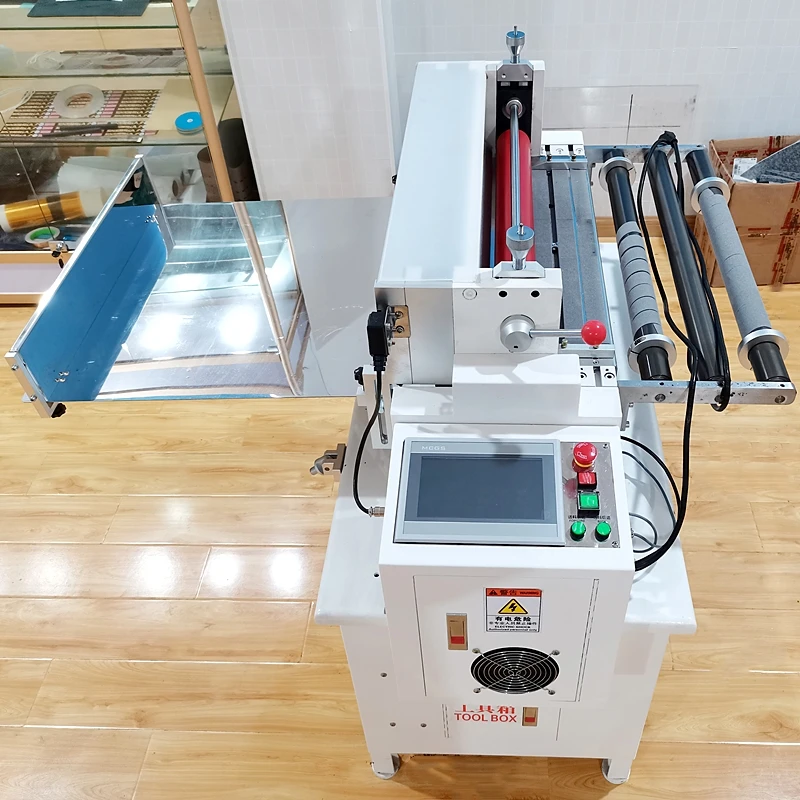

Automatic non woven fabric roll to sheet cutting machine
Product Description

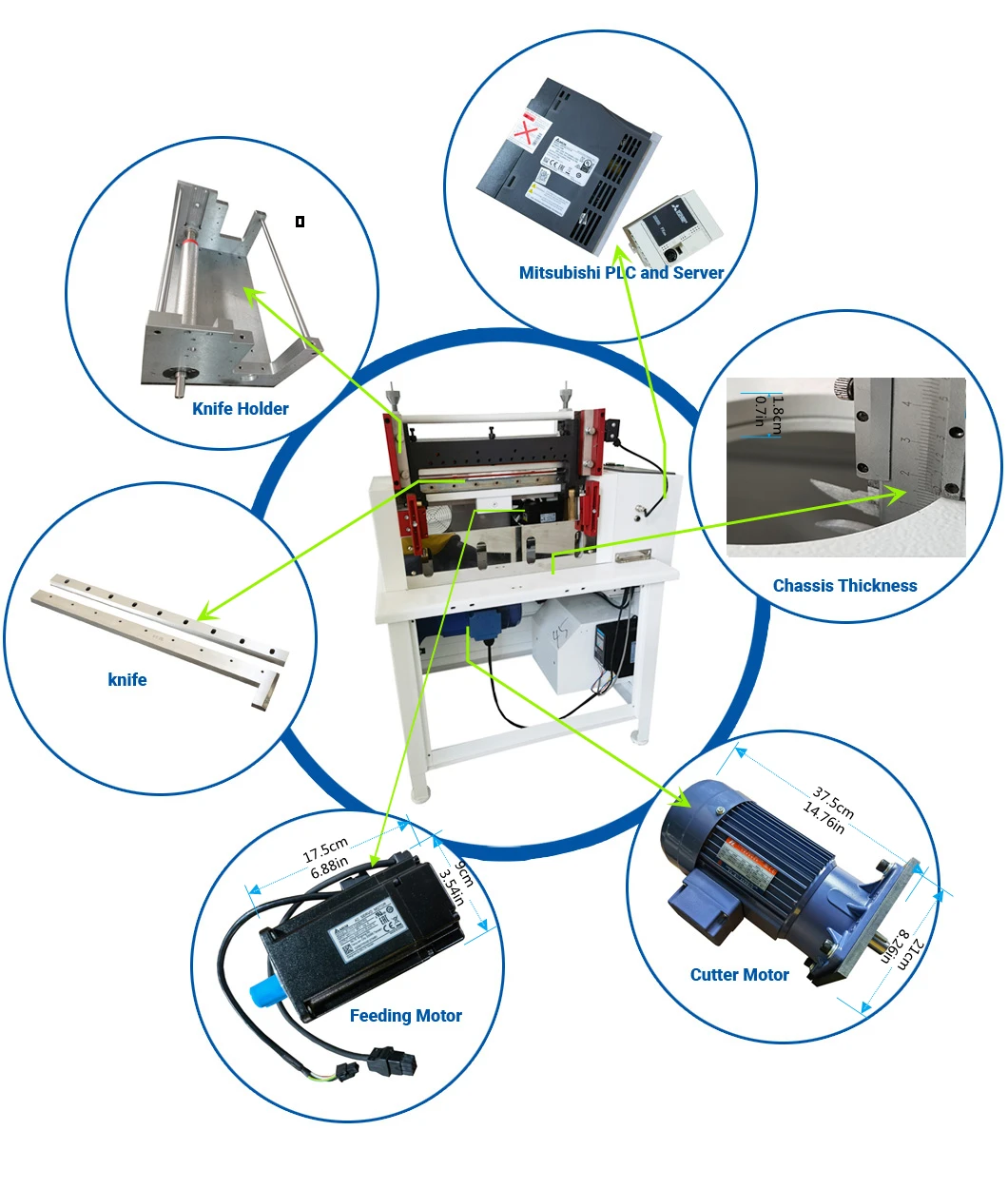

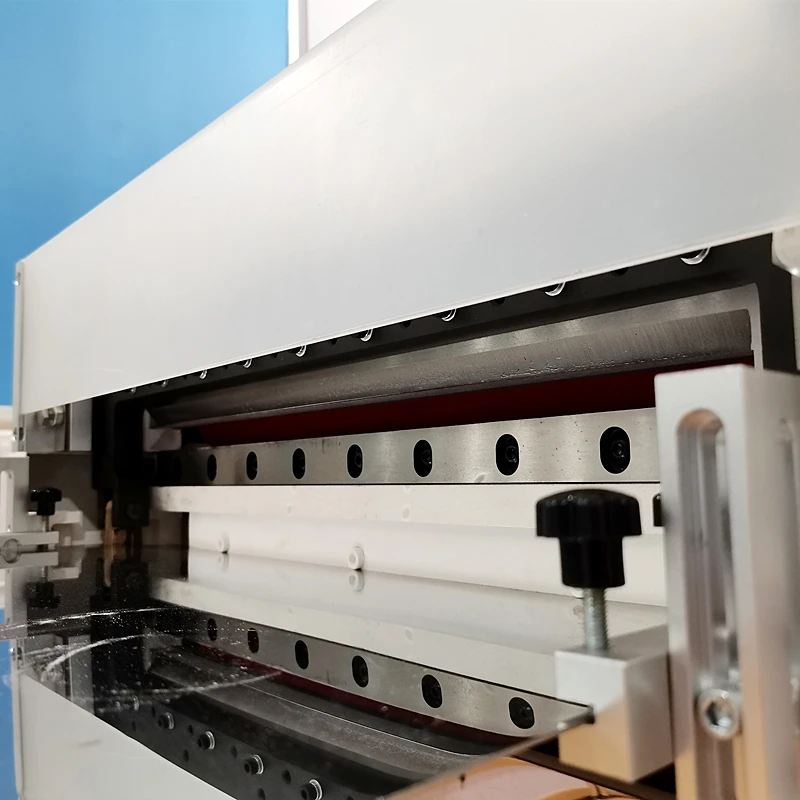

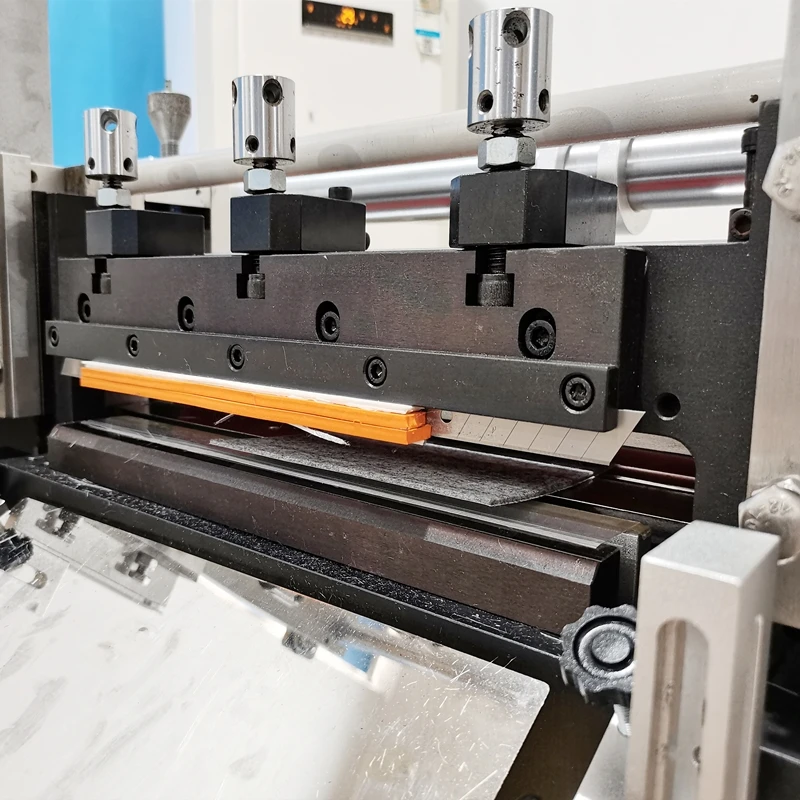

Touch screen Cutting knife
mitsubishi plc
Delta Server
specifications:
| ||
Model | HX-360B | HX-500B |
Voltage | 380V | 380V |
Total Power | 1.3KW | 1.3KW |
N.W. | 220kg | 240kg |
GW. | 240kg | 260kg |
Cutting Width | 1-360mm | 1-500mm |
Cutting Length | 0.1-9999.9mm | 0.1-9999.9mm |
Packing Size | 780x920x1300mm | 980x1450x1070mm |

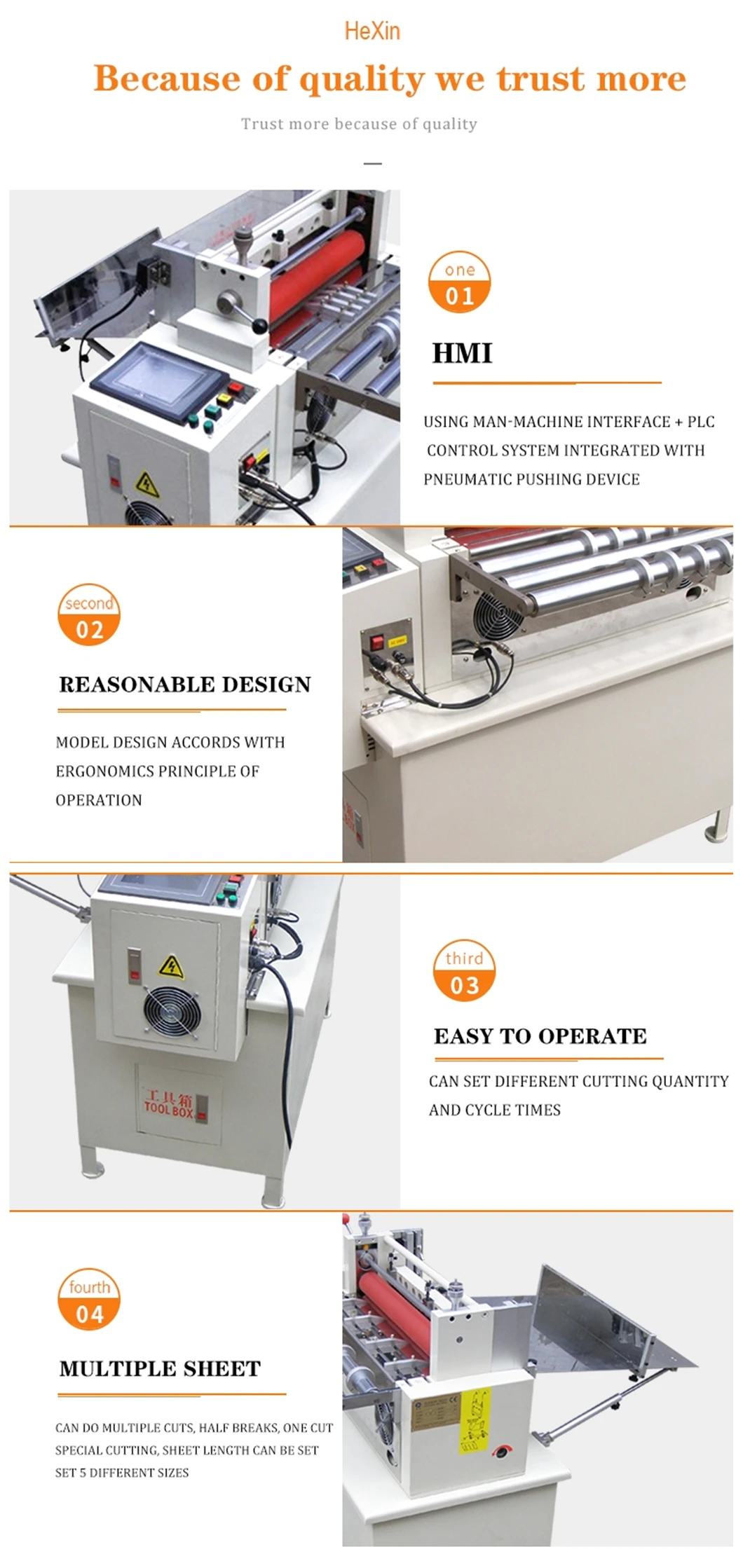

Featuress :
Taiwan Brand Servo motor & Japan brand PLC applied
Multi-cutting models can be set according to your needs
5 different lengths can be set in a cutting circle, cycling times can also be set
Cutting length and cutting speed adjustable.
Optional kiss-cut (several times kiss-cut)+full-cut (one time full-cut) available

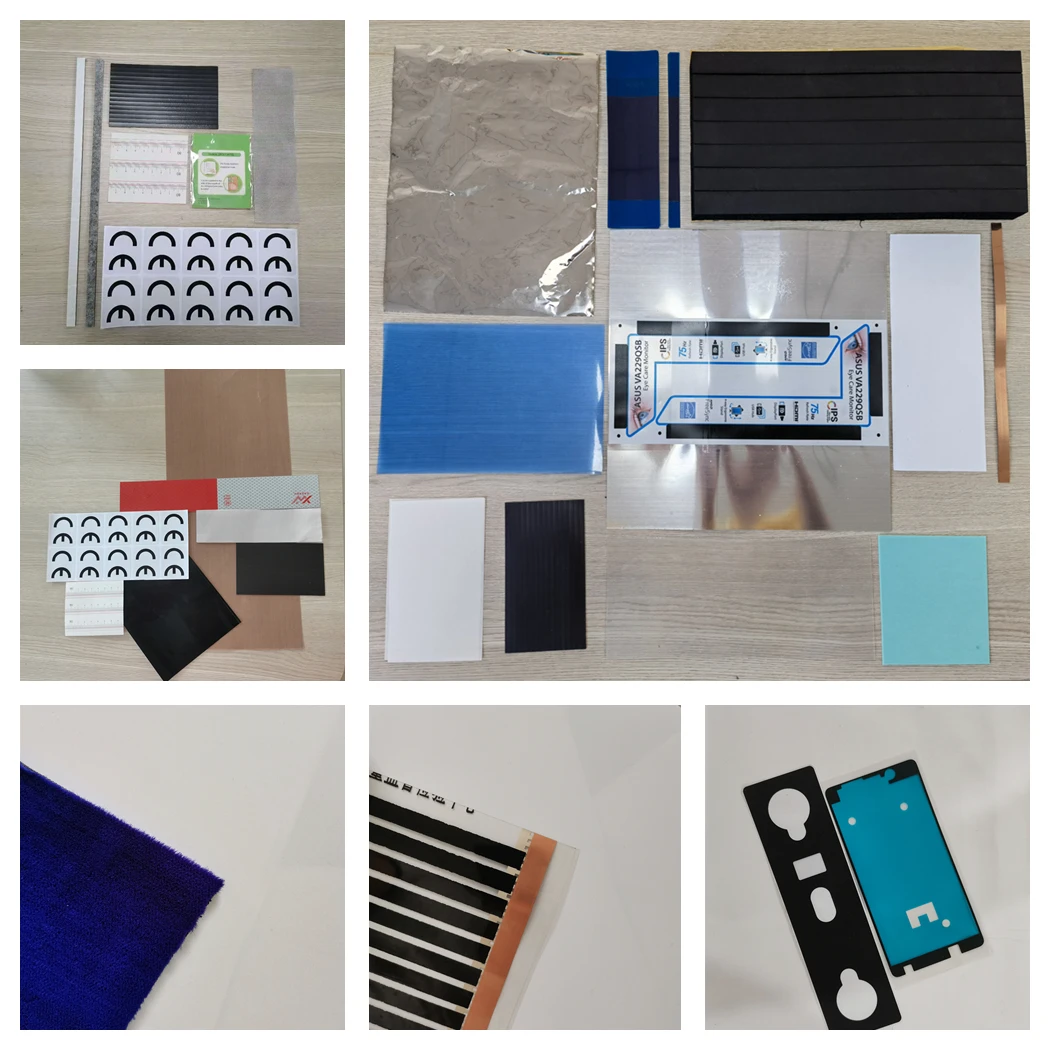

Application:
Sizing cutting for conductive fabric, foam, reflector film, double-sided adhesive tape,
nickel plate, PET,PC,PE insulation paper, copper /aluminum foil and all kinds of adhesive tapes.
Our company
About Us
We are a team of industry professionals with strong backgrounds in cutting, die cutting, slitting, laminating
and rolling. Other related machines in our fields can be customized based on your specific requirements.
Kunshan Hexin Precise Machinery Co.ltd is located in Kunshan city,Jiangsu province. We are near
Shanghai,40 minutes away from Shanghai Hongqiao airport by car and 18 minutes by high speed train.
Established in 2007, we have been dedicated on converting machines which are used before and after
printing for over 10 years.
Our belief is “people-oriented, technology-first, integrity-centered and brand idea” to provide customers
reliable products, perfect service.Our products are widely applied in laminating, slitting and die cutting
for shield materials, sticky materials, insulating materials, conductive materials, electronic materials.
Sizing cutting for strings, belts, rolls in bag line, shoe and cap line and plastic and rubber line.
