0.9mm 1kg spool welding flux cored wire AWS A5.20 E71T GS
- Category: >>>
- Supplier: Taian E.S.K. International Co. Ltd.
Share on (60563298249):
Product Overview
Description
Product Description
AWS A5.20 E71T-GS
1- Decription:: Self-shielded flux core wire is used for all-position welding, With little spatter, warming electric arc, easily moved slag and excellent appearance!
2- Application: It is suitable for semi-automatic welding where the impact tenacity is not applicable. It is used for the thin plate of welding with single pass welding, overlap welding, angle welding and butt welding.
3- Dry extension of electrode should be controled between 15mm and 25mm.
4- MECHANIC PROPERTY OF DEPOSIT METAL
ITEM | TENSILE STRENGTH (Mpa) | ELOGATION (%) | IMPACT STRENGTH (Mpa) |
AWS A5.20 E71T-GS | 598 | 13 | 21 |
5- CHEMICAL COMPOSITION OF DEPOSIT METAL
ITEM | C | Si | Mn | S | P | AL |
E71T-GS | 0.20 | 0.16 | 0.76 | 0.01 | 0.015 | 1.6 |
6- WORKING PARAMETERS
WORKING | WELDINGWAYS | 0.8MM | 0.9MM | 1.0MM |
CURRENT(A) | FLAT WELDING HORIZONTAL FILLET WELDING | 40~110 | 40~130 | 50~180 |
VOLTAGE(V) | FLAT WELDING HORIAONTAL FILLET WELDING | 15~18 | 15~20 | 18~22 |

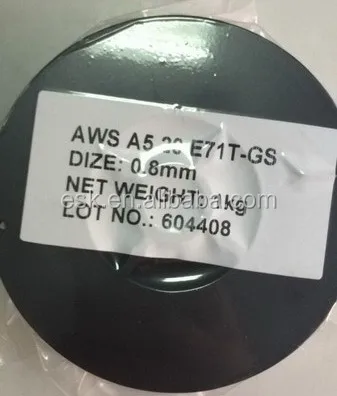

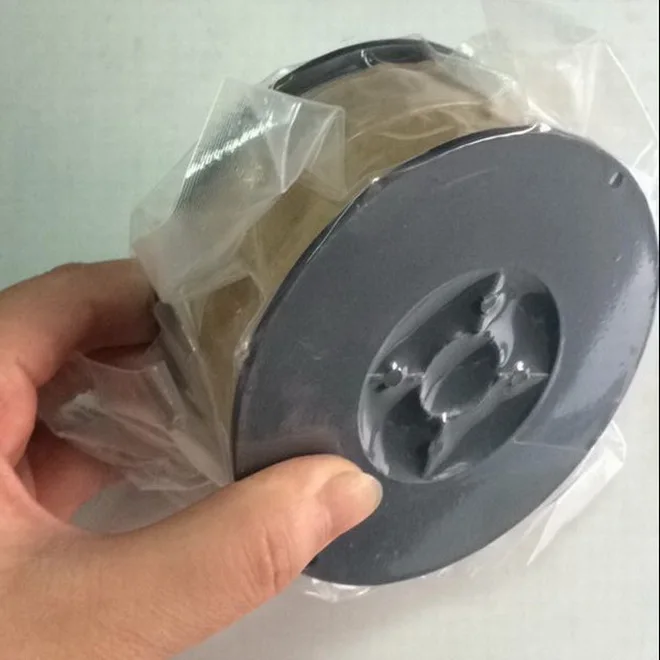

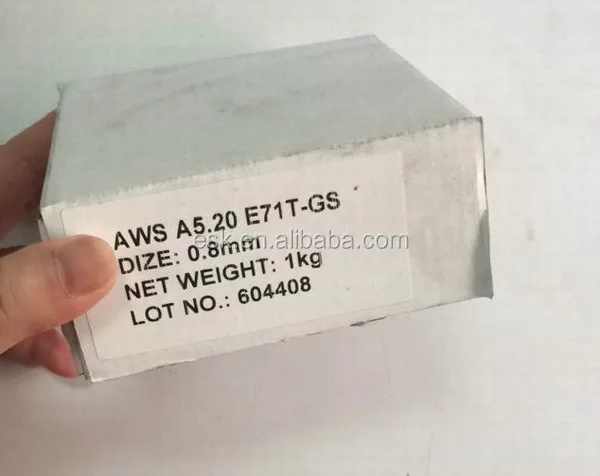

7- Packing: 1kg /5kg spool sealed into box,
8- Available size: 0.8mm/ 0.9mm/1.0mm

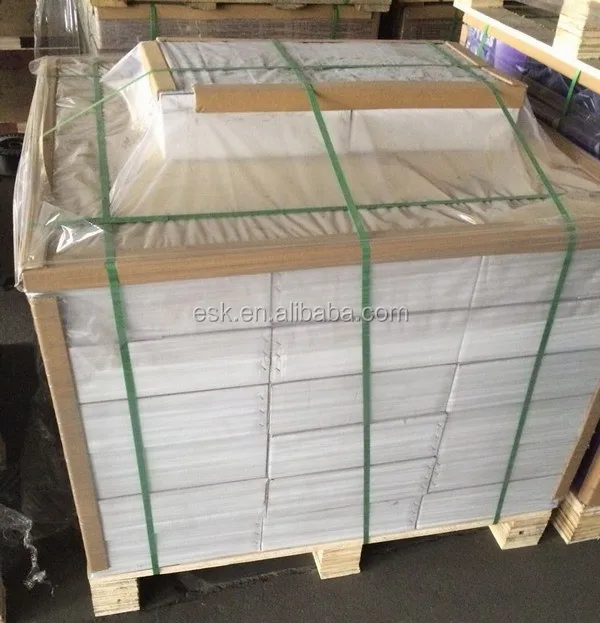

Packaging & Shipping
Our Services
Company Information
FAQ
Q: what is warranty time ?
A: 12 months from you got the cargo.
Q: what is delivery time / lead time ?
A: 30 days
Q: what is your minimum order ?
A: 1080kgs (1080kg/pallet )
Q: what is your payment term ?
A: 1- 30% down payment for order confirmation, 70% before shipment.
2- 100% at sight LC
Q: can we visit your factory ?
A: yes you can at your free time.
