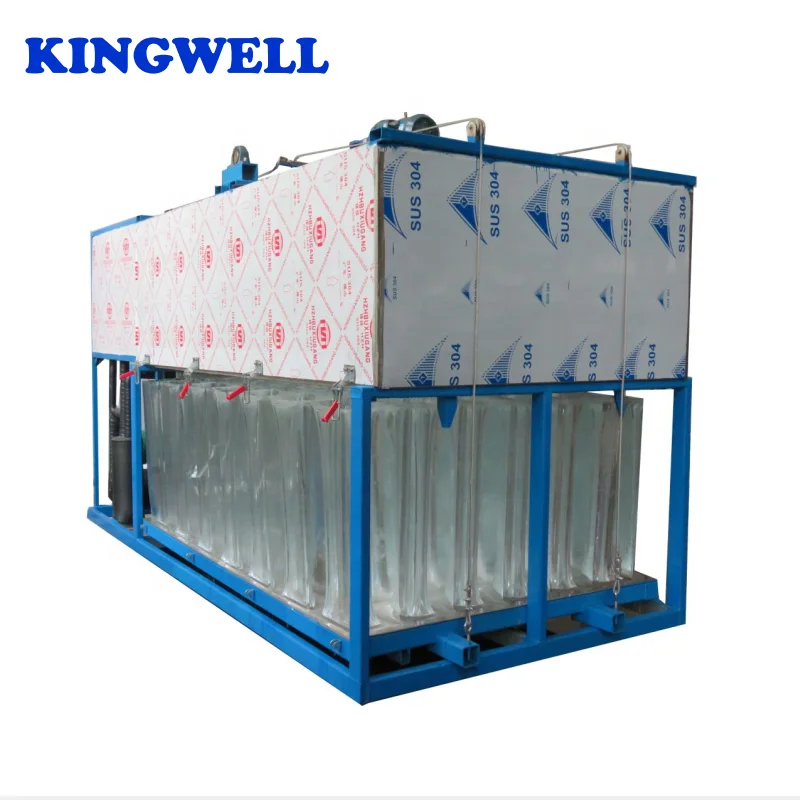

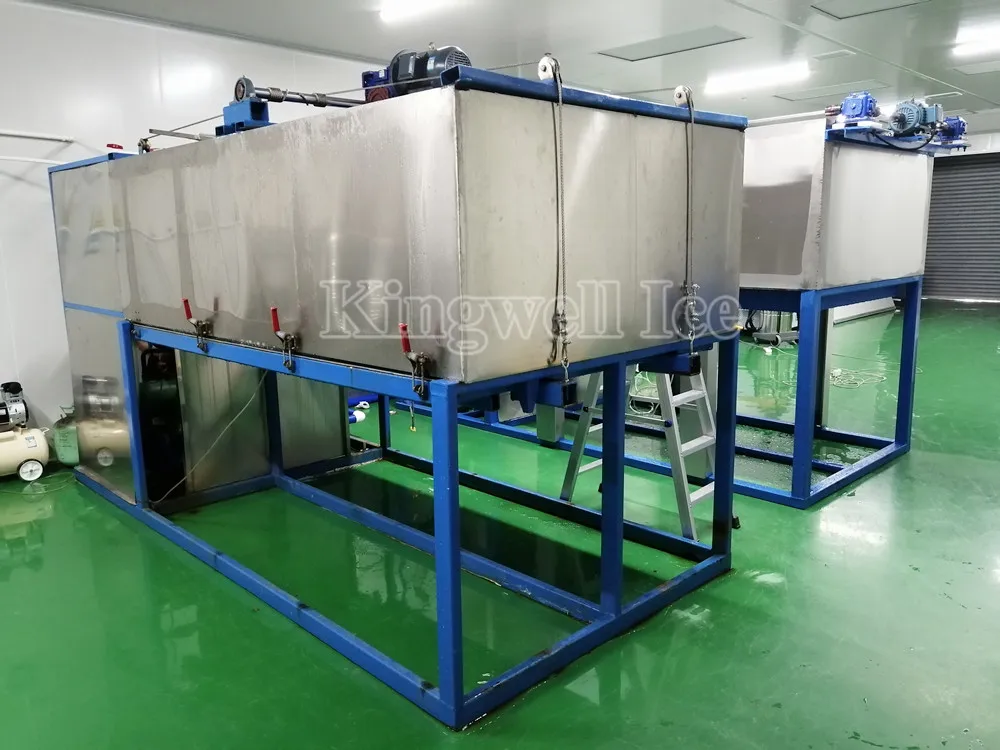

Directly cooling aluminum plate block ice machine produces clear & transparent block ice
- Category: Ice Machines >>>
- Supplier: Guangzhou Kingwell Heat Transfer Technology Co. Ltd.
Share on (60563335126):
Product Overview
Description
Product Description
Directly cooling aluminum plate block ice machine produces clear & transparent block ice (KW-DB 3)
Direct cooling block ice machine is adopting a new technology and using aluminum plate as evaporator for direct block ice making. The block ice is clean and sanitary, with food grade standard.
SPECIFICATIONS FOR 3 TON DIRECT COOLING BLOCK ICE MACHINE | ||||||
Compressor | Brand | Bitzer, Germany | ||||
Horse Power | 18HP | |||||
Net Power | Semi-hermetic compressor | |||||
Technical specification | Supply Power | 380V, 50Hz, 3Phase / Customized | ||||
Input Water Temp. | 21℃ | |||||
Condensing Temp. | 40℃ | |||||
Measurement | Machinery unit | 4900mm(L)*1100mm(W)*2000mm(H) | ||||
Cooling tower | 1400mm(L)*1400mm(W)*1600mm(H) | |||||
Main Features
1). Sanitary and food grade block ice: Using aluminum plate evaporated directly, the ice can eat directly if the ice making water is clean enough;
2). Automatic ice making and harvest under control of PLC micro computer system, easy operation;
3). Anti-rust and anti-corrosive material: the aluminum ice cans is a good material anti-rust and anti-corrosive, it means the lifespan will be longer;
4). All-in-One refrigeration system, less space is required, easier for installation;
5). Shorter freezing and harvesting cycle, save labor cost.
Detailed Images
Compressor
Name: Bitzer
Brand: Germany brand
The compressor is the only engine of the refrigeration system, it's just as the heart for a human being, so the quality of compressor enfluence the refrigeration effect. Bitzer brand is good quality one, and widely used all over the world.
Brand: Germany brand
The compressor is the only engine of the refrigeration system, it's just as the heart for a human being, so the quality of compressor enfluence the refrigeration effect. Bitzer brand is good quality one, and widely used all over the world.
PLC Program controller
Name: SIEMENS
Brand: Germany brand
This PLC is just as the brain for a human being, it controls all the electrical parts of the machine, to guide all part when to work and stop, so the whole ice making and ice falling process are totally automatic. SiEMENS brand is also widely used over the world.
Touch Screen
Name: Weicon
Brand: Taiwan brand
This touch screen can adjust some datas and ice thickness, all the working states and working histories can be seen clearly on the screen, so when there is some error of the machine, you can show the video and picture to the factory, problems can be judged quickly.
Aluminum plate ice can
Name: Kingwell
Material: aluminum plate
Function: for block ice freezing
The ice can is totally matched food-grade standard, we can make different sizes for your choice.

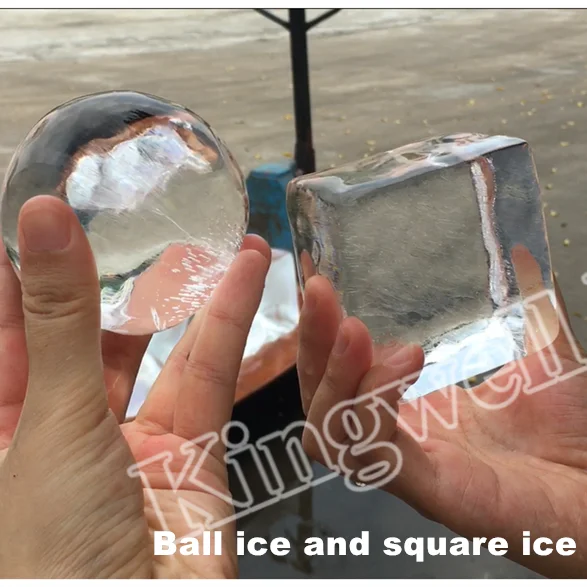

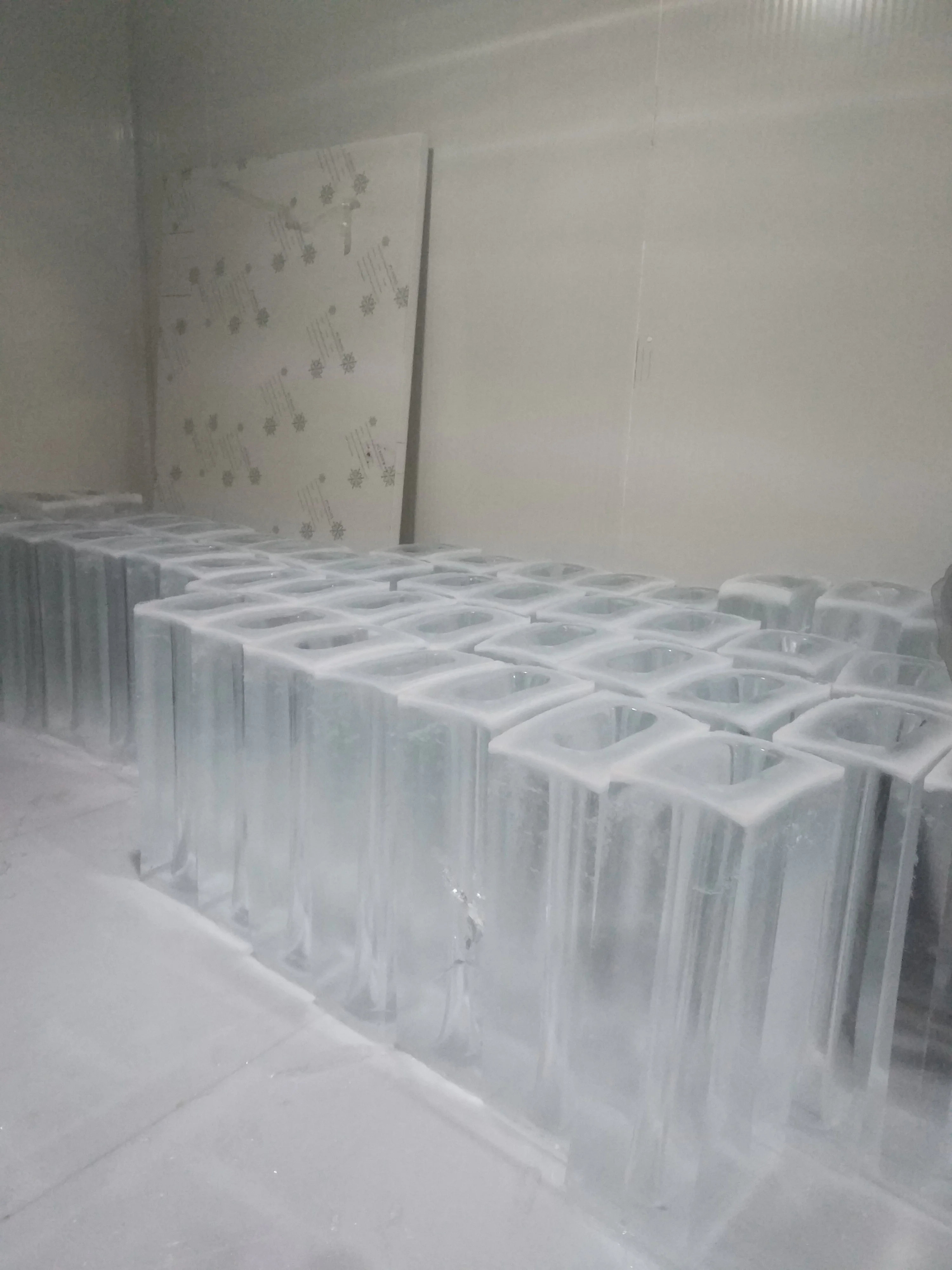

Clear block ice
Crystal and transparent block ice , mostly used for human consumption or ice sculpture.
We have below standard sizes for your choice, if you need other size, we can made as per your demand!
Block ice weight (KG) | Ice size (thickness*width*height, mm) | Freezing time (hours) | Frequency of ice making per day (times) |
5KG | 80*120*600 | 6 | 4 |
10KG | 80*250*600 | 6 | 4 |
15KG | 100*300*600 | 8 | 3 |
20KG | 100*400*600 | 8 | 3 |
25KG | 150*330*600 | 12 | 2 |
30KG | 150*400*600 | 12 | 2 |
50KG | 150*500*800 | 12 | 2 |

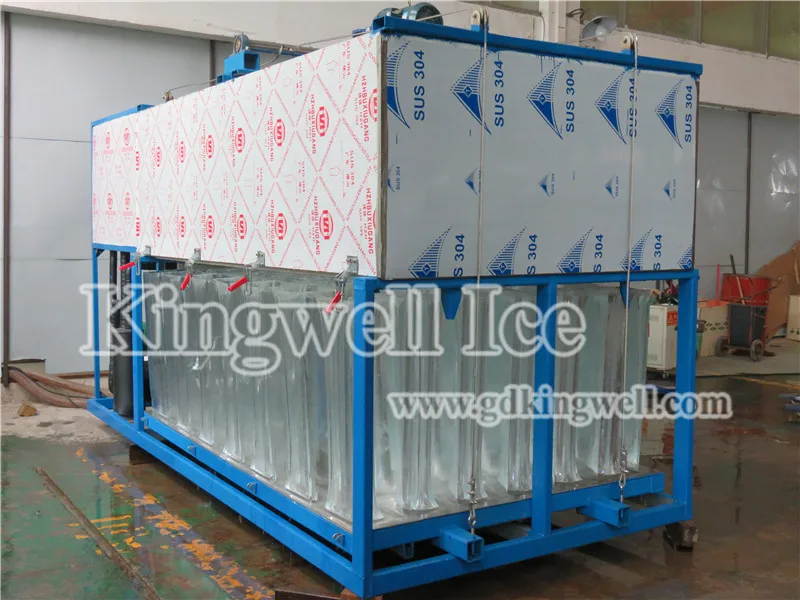

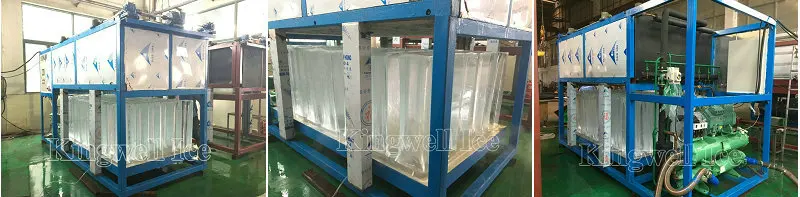

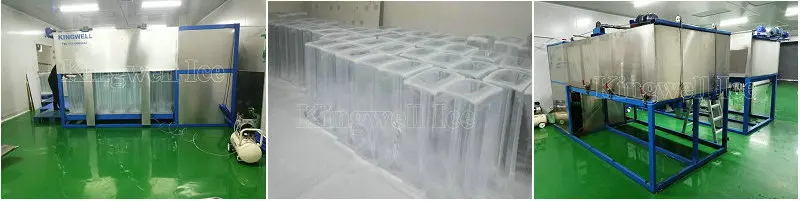

Clear block ice machine tested in our factory

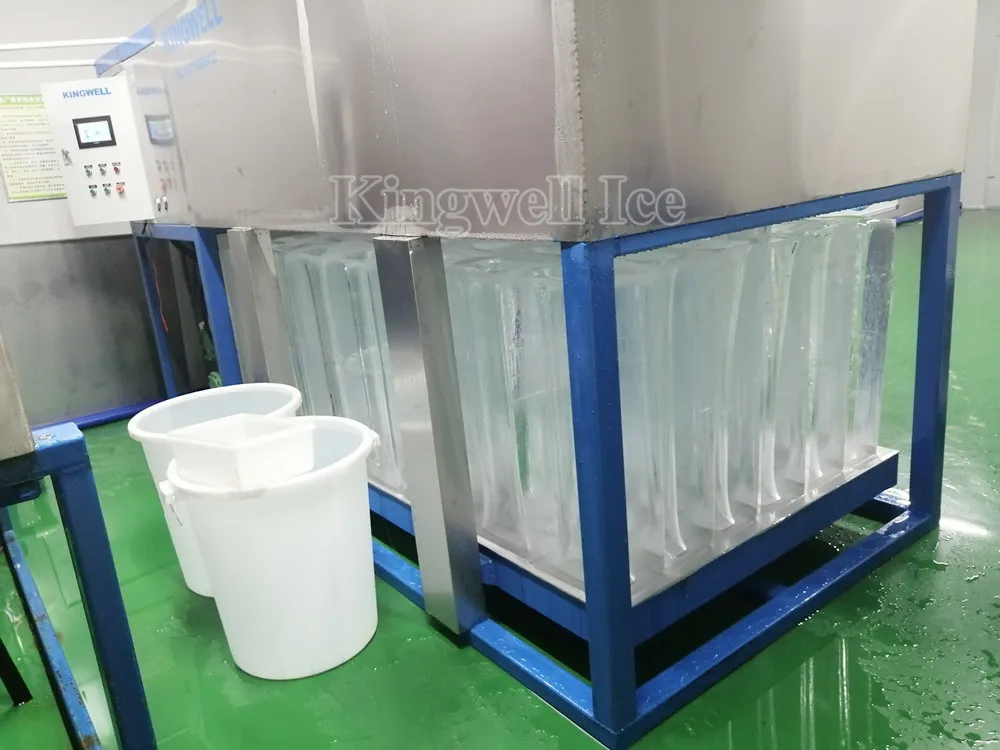

Clear block ice machine tested in client's factory

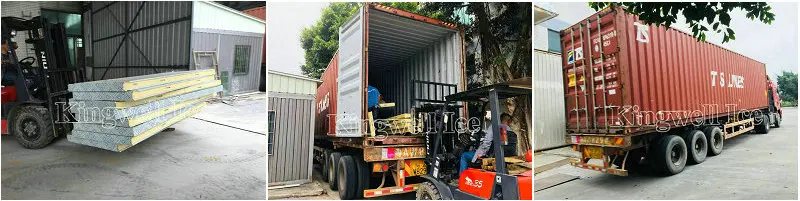

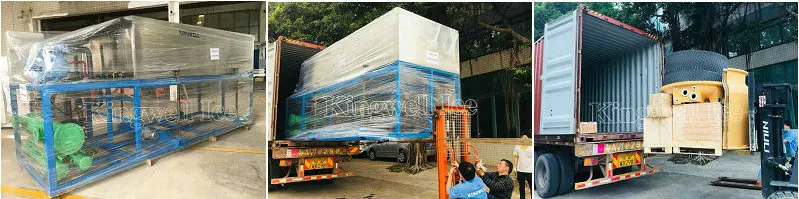

Loading
