150W CW Fiber Coupled Diode Laser Supplier
- Category: >>>
- Supplier: Beijing Belle Laser Technology Co. Ltd.
Share on (60563336868):
Product Overview
Description

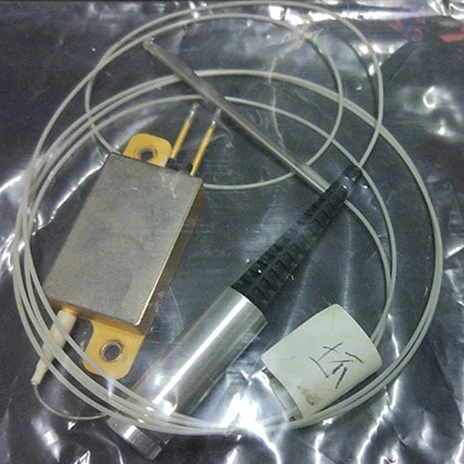

150W CW Fiber Coupled Diode Laser Supplier
NDL provides direct diode laser systems from 10W up to 150W CW / Pulsed. These diode lasers are widely used for solid-state pumping, laser cladding, metal hardening, plastic welding, thin metal welding, electronic soldering, surgery, dental and aesthetic treatments.
Features:
Fiber Coupled Laser 10W~150W CW / Pulsed available
808nm, 915nm, 940nm, 976nm available
Peltier + Forced Air cooling design
Pilot laser integrated
Support external modulation
Standard Product Models
Model No. | Wavelength | Output Power | Delivery Fiber Type | Cooling Structure | Lead Time |
FCS808-06 | 805+/-3nm | 6W CW | 200um NA=0.22 Single Fiber | Peltier + Forced Air | 20 workdays |
FCS808-40 | 805+/-3nm | 40W CW | 720um NA=0.22 Fiber Bundle | Peltier + Forced Air | 20 workdays |
FCS940-25 | 940+/-10nm | 25W CW | 105um NA=0.15 Single Fiber | Forced Air | 10 workdays |
FCS940-25B | 940+/-5nm | 25W CW | 105um NA=0.15 Single Fiber | Peltier + Forced Air | 10 workdays |
FCS940-50 | 940+/-10nm | 50W CW | 210um NA=0.15 Fiber Bundle | Forced Air | 10 workdays |
FCS940-75 | 940+/-10nm | 75W CW | 275um NA=0.15 Fiber Bundle | Forced Air | 10 workdays |
FCS940-150 | 940+/-10nm | 150W CW | 375um NA=0.15 Fiber Bundle | Forced Air | 10 workdays |
FCS976-09 | 976+/-10nm | 9W CW | 105um NA=0.22 Single Fiber | Forced Air | 15 workdays |
FCS976-09B | 976+/-5nm | 9W CW | 105um NA=0.22 Single Fiber | Peltier + Forced Air | 15 workdays |
FCS976-25 | 976+/-10nm | 25W CW | 105um NA=0.15 Single Fiber | Forced Air | 25 workdays |
FCS976-25B | 976+/-5nm | 25W CW | 105um NA=0.15 Single Fiber | Peltier + Forced Air | 25 workdays |
FCS976-50 | 976+/-10nm | 50W CW | 210um NA=0.15 Fiber Bundle | Forced Air | 25 workdays |
FCS976-75 | 976+/-10nm | 75W CW | 275um NA=0.15 Fiber Bundle | Forced Air | 25 workdays |
FCS976-150 | 976+/-10nm | 150W CW | 375um NA=0.15 Fiber Bundle | Forced Air | 25 workdayS |
Delivery with SMA-905 Patch Cord Connectors.
Fiber collimator or focus head can be provided. Please contact our sales for quote.
Support external modulation via analog signals.
Custom Products Available
Fiber Coupled Diode Laser Power: | 1W, 2W, up to 150W CW |
Wavelength Available: | 795nm, 808nm, 915nm, 940nm, 976nm |
Wavelength Tolerance: | +/-3nm, +/-5nm, +/-10nm |
Cooling Method: | Forced Air Only, Peltier (TE Cooler) + Forced Air Cooling, Water Cooling |
External Control: | Analog Signal 0.5~5.0V controls 10%~100% output power |
Pilot Laser: | 635nm / 5mW |
About us
BelleLaser is a high power laser diode manufacturer from China. With more than 10 years experience of laser diode packaging and diode pumped solid-state (DPSS) laser designs, BelleLaser is now able to provide reliable solutions worldwide users.
BelleLaser's diode laser covers 795nm, 808nm, 915nm, 940nm, 976nm (980nm), 1060nm. The optical power is from 1W up to more than 100KW from single emitter, laser diode array, or laser diode stacks. These laser diode modules are widely used for solid-state pumping, medical and industry applications. BelleLaser also provides diode pumped solid-state lasers (DPSS lasers) based on its high performance laser diode modules.
With a high efficiency R&D team, BelleLaser is able to provide fast delivery for custom products and OEM products, including custom laser modules, pump modules, optical solutions, power supply and control units. With strict manufacture management and quality control, BelleLaser is honored to be your reliable OEM supplier for diode lasers and diode pumped solid-state lasers.
Please Contact us or Leave a Message to Request Quote or Ask for Support.
