Waterproof Medical Foot Switch FS 81 Series
- Category: Other Switches >>>
- Supplier: Suns Electric (zhangzhou) Co. Ltd.
Share on (60563338173):
Product Overview
Description
Basic Parameters: FS-81-SP Medical Foot Switch
| Features: | |
| 1)Robust Glass Fiber Reinforced Plastics or aluminum die cast body | |
| 2)Galvanically separated contacts(for FS81-SP only) | |
| 3)Positive Opening of NC contacts(for FS81-SP only) | |
| 4)UL/cUL approved (E216958) | |
| 5)IEC60601 certification issued by TUV for medical applications | |
| Specifications: | |
| Operating Speed: | 60 ops/min |
| Insulation Resistance: | >100mΩ@500VDC |
| Contact Resistance: | <25mΩ |
| Rated Current/Voltage | 10A/300V AC(for FS81-SP) |
| Dielectric Strength: | 1000VAC for 1 min between current carrying parts |
| 2500VAC for 1 min between non-current carrying parts | |
| Service Life: | Mechanically 1000000 (operations) |
| Electrically 500000 (operations) | |
| Operating Temperature: | -30~+80℃(-22~+176°F) |
| Degree of Protection: | IPX8 |

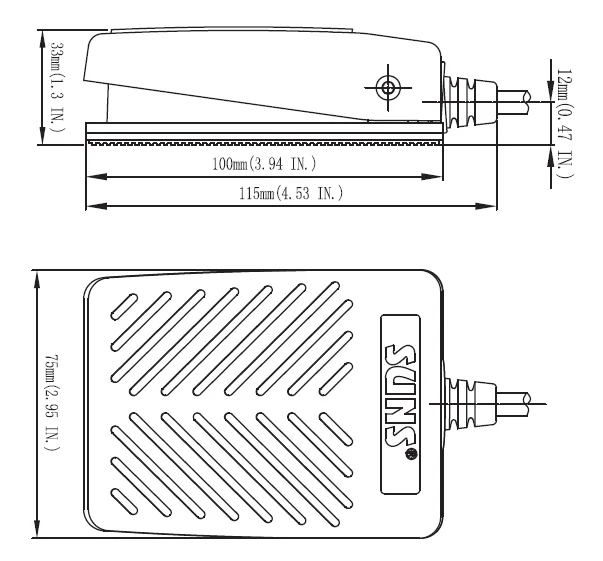

Technical Drawing: FS-81-SP Medical Foot Switch
Medical Foot Switch
