- Peugeot 307 shift lever knob dust cover assembly gear manual ball joint assembly original
Peugeot 307 shift lever knob dust cover assembly gear manual ball joint assembly original
- Category: >>>
- Supplier: Liuzhou Joyhood Trading Co. Ltd. [Guangxi China]Liuzhou
Share on (60563497701):
Product Overview
Description
Technical Parameters
HW19710 TRANSMISSION SPARE PARTS:
PARTS NUMBER : HW10
BRAND: SINOTRUCK/WEICHAI
SUIT TRUCK MODEL: HOWO

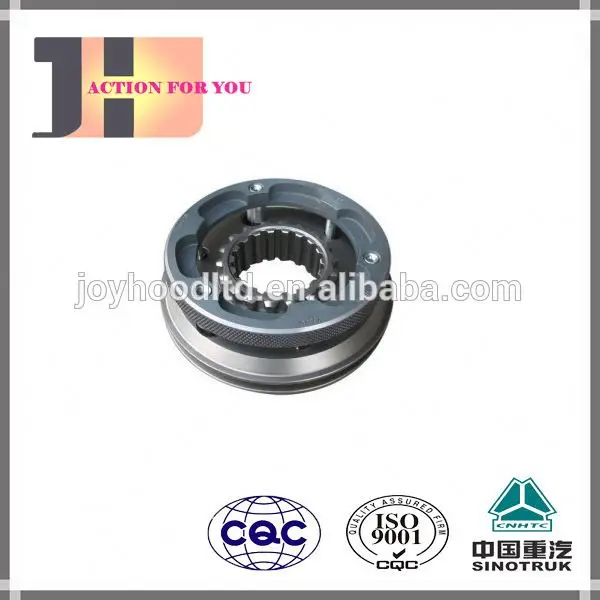

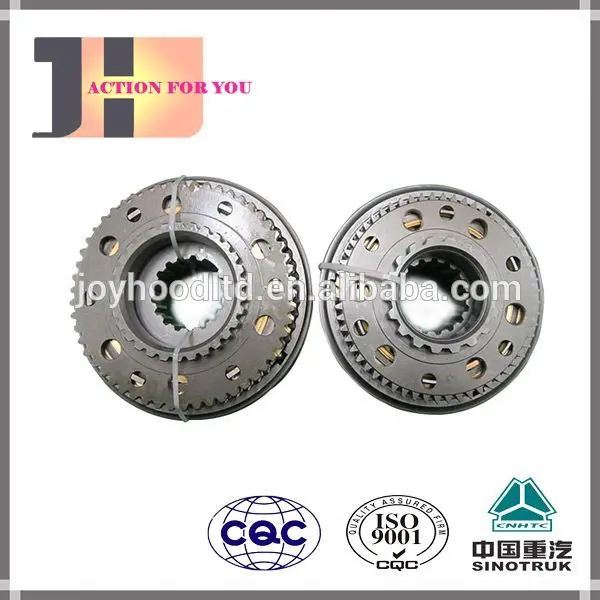

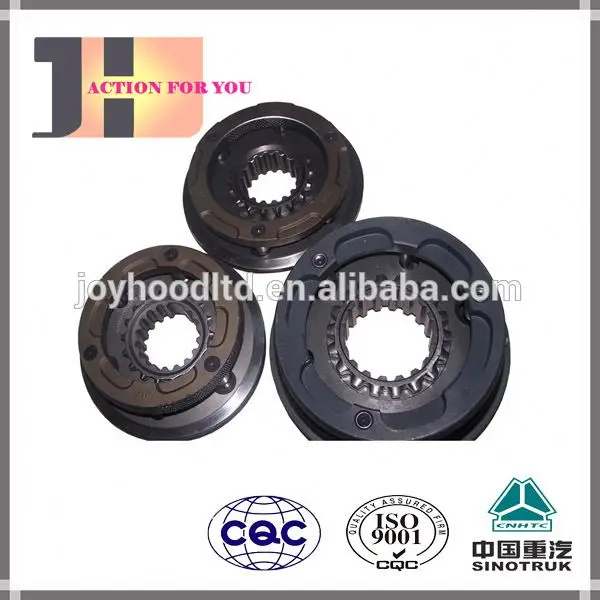

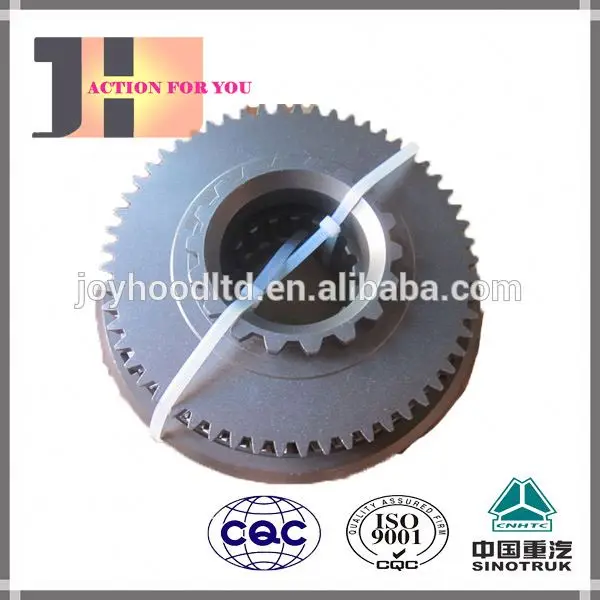

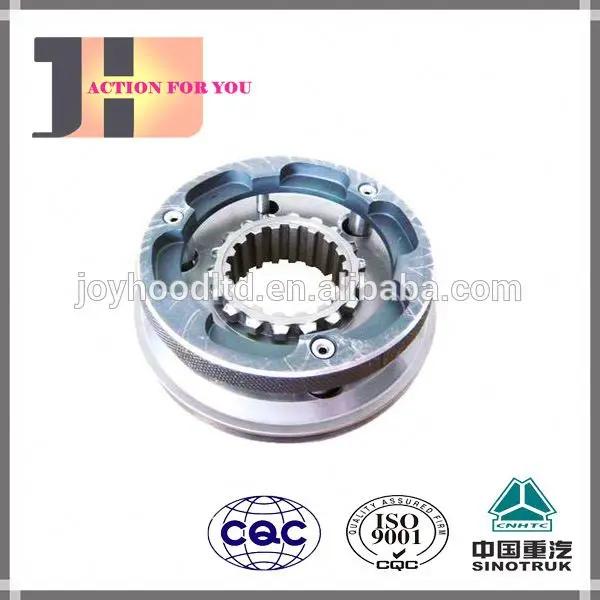

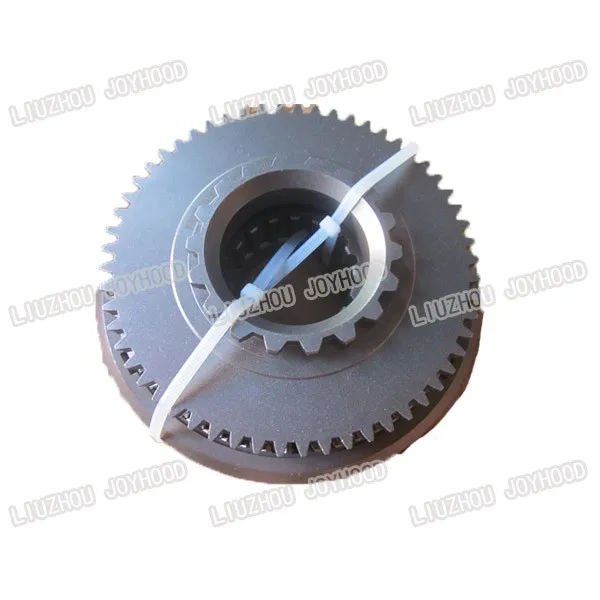

NAME: Range Gear Shift Assembly
BRAND: SINOTRUCK/WEICHAI
SUIT TRUCK MODEL: HOWO
NAME: Range Gear Shift Assembly
Product Description
SPECIFICATIONS FOR HW19710 TRANSMISSION
| Transmissiom Model | HW19710 | Installation Length | 843 | |
| Type | 10 forward gears, 1 reverse gear (Three section shell) | |||
| Max Input Torque | 1900N.m | Maximum Output Speed | 2600rpm | |
| Gearbox Ratios | Gears | Speed Ratio | Gears | Speed Ratio |
| 1 | 14.28 | 6 | 3.26 | |
| 2 | 10.62 | 7 | 2.43 | |
| 3 | 7.87 | 8 | 1.80 | |
| 4 | 5.87 | 9 | 1.34 | |
| 5 | 4.375 | 10 | 1 | |
| Reverse Gear | 13.91 | |||
| Lubrication | Splash lubrication of main tank, forced lubrication of secondary tank | |||
| Lubricant Grade | 85W/90GL-4 or 85W/90GL-5 | |||
| Fuel Quantity | 12L (12.5L if including the PTO) | |||
Main Features
1)Main tank adopts twin-layshaft configuration, secondary tank adpots planetary transmission structure, improve assembly reliability.
2) Shell adopts vertical subdivision structure, easy to assembly and maintenance.
3) Samll cover design to make the structure more compact
4) Adpot active lubrication can adapt large slope working condition
PARTS LIST FOR HW19710 TRANSMISSION
| No. | Product Name | Parts Number |

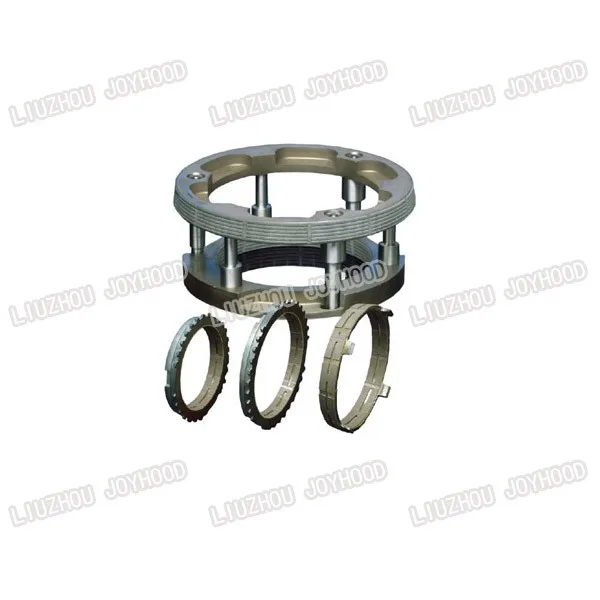

| 1 | Gear Range Synchronizer | HW10 |
| 2 | Gear Shift Fork | AZ2214100001 |
| 3 | Fork Shaft | AZ2214100002 |
| 4 | Fork Pendulum Block | WG2229100042 |
| 5 | Planetary Gear Assembly | AZ2203100001+001 |
| 6 | Bearing | AZ90033261820 |
| 7 | Output Shaft Cover | AZ2222100023 |
| 8 | Speed Sensor | WG2209280010 |
| 9 | Output Flange | WG2210100018 |
| 10 | Reverse Shift Fork | AZ2203220101 |
| 11 | 1st and 2nd shift fork assembly | AZ2203220010 |
| 12 | 3rd and 4th shift fork assembly | AZ2203220103 |
| 13 | Main Axle Sliding Bushing | AZ2210040210 |
| 14 | Washer | AZ2210040012 |
| 15 | Main Shaft Stop Washer | AZ2210040002 |
| 16 | Adjusting Gasket | AZ2210040024 |
| 17 | Hex Key | AZ2229040211 |
| 18 | Small Cover | AZ2203210040+001 |
| 19 | Input Shaft | WG2210020105 |
| 20 | Synchronizer Block | WG2229020001 |
| 21 | Main Shaft | AZ2203040009 |
| 22 | Main Axle Transmission 1st Gear | AZ2210040230 |
| 23 | Main Axle Transmission 2nd Gear | AZ2210040206 |
| 24 | Main Axle Transmission 3rd Gear | AZ2210040225 |
| 25 | Main Axle Transmission 4th Gear | AZ2210040224 |
| 26 | One Shaft Gear | AZ2210020222 |
| 27 | Countershaft (right) | AZ2210030215 |
| 28 | Countershaft (left) | AZ2210030220 |
| 29 | Countershaft 2nd Gear | AZ2210030203 |
| 30 | Countershaft 3rd Gear | AZ2210030224 |
| 31 | Countershaft 4th Gear | AZ2210030226 |
| 32 | Countershaft Driven Gear | AZ2210030227 |
Our Service
After-Sales Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Delivery Service
1. Internation Express: Below 150kg Fast and convenient such as UPS, DHL,TNT, EMS etc.
2. Air transportation: 150kg-500kg Save the transportation time
3. Sea transportation: Above 500kg Save the transportation cost
Quality Guanrantee
1. If the quality issue occurs due to manufacturing defects or materials defects(except for man-made reason) within a certain use period, our company should respond within 3 working days after receiving notification, and our company should cover losses and costs.
2. The General parts warranty period is 90 days, Major parts warranty period is 180 days.
Packing & Delivery
| Packaging | |
| Packaging Details | The normal package is Waterproof membrane, plywood box or Carton.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
