Best price transform oil filtration machine manufacturer
US $15.00-$55.00

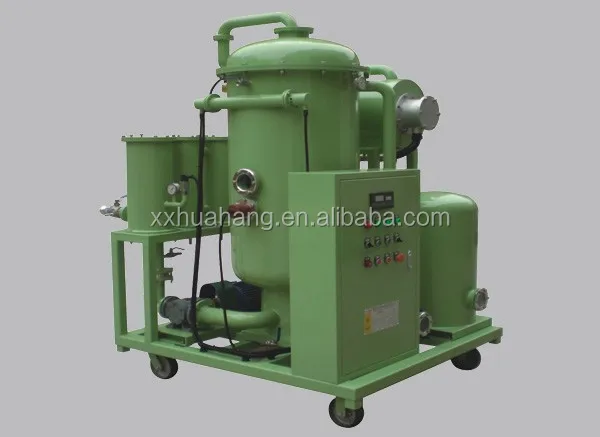

Automatic vacuum transformer oil purifier
- Category: Machine Oil Purifier >>>
- Supplier: Xinxiang City Huahang Filter Co. Ltd.
Share on (60563582680):
Product Overview
Description
Product Description
Specifications
| Anti-explosion box series mobile oil filter(FLYC) | ||||
| MODEL | (F)LYC-32C | (F)LYC-50C | (F)LYC-63C | (F)LYC-100C |
| Rated flow L/min | 32 | 50 | 63 | 100 |
| Pressure Mpa | 0.6 | |||
| Pressure loss Mpa | ≤0.02 | |||
| Primary filtration precision μm | 100 | |||
| First filtration precision μm | 10,20,40 | |||
| Second filtration precision μm | 3,5,10 | |||
| Motor power kw | 0.75 | 1.1 | 1.1 | 2.2 |
| Voltage V | AC380V | |||
| Weight kg | 90 | 100 | 118 | 160 |
| Dimensions mm L×B×H | 950×560×900 | 950×560×900 | 950×560×900 | 1000×600×1130 |
Introductions

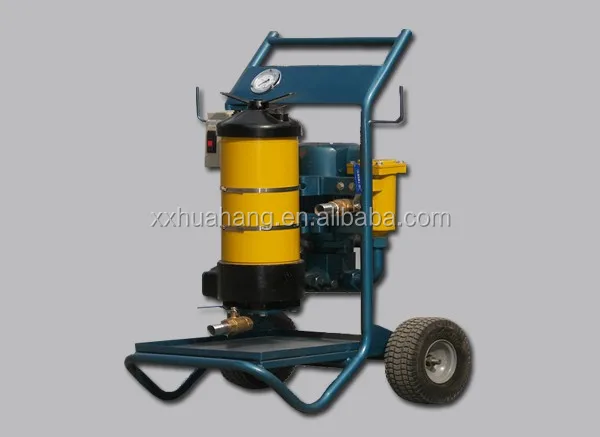

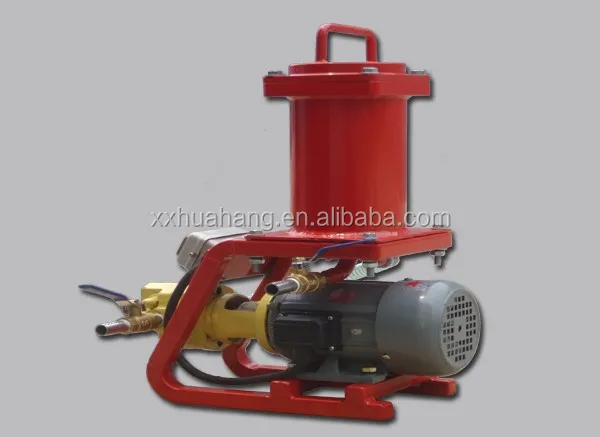

A kind of portable filtering device developed and manufactured in our company is applicable to all kinds of petroleum based mineral oil and its design is simple practical easy to move and maintenance. The filtering device also can conveniently filter the oils of various hydraulic and lubricating systems and also can be connected to the system as a bypass filter. .
Advantages
1 High pressure piping with overflow protection device can protect the safety of the hydraulic system
2 Using thermal relay protection to prevent the damage caused by motor overload.
3 The coarse filter to protect oil pump and prolong the service life of main filter
4 The filter rating of the coarse filter can be choosed by clients by clients.
5 The oil purifier use the quick opening structure to make replacing filter elemnt easy
6 The panel is equipped with a pressure guage to warn you to replace fliter element on time.
7 adopting two grade filtration:coarse filtring and micro filtration
Application
1 filtration of Hydraulic lubrication system when refueling
2 bypass filtration of hydrulic lubrication system when working
3 Loop filtrations of hydraulic lubrication system before put into operation
4 Low hydraulic lubrication system of oil pump filter pump out without the device itself

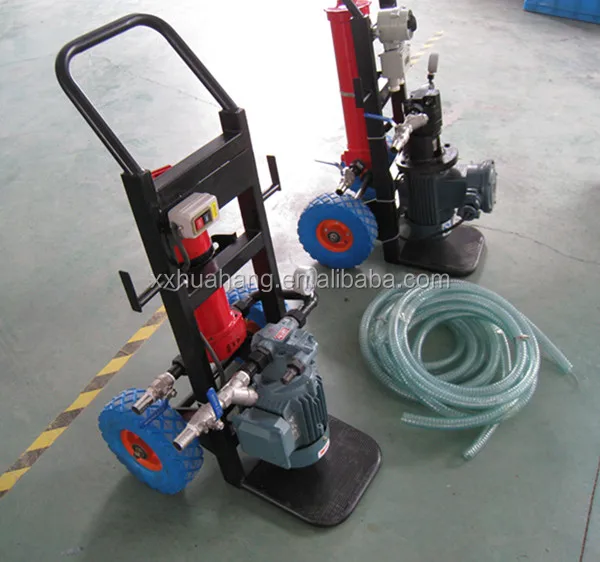

Picture show
If you want to know more information about the oil purifier,please leave a inquiry to tell the information bellow:
1 Flow rate
2 Voltage
3 Filter rating
4 Anti-explosion or not
Our Services
1.Pre-sale service :
Provide you best products price you need
Answer all your questions about the products patiently .
2.Medium-sale service :
All filter element will be tested before shippment
Provide you newest goods transport conditions until you receive our products
3.After-sale service :
Technical advisory for any time
If the products have quality problem , and because of us , we will make the new products to you
Contact us
Tel:+86-373-5471699
Fax:0373-5471026
Web://xxhuahang.en.alibaba.com
Company Name:Xinxiang City Huahang Filter Co.,Ltd
Company Adress: Industrial Agglomeration Zone, Dazhaoying Town, Xinxiang County
Company Information
Xinxiang City Huahang Filter Co., Ltd. is a professional industrial filter manufacturer integrating design, production and marketing. With strong technical force, perfect testing means, and excellent after-sales service, we provide users with a variety of high-quality products.

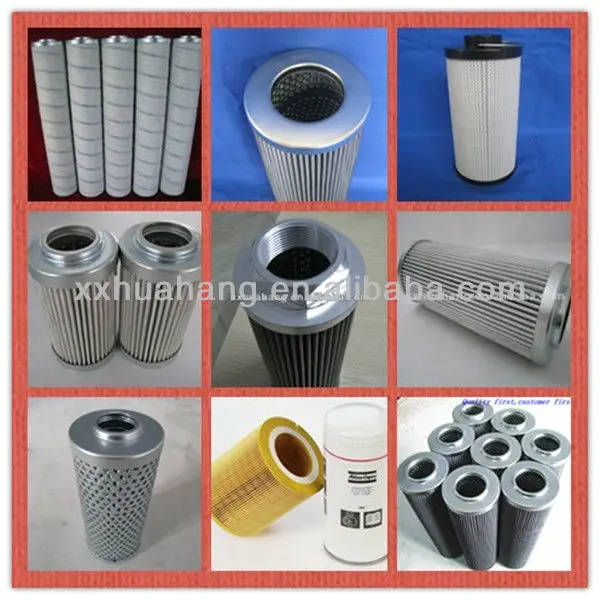

Our main products include hydraulic filters, air filters and pipe filters. Products are widely used in petroleum, chemical and metallurgical machinery, textile, pharmaceutical, automobile, chemical fiber, and air-conditioning.
"Quality first, customer first" is our business objective. We will, as always, offer new and old customers with the best quality service.
Xinxiang City Huahang Filter Co.,ltd. Is established in 2003,we have
1.3000m3 workshop for filters production
2.Production and sales integration in Huahang Filter Company
3.7 exporting departments for foreign trade services
4.16 engineers for designing and calculating reasonable price in time
5.More than 20 workers for production line
