3M9816 Cylinder Honing Machine

Product Overview

Description

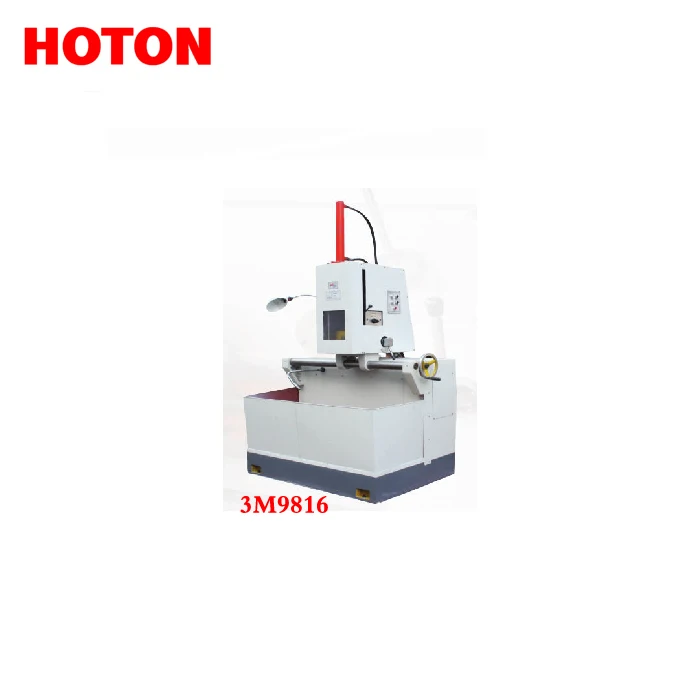

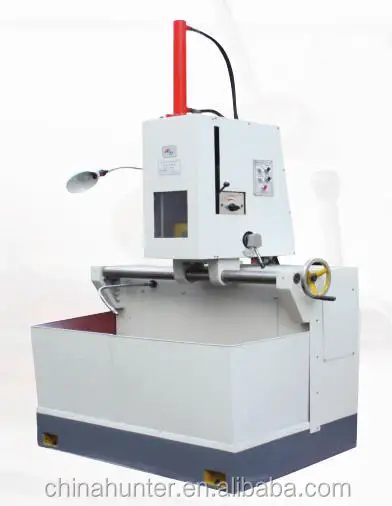

3M9816 Cylinder Honing Machine(Item:241004)

Feature:

Cylinder Honing Machine are mainly used for honing automobile and tractor cylinders with diameters from dia45 to dia160 after boring process.
The features of the machines are small in size, light in weight.3M9816 tool proper can be slid longitudinal; 3MQ9816is simple in construction, the machine tool proper can be slid crosswise on the table top. They are easy to operate. The up-and-down reciprocating, motion of which can be adjusted randomly. Honing process can be carried out after the cylinder block to be honed is placed on the worktable, adjusted to center position and secured.

Specifications:

Dia. of hole honed 45-160mm
Max. depth of hole honed 320mm
Spindle speed 128;240r/min
Longitudinal travel of honing head 720mm
Spindle lifting and
lowering speed (step less) 0-10 m.min
Power of honing head motor 0.75kw

Dimensions:

"Overall dimensions(L*W*H) 1300*1010*2100mm
" Net weight 940/1130kg
Package Information:

"Overall dimensions(L*W*H) 1300*1010*2100mm
" Net weight 940/1130kg

PACKAGE STYLE. Metal frame and carton
