LTA Series Single Phase /Three Phase A.C. Synchronous Generator / Alternator
The LTA series generators are mainly designed to serve as power generating unit of small capacity, which supply electricity for lighting purpose in ships, for house-hold electric devices used in towns or villages.
The construction of the generators is of drip-proof, salient pole rotating field self excitation and constant voltage type. The alternator interior is used with high quality electric magnetic and Electric materials. Stator insulation is class B. These generators are elegant in appearance, tight in construction and easy maintenance. IEC standard are adopted on dimension, these dimension are suitable for using in Australia, Europe, America and other countries with the end covers to be model B. The alternators are of harmonic wave self-exciation constant voltage system and automatic voltage control excitation constant voltage system, both of them have Excellent dynamic performance, convenient and reliable in operation. These generators are excellent in appearance and easy to maintain. Dimensions are adopted according to I.E.C Standards.
The voltage of the alternator is 230V of 115V/ 380V of 220V, the frequency is 50Hz. Its operation mode is of continuous duty. It can provide 60Hz and the other voltage's generator according to necessary. The other voltage's generator according to necessary.
The alternator can be coupled with a prime mover directly or through a V-belt, with 5% change of speed of the prime mover under load Variation of 0~100%, at a voltage of 230V or 115V, 50Hz or 60Hz to get a satisfactory constant voltage performance.
Operating Conditions
Alternator Model
LTA
Power
12-30kw
Exciter type
Brush, Harmonic excitation system
Power factor
0.8
Voltage adjust range
≥3%
Voltage regulation NL-FL
≤±0.3%
Insulation Grade
B or C
Protection Grade
IP21

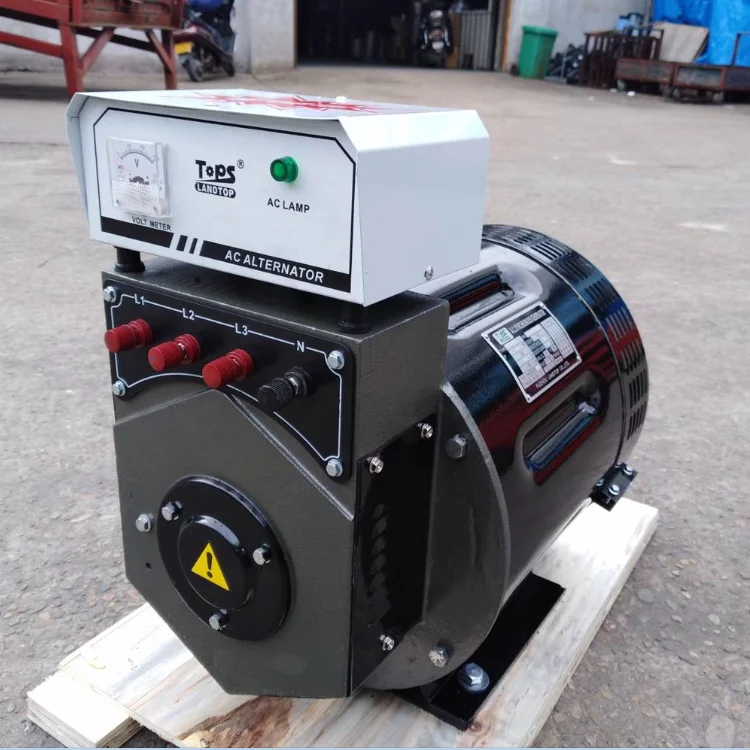

Technical data and product detail images
MODEL
OUTPUT
VOLTAGE
V
POWER FACTOR
SPEED
(RPM)
HZ
POLE
KW
KVA
LTA10.0S
10
10
230
1
1500
50
4
LTA12.5S
12.5
12.5
LTA16.0S
16
16
LTA20.0S
20
20
LTA10.0T
10
12.5
400/230
0.8
1500
LTA12.5T
12.5
15.5
LTA16.0T
16
20
LTA20.0T
20
25
Product Line
Product packaging
Company introduction
With years of development, LANDTOP has developed into a large-scale, modern, comprehensive and international company. Our sales department is located in Fuzhou City (Fuzhou Landtop Co., Ltd. ), a sea-port city, enjoying convenient transportation network.We also have our own factory in Fu'an City (Fu'an Landtop Power Co., Ltd. ). Our international center is located in Hongkong (Hongkong Landtop Group Ltd. ). Our group is equipped with a great number of precise assemble lines, integrated testing systems and checkout equipment. We have professional engineers, skilled QC members, experienced salesmen and the best after-sales services. The current annual export production value is over 15 million US dollars.
Certifications
FAQ
Q: Do you offer OEM service? A: Yes Q: What is your payment term? A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C Q: What is your lead time? A: About 30 days after receiving deposit or original L/C Q: What certifiicates do you have? A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc
