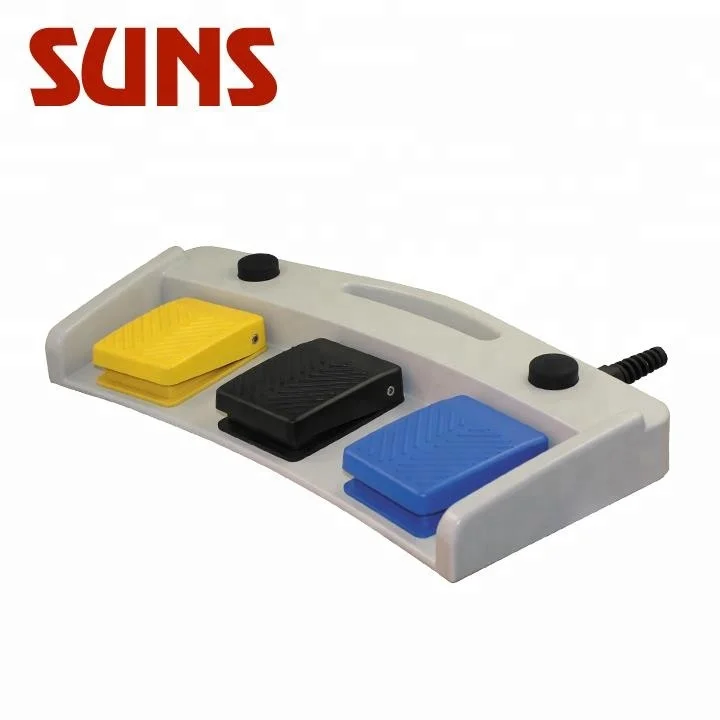

Medical Foot Switch for X ray MRI CT
- Category: >>>
- Supplier: Suns Electric (zhangzhou) Co. Ltd.
Share on (60563739860):
Product Overview
Description
Basic Parameters: Medical Foot Switch FS-83-W Series
| Features: | |
| 1)Aluminum alloy die cast base | |
| 2)Galvanically separated contacts(for SP ,SLonly) | |
| 5)Positive Opening of NC contacts(for SP ,SL only) | |
| 6)UL/cUL approved (E216958) | |
| 7)IEC60601 certification issued by TUV for medical applications | |
| Specifications: | |
| Operating Speed: | 60 ops/min |
| Insulation Resistance: | >100mΩ@500VDC |
| Contact Resistance: | <25mΩ |
| Rated Current/Voltage | 10A/300V AC |
| Inrush Current | Complies with IEC947-5-1:AC15/DC 13 |
| Dielectric Strength: | 1000VAC for 1 min between current carrying parts |
| 2500VAC for 1 min between non-current carrying parts | |
| Service Life: | Mechanically 1.0×106 (operations) |
| Electrically 5×105 (operations) | |
| Operating Temperature: | -30~+80℃(-22~+176°F) |
| Degree of Protection: | IPX8 |

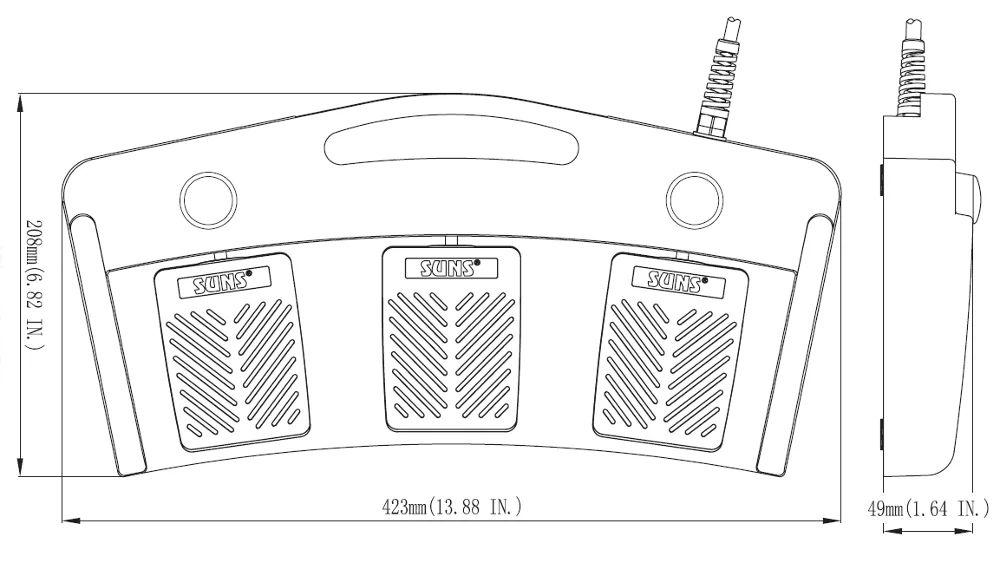

Technical Drawing: Medical Foot Switch FS-83-W Series
SUNS Certifications
Medical Foot Switch
Company Information
Introduction
We are committed to delivering world-class products and services efficiently and effectively to our customers and your total satisfaction is our goal. As an established member in the industry, we will continue our endeavors in delivering better products and services to our new and old customers. With this dedication and long-term commitment, Suns Electric (Zhangzhou) Co., Ltd. is ready to become a leader in the industry.
Workshop & Production
Product & Service
FAQ
1. A:Where is your company?
Q:We are a USA company and have our own manufacture factory in Fujian China.
2. A:Do you have any certifications?
Q: We have TUV, CSA, UL, UR, CE, CCC approved, and RoHs, REACH compliance
3. A:What is your payment term ?
Q:T/T, L/C
4. A:Could I have some samples for testing ?
Q:Samples(Depends) can be sent per request on your express cost.
5. A:What is your delivery time ?
Q:Delivery lead time 2-4 weeks normally
Our Service
- Provide wide variety of Limit Switch, Foot Switch, Micro Switch, Industrial Switch,etc.
- Offer customized solution to clients based on various situations
- Satisfactory delivery service to domestic and international clients
- Promote extended after-sale service
Advantage
- Reliable supplier/partner for dozens of world leading manufacturers
- Provide value added service and flexible
- Maintain leading-edge technology through continuous innovation
- Provide most reliable products and services
- Offer the most complete switch portfolio
- Stable work force with people-oriented management style
