Good performance High speed semi automatic Small type cone winding machine

Product Overview

Description



Machine Application:

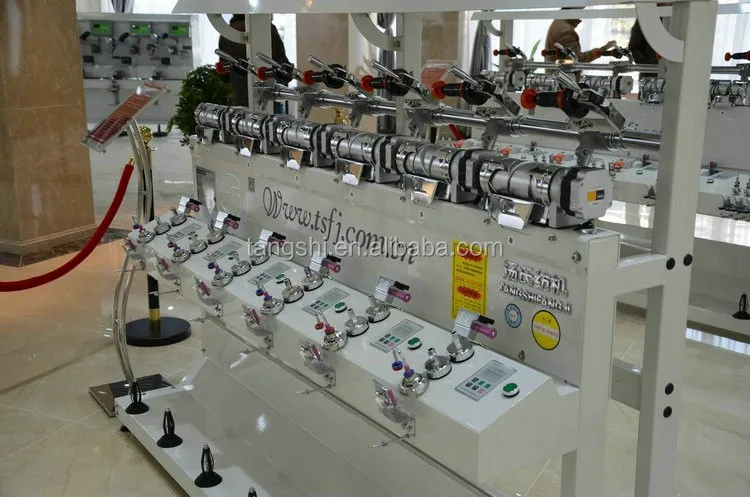

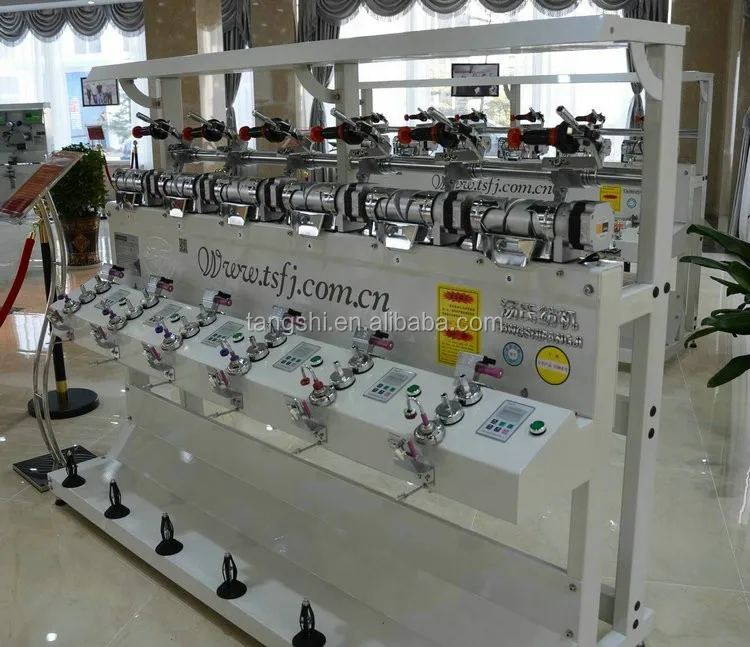

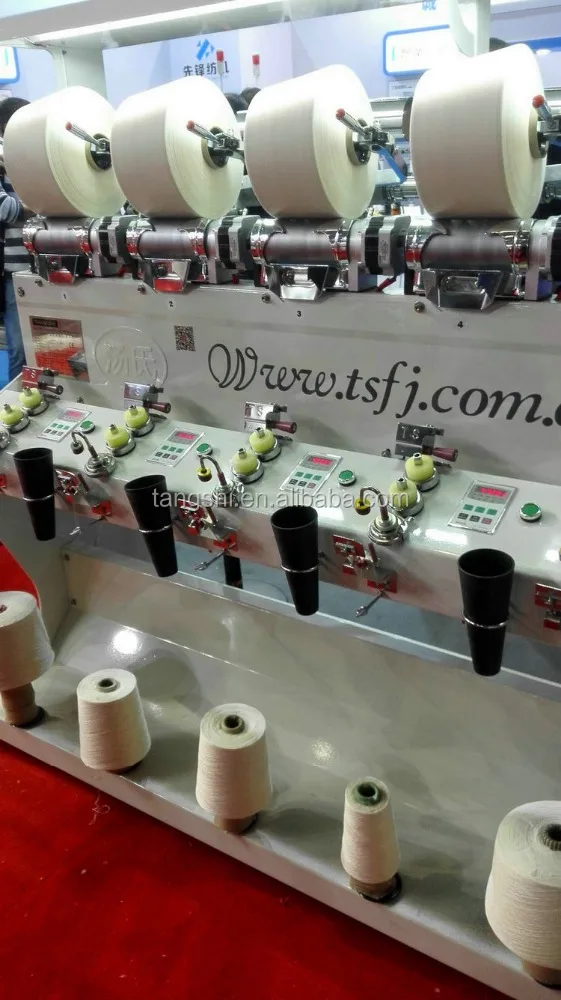

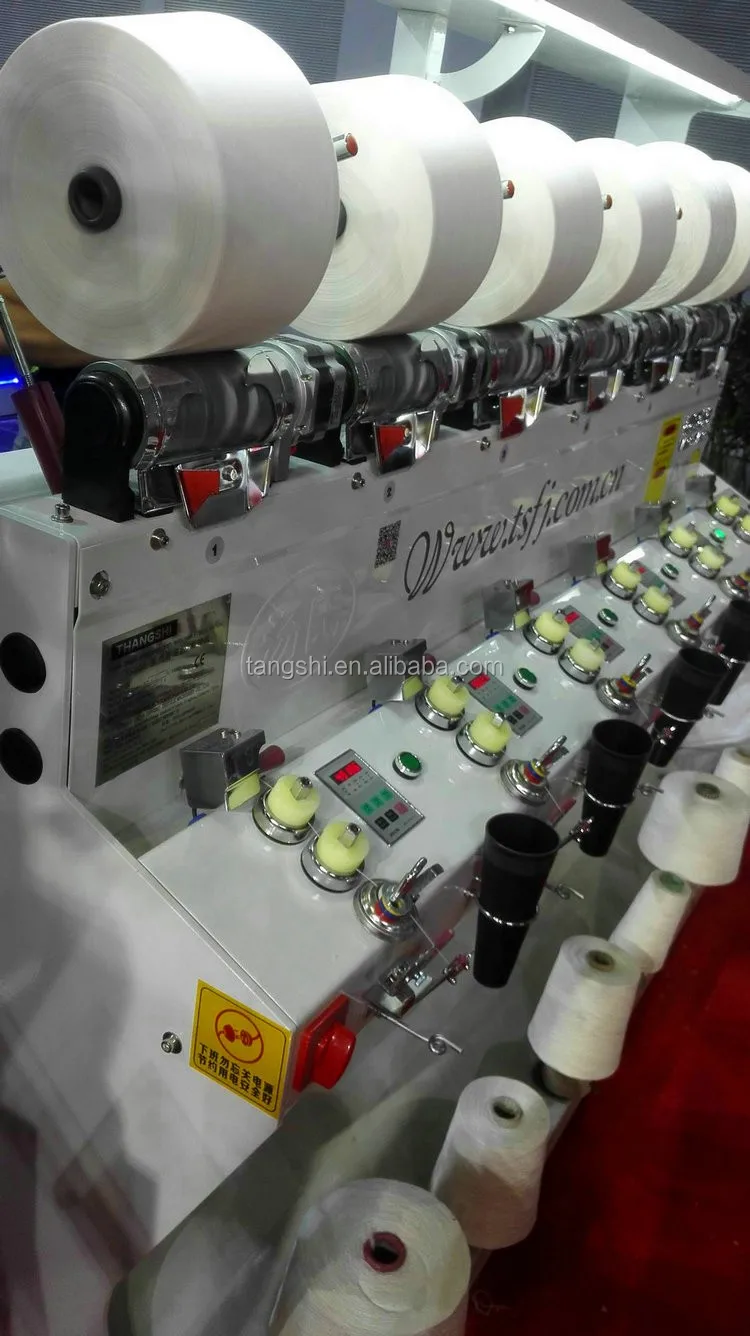

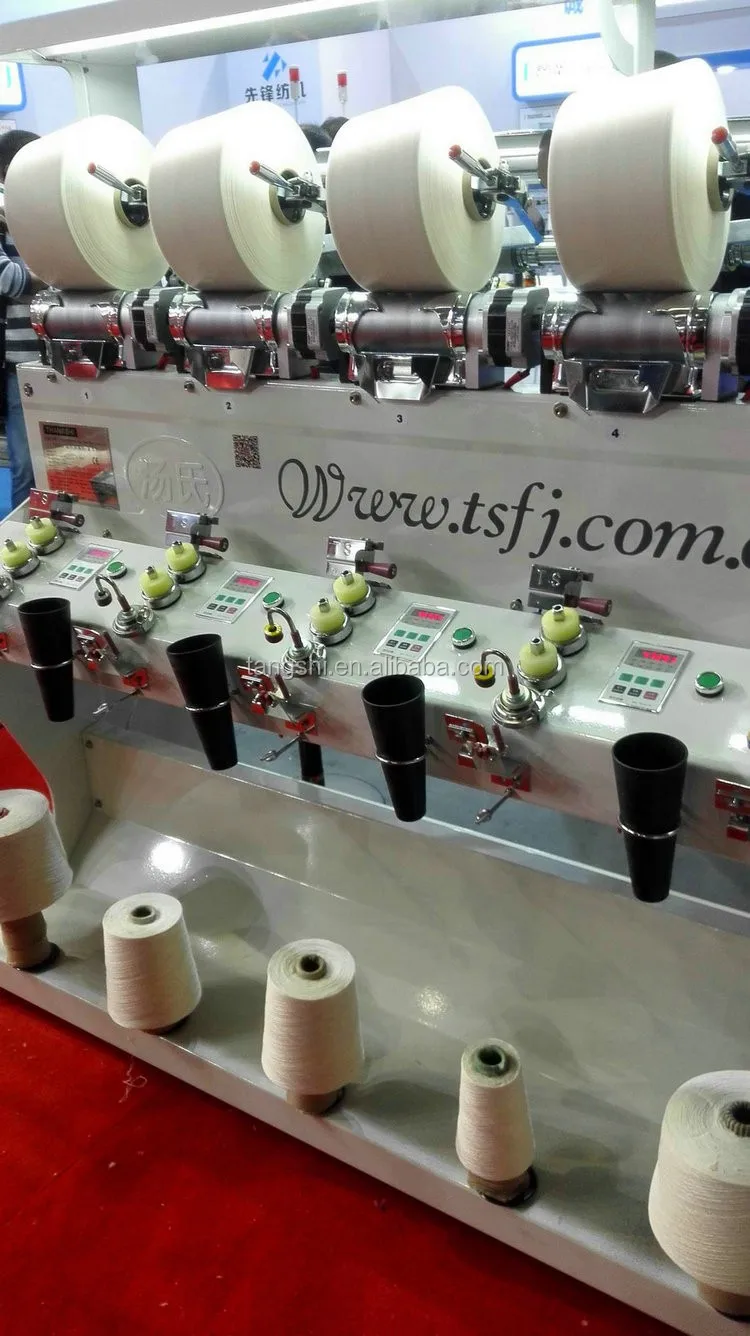

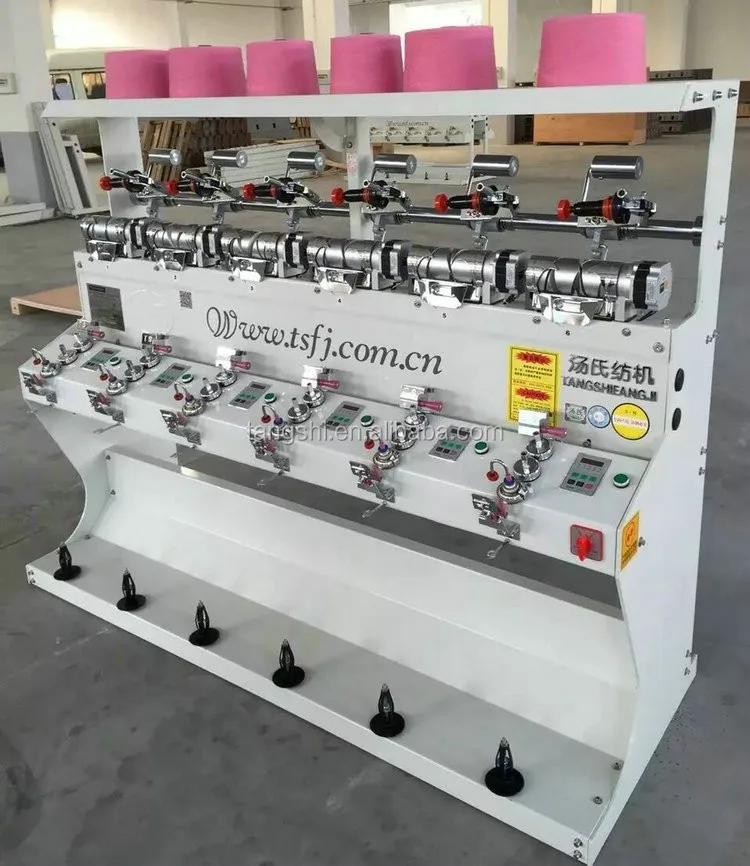

      TS008M Small type Cone winding Machine, it’s mainly for cone to cone rewinding using with waxing device, suit for winding like Fiber yarns, Cotton yarns, DTY, Polyester yarns and etc, and it can take up with Conical Cone or Tube bobbins. It has the feature of High Efficiency and well take-up finished shape, can alleviate the intensity of labour for next processing work.



Parameters:



Bobbin type:	6’(170mm)
Layout:	one-side, can be 2, 4, 6 spindles
Power Supply	Single phase 220V 50/60HZ
Driving	Every spindle per motor
Power Consumption	0.09KW/spindle
Take-up package	Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15

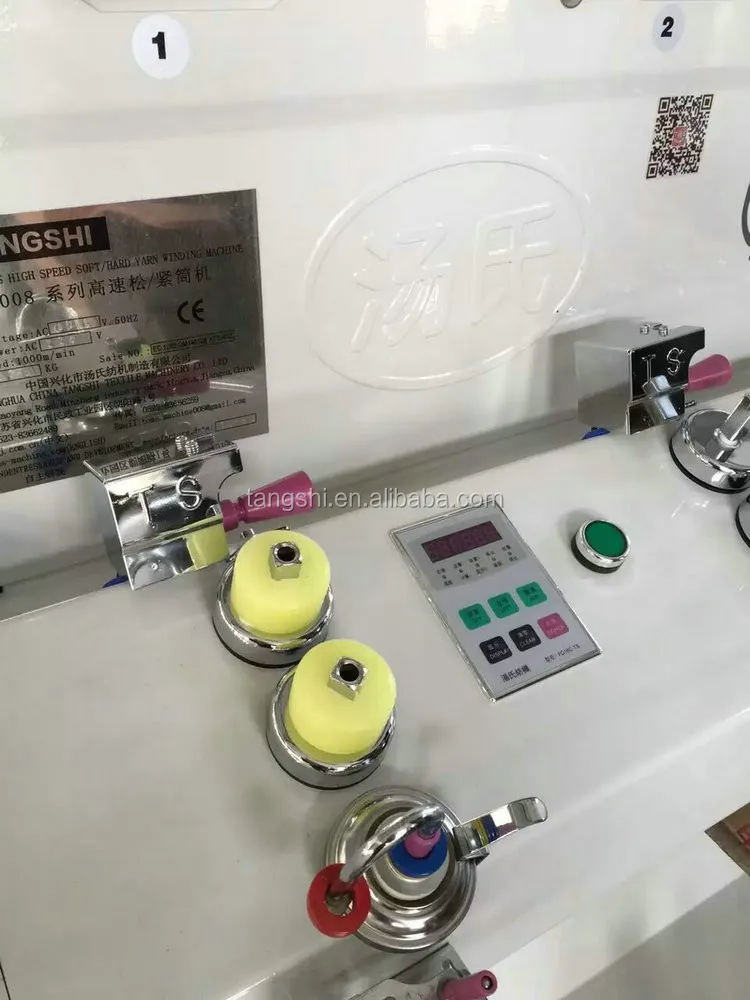

Yarn tension and waxing device	each spindle has a disc tensioner and waxing device
Auto Stop Device	Each spindle has yarn detector
Electronic Anti-Stack	Computer control
Cleaner device	Every spindle has a Mechanical yarn cleaner
Electronic Yarn Cleaner	Optional installed
Air Splicer	Optional installed
Dimensions	L 1900 x W 750 x H 1600 mm (6 Spindles)
