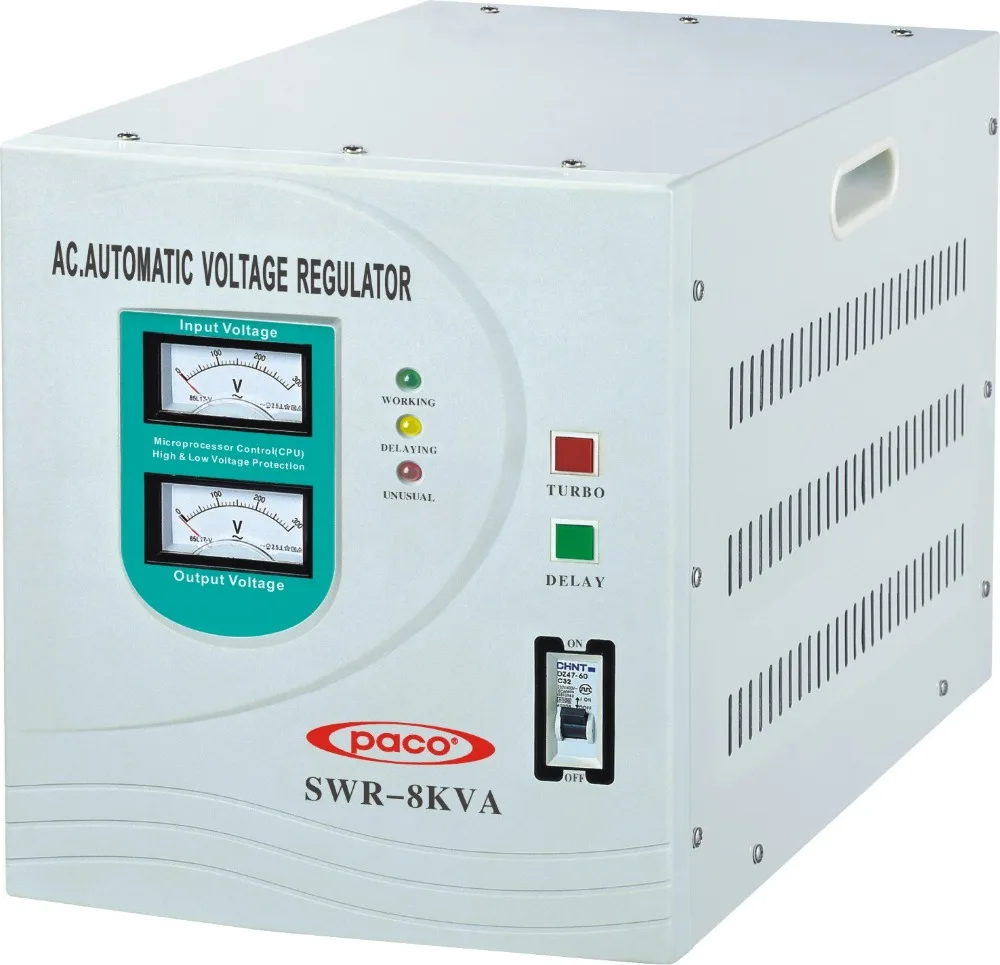

High power automatic voltage regulator avr 8kva 8000watt switching voltage regulator with circuit breaker protection

Product Overview

Description

High-power automatic voltage regulator avr 8kva 8000watt switching voltage regulator with circuit breaker protection

More Details



1.We are the specialized manufacturer of Automatic Voltage regulator/stabilizer for 20 years.



We have practiced and abundant manufacture experience.



2.Our products were certified by CE/CB/ROHS/ISO. Very environmental and popular in Africa,



 Australia,Russia,South and southeast Asia,South America and so many the other countries and

 areas.



 3.Our Automatic voltage stabilizer/regulator have a wide range voltage regulate from



140-260v ac/80-140v ac.



 4.LED Indicators with Input and Output Meter display



 5.Shortage circuit and overload&Surge protection

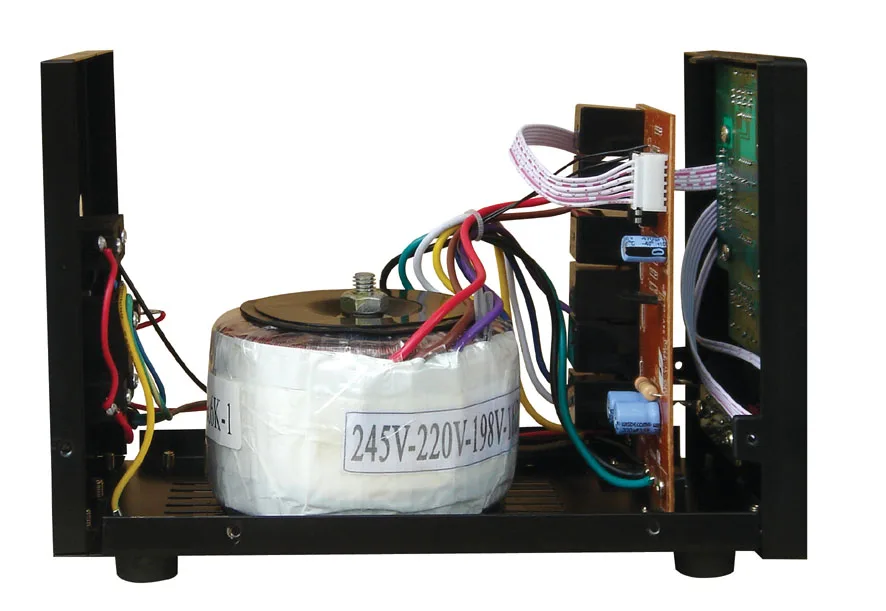

6.Digital Circuit+Transformer



7.CPU Control

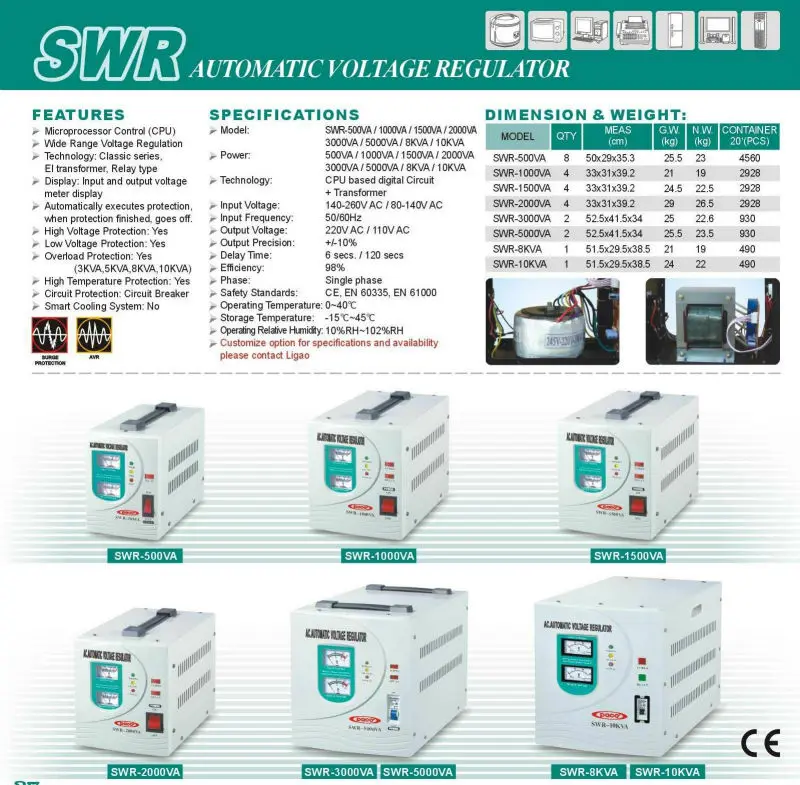

Power:	8000VA
Technology:	CPU based digital Circuit + Transformer
Input Voltage:	140-260 VAC / 80-140 VAC
Input Frequency:	50/60Hz
Output Voltage:	220 VAC / 110 VAC
Output Precision:	+/-10%
Delay Time:	6 secs. / 120 secs
Efficiency:	98%
phase :	Single phase
LED Meter Display Status:	Input voltage / Output voltage
High Voltage Protection:	Yes
Low Voltage Protection:	Yes
Overload Protection:	Yes
High Temperature Protection:	Yes
Circuit protection:	Fuse
The other circuit protection	Circuit breaker
Safety Standards:	CE, EN 60335, EN 61000
Operating Temperature:	0~40°C
Storage Temperature:	-15°C~45°C
Operating Relative Humidity:	10%RH~102%RH,
Machine Size(mm):	515X295×385
N.W.(Kgs):	19Kg





Our company is established more than 20 years, Most of our products were certified



by CE/CB/ROHS.Our main products are as following:





 1. Power Inverter





 2. 7-stage switchmode automatic battery charger



 3. Power Inverter with Charger



 4. Solar Charge Controller



 5.DC to DC Converter



 6.Solar Lantern



 7.Automatic Voltage Regulator/Stabilizer



 8.Portable refrigerator Cooler&Warmer



 We really cherish the long friendly cooperation with each of customer.If there is any interest

 or question,please contact me without hesitation.
