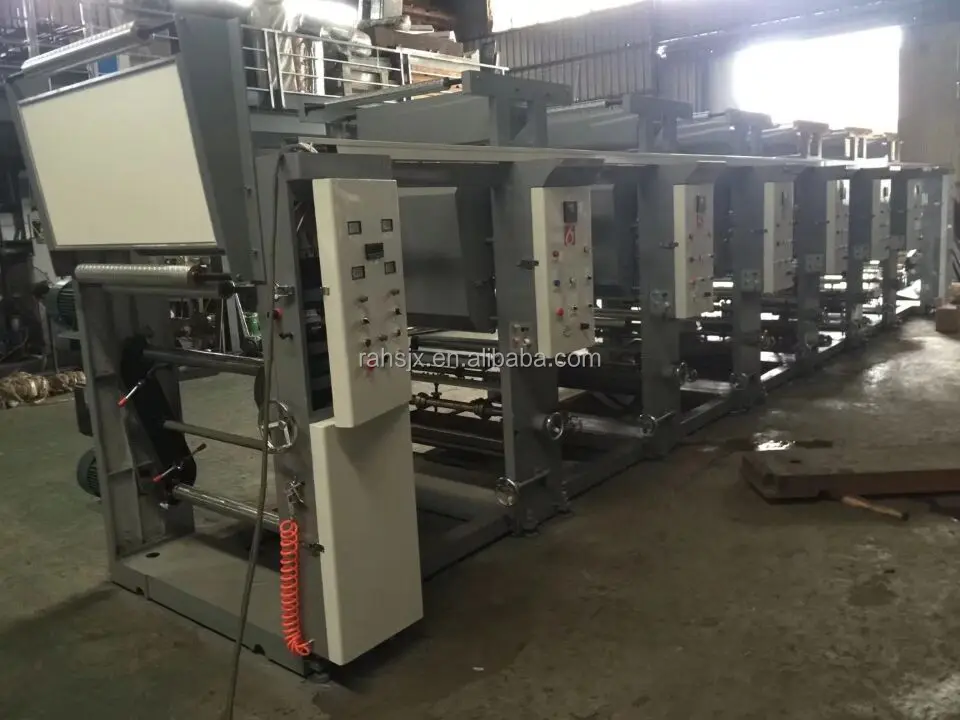

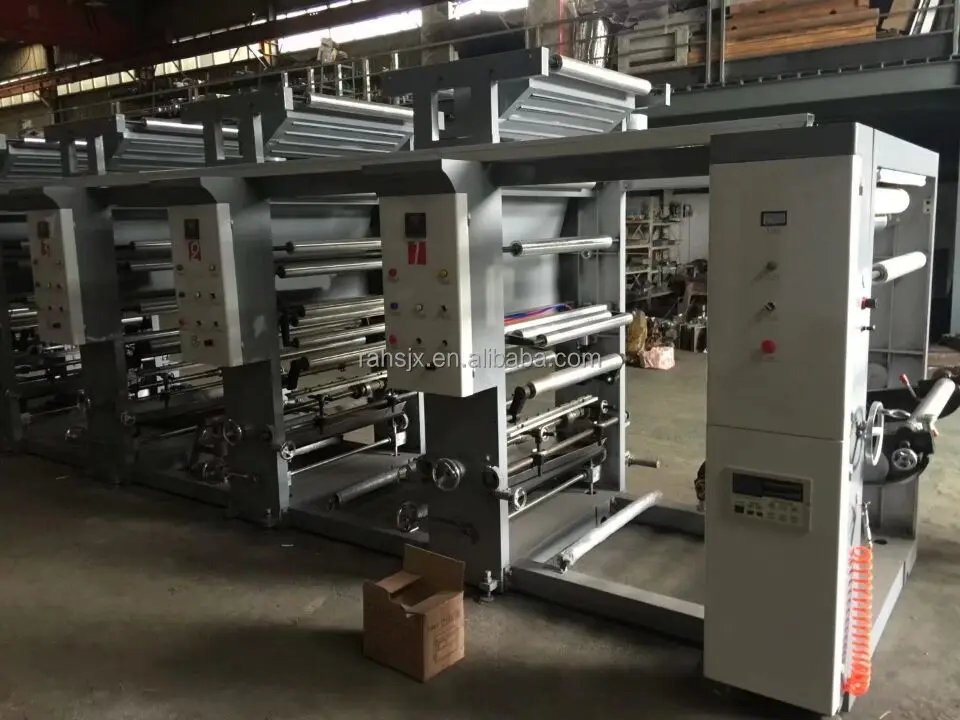

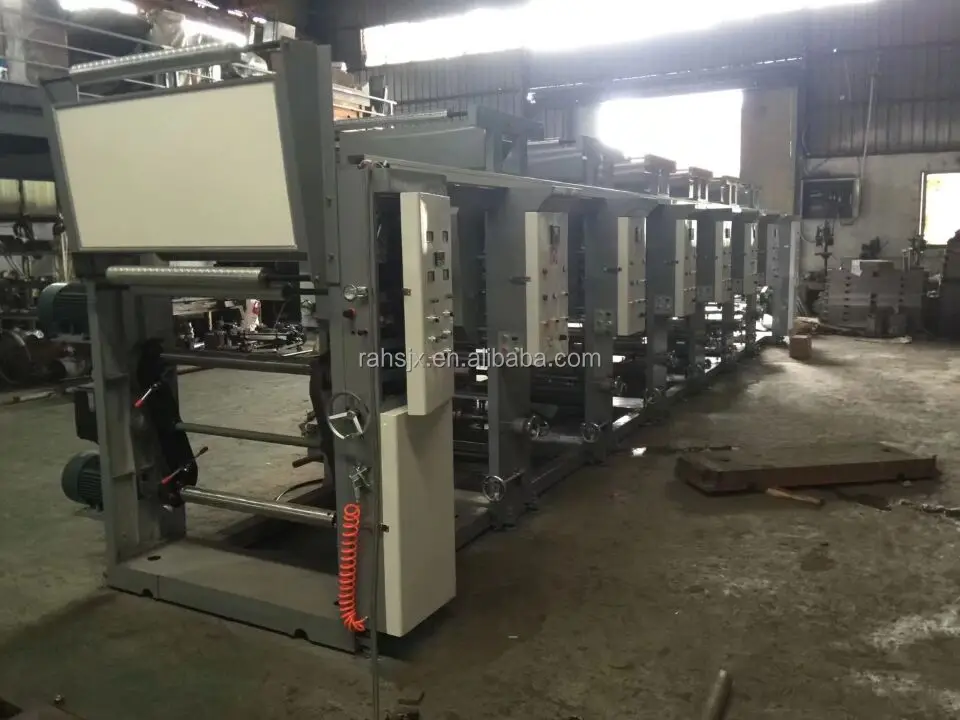

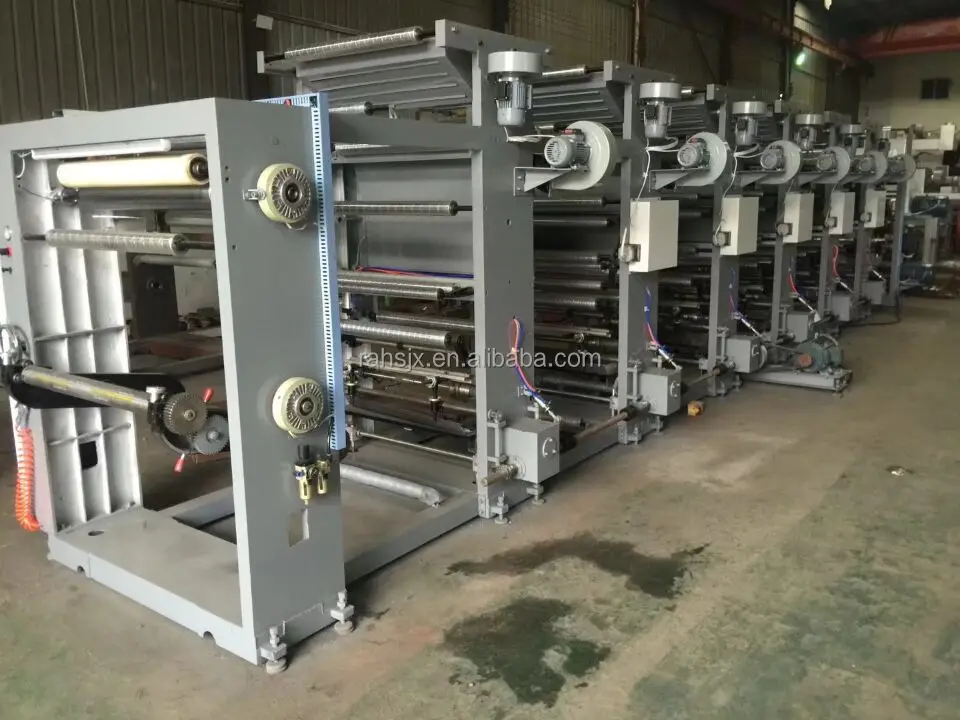

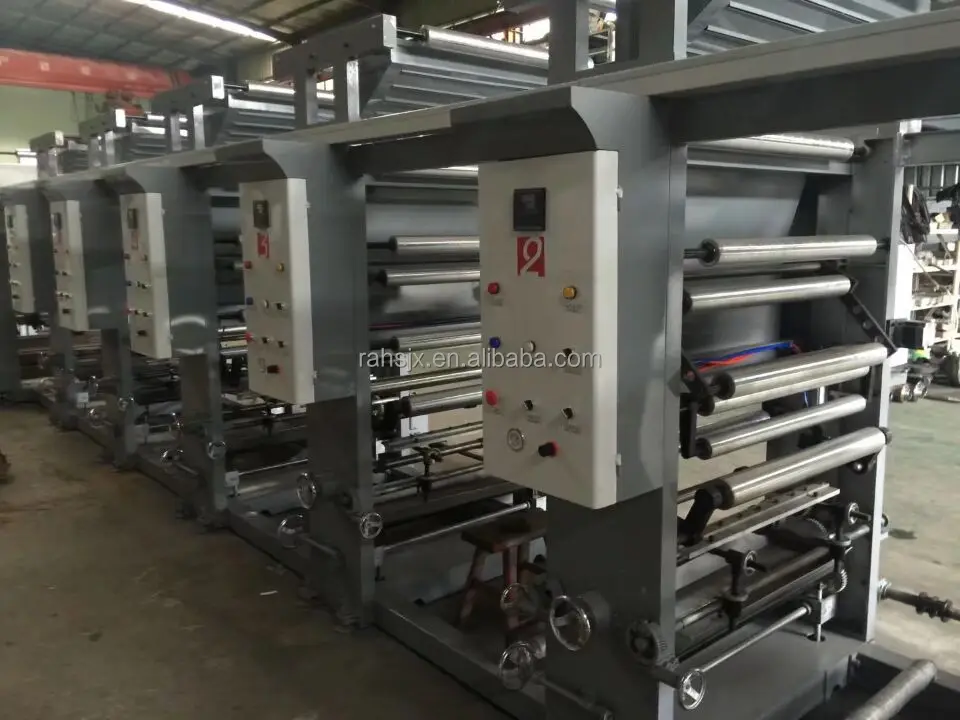

ASY-4600A PE four color nylon gravure printing machine


1.Feature:


1.1 It adopts combination type, the printing can be finished on time continuously with single-double-side many colors.


1.2 Unwinding and rewinding tension magnetic control system.Ink automatic cycle.


1.3 Far infrared heating with drying system with single drying-channel is available for drying film.


1.4 Differential gear is adopted with plates free adjusted with 360.


1.5 Pressure height and parallelism of ink blade are adjustable at will, and it can transversely  reciprocate with main machine too.


1.6 It adopts turnover double-station rolling and releasing structure, receiving and replacing material without stopping the machine.


1.7 Suitable for rolling plastic film, OPP, nonwoven cloth, PVC, paper, aluminum foil, etc.





2. Main Technical Specification












































































Model of Machine



ASY-2600A



ASY-4600A



Unwind width



610mm



610mm



Color number



2colors



4colors



Unit



4unit



6unit



Width of Printing



560mm



560mm



Speed of Printing



50m/min



50m/min



Version Accuracy



±0.25mm



±0.25mm



Length of Printing



200-1000mm



200-1000mm



Unwind diameter



600mm



600mm



Pressure



0.6Mpa



0.6Mpa



Fan power



0.19kw/unit



0.19kw/unit



Heating power



7.5kw



11kw



Total Power



18kw



28kw



Dimensions



4500×1800×2000mm



6500×1800×2000mm






3. picture showroom:

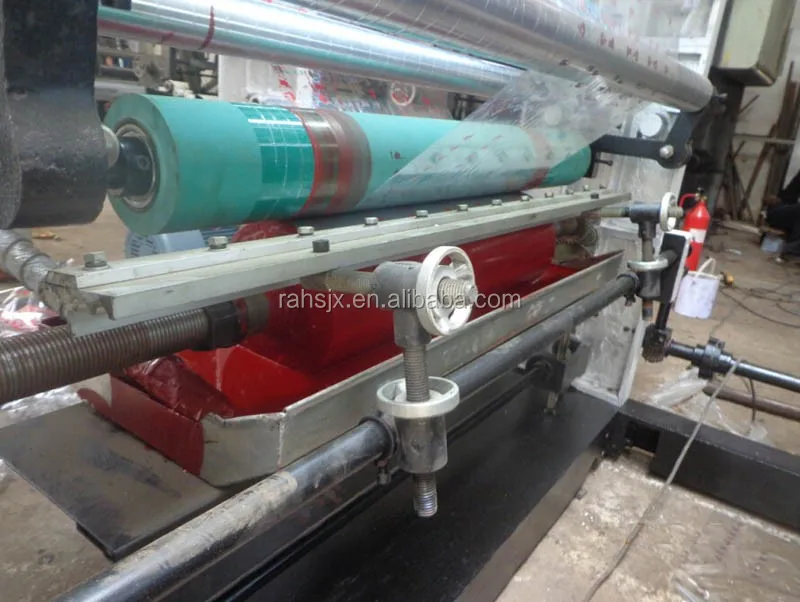

 1) printing unit


gravure printing unit

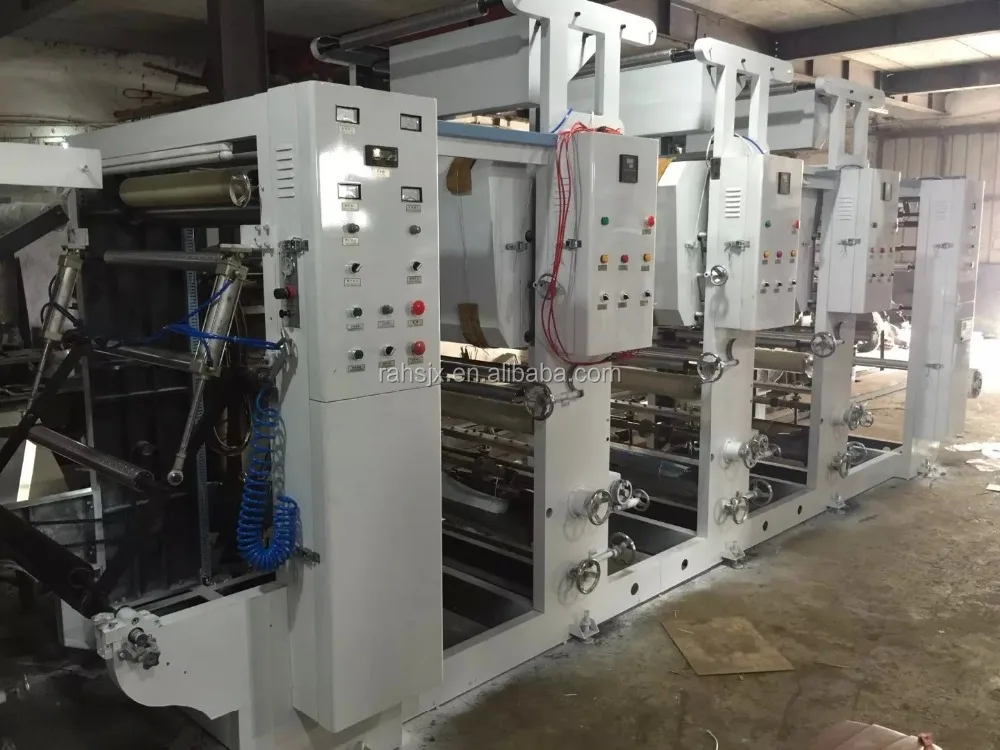

2) machine side photo


4

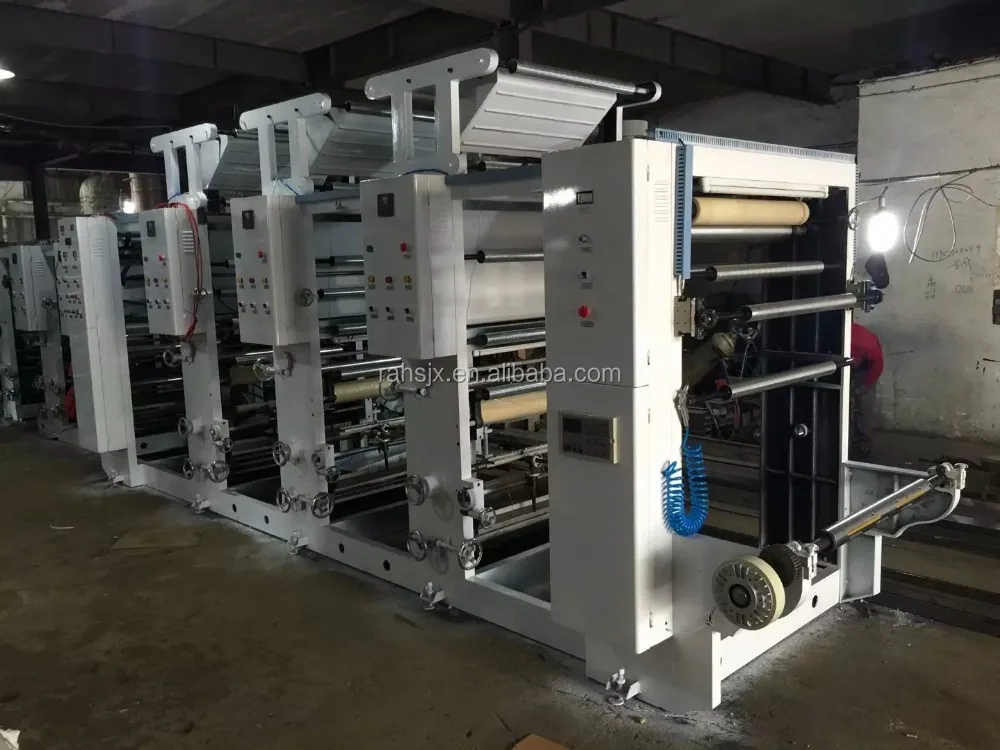

3) left side photo


3





4) print quality show


6
