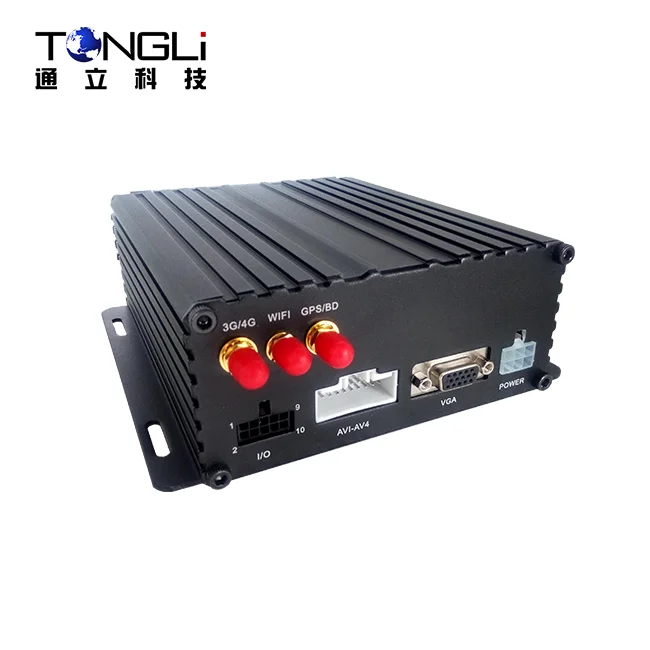

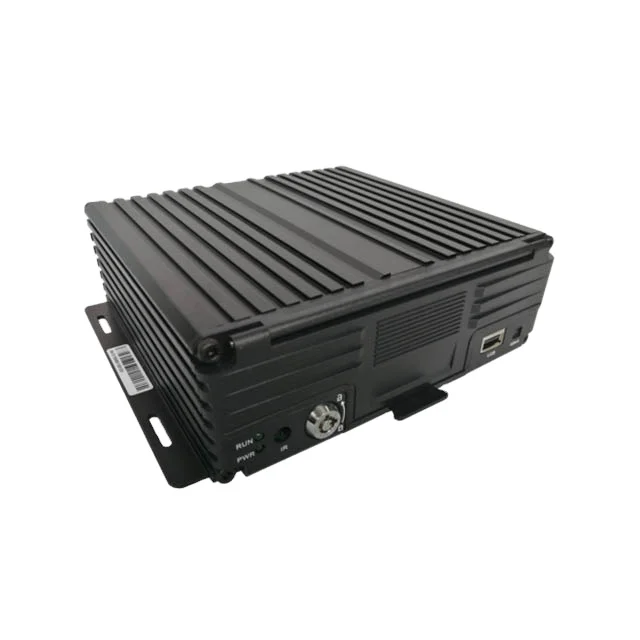

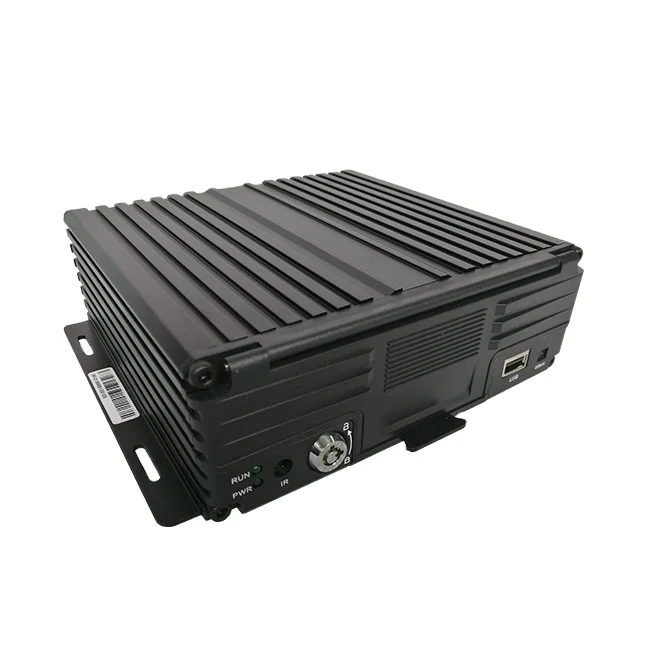

4CH Mobile DVR with 3G GPS Optional for Bus monitoring and GPS tracking

MR9704C: This is 4CH Mobile DVR with 3G GPS for Bus monitoring and GPS tracking. This mobile dvr supports 4 pieces AHD cameras recording with optional video quality like 720P/960H/D1/CIF, it works with 2 pieces SD card with maximum capacity of 256G each and 1 piece of 2TB HDD/SSD, it has built-in ultracapacitor used as backup power, when the device has sudden outage, the ultracapacitor will power on the device immediately to write all the recorded data into the SD card/HDD and then shutdown the system, with this design, you will not loss the key video especially in accident. It has VGA port for HD video output and it supports operating by USB wireless mouse which is fast and easy to setup the device. You can backup the video with USB drive from the USB port on the device. It works with wide voltage range 10-36V DC which is suitable for all kinds of vehicle. If you want the device keep working for hours after vehicle ignition off, you can setup it in the menu, and you don’t need to worry it will run out your vehicle’s battery because the device comes with smart power management system, when detected the battery’s voltage is lower than the gaven value, the device will shutdown automatically and keep ultralow standby consumption (3mA). You can also setup the device to be on/off at the gaven time range, when it goes to the gaven time, the device will boot up and record, and then shutdown automatically after the time range. It has optional functions such as 3G/4G GPS and WiFi, with which you can view the cameras and track your vehicles from PC and cell phone in real time when the device connected with 3G/4G network and you can view and download the videos from PC when the device connected with the server by WiFi network.

1)   How do I get samples?

Please contact me to get the latest price list and then let me know your order detail. I will calculate the door to door delivery cost and send you the Proforma Invoice for payment. We accept payment via TT, Paypal, Western Union. The delivery time will be within 3 working days after the full payment received.

2)   How do I get the User Manual and Softwares?

You can download them from 116.247.83.154:88 in your web browser

3)   How do I get online demo?

You can download the CMS PC client, Android App, iOS App and login with our demo account:

Download address: 116.247.83.157

Username: ahddemo

Password: ahddemo

Server: 116.247.83.157

If you want to see vehicles which are running on the way, please contact me to get the account.

4)  What other accessories should I buy to make the system working?

Besides the Mobile DVR, you will also need to buy ahd cameras, sd card/harddisk, lcd monitor, extension cables etc.

5)   What is your warranty terms?

We provide one year warranty for our products.

6)   How do I get technical support?

We provide online technical support. Your questions will be responded within 6 hours and answered within 12 hours.
