GK 780SLJ Automatic High Speed with Great Quality 4/6 Corner Paper Box Folder Gluer

GK-780SLJ-Automatic High Speed with Great Quality 4/6 Corner paper box folder gluer

Machine Configuration

1.Main wall plate adopt international standard 20mm thick iron plate, hot and cold tempered treatment
2.Main motor adopts Aimoxin motor
3.Folding belt adopts NITTA Japan.
4.Converter adopts Schneider France
5.Synchronous belt adopts Gates USA

6.Bearing adopts NSK Japan

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Machine Parts

Feeder section
1,Independently motorized friction feeder with variable speed
2,Adjustable electronic pile vibrator.
3,Side feed gates fully adjustable to the width of the blank.
4,Two adjustable front feed knives.

1,Independent section with an unparallel lower carrier that guides the box to a parallel handrail that allows a perfect blank alignment.

Pre-folding section
1,Left hand glue flap pre-folder up to 180º.
2,Third crease line pre-folder up to 135º.
3,1st and 3rd crease openers.

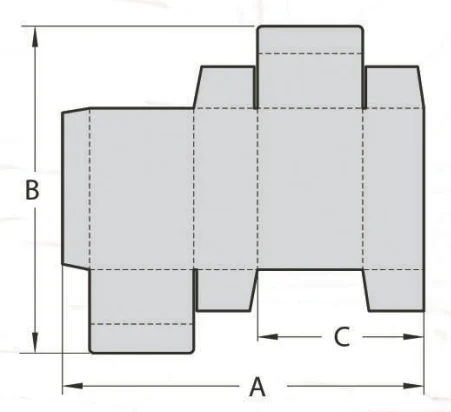

Crash lock bottom section
1,Complete set of folding hooks and helixes to fold the front flaps of the blank smooth and accurately.
2,Set of accessories for B-type lock bottom.

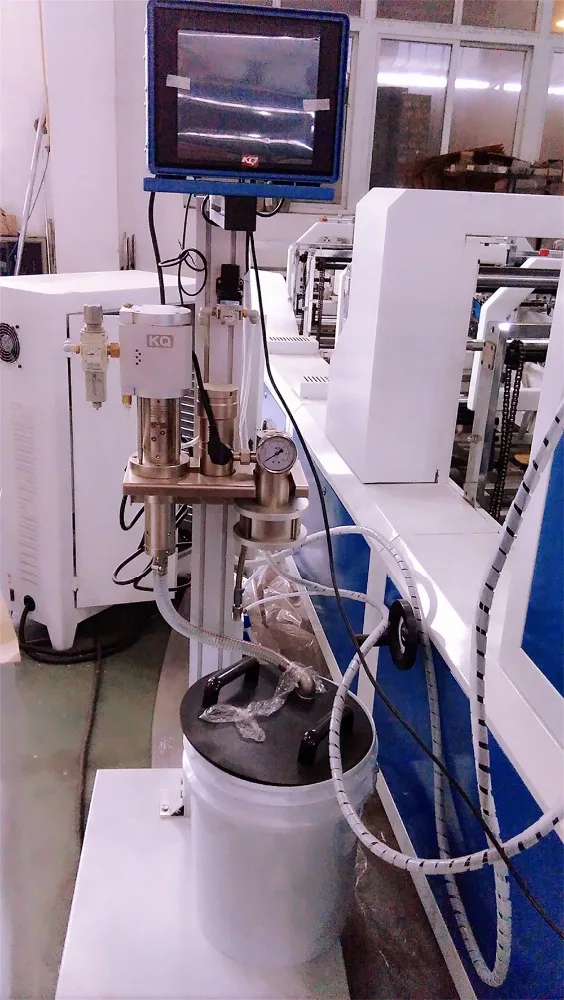

Lower gluing unit

1,One lower (left side) gluing tank.
2,Easy to remove and clean.
3,Electronic upper gluing system by guns..

Folding and Closing section

1,Smooth and accurate folding of 2nd and 4th creases.
2,Outer folding belts adjustable up to 180º with variable speed.
3,Two upper and two lower carriers with 25 mm lower and 30 mm outer belts.
4,Width-wise adjustable heavy duty compression rollers (optional).

Trombone section

1,Upper and lower drive mechanism for lengthwise adjustment.
2,Equipped with automatic belt tension-adjusting system.
3,Continuous and automatic box collection mechanism that ensures a neat transfer to the Press section, guaranteeing a well aligned flow

Press section

Manual and Automatic speed variation in coordination with a photocell.
Upper section moves back and forward, allowing for different box length.
5 meters total length with 3.5 meters effective pressure length.
Pneumatic pressure adjustment.
