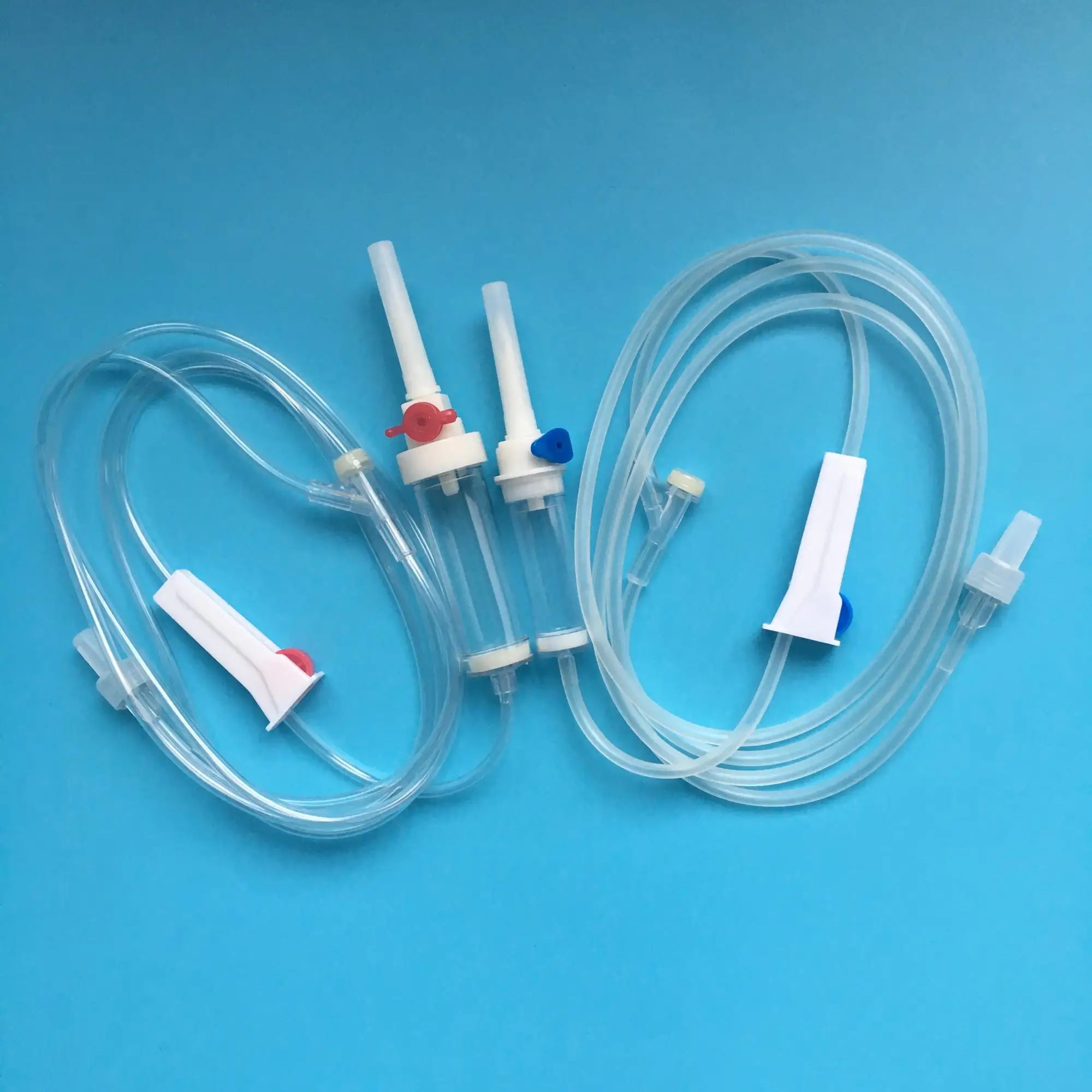

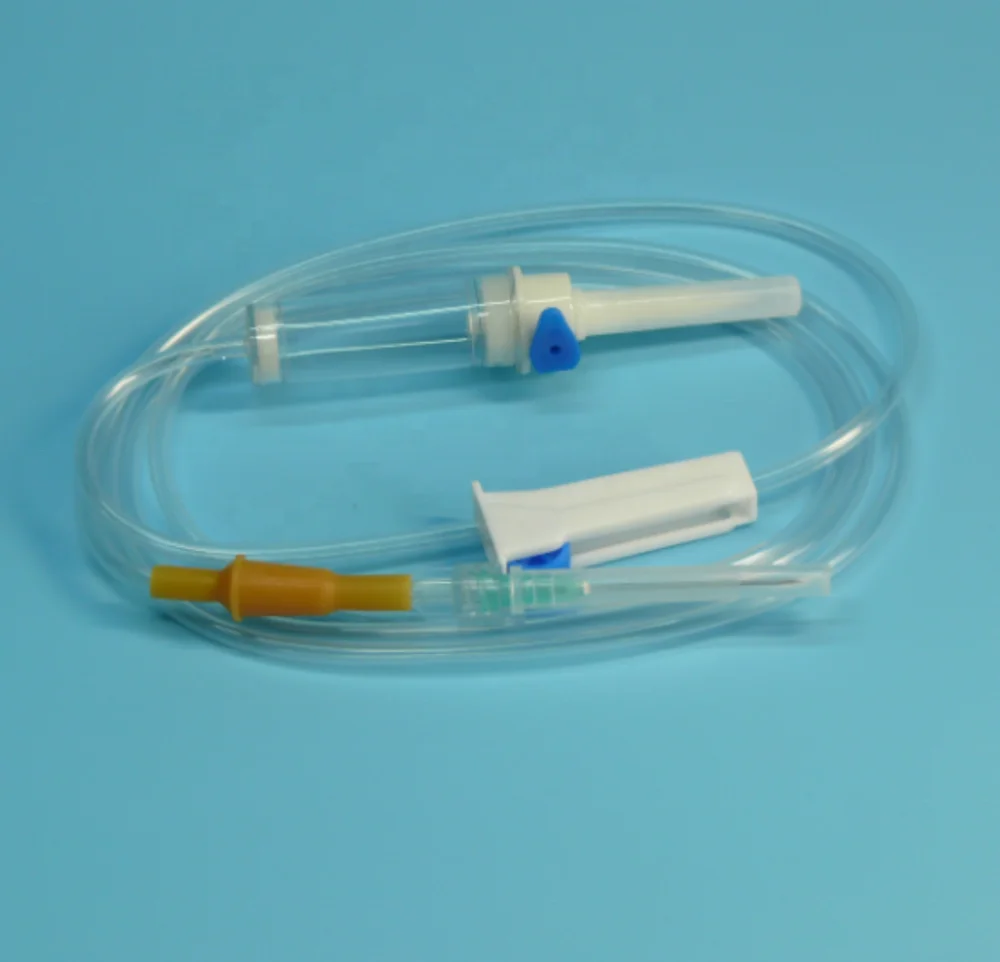

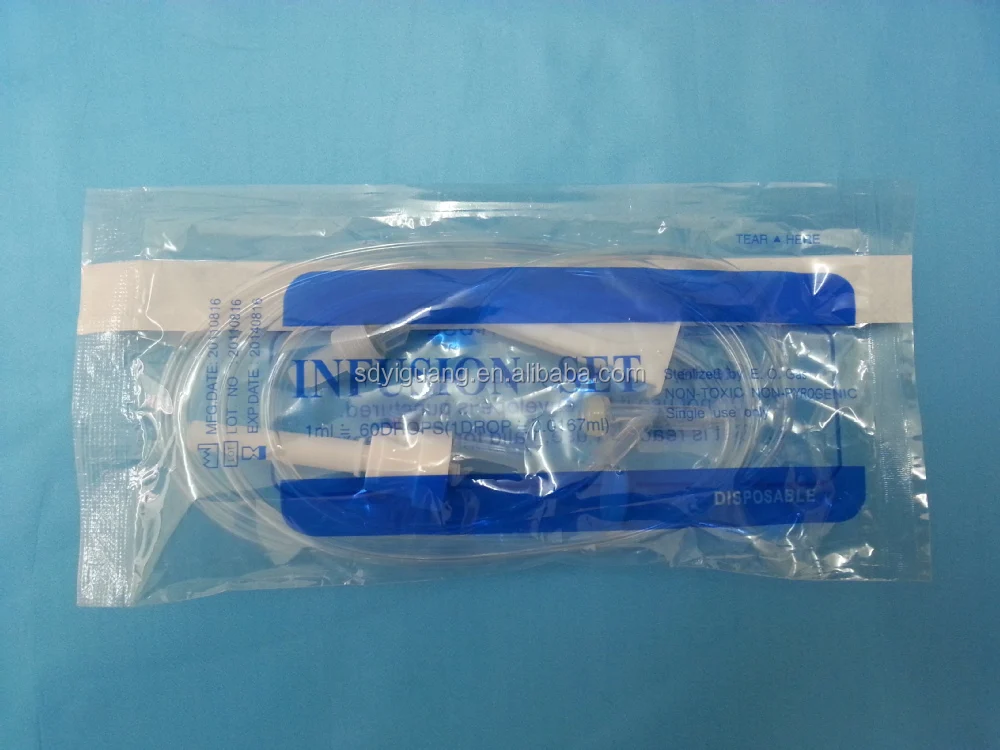

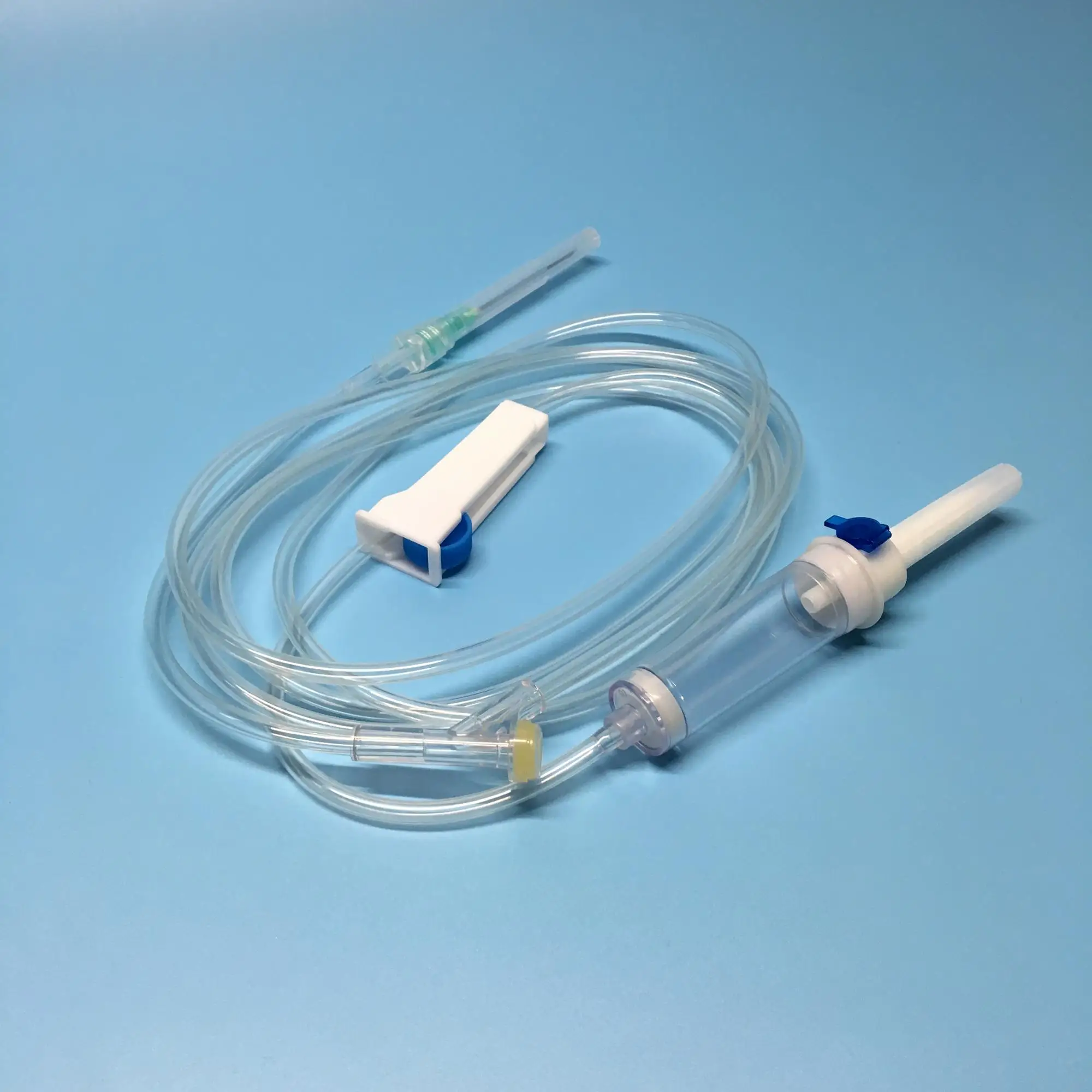

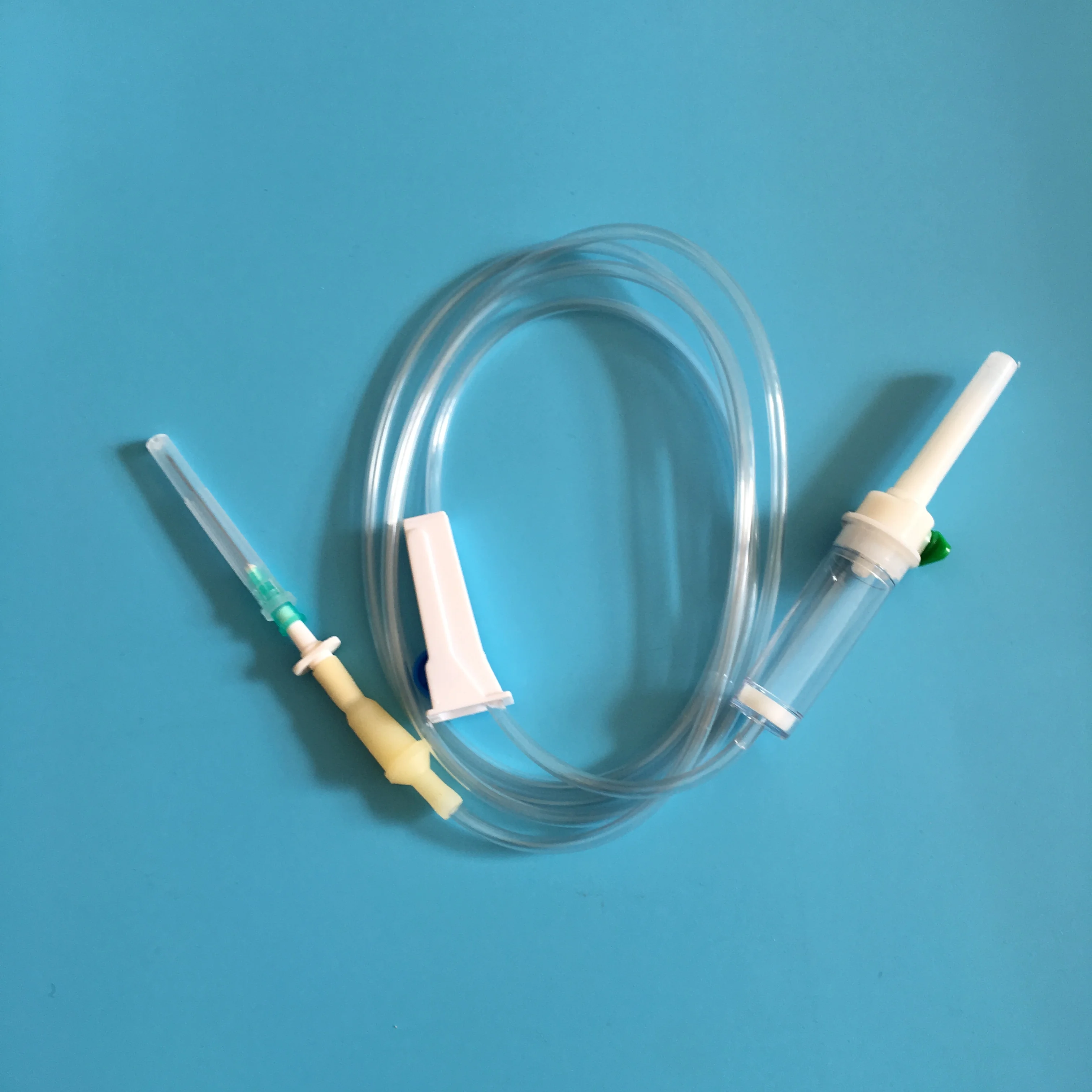

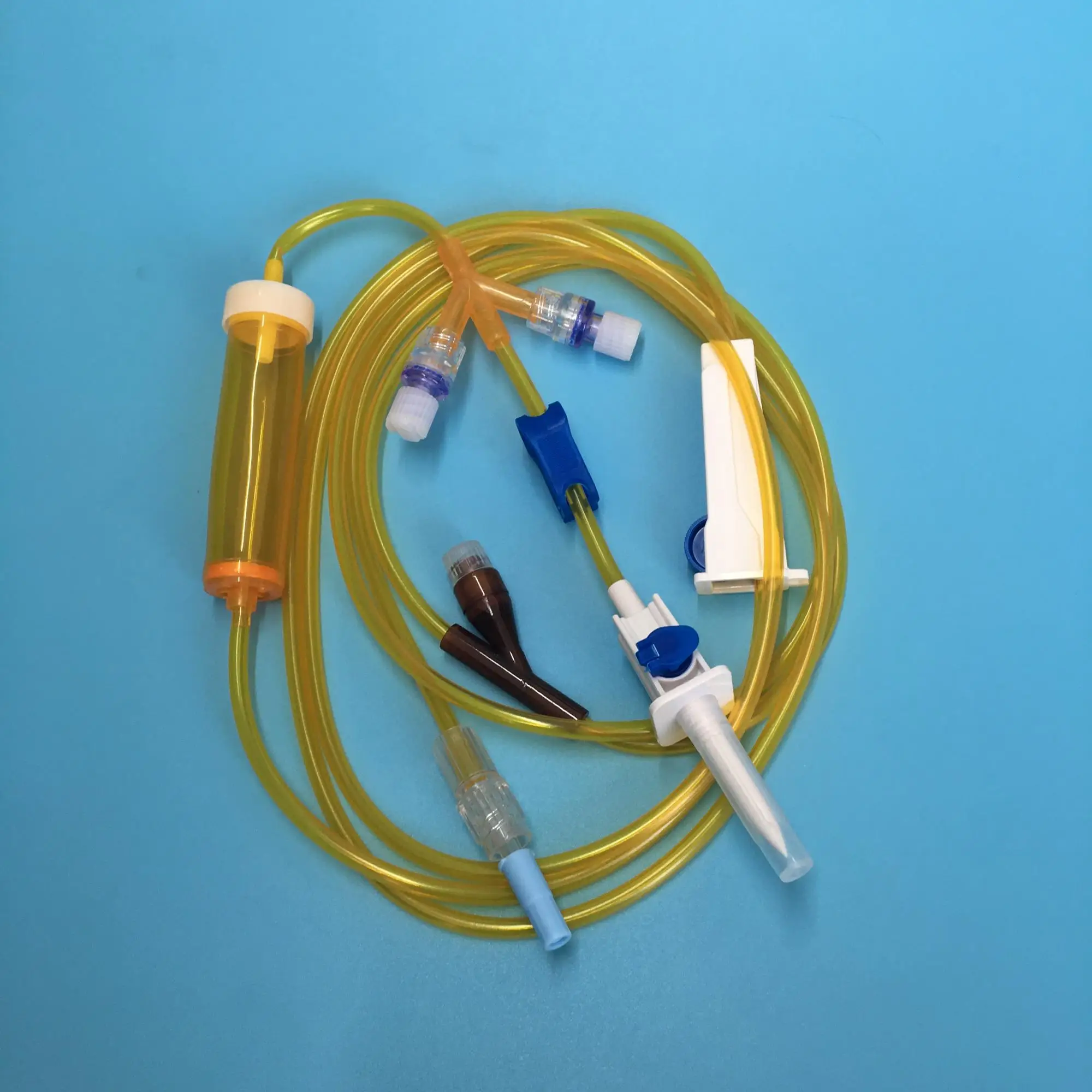

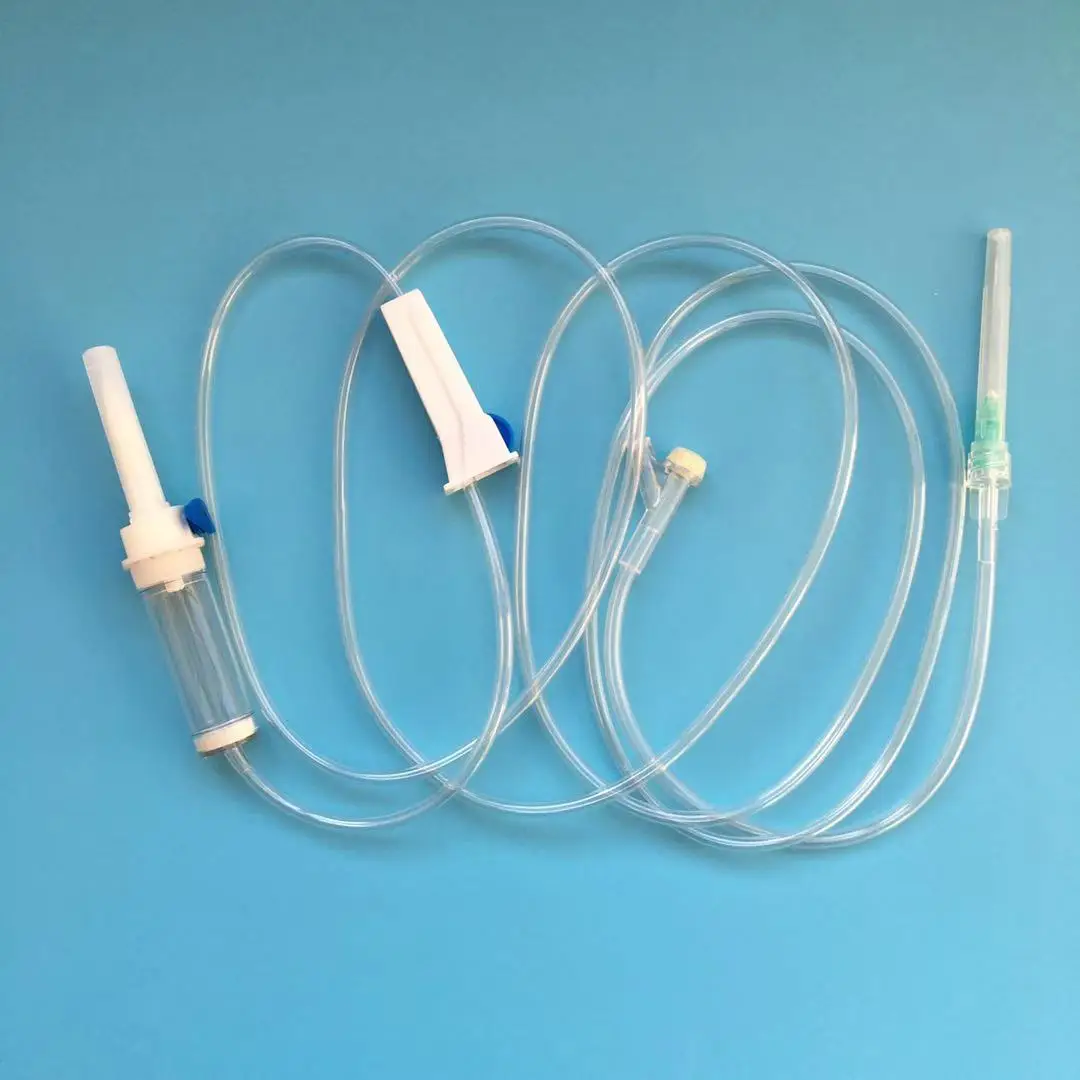

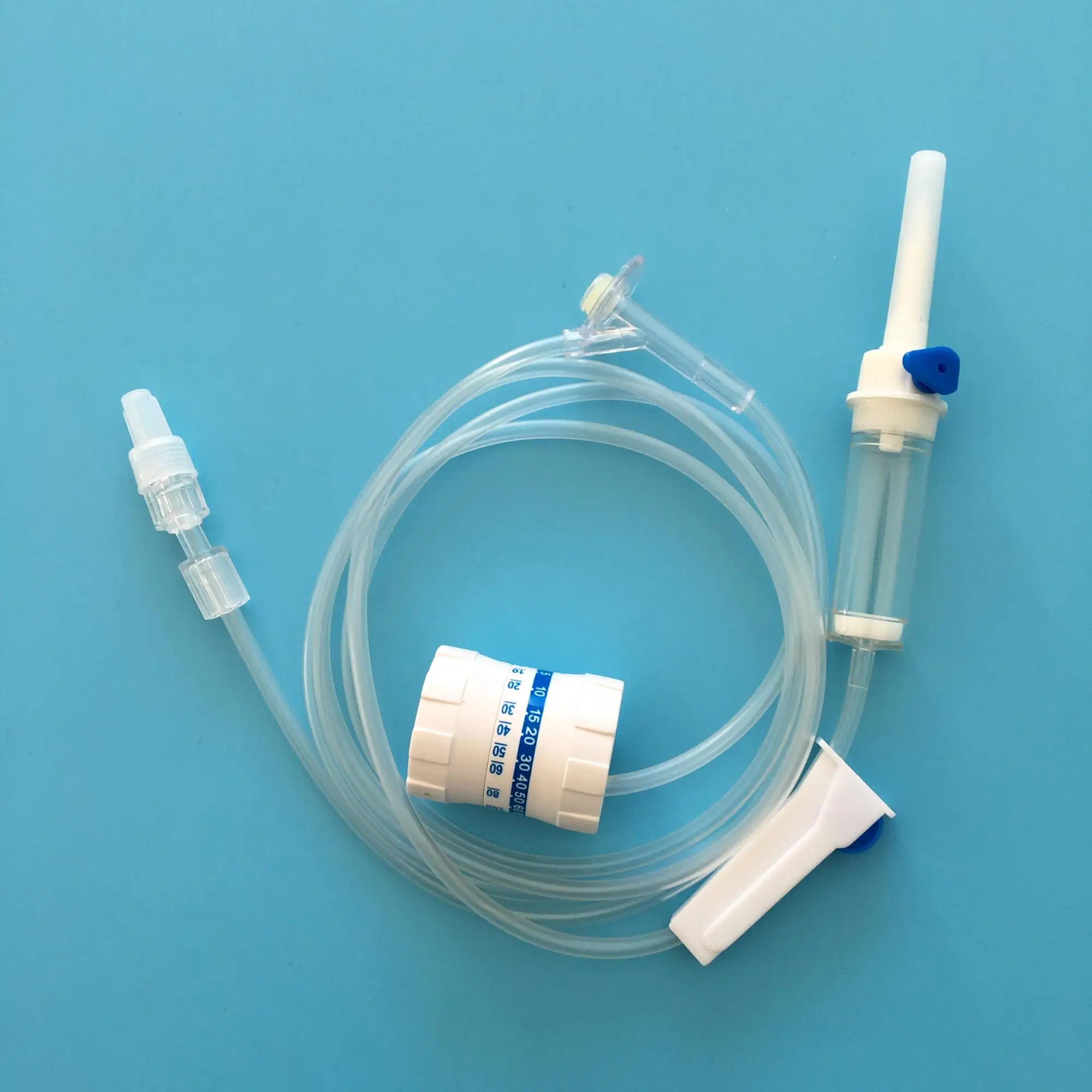

Medical IV drip set Disposable IV Infusion set with filter

Structure:

Spike cap, Spike, Air Vent, Drip chamber, Filter, Tube, Roller clamp,
Latex free Injection site , Connector luer lock, With / without needle

Options:

1.  With or without Air vented
2.  Transparent tube, DEHP-FREE tube
3.  Latex injection bulb, Latex-free bulb, Y-site
4.  Luer slip or luer lock connector
5.  With or without needle (with cap if without needle)

Features:
1.  With CE/ISO13485/ISO9001/GMP/FSC
2.  Non toxic, Pyrogen-free, valid for 5 years
3.  OEM products available

Operation Instruction

1.Open the individual packing and take out the infusion set
2.Firmly close roller clamp
3.Insert plastic spike into container
4.Press drip chamber to fill half of it
5.Open roller clamp and expel air bubbles
6.Close roller clamp again
7.Apply needle into patients vein
8.Adjust flow rate by roller clamp
9.Open air inlet if use glass container and close the air inlet if use soft container
10.Dispose properly as medical waste after use
